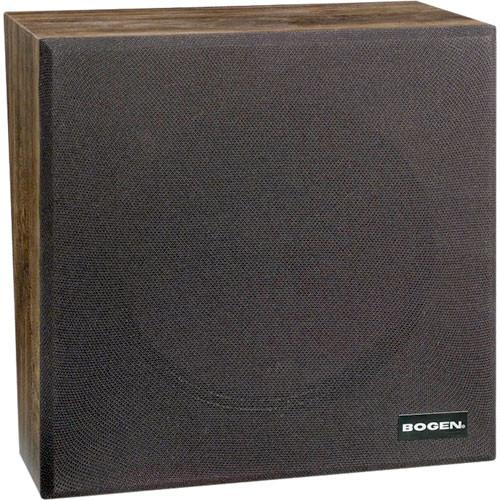

User Manual for Bogen Communications WB1EZ 8" 1W Easy Design Loudspeaker in Wall Baffle Click to enlarge the picture
Contents of the user manual for the Bogen Communications WB1EZ 8" 1W Easy
- Product category: Installed Speakers Bogen Communications
- Brand: Bogen Communications
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bogen Communications Installed Speakers
|
User manual for the Bogen Communications WB1EZ 8" 1W Easy contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bogen Communications product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bogen Communications user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bogen Communications product will considerably shorten its lifespan!
|
Product description Finished in simulated walnut with a black grille cloth, the Bogen Communications WB1EZ is an 8" 1W loudspeaker fully assembled in a wall baffle for paging, talkback, background music, and security applications in schools, warehouses, offices, and more. When fed from a 70V amplifier (available separately), the 8" cone-type loudspeaker delivers a 1W output, a maximum SPL of 95 dB, and a frequency response of 50 Hz to 12 kHz. Screw terminals offer simple connectivity, and a recessed volume control inhibits unintended level changes. The baffle is constructed of particle board to maintain lightness, and features a sloping front panel to improve downward dispersion. - 1W single-tap configuration
- Works with 70V constant-voltage amplifiers
- Screw terminals connections for fast wire lead hook-up
- Fully assembled in a particle board wall baffle
- Sloping front panel for enhanced downward dispersion
- Finished in simulated walnut with black grille cloth
UPC: 765368481853 In the Box Bogen Communications WB1EZ 8" 1W Easy Design Loudspeaker in Wall Baffle (Walnut) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications WB1EZ 8" 1W Easy Design Loudspeaker in Wall Baffle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBogen Communications WB1EZ Specs | Speaker Size | 8" / 20.3 cm with 0.8" / 1.9 cm voice coil | | Maximum Output | 1 W | | Maximum SPL | 95 dB at 4' on axis with 1 W input | | Frequency Response | 50 Hz to 12 kHz | | Impedance | 4900 Ohms (for use with 70V amplifier) | | Inputs | Screw terminals | | Construction Material | Enclosure: 0.4" / 1 cm particle board
Surface: Simulated walnut vinyl | | Dimensions (W x H x D) | 9.5 x 9.5 x 5.3" / 24.1 x 24.1 x 13.3 cm (top)
9.5 x 9.5 x 3.3" / 24.1 x 24.1 x 8.3 cm (base) | | Weight | Magnet: 6 oz / 170 g | | | | Package Weight | 4.5 lb | | Box Dimensions (LxWxH) | 10.3 x 9.9 x 6.0" |
