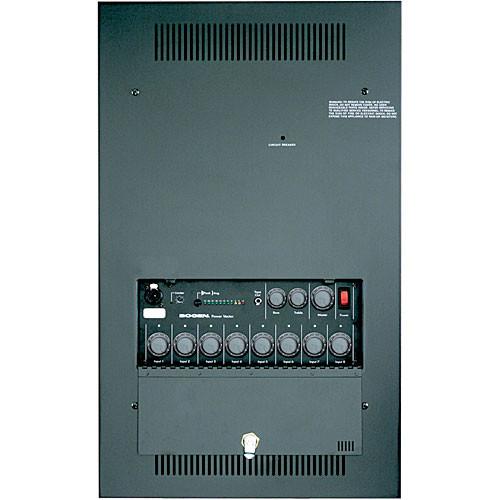

User Manual for Bogen Communications WV100 Wall Mount Power Vector Modular Input Amplifier 100W Click to enlarge the picture
Contents of the user manual for the Bogen Communications WV100 Wall Mount Power
- Product category: Mixer/Amplifiers Bogen Communications
- Brand: Bogen Communications
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bogen Communications Mixer/Amplifiers
|
User manual for the Bogen Communications WV100 Wall Mount Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bogen Communications product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bogen Communications user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bogen Communications product will considerably shorten its lifespan!
|
Product description The Bogen WV100 Wall Mount Power Vector Modular Input Amplifier 100W with 8 module bays for a wide array of inputs and outputs. Modules are available for signal processing and inputs such as: balanced and unbalanced inputs; stereo or mono; telephone systems/PBXs; transformer-isolated; microphones; tone generator; and bridging. The Power Vector automatically senses each module and inserts it into the signal path. A 5-position barrier strip allows for 4/8ohm or 25/70V output loads. Wall mounting is simplified with flush and surface options (sold separately) while a thermally controlled 3-speed fan will keep your amp operating at full power. When you need an amplifier with flexibility and reliability, the Wall Mount Power Vector WV100 is the obvious choice. - 8 module bays for inputs and outputs
Each input has a independant volume control - 4 levels of priority between modules
- 125Hz Lo-cut filter for module 6
- 11-segment LED output level meter monitors the output level of the power amplifier with peak and average meter switch
- Grounded, un-switched AC convenience receptacle with a 500W maximum capacity provided for external equipment
- Remote volume control panel can operate motorized volume control (RVCP sold separately)
UPC: 765368391022 In the Box Bogen Communications WV100 Wall Mount Power Vector Modular Input Amplifier 100W 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications WV100 Wall Mount Power Vector Modular Input Amplifier 100W in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBogen Communications WV100 Specs | Power Output | 100W | | Distortion | <0.5% | | Frequency Response | Transformer: 45-20,000Hz
Direct output: 20-20,000Hz | | Signal to Noise Ratio | Fundamental: -94dB
With Aux Module: -70dB
With Mic Module: -60dB
With Tel Module: -70dB | | Output Impedance | Transformer-Coupled: 70V, 25V, 8 ohms (balanced or unbalanced)
Direct Coupled: 4 ohms | | Output Connections | Pre-EQ (RCA) x 1
Signal Processor (RCA) x 1
2 module bays
Tape Out | | Input Connections | 8 module bays | | Specialties | Thermistor attached to heat sink
Electronic overload protection(auto reset)
3-speed cooling fan | | Dimensions | 14.13 x 21" (358.78 x 533.4mm) | | Weight | 27 lbs (12.24kg) | | | | Package Weight | 30.9 lb | | Box Dimensions (LxWxH) | 26.5 x 18.5 x 9.2" |
