Bogen Communications X300 Black Max Rackmount

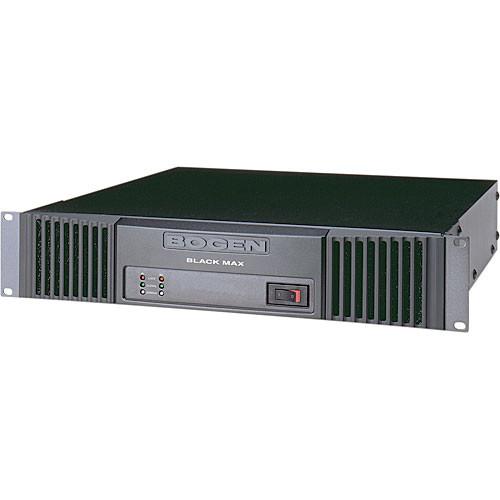

User Manual for Bogen Communications X300 Black Max Rackmount 70V Power Amplifier

• Product category: 70-Volt Amplifiers Bogen Communications
• Brand: Bogen Communications
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Bogen Communications 70-Volt Amplifiers

Product description

• 300W per channel at 70V with independent low-cut filters on each input

• Low noise and distortion with high slew rate

• Highly efficient Class-H amplification driven by a conservatively rated toroidal power transformer

• Transformerless direct drive outputs

• Electronically balanced high-impedance inputs

• Large output heat sinks and dual independently controlled, high-output, variable-speed cooling fans provide reliable cooling and quiet operation while reducing dust accumulation

• Internal electronic components are located outside of the forced air stream flow to ensure minimal required maintenance and cleaning

• Front-mounted fan filters are easily removed for cleaning

• Multiple electronic protections including overcurrent, DC voltage, and thermal circuits

• Clip/limiting circuit continuously monitors the amount of distortion in the output signal and reduces input levels as the amplifier approaches clipping

• Back-Slope AC voltage stabilization regulates the AC energy supplied from the power toroid to improve system performance and reliability despite varying AC supply conditions

• Defeatable energy-conserving sleep mode with instant-on return signal operation reduces wasted heat production in paging systems with intermittent use

• Pluggable terminal strip for sequencing wiring in multi-amp installations

• Sequential turn-on feature minimizes in-rush current from the AC power mains when multiple Black Max amplifiers are daisy-chained together for sequential turn-on; the first amplifier in the series will control the powering up of the other amplifiers with approximately one second of delay between units

• Directly stackable, mounts in two rack spaces without need for extra space above or below

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Bogen Communications X300 Specs

Amplifier Class	Class H
Power Output	300 W per channel at 70 V
Input Sensitivity	1 V or 0.1 V (selectable)
Rated Load Impedance	16 Ohms per channel
Frequency Response	20 Hz to 20 kHz ( Rating 80% users recommend this product to others. And what about you? This product has already been rated by 77 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
