User Manual for Bogen Communications X600 Black Max Rackmount 70V Power Amplifier Click to enlarge the picture
Contents of the user manual for the Bogen Communications X600 Black Max Rackmount
- Product category: 70-Volt Amplifiers Bogen Communications
- Brand: Bogen Communications
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bogen Communications 70-Volt Amplifiers
|
User manual for the Bogen Communications X600 Black Max Rackmount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bogen Communications product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bogen Communications user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bogen Communications product will considerably shorten its lifespan!
|

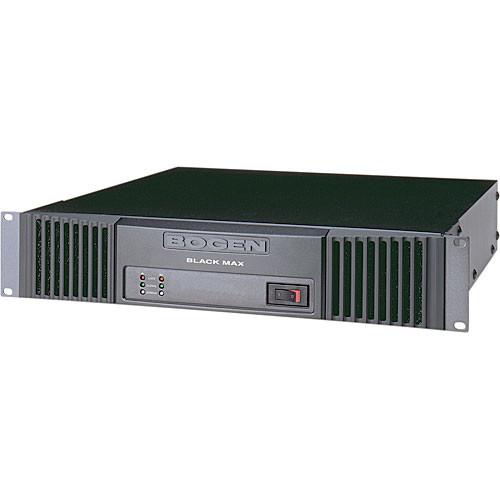

Product description The Bogen Communications X600 is a Black Max Series rackmount 70V power amplifier offering powerful, full-range amplification for constant-voltage systems in restaurants, retail stores, offices, and more. Its efficient Class-H amp design delivers 600W to each of the two channels while maintaining low noise and distortion. Per-channel volume control, input sensitivity selection, and 60 Hz low-cut filters allow easy optimization of levels and tone. The 3-pin pluggable terminal strip inputs are electronically balanced, while the 5-pin barrier strip output is transformerless. Independent variable-speed fans keep the X600 cool even when mounting does not allow for open space above or below the amplifier. Built-in voltage stabilization and multiple protection circuits ensure reliable operation hour after hour. The auto-sleep feature makes this amp ideal for continuously powered systems. Integrated power sequencing for controlling multiple Black Max amps in large systems helps prevent in-rush problems. These features are packed into a heavy-duty steel chassis that occupies just two rack spaces. - 600W per channel at 70V with independent low-cut filters on each input
- Low noise and distortion with high slew rate
- Highly efficient Class-H amplification driven by a conservatively rated toroidal power transformer
- Transformerless direct drive outputs
- Electronically balanced high-impedance inputs
- Large output heat sinks and dual independently controlled, high-output, variable-speed cooling fans provide reliable cooling and quiet operation while reducing dust accumulation
- Internal electronic components are located outside of the forced air stream flow to ensure minimal required maintenance and cleaning
- Front-mounted fan filters are easily removed for cleaning
- Multiple electronic protections including overcurrent, DC voltage, and thermal circuits
- Clip/limiting circuit continuously monitors the amount of distortion in the output signal and reduces input levels as the amplifier approaches clipping
- Back-Slope AC voltage stabilization regulates the AC energy supplied from the power toroid to improve system performance and reliability despite varying AC supply conditions
- Defeatable energy-conserving sleep mode with instant-on return signal operation reduces wasted heat production in paging systems with intermittent use
- Pluggable terminal strip for sequencing wiring in multi-amp installations
- Sequential turn-on feature minimizes in-rush current from the AC power mains when multiple Black Max amplifiers are daisy-chained together for sequential turn-on; the first amplifier in the series will control the powering up of the other amplifiers with approximately one second of delay between units
- Directly stackable, mounts in two rack spaces without need for extra space above or below
UPC: 765368140019 In the Box Bogen Communications X600 Black Max Rackmount 70V Power Amplifier (600W per Channel) 2 x Filters 2 x Grilles 4 x Rubber Feet with Screws 2 x Rack Ears 2 x 3-Position Terminal Strips 4-Position Terminal Strip Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications X600 Black Max Rackmount 70V Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBogen Communications X600 Specs | Amplifier Class | Class H | | Power Output | 600 W per channel at 70 V | | Input Sensitivity | 1 V or 0.1 V (selectable) | | Rated Load Impedance | 8 Ohms per channel | | Frequency Response | 20 Hz to 20 kHz (
