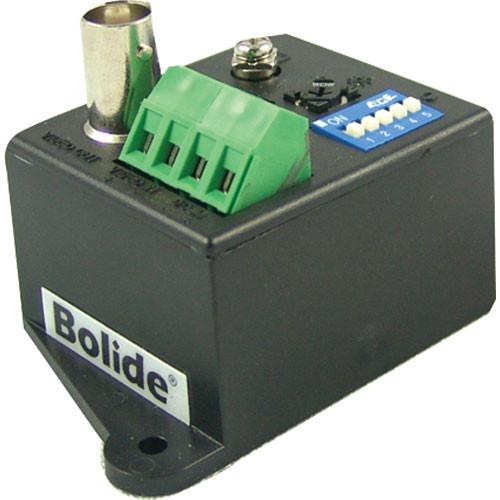

User Manual for Bolide Technology Group BE8016 AR 1-Channel Active UTP Video Receiver Click to enlarge the picture
Contents of the user manual for the Bolide Technology Group BE8016 AR 1-Channel
- Product category: Signal Extenders Bolide Technology Group
- Brand: Bolide Technology Group
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bolide Technology Group Signal Extenders
|
User manual for the Bolide Technology Group BE8016 AR 1-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bolide Technology Group product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bolide Technology Group user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bolide Technology Group product will considerably shorten its lifespan!
|
Product description The Bolide Technology Group BE8016/AR converts the video signal coming over a UTP cable into a standard BNC video signal recognizable by a conventional TV, VCR, DVR, etc. Along with color and B/W video, this unit will also convert alarm and Coaxitron (up the coax) PTZ control signals received from the same UTP cable into standard RS-485/RS-422 control protocol signals.
By installing a UTP transmitter at the source end and a UTP converter at the receiving end, users will be able to send high resolution color or B/W video plus control signals over relatively long distances via a single UTP cable. In addition to allowing longer cable runs, UTP also supports multi-video channels and is less costly when compared to a BNC cable of the same length. These advantages make UTP the cable of choice for professional CCTV operations. - Converts video and control signals from UTP into standard connectors
- Supports long distance UTP cable runs (1500m for color video, 2400m for B/W video)
- On-board distance and position range selectors
- Built-in transient system and ground lifting for protection against damaging electrical spikes
In the Box Bolide Technology Group BE8016/AR 1-Channel Active UTP Video Receiver AC Adapter (12 VDC) 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bolide Technology Group BE8016 AR 1-Channel Active UTP Video Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBolide Technology Group BE8016/ AR Specs | Video Inputs | UTP x1 | | Video Outputs | BNC x1 | | Maximum Cable Length Supported | Color Video: 5000 ft (1500m)
B/W Video: 8000 ft (2400m) | | Recommended Cable | CAT-5 UTP | | Power Requirements | 12 VDC (includes AC adapter) | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 4.5 x 3.6 x 2.1" |
