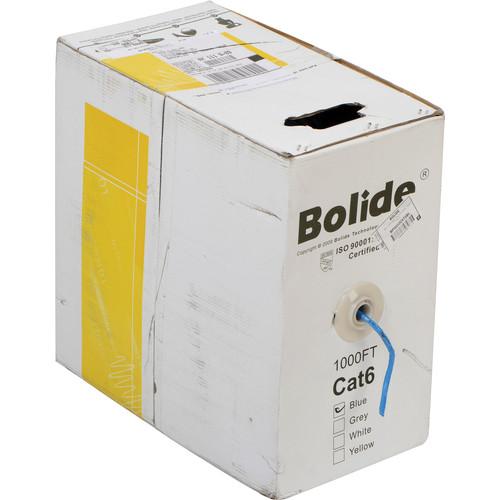

User Manual for Bolide Technology Group CAT6 Twisted Pair Networking Cable Click to enlarge the picture
Contents of the user manual for the Bolide Technology Group CAT6 Twisted Pair
- Product category: Bulk Ethernet Cables Bolide Technology Group
- Brand: Bolide Technology Group
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bolide Technology Group Bulk Ethernet Cables
|
User manual for the Bolide Technology Group CAT6 Twisted Pair contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bolide Technology Group product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bolide Technology Group user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bolide Technology Group product will considerably shorten its lifespan!
|
Product description Designed for voice, data, and security uses, the blue CAT6 Twisted Pair Networking Cable from Bolide Technology Group adheres to the Cat6 standard and comes in a length of 1,000 feet. This cable is marked by the foot and packaged in an easy-to-pull box to help simplify installation. Underneath the cable's PVC jacket is copper-clad aluminum wire that has been sparker tested up to 1200V. Protection is provided by a limited one year warranty. General Features - Copper-clad aluminum wire
UPC: 811613020619 In the Box Bolide Technology Group CAT6 Twisted Pair Networking Cable (1000', Blue) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bolide Technology Group CAT6 Twisted Pair Networking Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBolide Technology Group BP0033/CAT6-BLUE Specs | | | AWG | 24 AWG | | Material | Copper-clad aluminum | | Conductor Size | 1/0.52±0.008 mm | | | | Layer | A layer + Two layer | | Material | HD-PE + Flame-retardant PE | | O D | 0.98 mm | | NO. | 4P | | | | Minimum Average Thickness | 0.6 mm | | Material | PVC | | Color | Blue | | OD | 6.0±015 mm | | | | Nom. Characteristic Impedance | 100+/-15 Ohms | | Nom. Mutual Capacitance | 15 pF/ft | | Nom. Velocity of Propogation | 70% | | Nom. Delay | 538 ns / 100 m | | Minimum Return Loss | 19.24 dB | | DC Resistance Unbalance | 3% maximum | | Storage Temperature Range | -4 to 160°F / -20 to 71°C | | Installation Temperature Range | 32 to 140°F / 0 to 60°C | | Operating Temperature Range | -4 to 140°F / -20 to 60°C | | | | Length | 1,000' / 304.8 m | | Weight | Not specified by manufacturer | | | | Package Weight | 17.65 lb | | Box Dimensions (LxWxH) | 16.0 x 15.8 x 8.7" |
