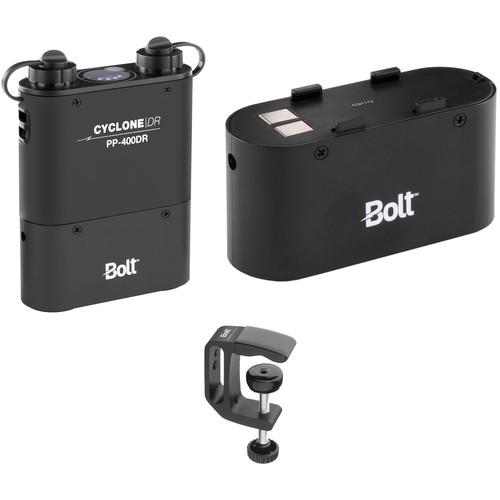

User Manual for Bolt Cyclone DR PP-400DR Dual Outlet Power Pack Kit with Spare Battery & Clamp Click to enlarge the picture
Contents of the user manual for the Bolt Cyclone DR PP-400DR Dual Outlet
- Product category: Battery Packs Bolt
- Brand: Bolt
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bolt Battery Packs
|
User manual for the Bolt Cyclone DR PP-400DR Dual Outlet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bolt product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bolt user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bolt product will considerably shorten its lifespan!
|
Product description The Cyclone DR PP-400DR Dual Outlet Power Pack Kit with Spare Battery & Clamp from Bolt features the power pack along with a spare battery and a mounting clamp. This allows you to easily and quickly set up your power pack and flash on a light stand and make sure you don't run out of power mid-shoot.
The PP-400DR features dual plugs for powering two flashes at the same time. It works with most on-camera flash units with high-voltage (HV) connections, including those from Nikon, Canon, Sony, Bolt, Sunpak, Quantum, Vivitar, and Metz (cables required and sold separately). The pack has a fast recycle time of approximately 1 second and provides up to 1400 full-power flashes, depending on the flash and settings used. The Cyclone DR's flash cable ports can be locked once the cable is attached, making the connection extra secure. The unit weighs a mere 1.2 lb.
The power pack's microcontroller unit prevents overheating via integrated software and hardware protection. The included PP-400BP Cyclone DR Battery Pack is removable, allowing you to charge it while powering the Cyclone power pack with a second identical battery (sold separately). Also supplied is a two-prong 100-240V AC charger for worldwide use.
Four LEDs indicate remaining battery charge; one light means 25% or lower, two lights mean 25-50%, three mean 50-75%, and all four mean 75% or higher. Additionally, the Cyclone DR comes with an adjustable neoprene shoulder strap that has a non-slip rubber underside and a quick-release buckle. It attaches to the strap lug on the power pack. The Cyclone also features a built-in belt clip that also allows it to mount to the clamp, as well as two rubberized feet for stability. - Bolt Cyclone DR PP-400DR Dual Outlet Power Pack
- BOLT Cyclone & Compact Battery Packs
The Cyclone DR PP-400DR Dual Outlet Power Pack from Bolt features dual plugs for powering 2 flashes at the same time. It works with most on-camera flash units with high-voltage (HV) connections, including those from Nikon, Canon, Sony, Bolt, Sunpak, Quantum, Vivitar, and Metz (cables required and sold separately). The pack has a fast recycle time of approximately 1 sec and provides up to 1400 full-power flashes, depending on the flash and settings used. The Cyclone DR's flash cable ports can be locked once the cable is attached, making the connection extra secure. The unit weighs a mere 1.2 lb.
The power pack's microcontroller unit prevents overheating via integrated software and hardware protection. The included PP-400BP Cyclone DR Battery Pack is removable, allowing you to charge it while powering the Cyclone power pack with a second identical battery (sold separately). Also supplied is a 2-prong 100-240 VAC charger for worldwide use. Four LED's indicate remaining battery charge; one light on means 25% or lower, two lights mean 25-50%, three mean 50-75%, and all four mean 75% or higher. Additionally, the Cyclone DR comes with an adjustable neoprene shoulder strap that has a non-slip rubber underside and a quick-release buckle. It attaches to the strap lug on the power pack. The Cyclone also features a built-in belt clip, as well as two rubberized feet for stability. UPC: 847628565715 - Bolt PP-400BP Cyclone DR Lithium-Ion Battery Pack (11.1 V, 4500 mAh)
- BOLT Cyclone & Compact Battery Packs
The PP-400BP Cyclone DR Lithium-Ion Battery Pack from Bolt powers their Cyclone DR PP-400DR Dual Outlet Power Pack. It has an output voltage of 11.1 V and a capacity of 4500 mAh. The battery is identical to the one included with the power pack, so you can charge one while powering the Cyclone with the other. Use the 100-240V AC charger that was supplied with your power pack. UPC: 847628565739 - Bolt PP-MCX Mounting Clamp for Small Lights & Portable Power Pack
- BOLT Cyclone & Compact Battery Packs
Easily mount your power pack to a light stand or attach a multitude of other items where you need them by using the versatile PP-MCX Mounting Clamp from Bolt. The clamp opens from 0.1-1.8" for use on light stands, tables, desks, doors, and other flat surfaces and it features a belt clip slot that allows users to easily hang their power pack. On the back two 1/4"-20 threads at different angles and one 3/8"-16 thread are available for mounting lights and other accessories. To prevent damage, the clamp features a rubber coating and it has the ability to hold up to 2 lb of gear when attached to a light stand or 8 lb on a flat base. UPC: 847628588578 In the Box - Cyclone DR PP-400DR Dual Outlet Power Pack dtrwrrbfseqt
- Shoulder Strap
- AC Charger BO-1008 with Power Cord - 5' / 1.5m
- Limited 1-Year Warranty
- PP-400BP Cyclone DR Lithium-Ion Battery Pack (11.1 V, 4500 mAh)
- PP-MCX Mounting Clamp for Small Lights & Portable Power Pack
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bolt Cyclone DR PP-400DR Dual Outlet Power Pack Kit with Spare Battery & Clamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Bolt Cyclone DR PP-400DR Dual Outlet Power Pack
| Battery Type | Chemistry: lithium-ion
Output voltage: 11.1 VDC
Capacity: 4500 mAh | | Recycle Time | Approx. 1.0 sec with hot-shoe mounted flash | | Number of Flashes | 1200-1400 | | Status Indicators | Power pack:
2 x orange LEDs indicate flashes are fully recycled
4 x blue LEDs show remaining battery charge
Charger:
Red light indicates battery being charged
Green light indicates battery fully charged | | Belt Clip | Attached | | Shoulder Strap Loops | Yes | | Input Power | 100-240 VAC, 50/60 Hz, 0.6 A | | Certifications | Battery: RoHS, CE
Charger: UL | | Operating Temperature | -4 to 104°F (-20 to 40°C) | | Operating Humidity | 0-85% | | Dimensions | Power pack: 4.33 x 6.29 x 1.57" (11 x 16 x 4.0 cm)
Charger: 3.75 x 1.25 x 1.62" (9.5 x 3.2 x 4.1 cm) | | Weight | 1.2 lb (0.54 kg) | | | | Box Dimensions (LxWxH) | 10.0 x 8.2 x 2.8" | - Bolt PP-400BP Cyclone DR Lithium-Ion Battery Pack (11.1 V, 4500 mAh)
| Chemistry | Lithium-ion | | Output Voltage | 11.1 V DC | | Capacity | 4500 mAh | | Certifications | RoHS, CE | | | | Box Dimensions (LxWxH) | 4.4 x 2.7 x 1.8" | - Bolt PP-MCX Mounting Clamp for Small Lights & Portable Power Pack
| Load Capacity | Light Stand: 2 lb / 0.9 kg
Flat Base: 8 lb / 3.6 kg | | Clamp Range | 0.1-1.8" / 0.3-4.5 cm | | Slot | 2" / 5.1 cm | | Dimensions | 2.6 x 1.0 x 3.5" / 6.5 x 2.5 x 9.0 cm | | Weight | 4.6 oz / 130 g | | | | Box Dimensions (LxWxH) | 3.5 x 3.0 x 0.9" |
