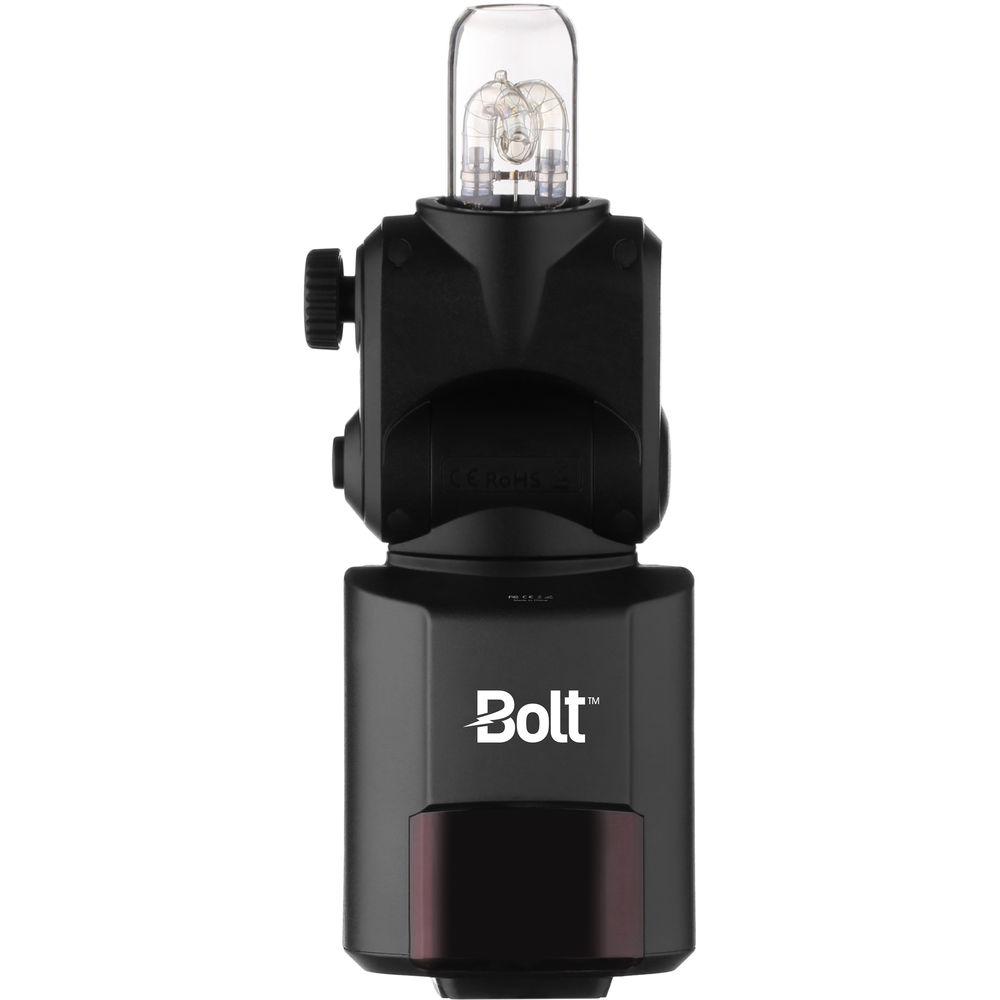

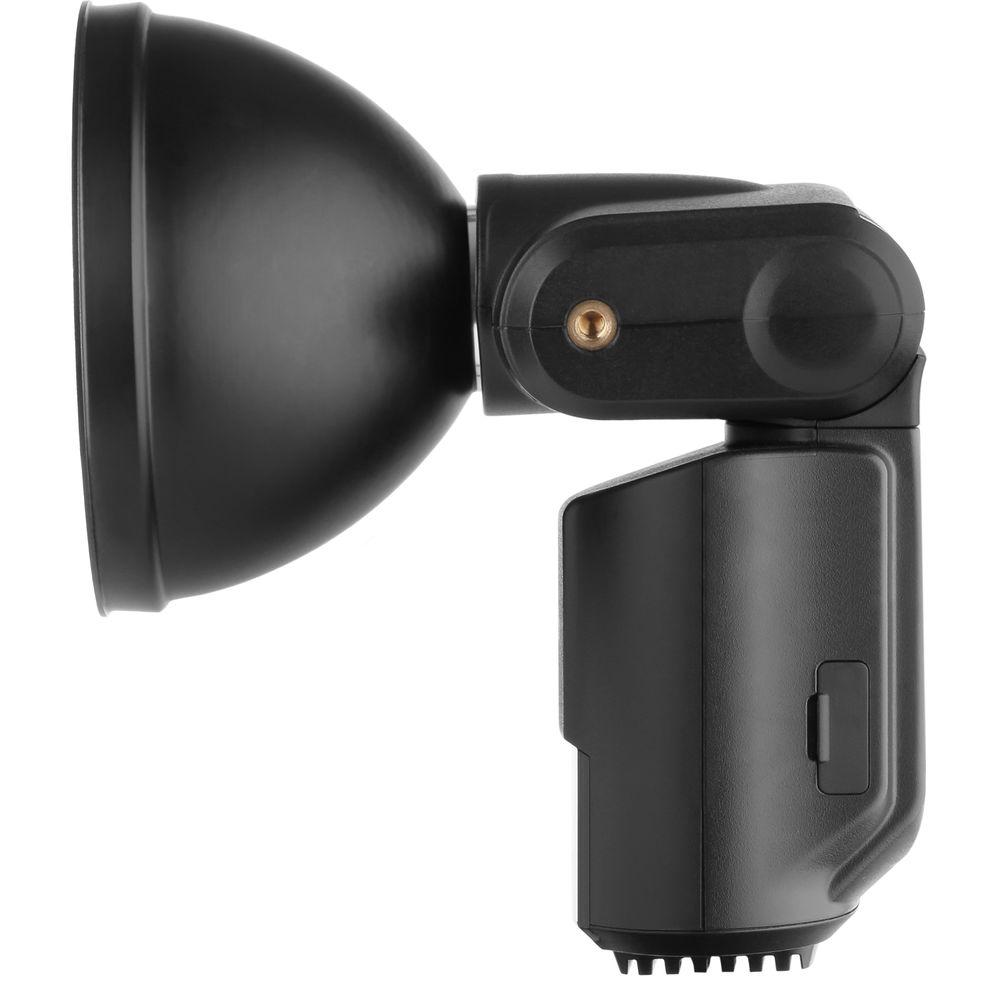

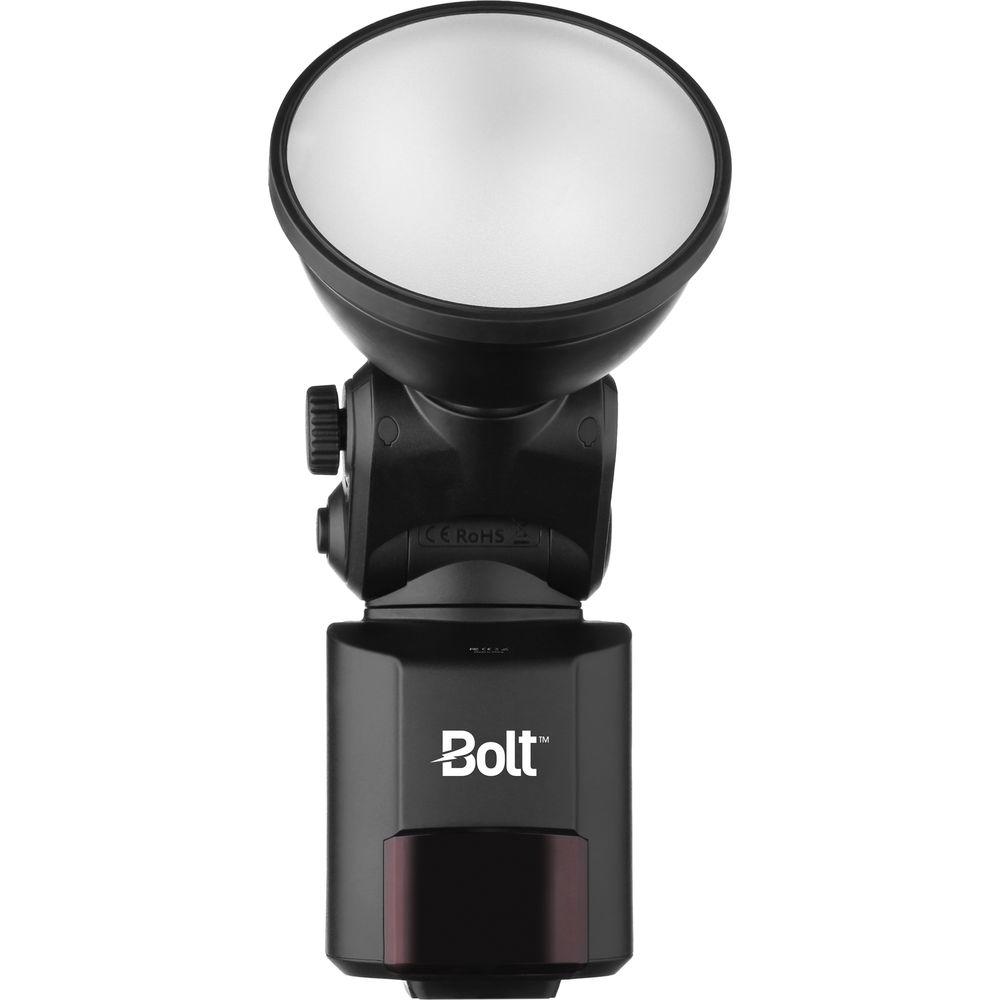

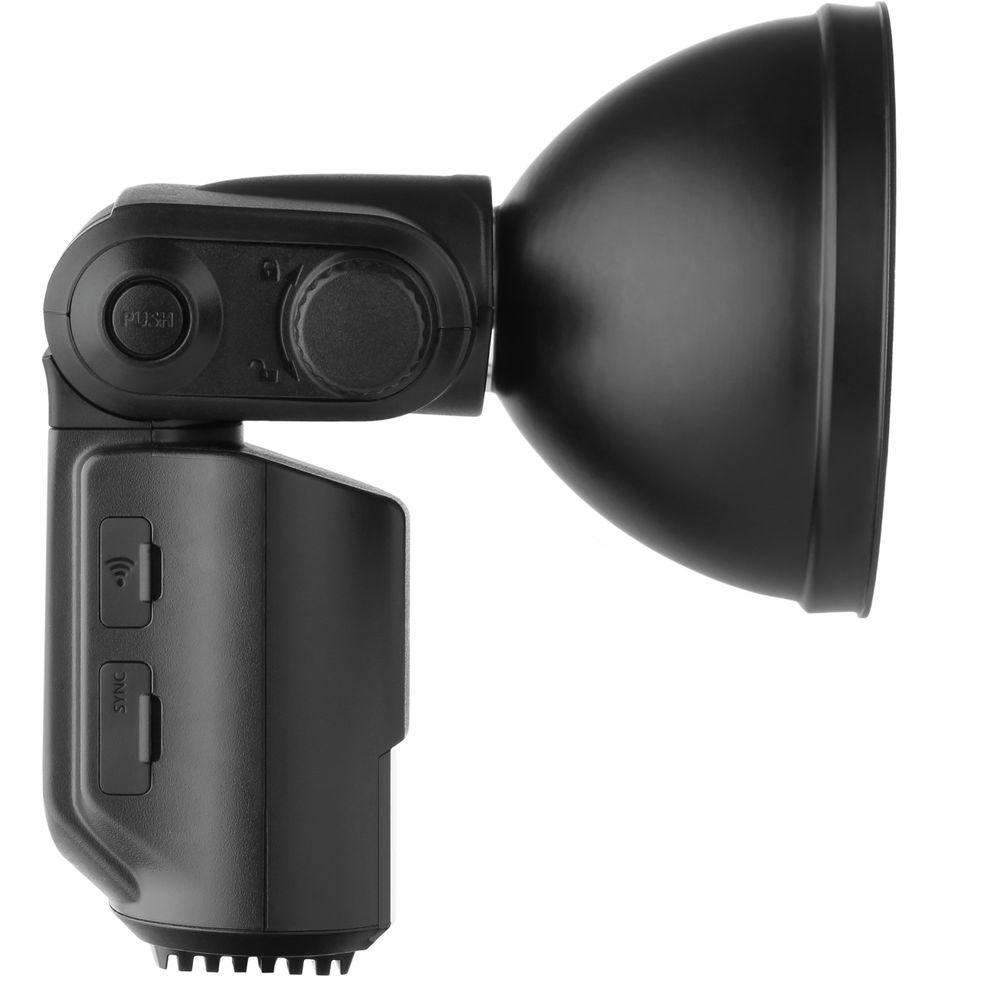

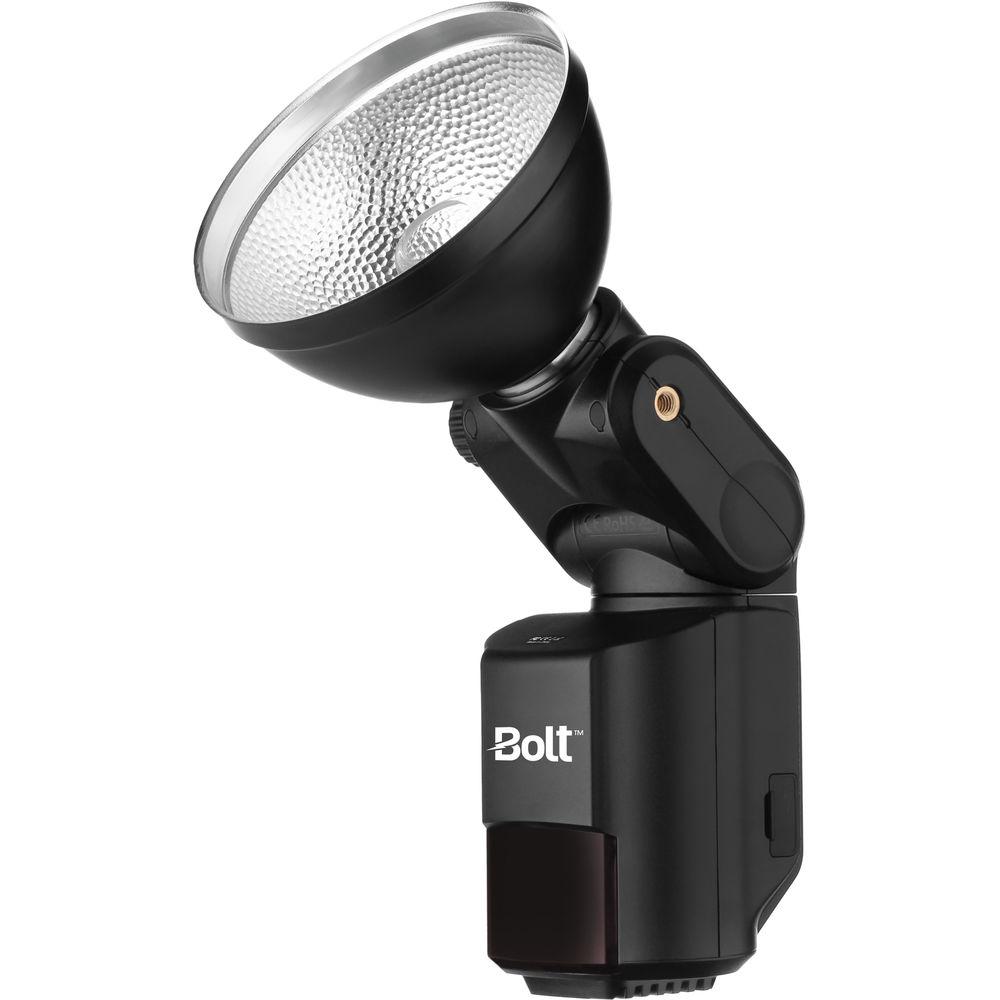

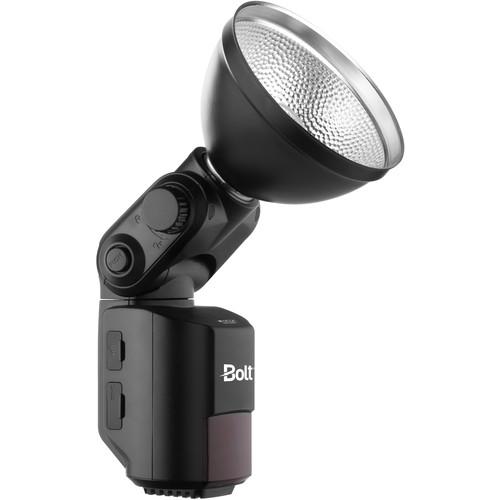

Product description Featuring a bare-bulb design and an output of 360Ws, the Bolt VB-22 Bare-Bulb Flash is a specialized shoe-mount flash unit that offers users a quality of light similar to studio strobes in a compact, portable package. The bare bulb design provides a full 360° specular light and is able to work with a variety of optional light modifiers, such as an umbrella mount, colored filters, and grids for creating distinct lighting effects.

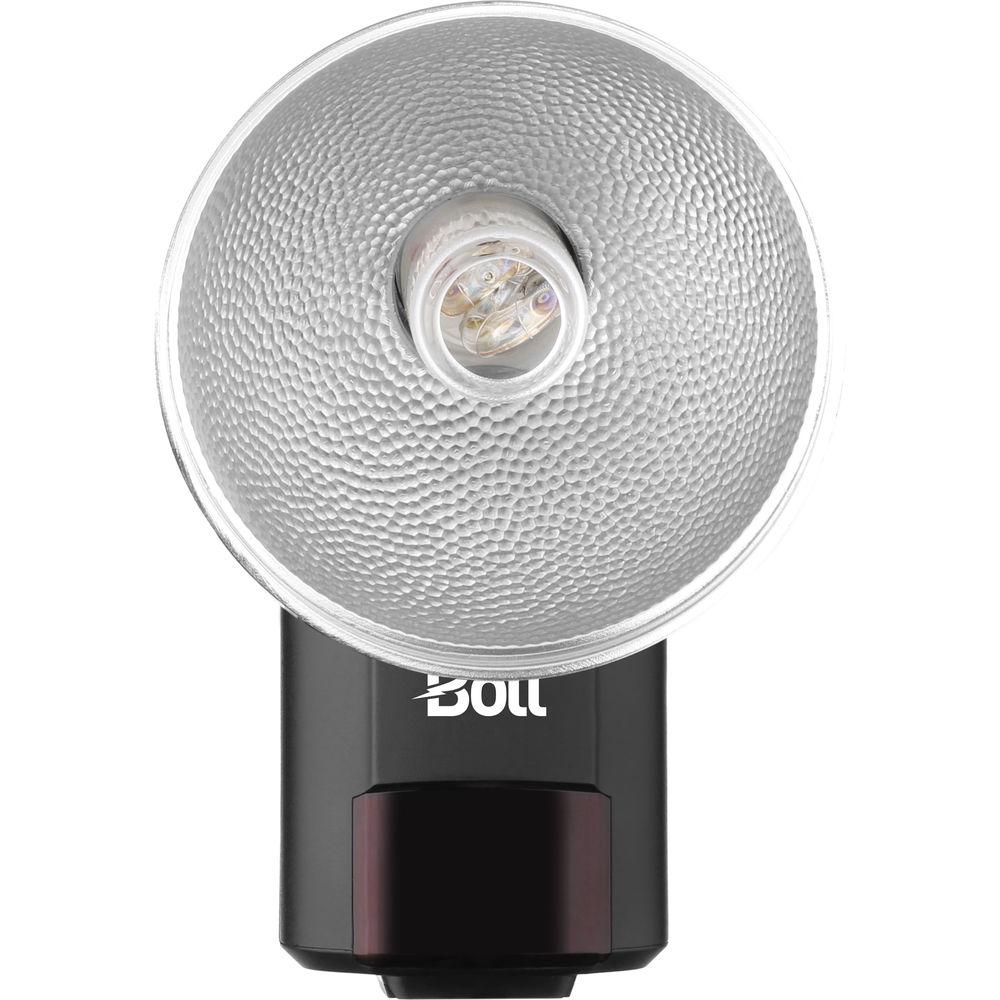

The unit features a powerful guide number of 262' at ISO 100 and covers about 28mm when used with the included reflector. The flash can also be used as an optical slave at a range of up to 33'. This mode has two settings to control whether to trigger the flash immediately when the master is fired or to ignore a single preflash.

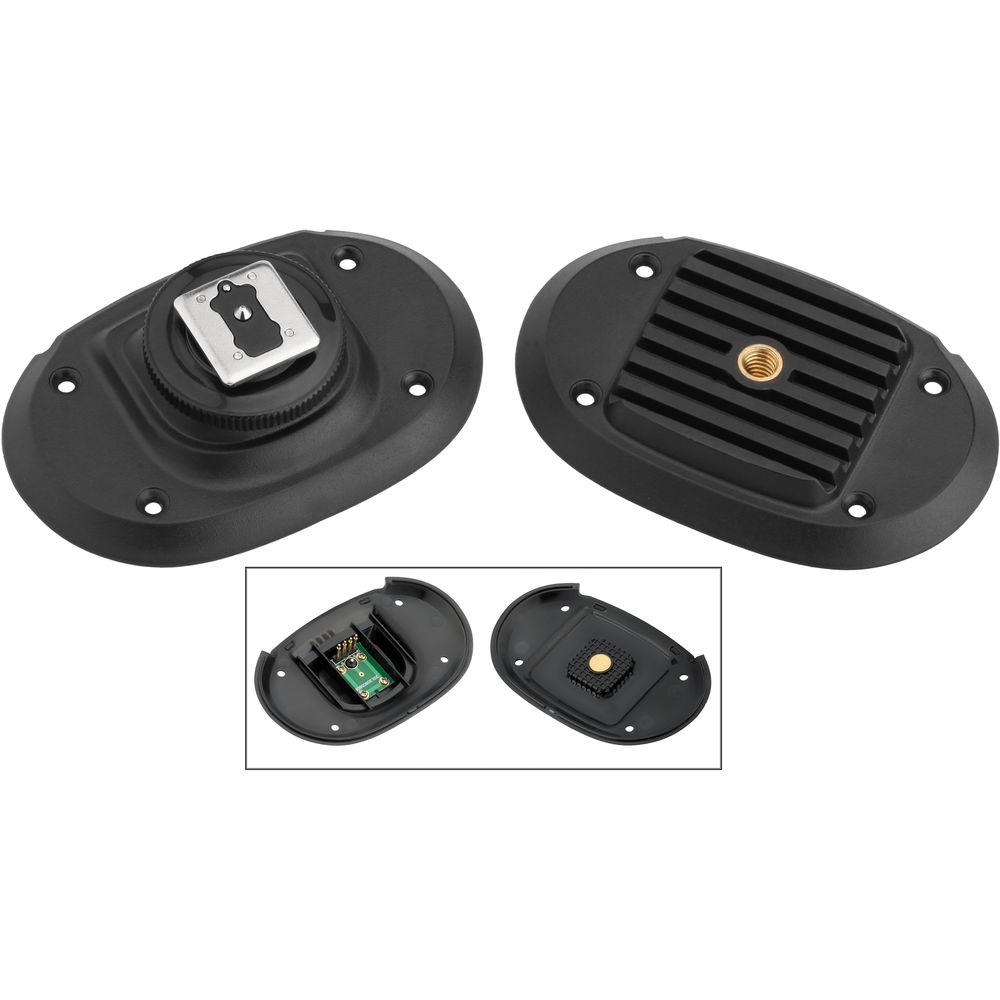

The VB-22 flash also features a stroboscopic, or repeat, mode that allows the unit to fire multiple flashes in a row, meaning users can capture multiple images of a subject in a single exposure. The locking head can rotate 135° right and 180° left as well as tilt from -15 to 90° for added control and versatility. Additionally, the unit is fully manual and offers power settings from 1/1 to 1/128. The flash does require power from an optional external power pack which will provide a recycle time of approximately 0.1 to 5.2 seconds. It comes with a retaining ring, diffuser, reflector, power cable, protective pouch, a stand/tripod mount, a stand mounting foot, and a shoe mounting foot. - Interchangeable shoe and stand mounts that allow more secure attachment to either a light stand, tripod, or shoe
- Manual AF-assist light for focusing in low-light situations

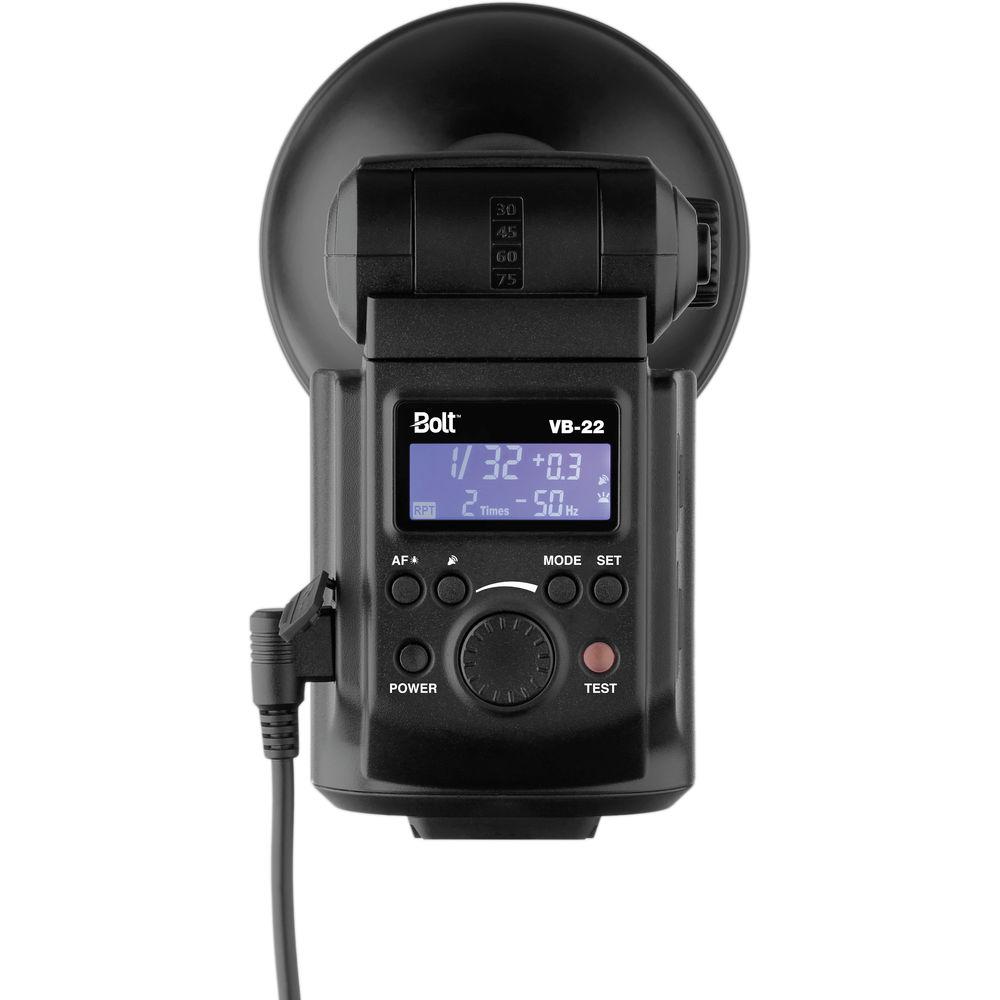

- 1.75" backlit LCD display
- Power settings from 1/1 to 1/128 in 1/3 EV steps
- Flash duration of 1/300 to 1/10,000 second
- Can accept multiple accessories to adjust light quality
- Can be triggered via hot shoe, PC sync cord, 3.5mm cable, as an optical slave, or with a dedicated remote control

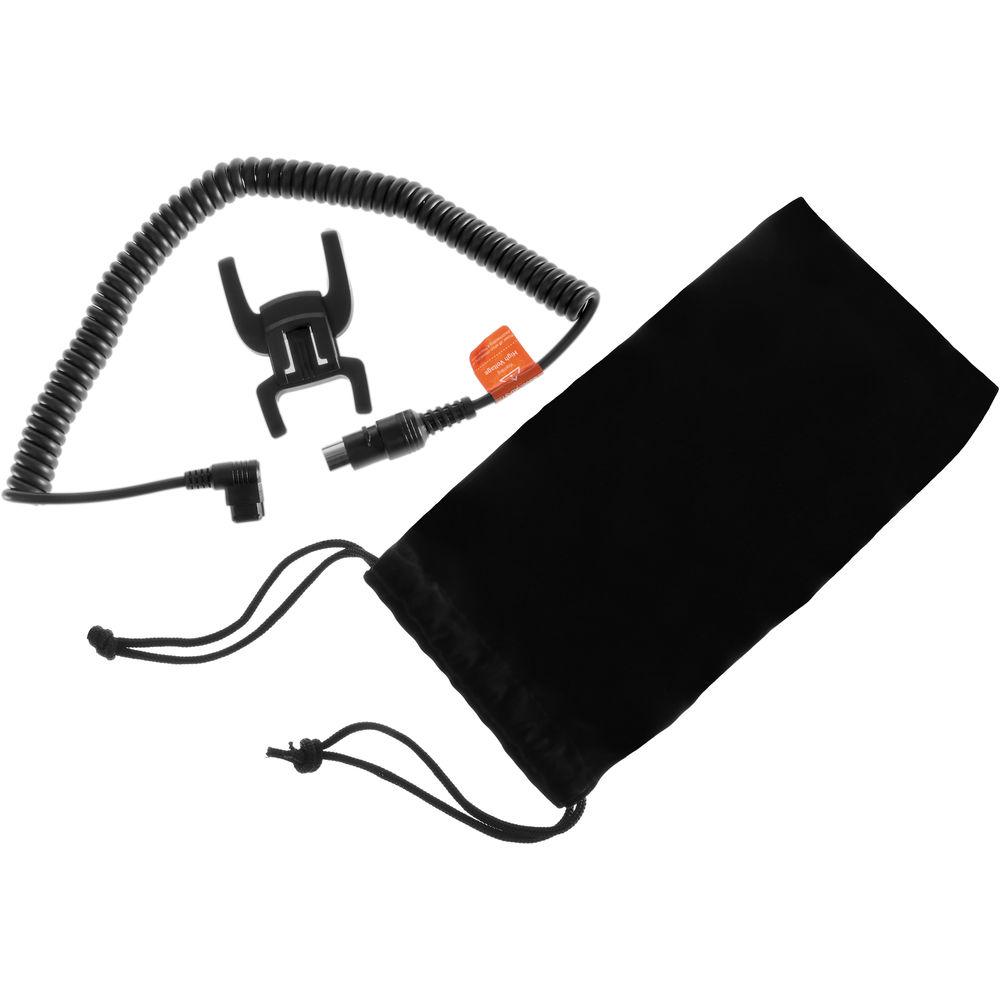

UPC: 847628577268 In the Box Bolt VB-22 Bare-Bulb Flash Stand Mounting Foot Shoe Mounting Foot Retaining Ring Diffuser Reflector Power Cable Protective Pouch Stand/Tripod Mount Limited 1-Year Warranty VB-22 User Manual PDF 9.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Bolt VB-22 Bare-Bulb Flash in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBolt VB-22 Specs | Mount | Shoe | | Guide No. | 262' / 79.86 m ISO 100 | | Exposure Control | Manual | | Vari-Power | Manual: 1/1 to 1/128 | | Bounce Head | Yes, -15 to +90° | | Swivel Head | Yes, 315° | | Coverage | - mm | | Zoom Head | None | | Off-Camera Terminal | 3.5 mm, Proprietary, PC | | Recycle Time | Approximately 0.1 to 5.2 Seconds | | Flash Duration | 1/300 to 1/10000 sec | | Flash-Ready Indicator | Yes | | Compensation | None | | Slave Timing Modes | Instant Sync
Skip Preflash | | Wireless Operation | None | | Dimensions (W x H x D) | 7.9 x 3.7 x 3.0" / 200.0 x 93.0 x 75.0 mm | | Weight | 2.09 lb / .95 kg | | | | Package Weight | 3.5 lb | | Box Dimensions (LxWxH) | 11.2 x 10.4 x 6.2" |
