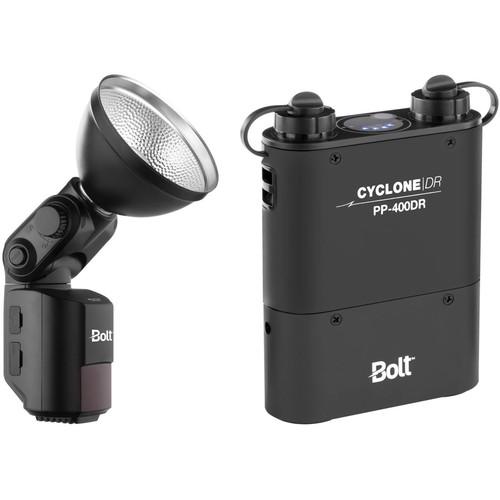

User Manual for Bolt VB-22 Bare-Bulb Flash Kit with Cyclone PP-400DR Power Pack Click to enlarge the picture
Contents of the user manual for the Bolt VB-22 Bare-Bulb Flash Kit with
- Product category: On Camera Flashes Bolt
- Brand: Bolt
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bolt On Camera Flashes
|
User manual for the Bolt VB-22 Bare-Bulb Flash Kit with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bolt product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bolt user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bolt product will considerably shorten its lifespan!
|
Product description Featuring a bare-bulb design and an output of 360Ws, the Bolt VB-22 Bare-Bulb Flash Kit with Cyclone PP-400DR Power Pack from is a specialized shoe-mount flash unit that offers users a quality of light similar to studio strobes in a compact, portable package. The bare bulb design provides a full 360° specular light and is able to work with a variety of optional light modifiers, such as an umbrella mount, colored filters, and grids for creating distinct lighting effects.
The unit features a powerful guide number of 262' at ISO 100 and covers about 28mm when used with the included reflector. The flash can also be used as an optical slave at a range of up to 33'. This mode has two settings to control whether to trigger the flash immediately when the master is fired or to ignore a single preflash.
The VB-22 flash also features a stroboscopic, or repeat, mode that allows the unit to fire multiple flashes in a row, meaning users can capture multiple images of a subject in a single exposure. The locking head can rotate 135° right and 180° left as well as tilt from -15 to 90° for added control and versatility. Additionally, the unit is fully manual and offers power settings from 1/1 to 1/128. The flash does require power from an optional external power pack which will provide a recycle time of approximately 0.1 to 5.2 seconds. It comes with a retaining ring, diffuser, reflector, power cable, protective pouch, a stand/tripod mount, a stand mounting foot, and a shoe mounting foot.
Working with the included Cyclone DR PP-400DR Dual Outlet Power Pack the VB-22 will have a recycle time of approximately 0.1 to 5.2 seconds. The power pack has two outlets for powering two flashes simultaneously and works with most flash units featuring HV power ports. Also, the Cyclone DR's flash cable ports can be locked once the cable is attached, making the connection extra secure. This pack is powered by a rechargeable battery and has 4 LEDs for determining charge. Additionally, it has a belt clip and comes with a shoulder strap. - Bolt VB-22 Bare-Bulb Flash Featuring a bare-bulb design and an output of 360Ws, the Bolt VB-22 Bare-Bulb Flash is a specialized shoe-mount flash unit that offers users a quality of light similar to studio strobes in a compact, portable package. The bare bulb design provides a full 360° specular light and is able to work with a variety of optional light modifiers, such as an umbrella mount, colored filters, and grids for creating distinct lighting effects.
The unit features a powerful guide number of 262' at ISO 100 and covers about 28mm when used with the included reflector. The flash can also be used as an optical slave at a range of up to 33'. This mode has two settings to control whether to trigger the flash immediately when the master is fired or to ignore a single preflash.
The VB-22 flash also features a stroboscopic, or repeat, mode that allows the unit to fire multiple flashes in a row, meaning users can capture multiple images of a subject in a single exposure. The locking head can rotate 135° right and 180° left as well as tilt from -15 to 90° for added control and versatility. Additionally, the unit is fully manual and offers power settings from 1/1 to 1/128. The flash does require power from an optional external power pack which will provide a recycle time of approximately 0.1 to 5.2 seconds. It comes with a retaining ring, diffuser, reflector, power cable, protective pouch, a stand/tripod mount, a stand mounting foot, and a shoe mounting foot. - Interchangeable shoe and stand mounts that allow more secure attachment to either a light stand, tripod, or shoe
- Manual AF-assist light for focusing in low-light situations
- 1.75" backlit LCD display
- Power settings from 1/1 to 1/128 in 1/3 EV steps
- Flash duration of 1/300 to 1/10,000 second
- Can accept multiple accessories to adjust light quality
- Can be triggered via hot shoe, PC sync cord, 3.5mm cable, as an optical slave, or with a dedicated remote control
UPC: 847628577268 - Bolt Cyclone DR PP-400DR Dual Outlet Power Pack The Cyclone DR PP-400DR Dual Outlet Power Pack from Bolt features dual plugs for powering 2 flashes at the same time. It works with most on-camera flash units with high-voltage (HV) connections, including those from Nikon, Canon, Sony, Bolt, Sunpak, Quantum, Vivitar, and Metz (cables required and sold separately). The pack has a fast recycle time of approximately 1 sec and provides up to 1400 full-power flashes, depending on the flash and settings used. The Cyclone DR's flash cable ports can be locked once the cable is attached, making the connection extra secure. The unit weighs a mere 1.2 lb.
The power pack's microcontroller unit prevents overheating via integrated software and hardware protection. The included PP-400BP Cyclone DR Battery Pack is removable, allowing you to charge it while powering the Cyclone power pack with a second identical battery (sold separately). Also supplied is a 2-prong 100-240 VAC charger for worldwide use. Four LED's indicate remaining battery charge; one light on means 25% or lower, two lights mean 25-50%, three mean 50-75%, and all four mean 75% or higher. Additionally, the Cyclone DR comes with an adjustable neoprene shoulder strap that has a non-slip rubber underside and a quick-release buckle. It attaches to the strap lug on the power pack. The Cyclone also features a built-in belt clip, as well as two rubberized feet for stability. UPC: 847628565715 In the Box - VB-22 Bare-Bulb Flash verxtcfvsvvezdcvaxuyturzwfxwvxxxewa
- Stand Mounting Foot
- Shoe Mounting Foot
- Retaining Ring
- Diffuser
- Reflector
- Power Cable
- Protective Pouch
- Stand/Tripod Mount
- Limited 1-Year Warranty
- Cyclone DR PP-400DR Dual Outlet Power Pack
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bolt VB-22 Bare-Bulb Flash Kit with Cyclone PP-400DR Power Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Bolt VB-22 Bare-Bulb Flash
| Mount | Shoe | | Guide No. | 262' / 79.86 m ISO 100 | | Exposure Control | Manual | | Vari-Power | Manual: 1/1 to 1/128 | | Bounce Head | Yes, -15 to +90° | | Swivel Head | Yes, 315° | | Coverage | - mm | | Zoom Head | None | | Off-Camera Terminal | 3.5 mm, Proprietary, PC | | Recycle Time | Approximately 0.1 to 5.2 Seconds | | Flash Duration | 1/300 to 1/10000 sec | | Flash-Ready Indicator | Yes | | Compensation | None | | Slave Timing Modes | Instant Sync
Skip Preflash | | Wireless Operation | None | | Dimensions (W x H x D) | 7.9 x 3.7 x 3.0" / 200.0 x 93.0 x 75.0 mm | | Weight | 2.09 lb / .95 kg | | | | Box Dimensions (LxWxH) | 11.2 x 10.4 x 6.2" | - Bolt Cyclone DR PP-400DR Dual Outlet Power Pack
| Battery Type | Chemistry: lithium-ion
Output voltage: 11.1 VDC
Capacity: 4500 mAh | | Recycle Time | Approx. 1.0 sec with hot-shoe mounted flash | | Number of Flashes | 1200-1400 | | Status Indicators | Power pack:
2 x orange LEDs indicate flashes are fully recycled
4 x blue LEDs show remaining battery charge
Charger:
Red light indicates battery being charged
Green light indicates battery fully charged | | Belt Clip | Attached | | Shoulder Strap Loops | Yes | | Input Power | 100-240 VAC, 50/60 Hz, 0.6 A | | Certifications | Battery: RoHS, CE
Charger: UL | | Operating Temperature | -4 to 104°F (-20 to 40°C) | | Operating Humidity | 0-85% | | Dimensions | Power pack: 4.33 x 6.29 x 1.57" (11 x 16 x 4.0 cm)
Charger: 3.75 x 1.25 x 1.62" (9.5 x 3.2 x 4.1 cm) | | Weight | 1.2 lb (0.54 kg) | | | | Box Dimensions (LxWxH) | 10.0 x 8.2 x 2.8" |
