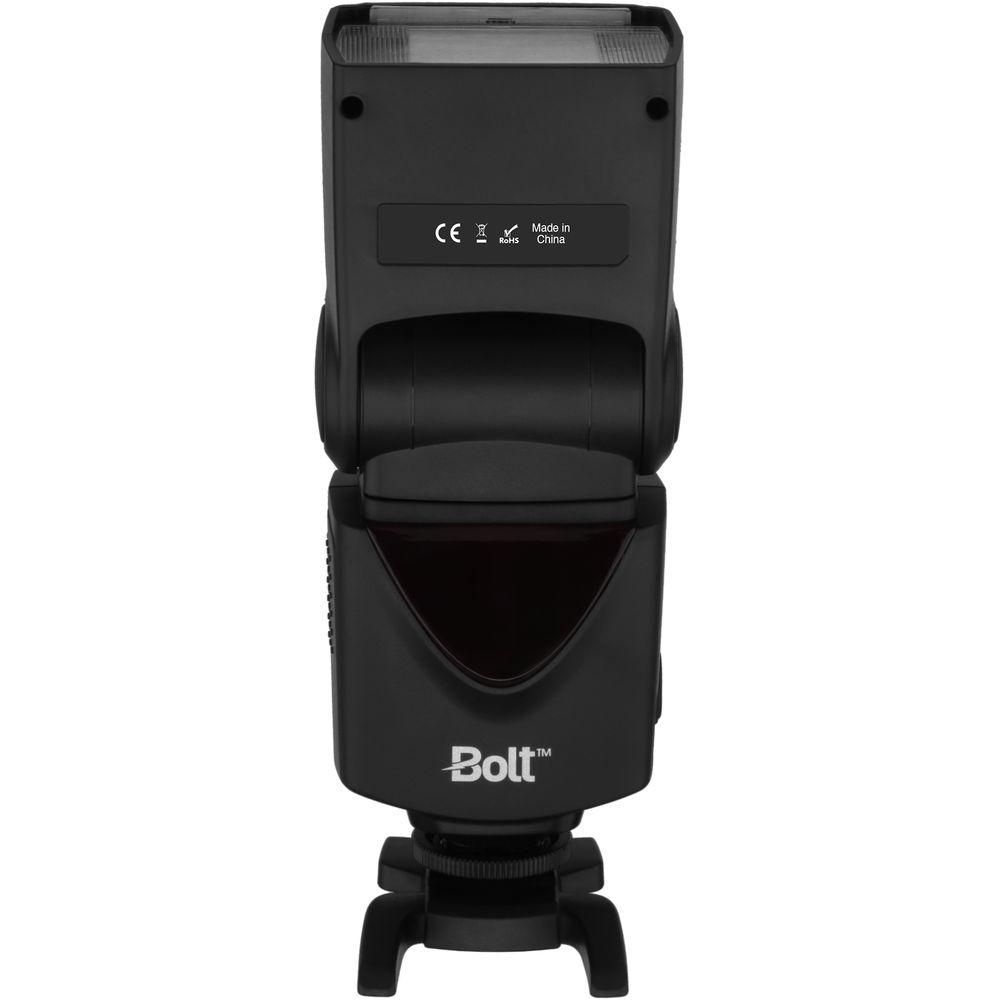

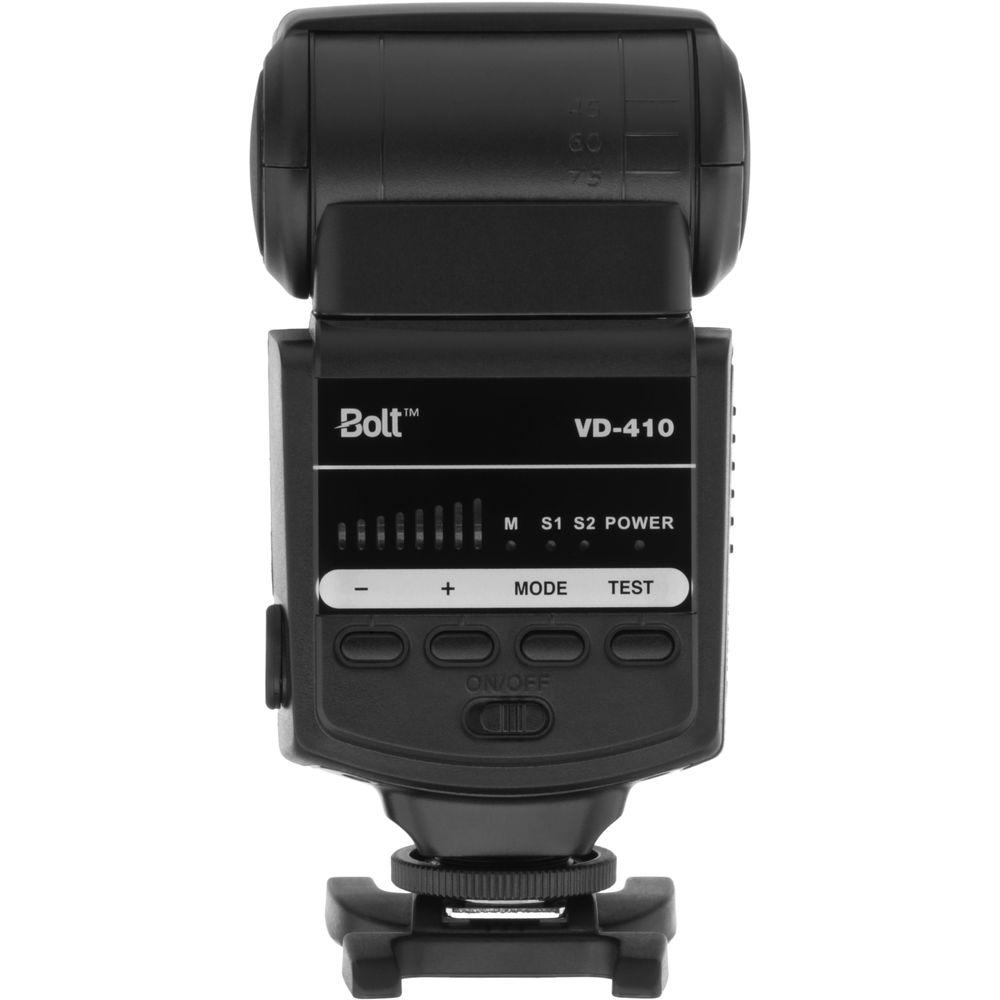

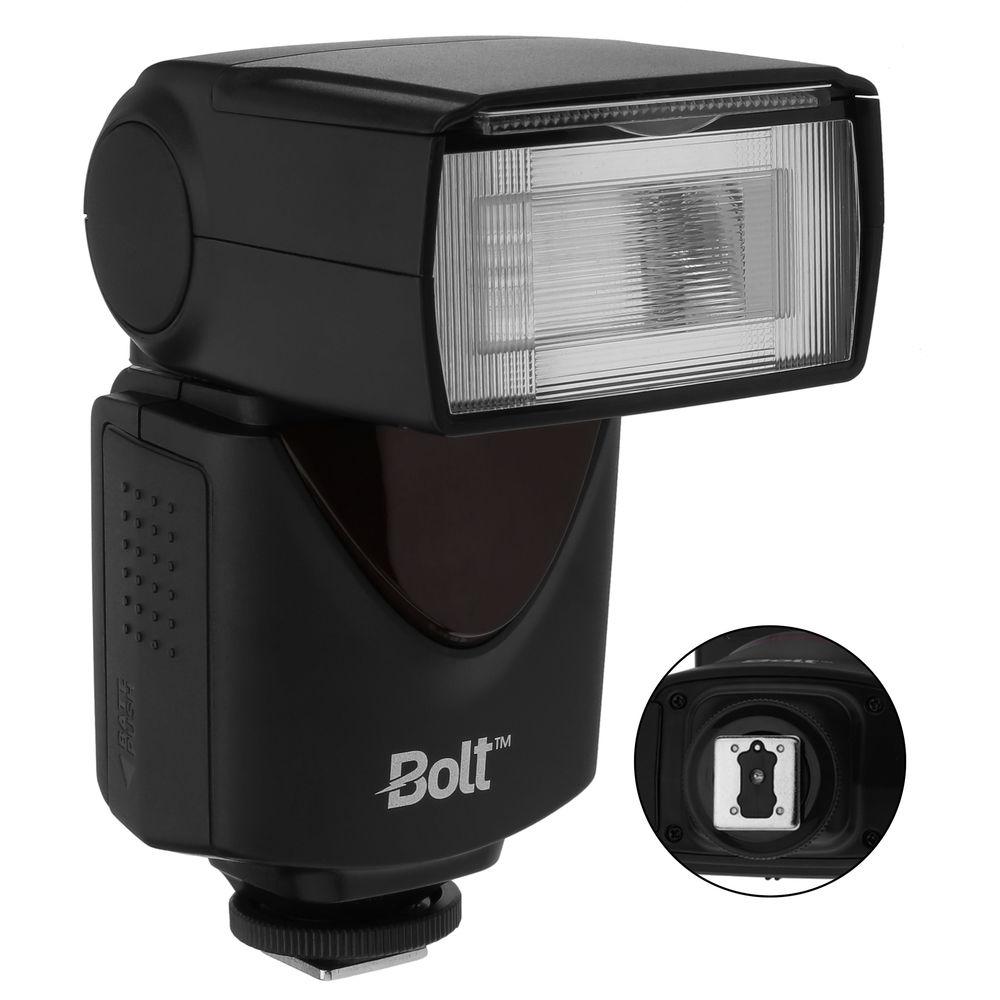

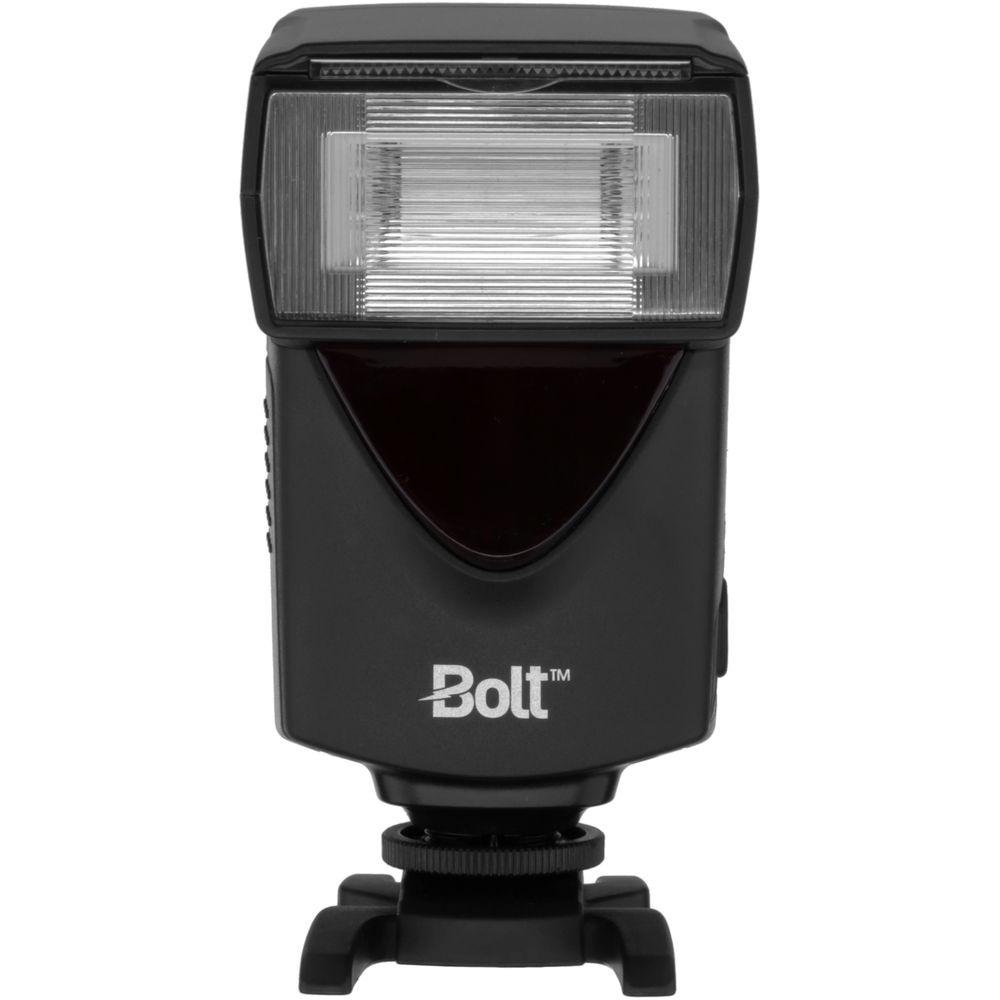

User Manual for Bolt VD-410 Manual Flash Click to enlarge the picture
Contents of the user manual for the Bolt VD-410 Manual Flash
- Product category: On Camera Flashes Bolt
- Brand: Bolt
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bolt On Camera Flashes
 |
User manual for the Bolt VD-410 Manual Flash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bolt product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bolt user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bolt product will considerably shorten its lifespan!
|
Product description Begin Wielding Light with the Bolt VD-410 Manual Flash Read More Bolster your everyday shooting kit with the addition of a VD-410 Manual Flash from Bolt, which provides photographers with the almost essential ability to add light to otherwise drab or dark scenes. The VD-410 will find a home in many camera bags due to its simple manual operation, moderate guide number of 124.7' at ISO 100, and versatility provided by on- and off-camera triggering options, including wireless. Manual output is controlled from 1/1 to 1/128 power and placement of the light is controlled by tilting the head from 0-90° and swiveling up to 90° right or 180° left. Along with this, the flash has standard coverage for 35mm and longer lenses, and it is equipped with a built-in diffuser that widens coverage down to an 18mm lens.
For general operation, the VD-410 can be used with nearly any camera equipped with a hot shoe. Options for triggering off-camera are easily expanded thanks to the integration of a PC sync port as well as two optical slave modes, instant sync and skip one preflash. This flash can be set up as a slave unit or as a master trigger with a range of up to 33'. Additionally, it has an HV external power socket for using battery packs as well as the ability to run off four AA batteries which provide a recycle time of 0.1-5 seconds. - Guide number of 124.7' at ISO 100
- Eight manual flash levels from 1/1 to 1/128 power
- Wireless optical slave mode with range of up to 33'
- Flash duration of 1/300-1/20,000 sec
- Recycle time of 0.1-5 seconds when using NiMH AA batteries
- Instant sync and skip one preflash slave timing modes

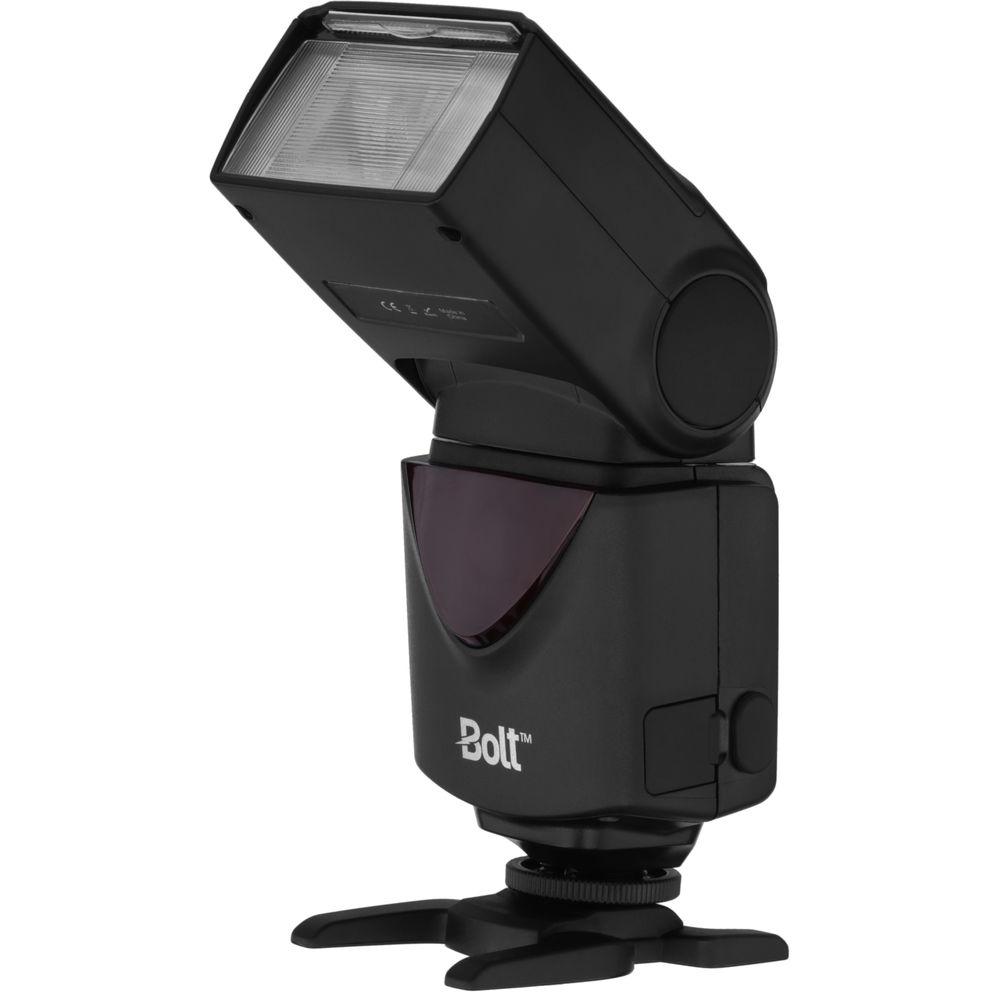

- Tilts upward with hard stops at 0°, 45°, 60°, 75°, and 90°

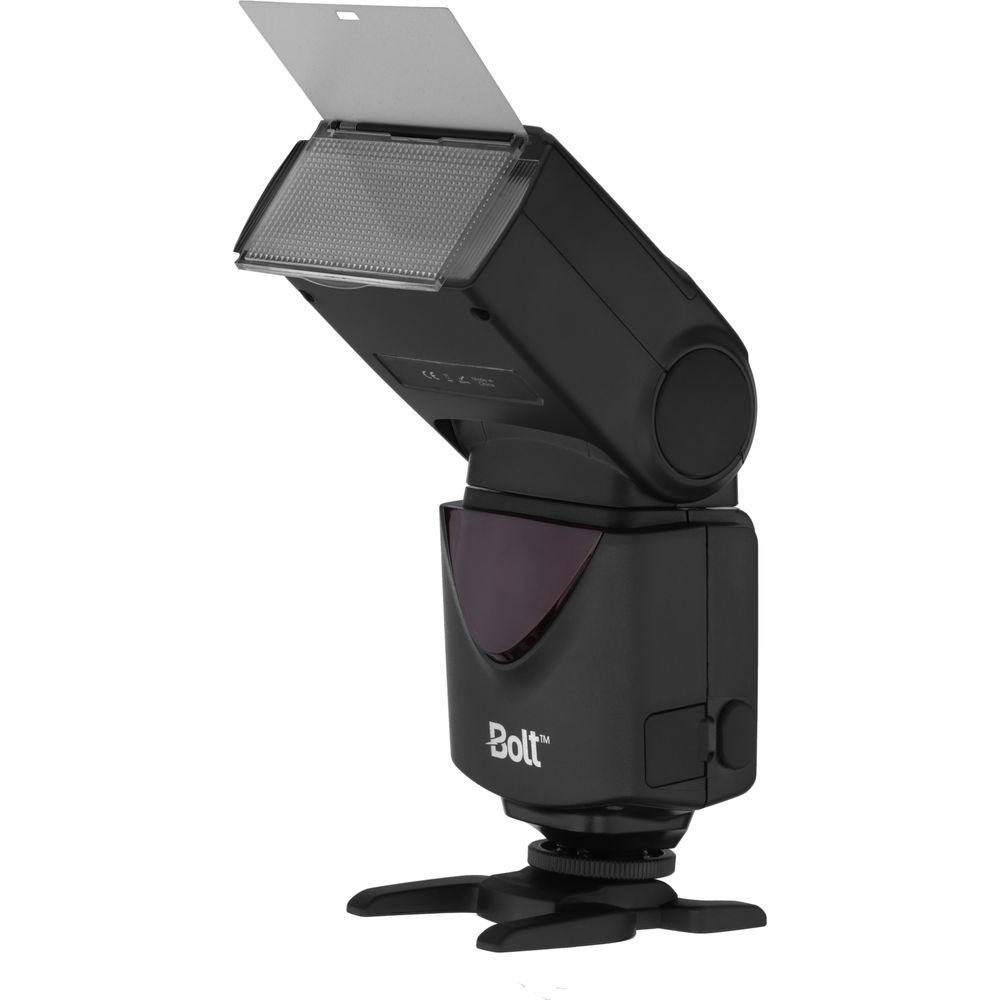

- Built-in diffuser and reflector panels
- Flash ready indicator light
- Automatic power-saving function and overheating protection

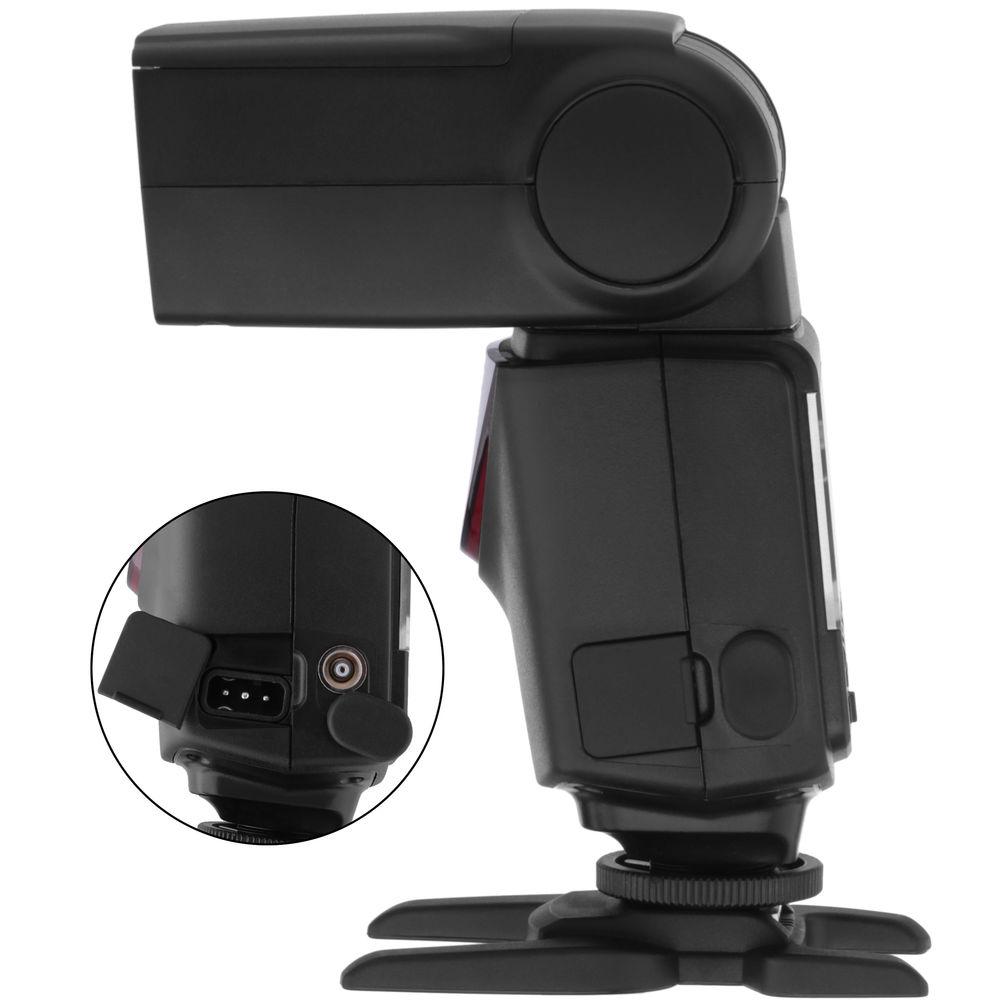

- PC sync socket for wired remote triggering such as when the flash is mounted on a bracket

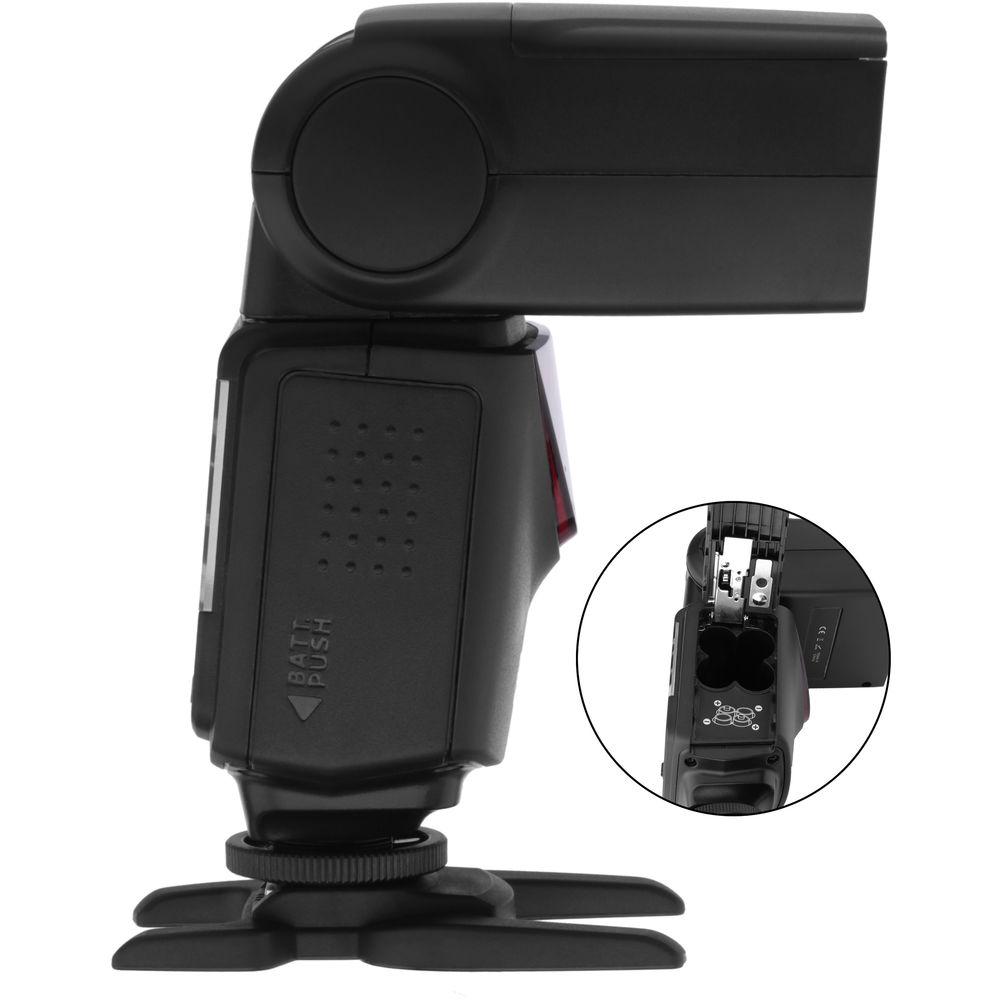

- Works with four lithium, NiMH, or alkaline AA batteries, or an optional external power pack

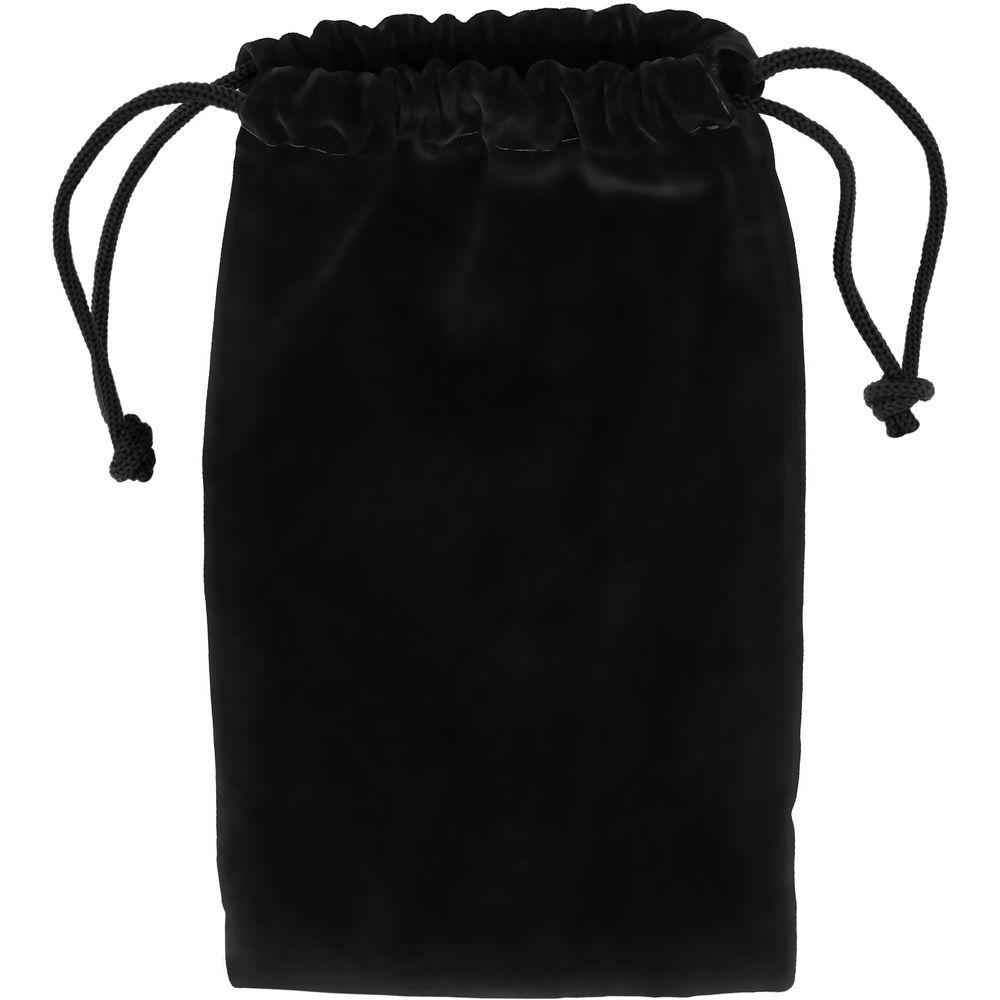

UPC: 847628591424 In the Box Bolt VD-410 Manual Flash Stand/Tripod Mount Carrying Pouch Limited 1-Year Warranty User Manual PDF 8.5mbwwextcayefyrrzudadtavzwszyucrqtzfutcsu Table of Contents
|
Upload User Manual
Have you got an user manual for the Bolt VD-410 Manual Flash in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBolt VD-410 Specs | Mount | Shoe | | Guide No. | 124.67' / 38 m ISO 100 | | Exposure Control | Manual | | Vari-Power | Manual: 1/1 to 1/128 | | Bounce Head | 0 to 90° | | Swivel Head | 270° | | Zoom Head | None | | Off-Camera Terminal | PC | | Recycle Time | Approximately 0.1 to 5 Seconds | | Flash Duration | 1/300 to 1/20000 sec | | Flash-Ready Indicator | Yes | | Compensation | None | | Slave Timing Modes | Instant Sync
Skip Preflash | | Wireless Operation | Method: Optical Pulse
Distance: Up to 32.81' / 10 m | | Power Source | 4 x AA Alkaline, Lithium, Rechargeable NiMH Batteries | | Dimensions (W x H x D) | 7.7 x 3.0 x 2.2" / 19.5 x 7.7 x 5.7 cm | | Weight | 10.09 oz / 286 g | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 8.5 x 4.0 x 3.2" |
