User Manual for Bolt VM-160 LED Macro Ring Light Click to enlarge the picture
Contents of the user manual for the Bolt VM-160 LED Macro Ring Light
- Product category: Macro & Ringlights Bolt
- Brand: Bolt
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bolt Macro & Ringlights
 |
User manual for the Bolt VM-160 LED Macro Ring Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bolt product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bolt user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bolt product will considerably shorten its lifespan!
|
Product description Capture extreme close-ups or portraits with the VM-160 LED Macro Ring Light from Bolt, which features eighteen high-output LEDs with a guide number of 21' / 6.4m at ISO 100. The light features six levels of brightness adjustment from -1.5 EV to +1.5 EV and the continuous light source helps you easily see the effects of the lighting as well as enable use during video. Four clip-on diffusers are included to further adjust the quality of light from the ring light: clear, frosted, amber, and blue. Users can set the light to illuminate from only the left or right side for added dimensionality when shooting. Additionally, to help conserve battery power, the light can be set to work in flash mode, which will turn on the light for approximately a half second each time the shutter is released.

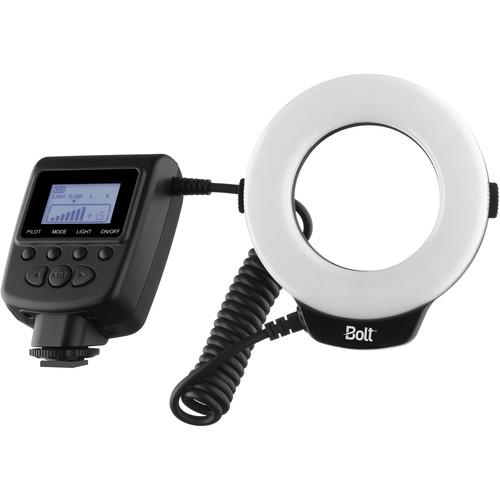

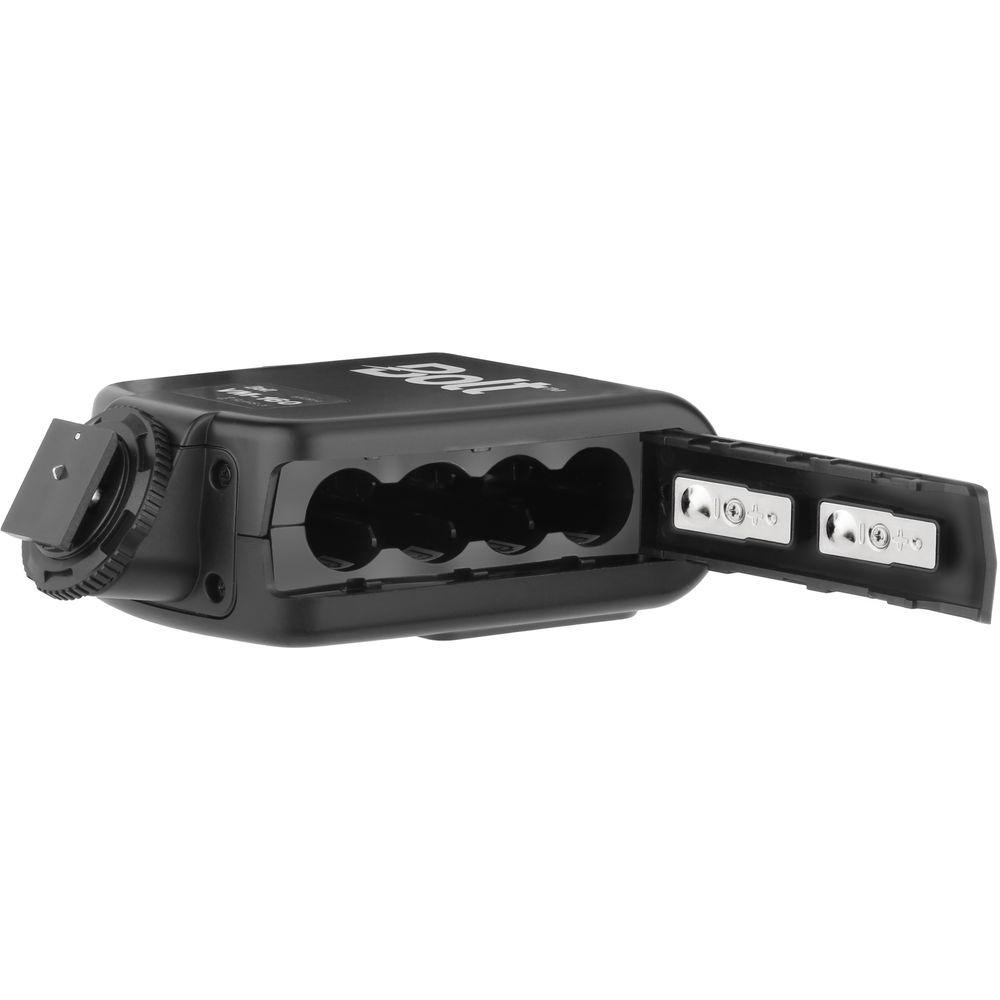

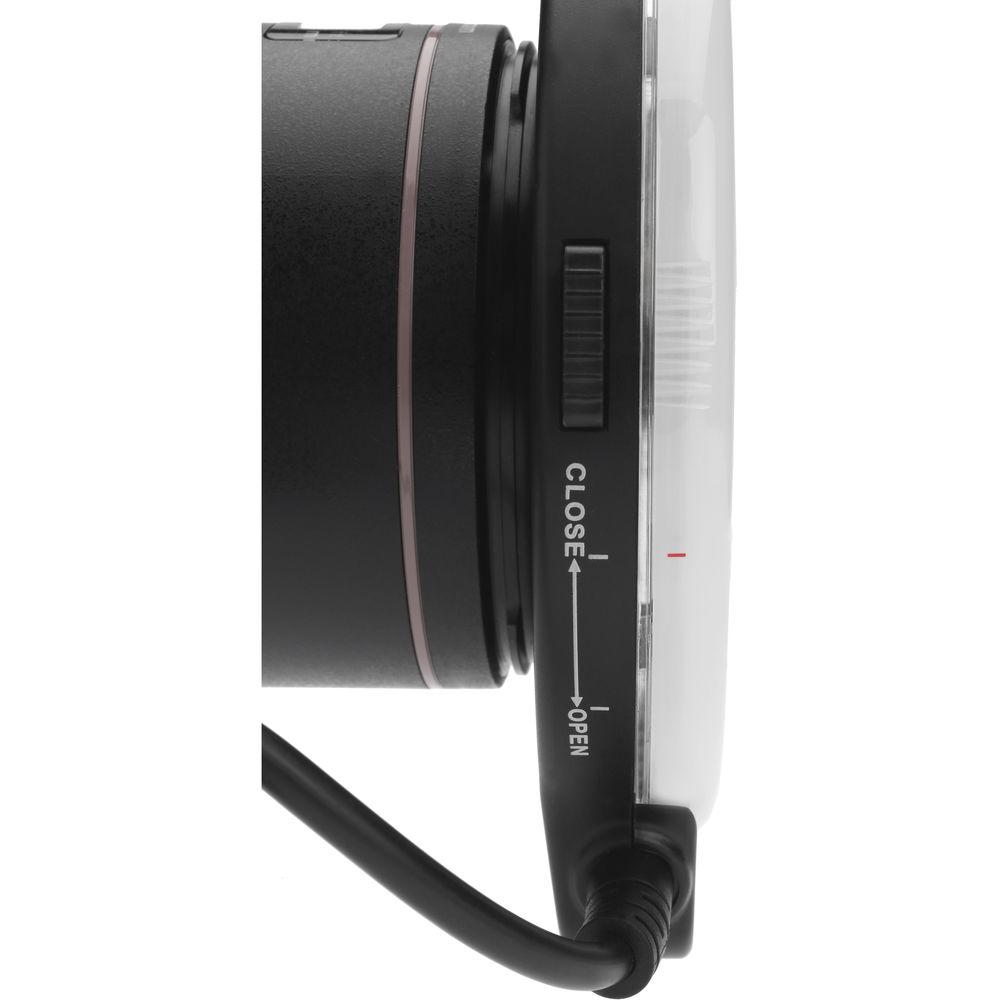

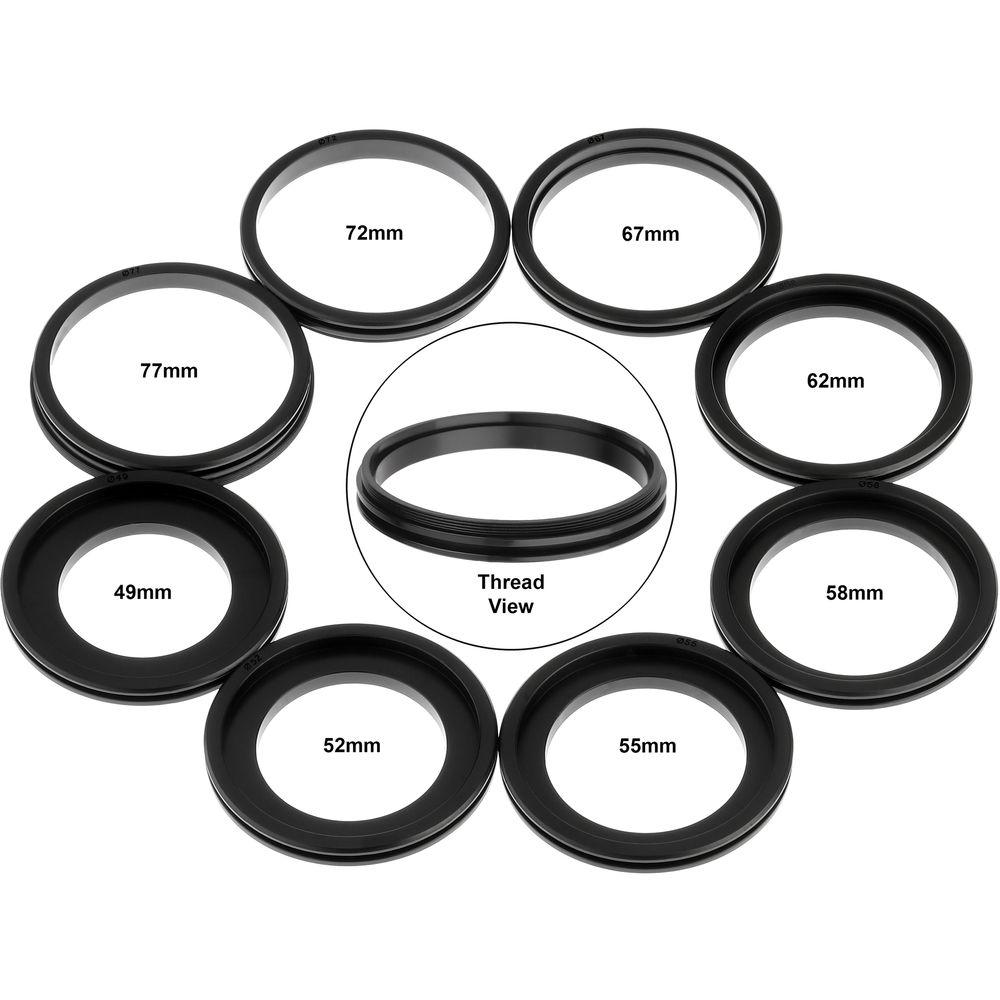

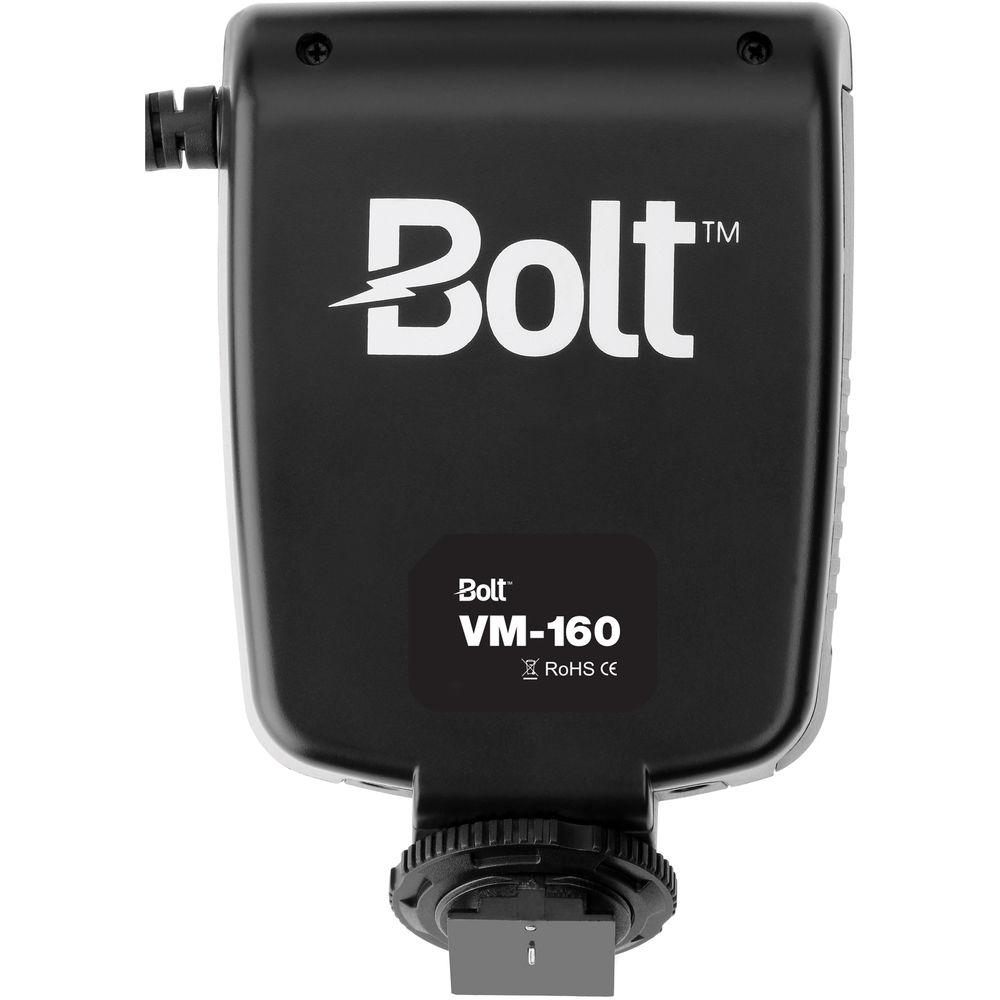

The power unit features a 1.6" backlit LCD monitor for displaying battery power and ring light settings. It attaches to your camera via an accessory shoe and requires 4 AA batteries. A stand is also included to hold the power unit on its own, or on a light stand or tripod via the integrated 1/4"-20 thread. For mounting the ring light to your lens, eight different adapter rings are included to fit a range of lens diameters: 49, 52, 55, 58, 62, 67, 72, and 77mm. Note: Controller unit uses a universal type hot shoe, and is not compatible with cameras that use the older Sony/Minolta shoe.
Not compatible with Fuji X-T2 and X-Pro 2. - LED ring light is universal in design and independent of any specific TTL system. It is compatible with most DSLR lenses and ideal for macro and close-up shooting applications.

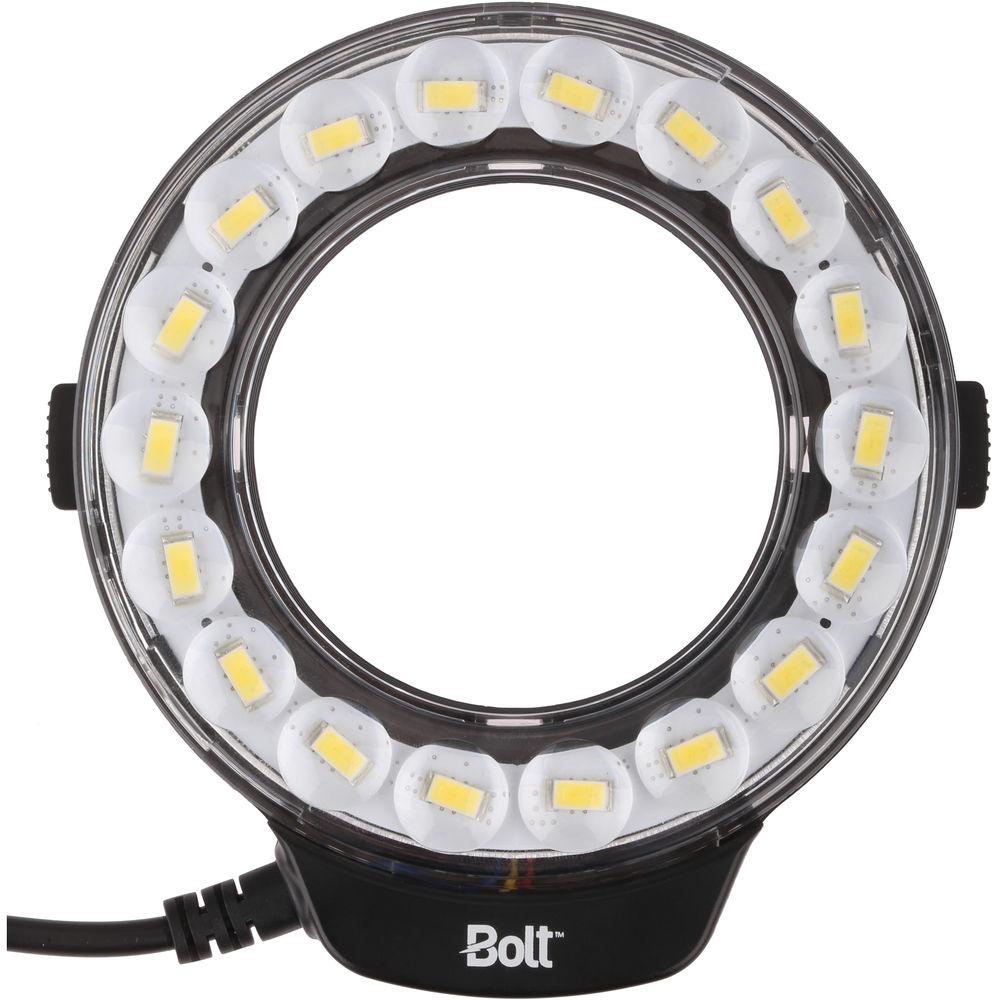

- 18 high-output LED array provides a guide number of 21' / 6.4m at ISO 100.
- Four light modes available:
Light Mode will keep the light on continuously.
Flash Mode will activate the light for approximately one half second at a time when the shutter is depressed; this will help conserve battery power.
Left and Right Flash Modes will set only the left or right half of the light to turn on in order to give more dimensionality to your subject matter. - An automatic power-saving function will turn off the ring light after 30 minutes of inactivity to conserve battery power.
- 1.6" backlit LCD provides visual display of battery life and light settings.

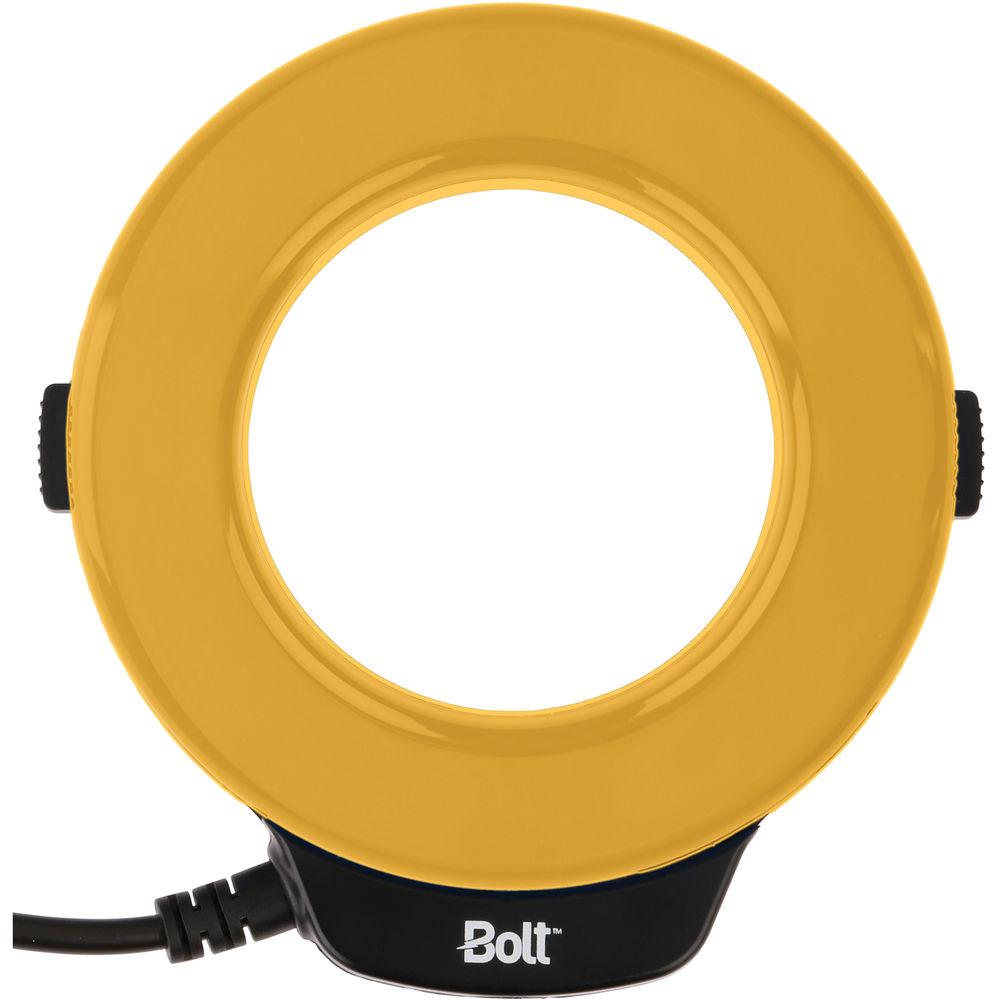

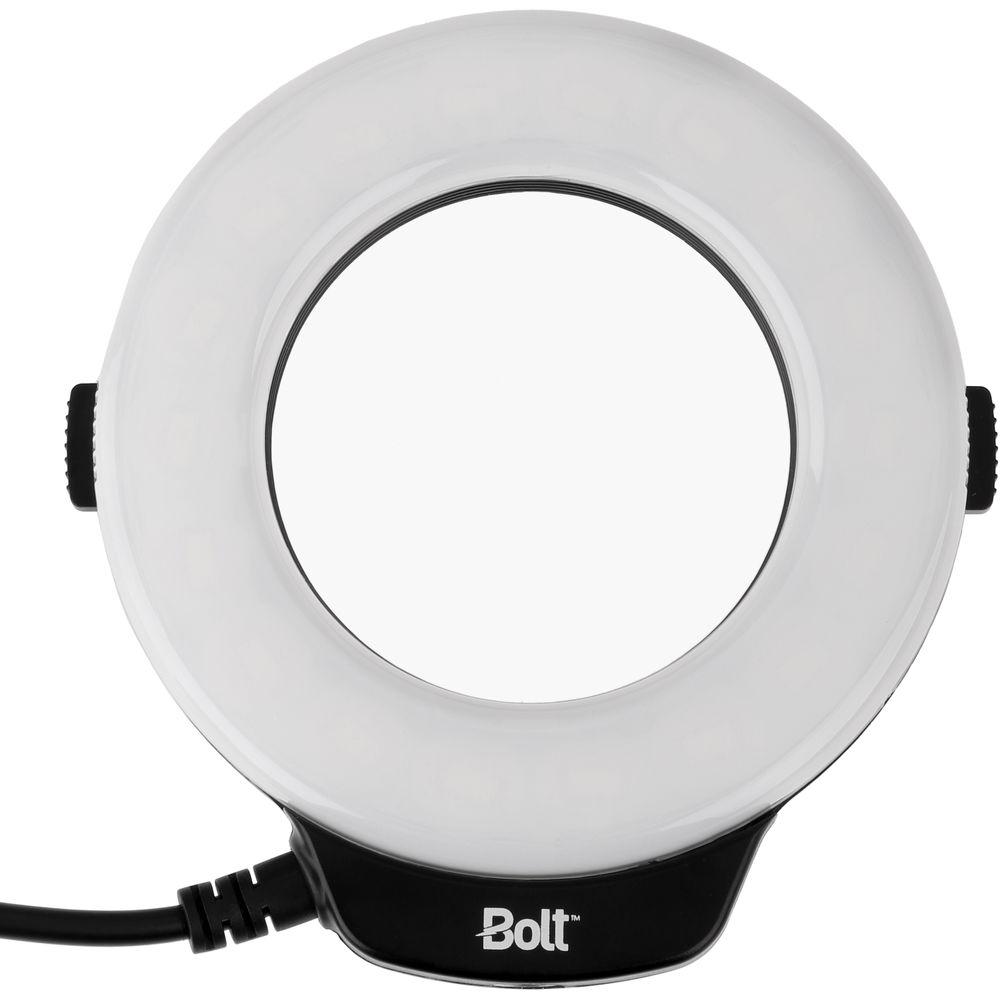

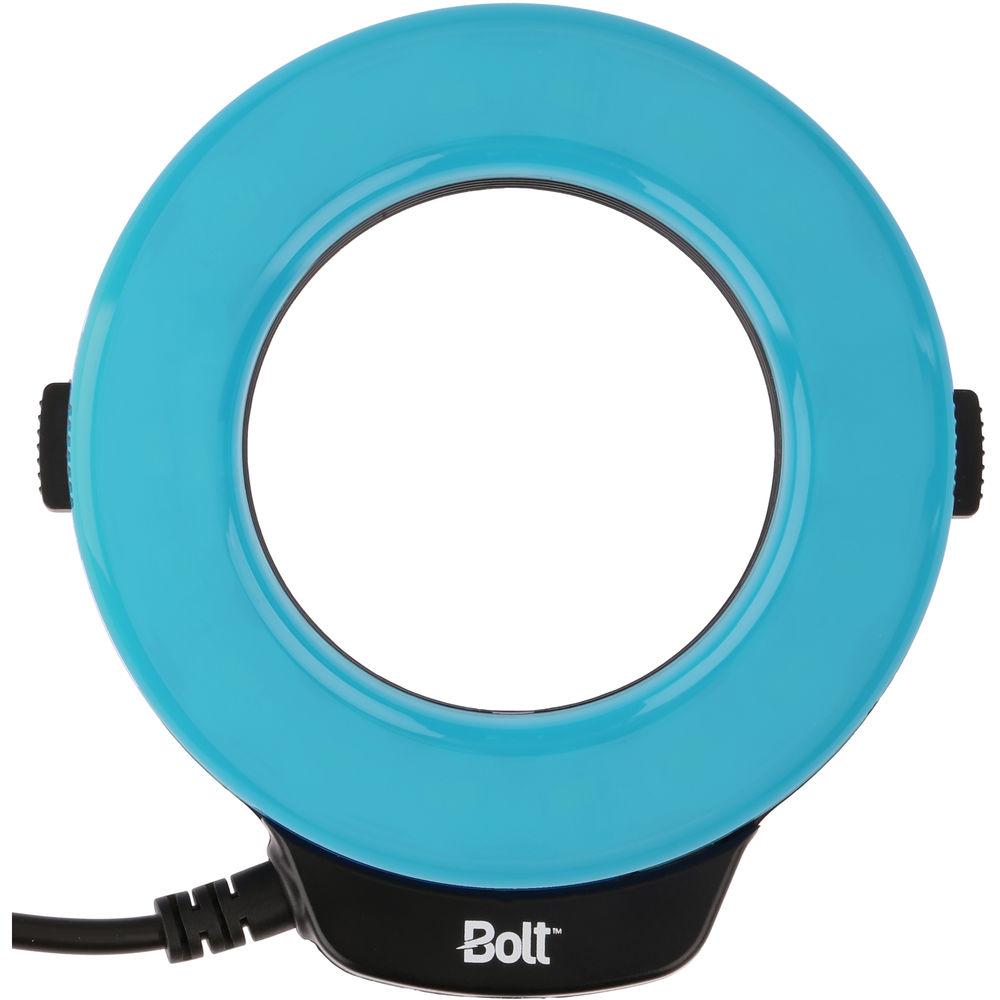

- Four clip-on diffusers are included: clear, frosted, amber, and blue.

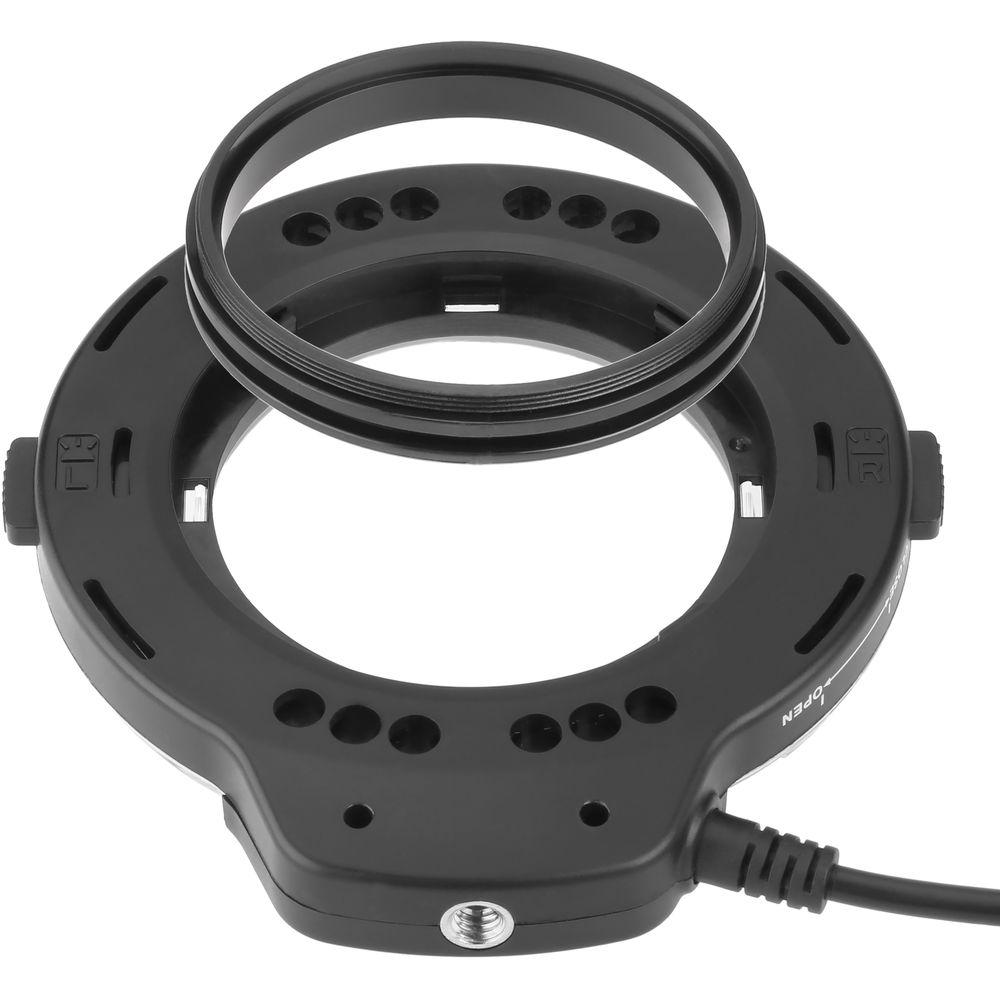

- 49, 52, 55, 58, 62, 67, 72, and 77mm adapter rings are included.
- Coiled power cord connects the ring light to power unit and measures 10" relaxed and 30" stretched.
- Stand/tripod mount features a 1/4"-20 thread on base.
UPC: 847628585645 In the Box Bolt VM-160 LED Macro Ring Light 4 x Diffusers (Clear, Frosted White, Blue, Amber) 8 x Adapter Rings (49, 52, 55, 58, 62, 67, 72, and 77mm) Stand/Tripod Mount Limited 1-Year Warranty User Manual PDF 6.7mbebayyxyebffqdbadfffcwrctetuyxazy Table of Contents
|
Upload User Manual
Have you got an user manual for the Bolt VM-160 LED Macro Ring Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBolt VM-160 Specs | Type | Flash/LED | | Mount | Shoe | | Guide No. | 21' / 6.4 m ISO 100 | | Color Temperature | 3000 to 15,000K | | TTL Dedication | No | | Flash-Ready Indicator | No | | Side Wings | No | | LEDs | Ring Light: 18 | | Display | Yes, (backlit) | | Power Source | 4 x AA Alkaline, Lithium, Rechargeable NiMH Batteries | | Ring Dimensions (WxHxD) | 4.8 x 4.3 x 0.6" / 120.7 x 108.0 x 15.2 mm | | Power Unit Dimensions (WxHxD) | 4.5 x 2.8 x 1.4" / 114.0 x 70.0 x 35.0 mm | | Weight | 7.05 oz / 200 g | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 11.0 x 6.1 x 3.6" |
