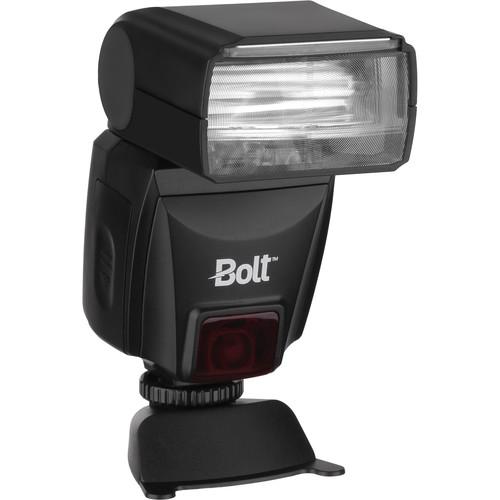

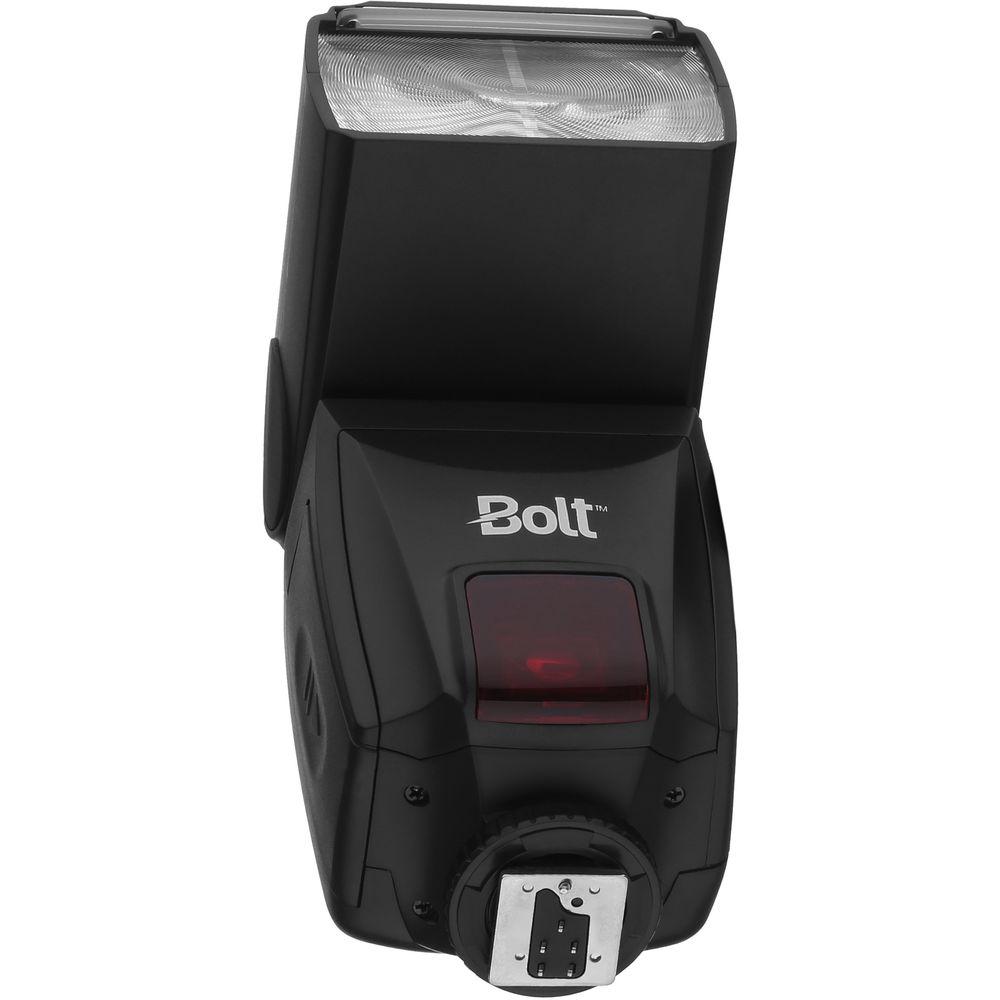

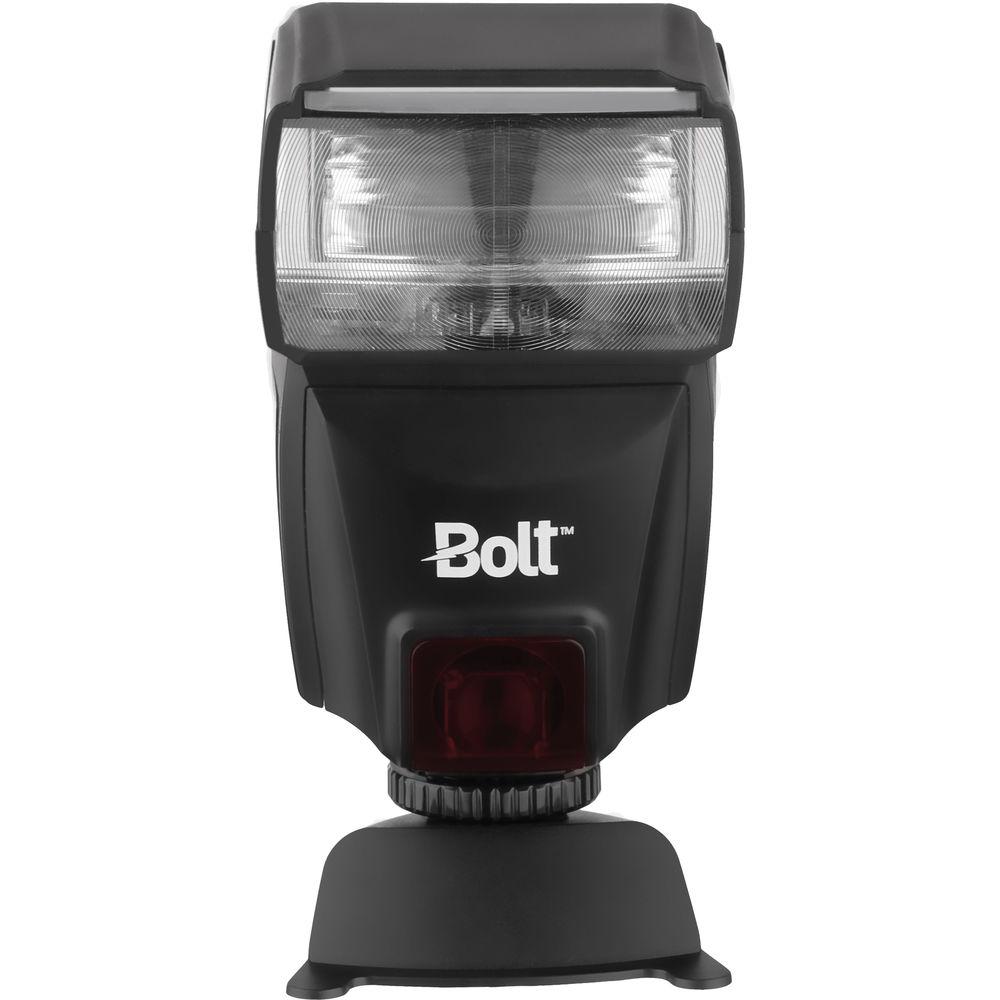

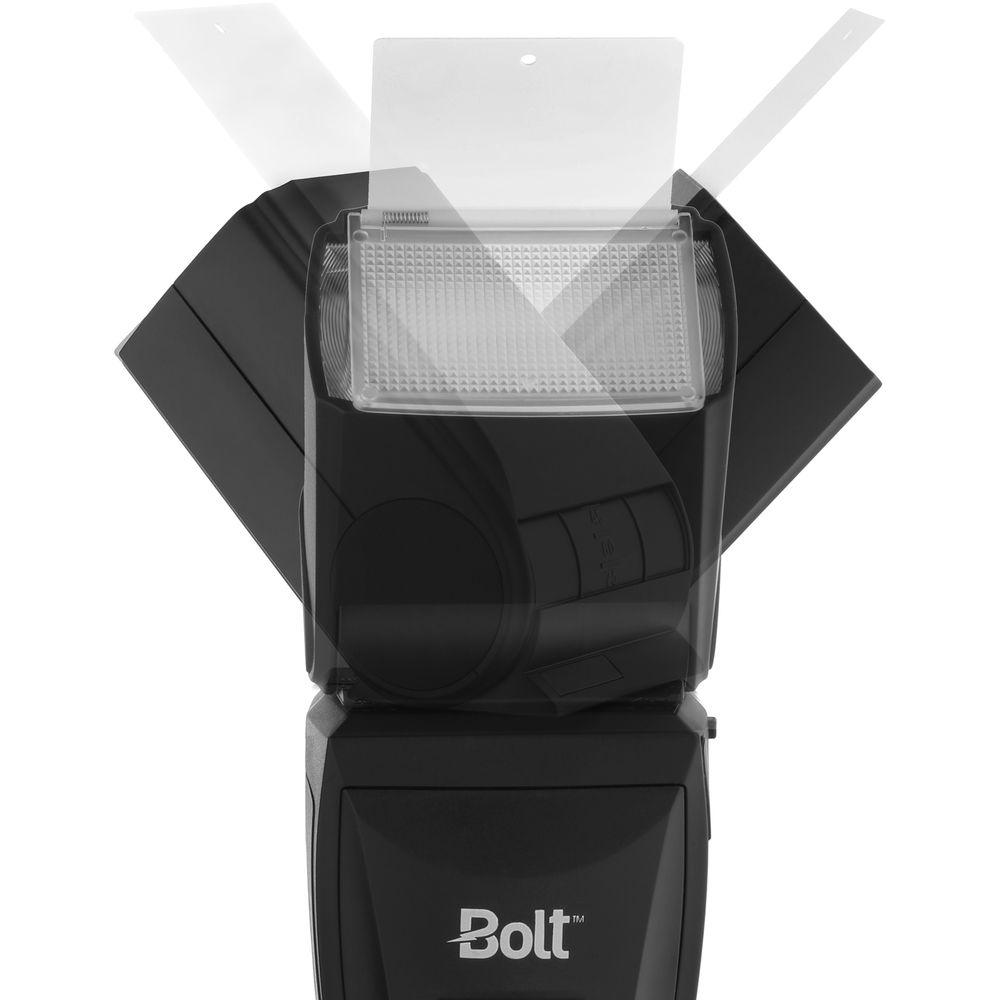

Product description The Bolt VS-560C Wireless TTL Flash is a shoe-mounted flash unit designed to work with Canon's E-TTL / E-TTL II metering system and features wireless TTL slave functionality. The flash has a guide number of 141' at ISO 100 and 50mm setting, giving it good power within its zoom range of 24-105mm. The head also tilts up 90° and swivels 120° to the right and 180° to the left. Additionally, the VS-560C has a PC sync port that allows for remote triggering of the flash and an HV port for external power connections.

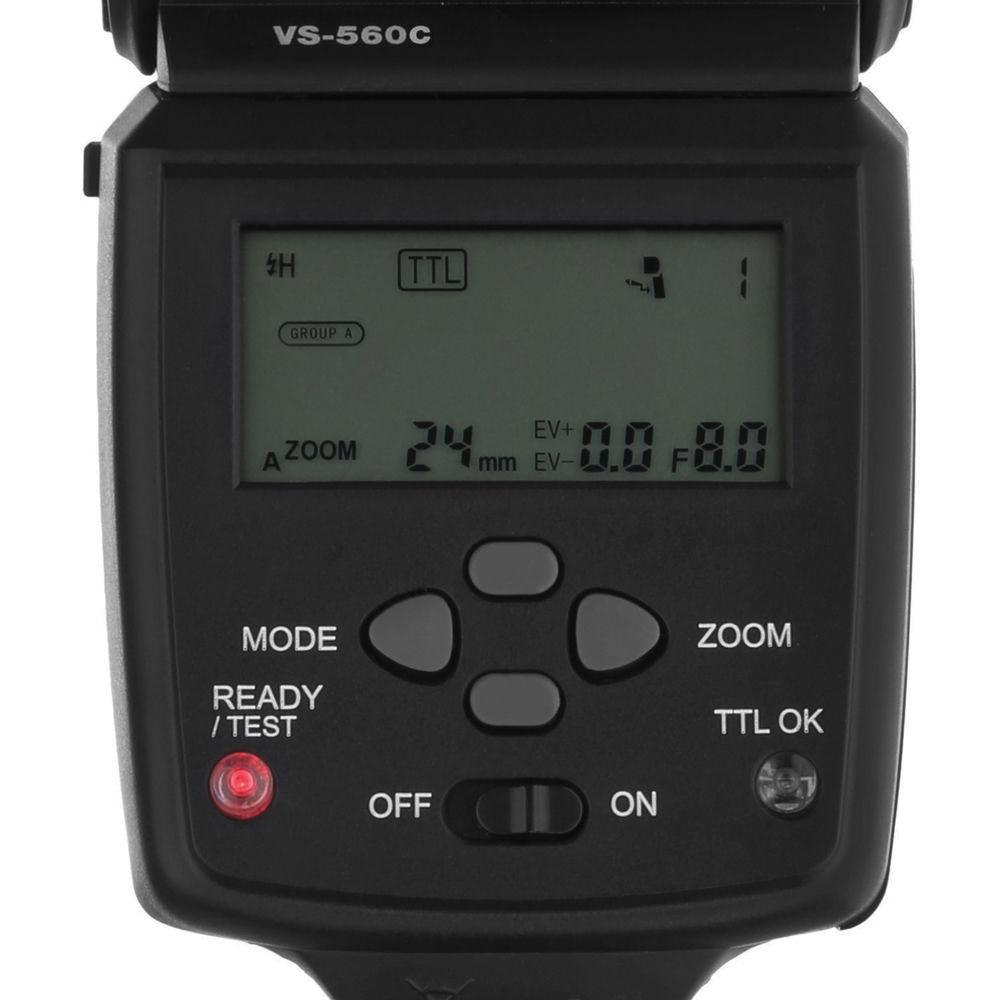

A variety of settings and features can be accessed from the 1.8" backlit LCD screen located on the rear of the flash. This is where you can set TTL settings or even place the flash in manual mode with a power setting between 1/1 to 1/64. The VS-560C is also capable of high-speed and second-curtain synchronization, allowing for more creative shooting techniques and it has built-in reflector and diffuser panels to further enhance its capabilities. The flash runs on 4 AA batteries and comes with a stand.
Note: Not compatible with 80D. - Guide Number at ISO 100
24mm: 112'
28mm: 118'
35mm: 125'
50mm: 141'
70mm: 148'
85mm: 154'
105mm: 164' - Compatible with Canon's E-TTL / E-TTL II metering system

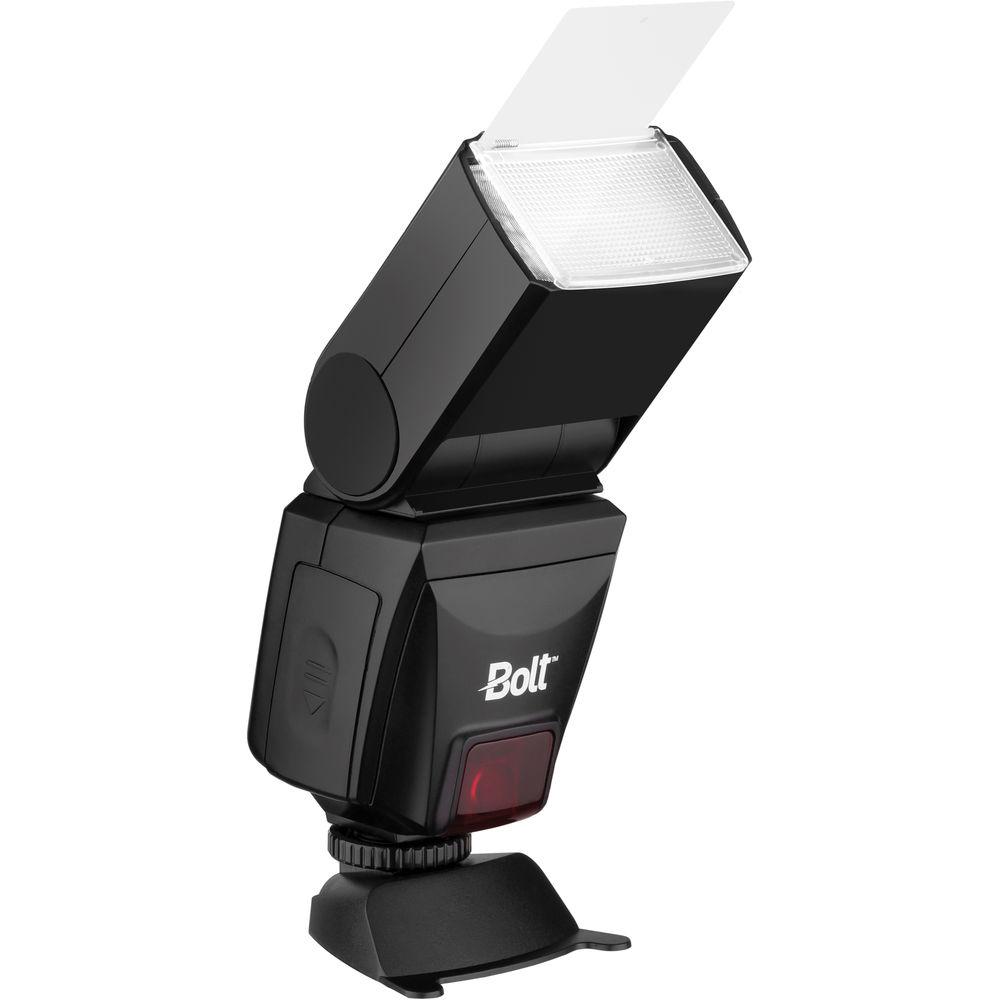

- Flash coverage can be expanded to 18mm with the use of the built-in diffuser panel
- Flash duration of 1/1,000 to 1/20,000
- Flash recycle time of 0.5 to 9 seconds with Ni-MH batteries
- 1.8" backlit LCD display with updated button control scheme

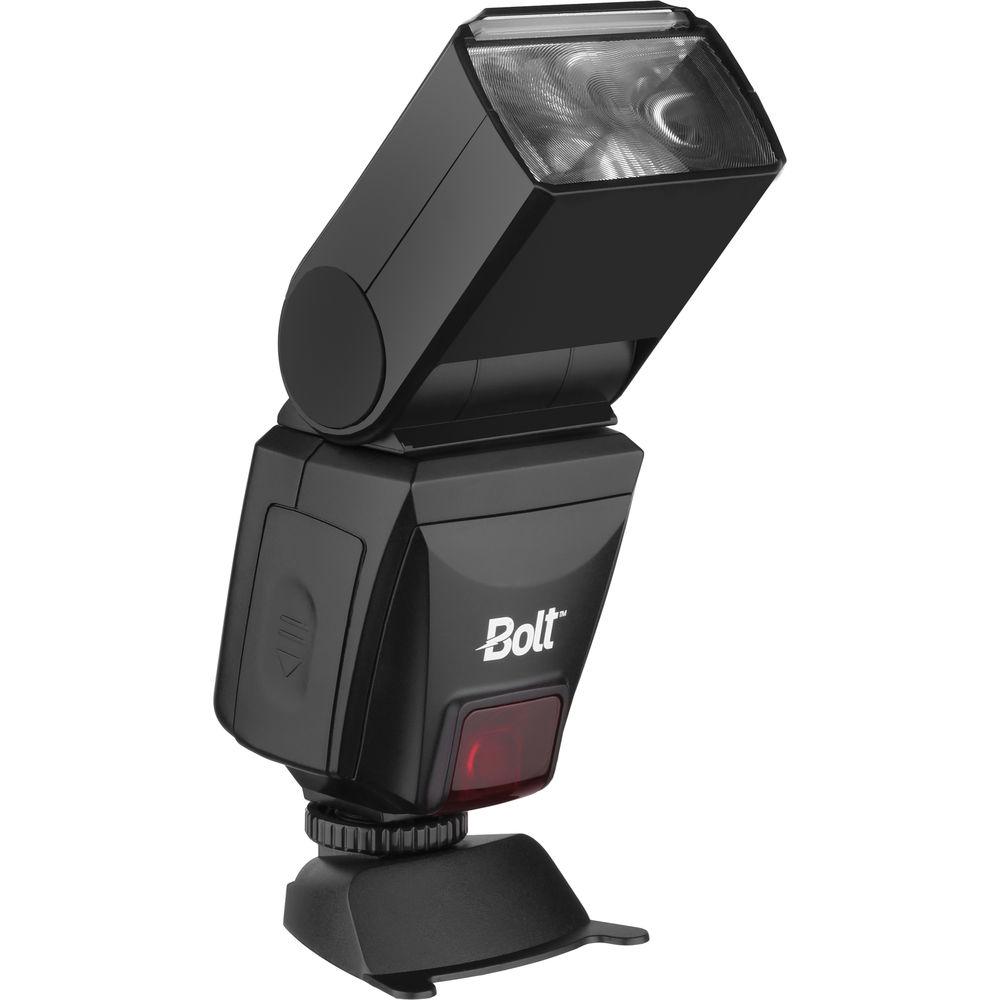

- The adjustable five-position flash head can be tilted up 0-90°, left 0-120° and right 0-180°
- It has a motorized automatic and manual 24-105mm zoom head
- Seven manual mode power output settings of 1/1, 1/2, 1/4, 1/8, 1/16, 1/32, and 1/64
- Optical pulse wireless TTL with a range of up to 33' with 4 channels and 3 groups
- Slave timing modes include instant sync, skip one pre-flash, and skip two pre-flashes
- Autofocus assist light for working in dim conditions
- This flash supports both high speed and rear-curtain sync for more speed and flash control. It supports high-speed sync up to 1/8000 second--with cameras that support this speed--for shooting outdoors at wide apertures and fast shutter speeds, helping you to freeze motion better
- Flash exposure compensation of ±3 in 1/3 EV steps

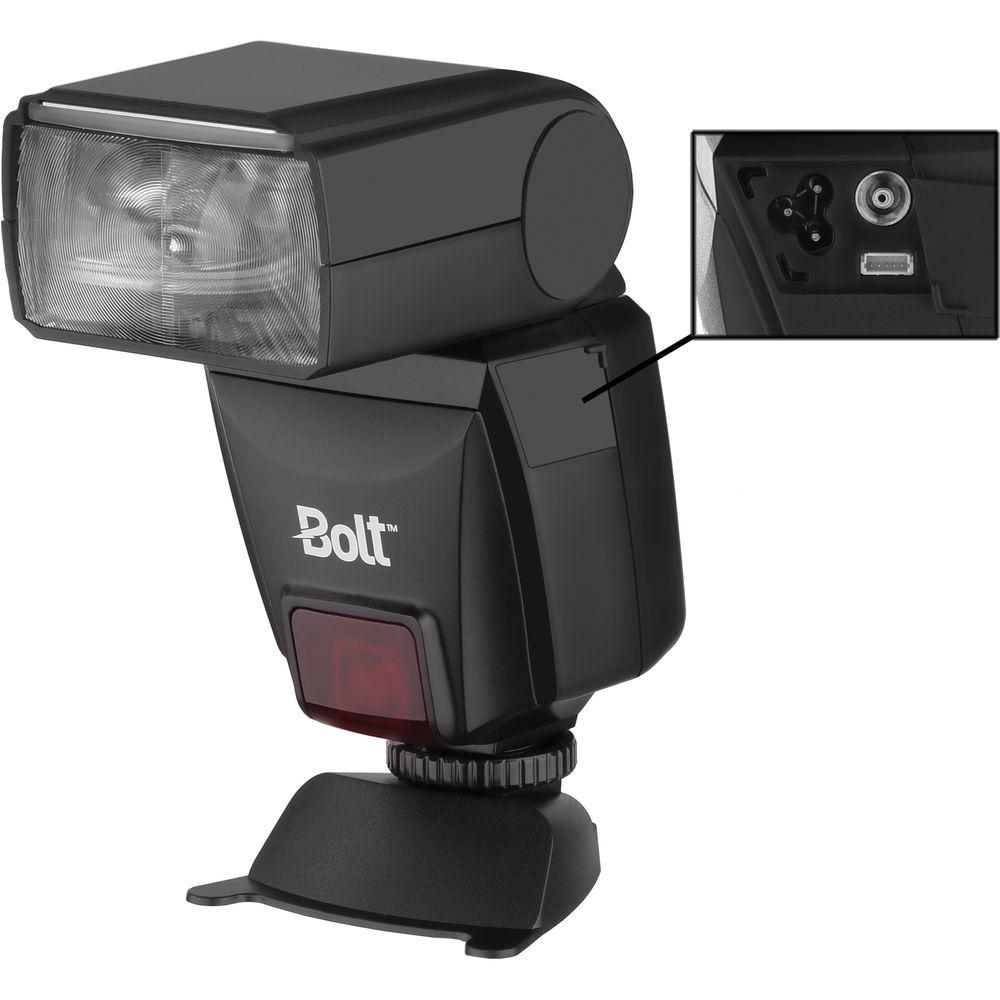

- PC sync port for additional camera connection options
- Automatic power-saving function takes effect after 3 minutes of inactivity
- Flash ready light and test button
- Included flash stand features a 1/4"-20 thread for mounting on a tripod

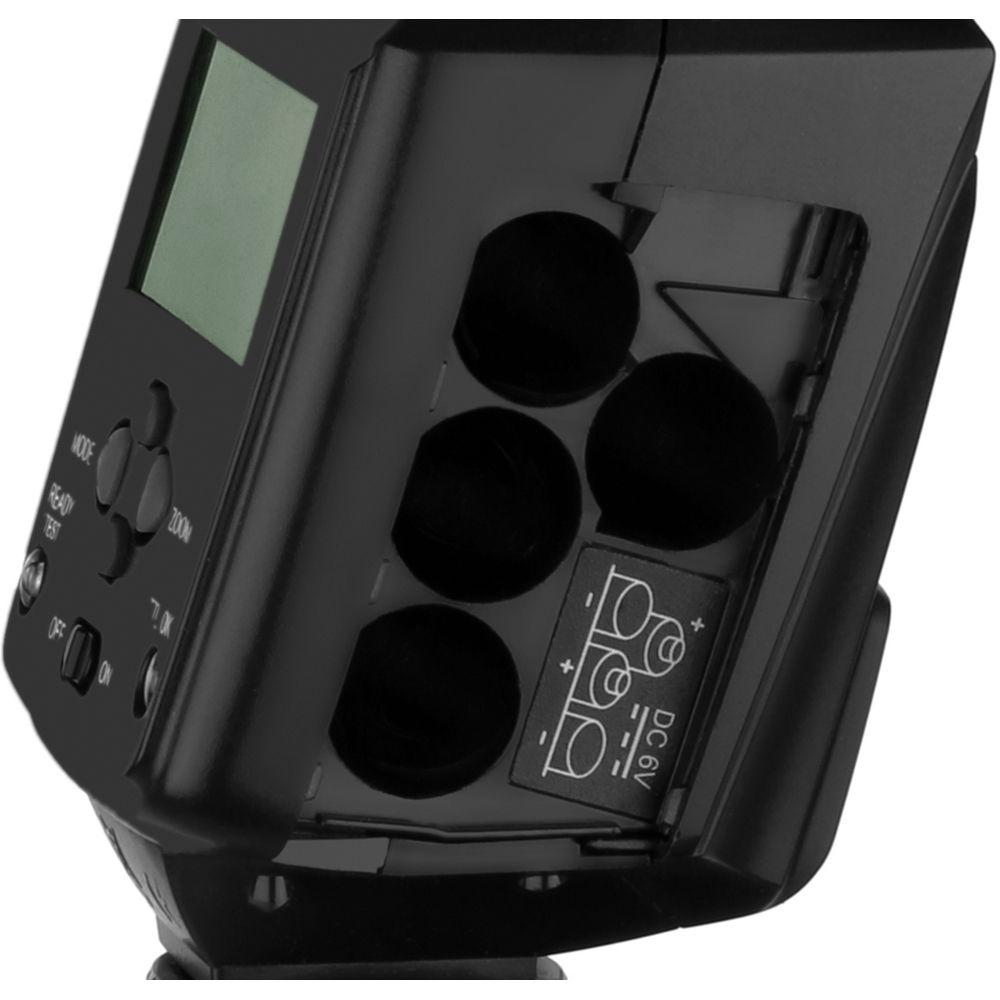

- Can work with an optional external power pack through the use of the HV power port
UPC: 847628576216 In the Box Bolt VS-560C Wireless TTL Flash for Canon Stand Limited 1-Year Warranty User Manual PDF 6.7mbvuswyudvbdwttzafdaubyzaffxrqwxxqyuau Table of Contents
|
Upload User Manual
Have you got an user manual for the Bolt VS-560C Wireless TTL Flash for Canon in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBolt VS-560 Specs | Mount | Shoe | | Guide No. | 141.08' / 43 m ISO 100 at 50 mm Position | | Vari-Power | Manual: 1/1 to 1/64 | | Bounce Head | Yes0 to +90° | | Swivel Head | Yes, 300° | | Coverage | 18 - 105 mm (Full Frame) | | Zoom Head | Full Frame: 24 - 105 mm | | Off-Camera Terminal | PC | | Recycle Time | Approximately 0.5 to 9 Seconds | | Flash Duration | 1/1000 to 1/20000 sec | | Flash-Ready Indicator | Yes | | Compensation | -3 EV to +3 EV (in 1/3 EV steps) | | Slave Timing Modes | Instant Sync
Skip Preflash
Skip Two Preflashes | | Wireless Operation | Method: Optical Pulse
Distance: Up to 33' / 10.06 m | | Wireless Communication Channels | 4 Channels | | Wireless Groups | 3 Groups | | Power Source | 4 x AA Alkaline, Lithium, Rechargeable NiMH Batteries | | Dimensions (W x H x D) | 2.6 x 3.9 x 4.7" / 6.6 x 9.9 x 11.9 cm | | Weight | 9.17 oz / 259.97 g without batteries | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 8.9 x 4.7 x 2.9" |
