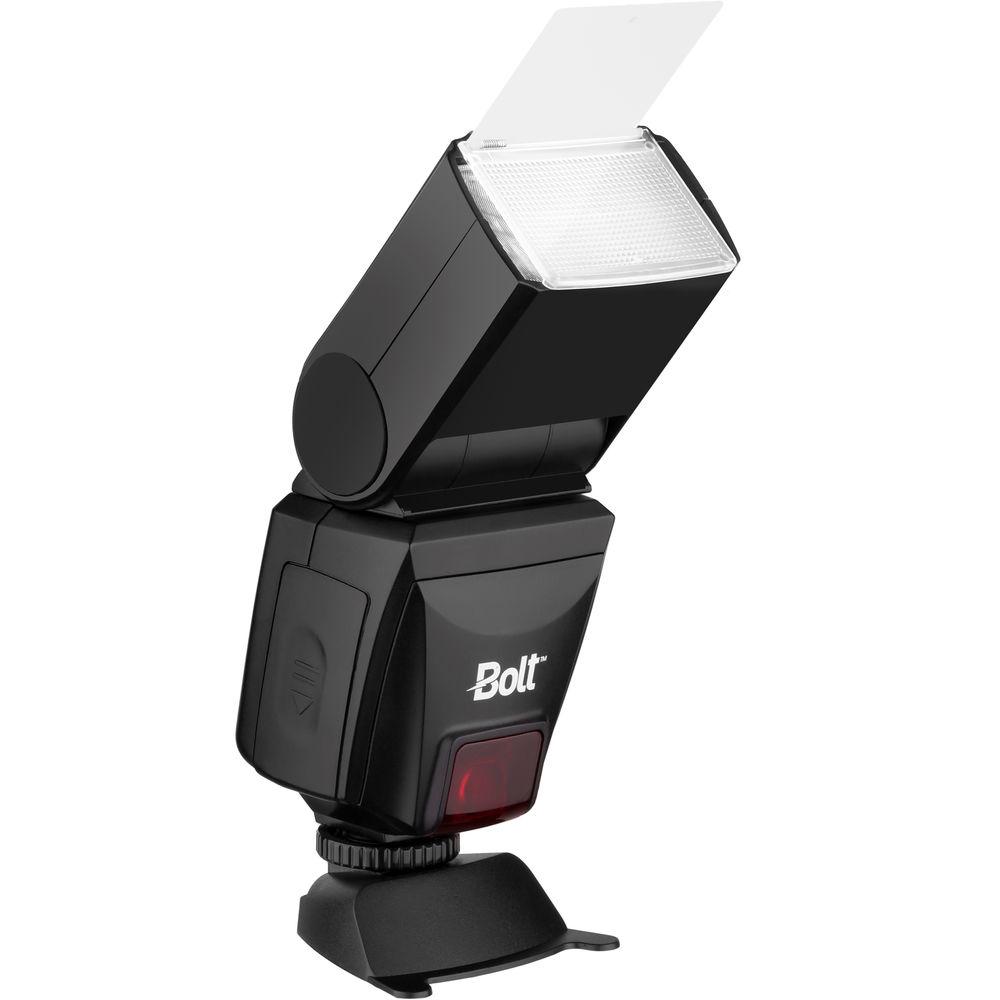

User Manual for Bolt VS-570N Wireless TTL Flash for Nikon Cameras Click to enlarge the picture
Contents of the user manual for the Bolt VS-570N Wireless TTL Flash for
- Product category: On Camera Flashes Bolt
- Brand: Bolt
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bolt On Camera Flashes
 |
User manual for the Bolt VS-570N Wireless TTL Flash for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bolt product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bolt user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bolt product will considerably shorten its lifespan!
|

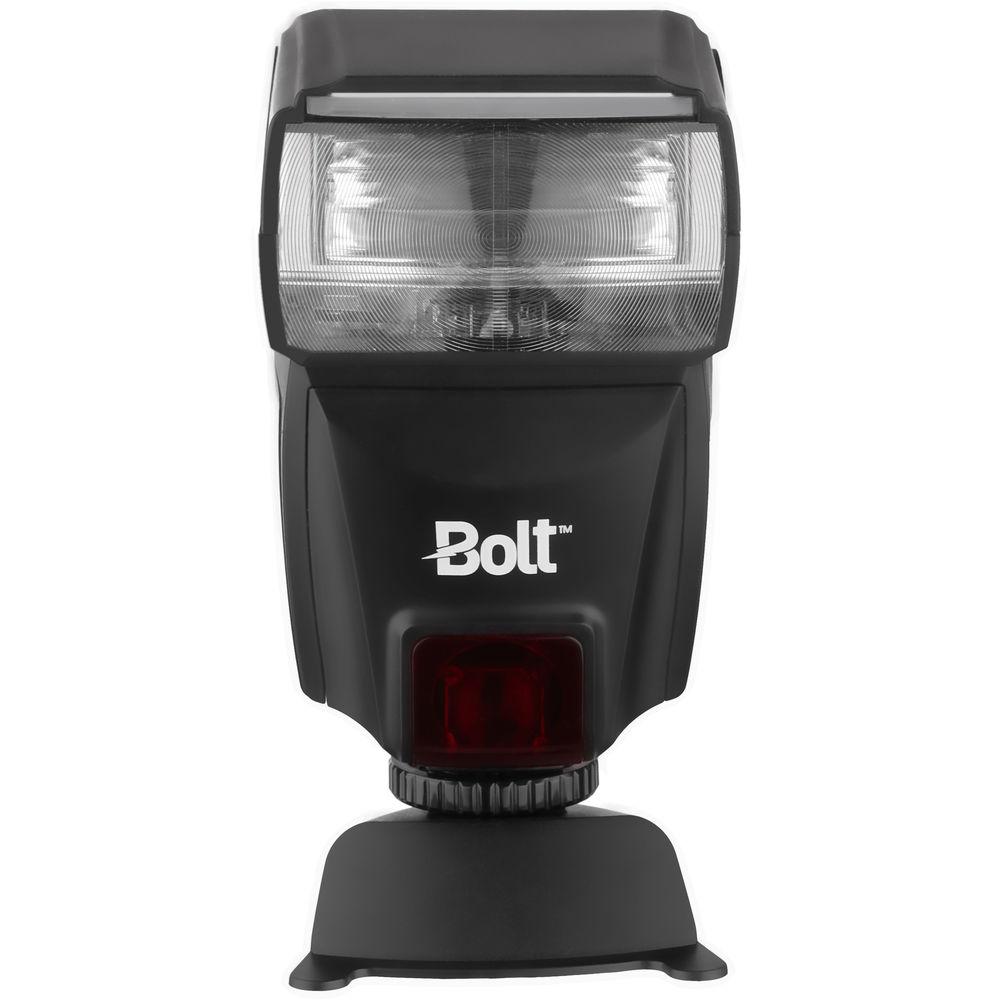

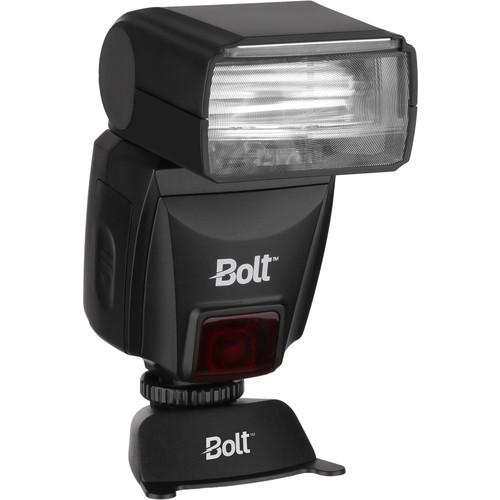

Product description Create light around your subject or augment existing light with the VS-570N Wireless TTL Flash from Bolt. Available here to be fully compatible with Nikon's i-TTL, including use as a wireless master or slave TTL flash, the VS-570N allows photographers to work quickly and comfortably by knowing that settings can be easily determined with the camera's automatic metering system. This unit also has good power output with a guide number of 141' at ISO 100 and 50mm and can cover a range of focal lengths from 24-105mm using the zoom head, or as wide as 18mm with the pull-out diffusion panel. You can even control output manually with power settings from 1/1 to 1/64.
In addition to wireless TTL, the VS-570N can be set up as a manual master with an optical pulse that features a range of 33' or a simple optical slave. Multiple sync modes are available for complete control over your images, including high-speed sync and both 1st and 2nd curtain sync settings. The flash also has a recycle time of 0.5-9 seconds and can run on either 4 AA batteries or an external power pack, thanks to the inclusion of an HV power port. Additionally, for basic off-camera use it has a standard PC sync terminal.
- Compatible with Nikon i-TTL
- Guide number of 141' at ISO 100 and 50mm position

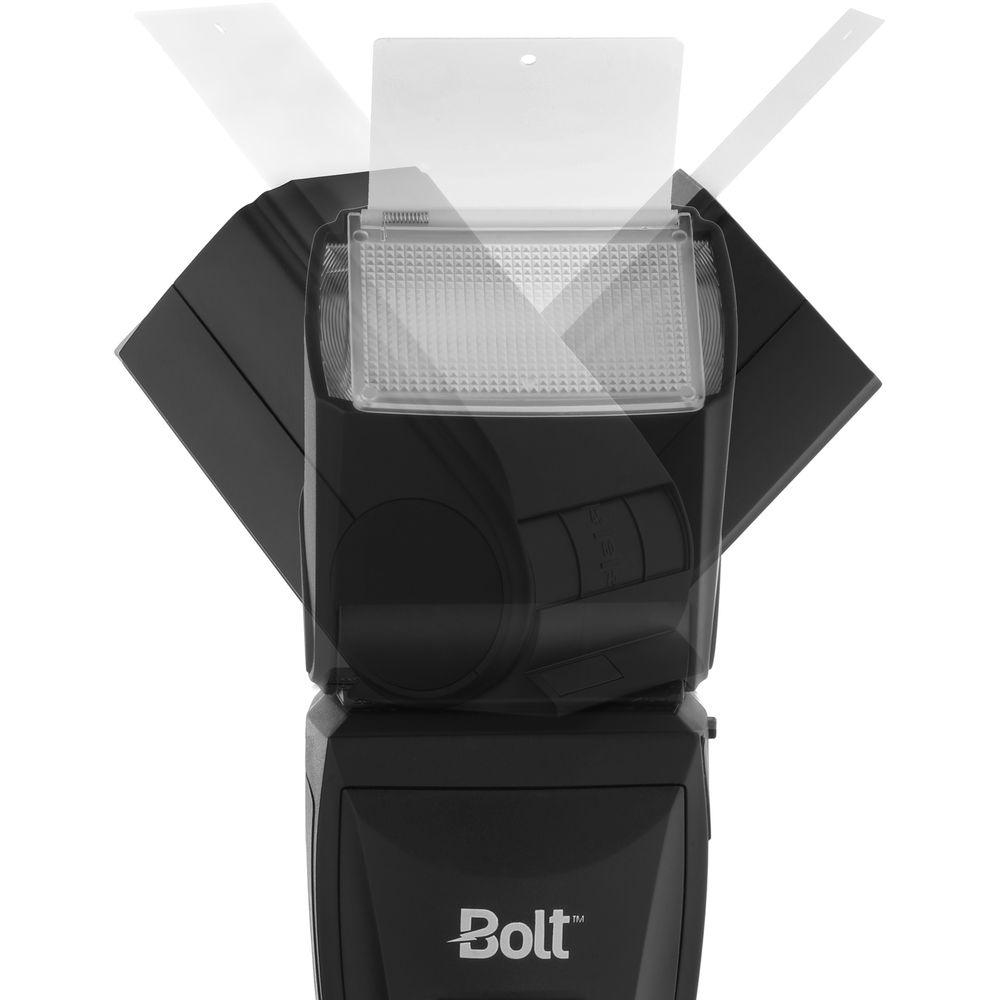

- Zoom head offers coverage of 24-105mm on full-frame sensors with the ability to cover 18mm when the pull-out diffusion panel is used
- Manual power control from 1/1 to 1/64

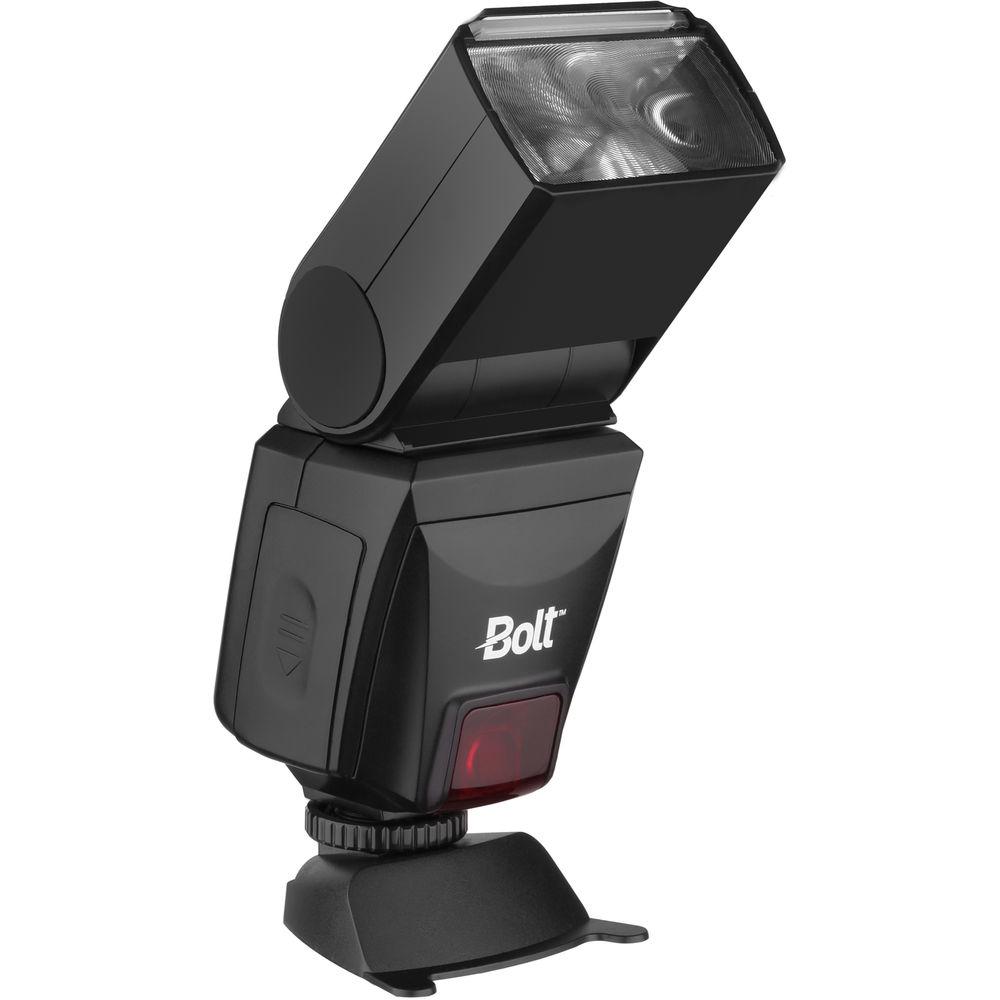

- Tilts upward 90° and rotates right 120° and left 180°
- Built-in reflector panel can bounce some light forward when the flash is tilted to fill in shadows and create catchlights
- AF assist light for working in dim lighting conditions
- The flash can be set up as a wireless master or slave TTL flash unit
- In addition to use as an optical slave the VS-570F can be set up as a slave TTL unit for Nikon or Canon systems
- Wireless transmission for manual master and slave modes uses an optical pulse method with 33' range
- Access to 4 wireless channels and 3 groups
- Optical slave timing modes include instant sync, skip one pre-flash, and skip two pre-flashes
- Flash duration of 1/1000 to 1/20,000 second
- High-speed, 1st & 2nd curtain synchronization options

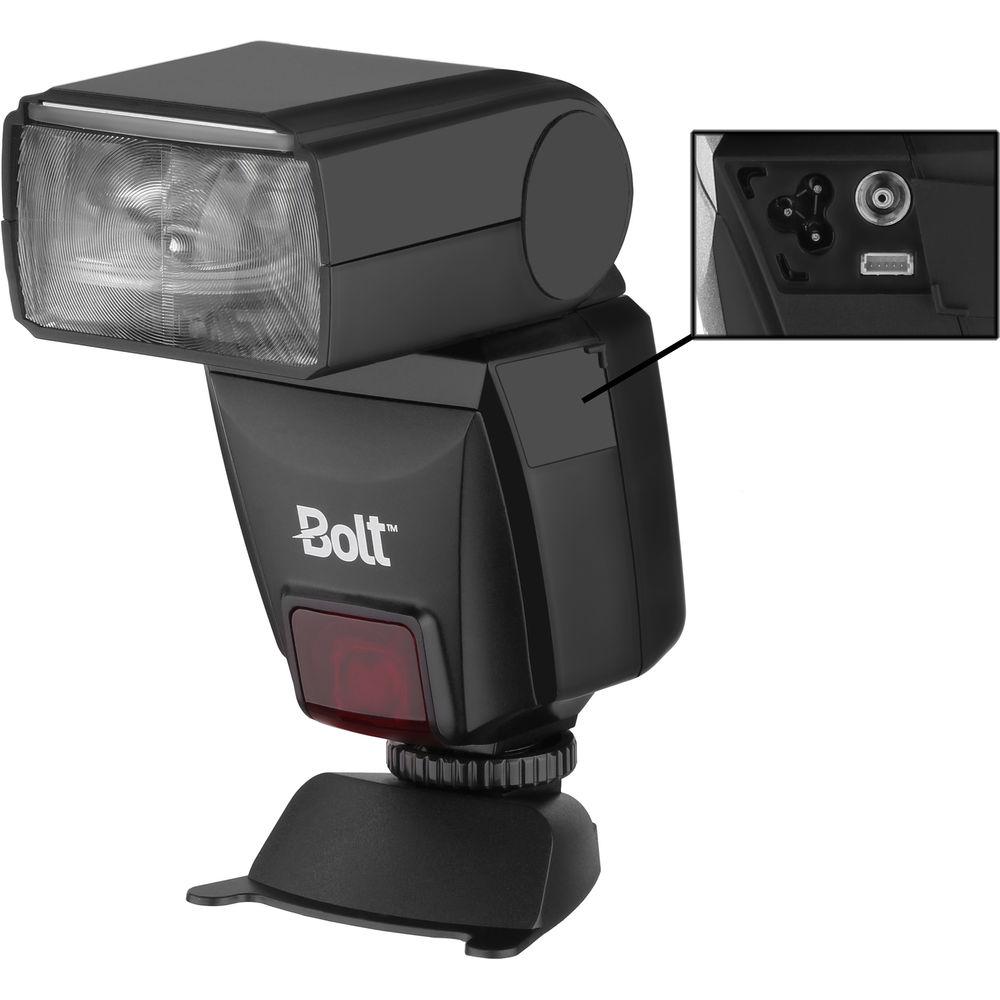

- PC sync terminal for wired connection to your camera
- Recycle time of 0.5-9 seconds with NiMH AA batteries

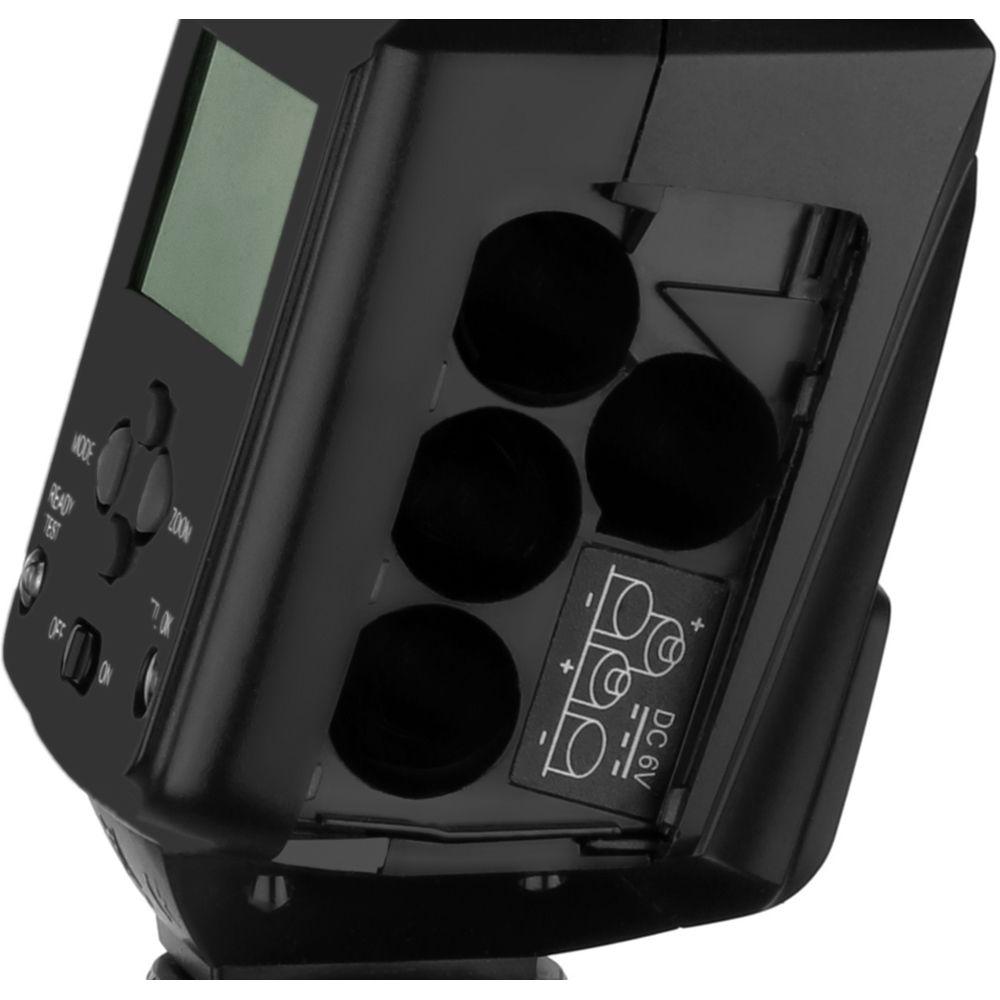

- Runs on four AA lithium, NiMH, or alkaline batteries or an external power pack via the HV power port
- Port for updating firmware
UPC: 847628586543 In the Box Bolt VS-570N Wireless TTL Flash for Nikon Cameras Stand/Tripod Mount Limited 1-Year Warranty User Manual PDF 7.4mbuxryvxxwuwtxtvauuzfusbceczrxyz Table of Contents
|
Upload User Manual
Have you got an user manual for the Bolt VS-570N Wireless TTL Flash for Nikon Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBolt VS-570N Specs | Mount | Shoe | | Guide No. | 141.08' / 43 m ISO 100 at 50 mm Position | | Exposure Control | Manual, i-TTL | | Vari-Power | Manual: 1/1 to 1/64 | | Bounce Head | +0 to +90° | | Swivel Head | 300° | | Coverage | 18 - 105 mm (Full Frame) | | Zoom Head | Full Frame: 24 - 105 mm | | Off-Camera Terminal | PC | | Recycle Time | Approximately 0.5 to 9 Seconds | | Flash Duration | 1/1000 to 1/20000 sec | | Flash-Ready Indicator | Yes | | Slave Timing Modes | Instant Sync
Skip Preflash
Skip Two Preflashes | | Wireless Operation | Method: Optical Pulse
Distance: Up to 32.81' / 10 m | | Wireless Communication Channels | 4 Channels | | Wireless Groups | 3 Groups | | Power Source | 4 x AA Alkaline, Lithium, Rechargeable NiMH Batteries | | Dimensions (W x H x D) | 2.6 x 3.9 x 4.7" / 65.0 x 100.0 x 120.0 mm | | Weight | 9.17 oz / 260 g | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 8.8 x 4.6 x 2.8" |
