Bolt VX-760N Wireless TTL Flash for

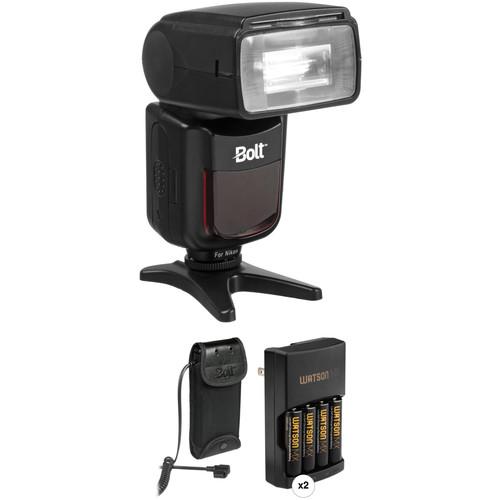

User Manual for Bolt VX-760N Wireless TTL Flash for Nikon Kit with Compact Battery Pack, Rapid Charger and AA Batteries

• Product category: On Camera Flashes Bolt
• Brand: Bolt
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Bolt On Camera Flashes

Product description

• Bolt VX-760N Wireless TTL Flash for Nikon Cameras The VX-760N Wireless TTL Flash for Nikon from Bolt is a dedicated flash for use with Nikon cameras that support shoe mount flash. The VX-760N features a guide number of 164' at ISO 100 and an adjustable tilt head with six positions: -7 to 90°. The -7° downward tilt allows you to fully illuminate your subject when shooting close-up. You can also twist it to the left up to 90° and to the right up to 180°. It covers a 24-180mm range (in 35mm full frame format) and extends to 18-180mm with the diffuser panel in place. In auto mode the zoom range is stepless, it does not set at 24mm, 35mm, etc, but matches the exact focal length of the zoom lens for optimal lighting. The flash supports rear curtain synchronization for shooting at slower shutter speeds. The VX-760N is equipped with wireless (optical pulse) manual and full TTL master and slave functions. It can operate on 4 distinct channels and in up to 3 wireless groups. The VX-760N has an autofocus assist for low-light photography and an automatic power-saving function that turns the flash off when it's inactive. It is powered by four AA batteries (not included), with a flash duration between 1/800 and 1/20,000 of a second. A convenient HV port allows you to connect the flash to an external power source, such as the Bolt Cyclone, for extended usage and faster recycling. The included stand allows you to set the flash up on a flat surface or to attach it to a tripod head, light stand, or clamp that has a standard 1/4"-20 mount.
  • This on-camera flash is fully compatible with Nikon i-TTL.
  • The VX-760N features full manual and full TTL wireless remote master and slave functions via wireless optical pulse transmission. Up to four channels (1, 2, 3 and 4) can be utilized so that master transmits only to designated slaves on the same channel. As slaves and masters, the VX-760N can be assigned to any one of three groups (A, B or C) and the mode and power set separately for each group.
  • Multi (stroboscopic) mode allows the flash to fire multiple times during one single exposure. This is useful to capture fast moving subjects or can provide multiple images of the subject moving through the frame.
  • The guide number for this flash is 164' (50 m) at 50mm and ISO 100.
  • The adjustable six-position flash head can be tilted up -7-90°, left 0-90° and right 0-180°. It has an automatic and manual 24-180mm zoom head.
  • FV Lock, Red-eye Reduction and Flash Exposure Bracketing are supported if your specific Nikon camera has those functions.
  • The 2.0" rear backlit LCD Display allows you to easily make adjustments in low light and clearly see what your flash is set to for accurate readings.
  • With eight different manual power levels you can easily change from full to 1/128 power and fine tune your levels in increments of 1/3.
  • With a built-in autofocus-assist beam you can shoot in low-light conditions, using the beam to aid your camera's AF modes.
  • A PC sync terminal and included 12" cable allows you to easily shoot with the VX-760N off of the camera for increased versatility.
  • An HV port on the side of the flash allows you to connect the VX-760N to an external power source for extended use and for faster recycling time. The connection for the HV port is a Canon CZ-type.
  • This flash supports rear-curtain sync
  • A built-in reflector allows you to enhance the light coming from your flash and the diffuser panel, which extends the flash range to wide-angle 18mm, also softens the light for more flattering shadows and images.
  • Lock mode prevents inadvertent operation of the flash unit and overheating protection mode offers warnings when the flash is operating continuously with a chance of overheating and will temporarily disable the flash if temperatures are too high.
  • The automatic power-saving function turns the flash off to conserve power, allowing you to shoot longer
  UPC: 847628555983
• Bolt CBP-C1 Compact Battery Pack for Select Canon & Bolt VX Series Flashes The CBP-C1 Compact Battery Pack from Bolt will boost the number of flashes and the recycle time of your compatible Canon, Bolt VX-series, Godox TT685 series, Nissin, Yongnuo YN685 series flash. The CBP-C1 can operate on four or eight AA batteries--alkaline, lithium, or nickel-hydride (NiMH). Lights on the pack indicate Standby, Recycle, or Low Power mode. A thermal protection switch prevents overheating. The CBP-C1 can provide up to 595 flashes per charge, and recycle times as fast as 1.24 seconds. The pack, which weighs just 7 oz without the batteries, can also be attached to the bottom of your camera using the tripod socket.
  • Option to use four or eight AA batteries at a time
  • Built-in thermal protection switch to automatically prevent overheating.
  • Recycles as fast as 1.24 seconds (with four AA alkaline batteries in flash unit and eight NiMH batteries in Compact Battery Pack).
  • Up to 595 flashes per charge at full power (with four AA alkaline batteries in flash unit and eight NiMH batteries in Compact Battery Pack).
  Compatible Flashes
  • • Canon: Speedlite 600EX-RT, 600EX II-RT, 580EX, 580EX II, 550EX, 540EZ, 430EZ, Macro Ring Lite MR-14EX, Macro Twin Lite MT-24EX
    • Bolt: VX-710N, VX-710C, VX-760N, VX-760C
    • Godox: TT685 (all camera versions)
    • Nissin: Di700 for Canon, Di866 for Canon, Di866 Mark II for Canon, MG8000 for Canon
    • Yongnuo: YN685 (all camera versions)
  UPC: 847628030589
• 2 x Watson MX 4-Hour Rapid Charger and 4 MX AA NiMH Batteries Power up your photo equipment, flashlights, gaming devices, and other electronics via the Watson MX 4-Hour Rapid Charger with 4 MX AA NiMH Batteries. The 1.2V, 2550mAh nickel-metal hydride cells are pre-charged, rechargeable up to 500 times, and capable of retaining 85% of their capacity after 1 year in storage. The Rapid unit will charge 4 of them in about 310 minutes, or 2 in about 160 minutes. It's also compatible with optional AA NiCd batteries, or AAA NiMH or NiCd cells.

  The charger's integrated micro-controller ensures that each battery is charged to its full capacity, and an automatic cut-off feature prevents overcharging. Should the controller and automatic cut-off functions both fail, the safety guard timer will kick in to ensure that power is still shut off after 6 hours. Additionally, the charger features protection against short circuits and reverse polarity. Two charging channels are individually monitored, and two LED indicators display battery status. In order to enable use all over the world, the charger runs on 100-240 VAC power. As a bonus, its compact outlet prongs can fold inwards, making the unit more compact for storage and travel. UPC: 847628599529

• VX-760N Wireless TTL Flash for Nikon Cameras szvquuadzsxvtwfyfwuxauvfbuaar
• 12" PC Sync Cord
• Soft Case
• Flash Stand/Tripod Mount
• Limited 1-Year Warranty

• CBP-C1 Compact Battery Pack for Select Canon & Bolt VX Series Flashes

• 2 x Watson - MX 4-Hour Rapid Charger and 4 MX AA NiMH Batteries

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Bolt VX-760N Wireless TTL Flash for Nikon Cameras

  Mount	Shoe
  Guide No.	164.04' / 50 m ISO 100 at 50 mm Position
  Exposure Control	Manual, i-TTL
  Vari-Power	1/1 to 1/128
  Bounce Head	-7 to +90°
  Swivel Head	180°
  Coverage	18 - 180 mm (Full Frame)
  Zoom Head	Full Frame: 24 - 180 mm
  Off-Camera Terminal	PC
  Recycle Time	Approximately 0.3 to 3 Seconds
  Flash Duration	1/800 to 1/20000 sec
  Flash-Ready Indicator	Yes
  Compensation	-3 EV to +3 EV (in 1/3 EV steps)
  Wireless Operation	Method: Optical Pulse Distance: Up to 33' / 10.06 m
  Wireless Communication Channels	4 Channels
  Wireless Groups	3 Groups
  Power Source	4 x AA Alkaline, Lithium, Rechargeable NiMH Batteries
  Dimensions (W x H x D)	3.1 x 5.7 x 4.7" / 78.7 x 144.8 x 119.4 mm
  Weight	14.39 oz / 408 g without batteries

  Box Dimensions (LxWxH)	9.1 x 5.0 x 3.8"

• Bolt CBP-C1 Compact Battery Pack for Select Canon & Bolt VX Series Flashes

  Operating Temperature	-4-104°F (-20-40°C)
  Operating Humidity	85% or less
  Dimensions	6.7 x 2.8 x 1.0" (17 x 7.25 x 2.5 cm)
  Weight	7 oz (200 g)

  Box Dimensions (LxWxH)	7.9 x 6.0 x 2.6"

• 2 x Watson MX 4-Hour Rapid Charger and 4 MX AA NiMH Batteries

  Configuration	2 or 4 x AA or AAA NiMH or NiCd batteries
  Input Voltage	100-240 VAC, 50/60 Hz
  Output Voltage	2.8 VDC, 500 mAh
  Charging Time	4 x AAA 950 mAh: About 190 minutes 2 x AAA 950 mAh: About 95 minutes 4 x AA 2550 mAh: About 310 minutes 2 x AA 2550 mAh: About 160 minutes
  Operating Temperature	32 to 113°F / 0 to 45°C
  Dimensions	2.7 x 1.3 x 4.3" / 6.9 x 3.3 x 10.9 cm
  Weight	2.8 oz / 79.4 g

  Quantity	4 x
  Size	AA
  Chemistry	NiMH (nickel-metal hydride)
  Capacity	2550 mAh
  Output Voltage	1.2 V
  Durability	Rechargeable up to 500 times
  Temperature Range	Down to -4°F / -20°C

  Box Dimensions (LxWxH)	7.8 x 4.1 x 0.4"
