User Manual for Bon 18.5" 12-Bit Monitor with 3G SDI Input and HD Recording Click to enlarge the picture
Contents of the user manual for the Bon 18.5" 12-Bit Monitor with 3G
- Product category: Production Monitors Bon
- Brand: Bon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bon Production Monitors
|
User manual for the Bon 18.5" 12-Bit Monitor with 3G contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bon product will considerably shorten its lifespan!
|

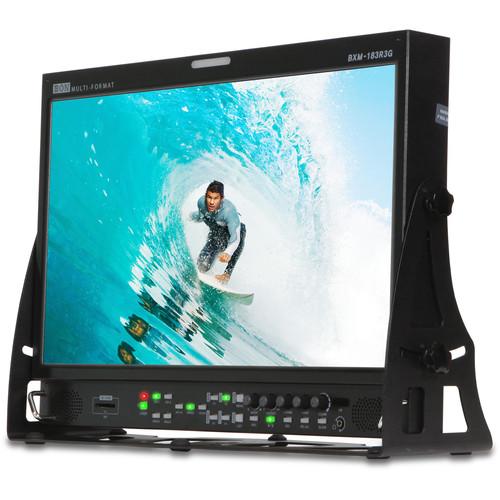

Product description Bon Professional Production Monitors: Built for On-Set Life Read More The 18.5” 12-Bit Monitor with 3G SDI Input and HD Recording from BON is a high-end broadcast monitor with a 12-bit video processor and multiple advanced features like reference image overlay, HDMI-to-SDI converter, and Auto Recording (GPIO, Time Code).The reference image overlay feature allows you to save still frames to mix with live video using a transparency slider. The overlay image enables directors to check if the current on-set position and angle of camera is as same as the stored position and angle. BON's embedded HDMI-to-SDI converter preserves the HDMI's original resolution in its SDI output stream. Shooters can watch their video on an external monitor without blur. Auto Recording (GPIO,Time Code) allows recording to start automatically when the time code is being generated through an SDI camera. -
- 12-bit signal processor
- Thumbnail file list
- Focus assistance
- False color
- Waveform
- Vectorscope display
- Closed caption (CEA-608/708)
- Gen-lock (video synchronization)
- Time Code
- 8-16 Channel audio level meter
- Exposure range check
- UMD/IMD Mode (supports TSL 4.0)
- AFD & V-CHIP (SDI only)
- Various markers
- H/V delay
- Pixel-to-Pixel view
- Zero/Under/Over Scan
- Fast motion mode
- Freeze frame
- Blending, PaP, PiP
- R/G/B/W internal patterns
UPC: 889716000272 In the Box Bon 18.5" 12-Bit Monitor with 3G SDI Input and HD Recording Cleaner Power Cable DVI-to-VGA Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bon 18.5" 12-Bit Monitor with 3G SDI Input and HD Recording in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBon BXM-183R3G Specs | Panel | LCD | | Display | 18.5" (46.9 cm) | | Resolution | 1366 x 768 | | Pixel Pitch | 0.1 x 0.3 mm | | Color | 8-bit | | Viewing Angle (H/V) | 178/178 | | Luminance | 250 cd/m² | | Contrast | 1000:1 | | Back Light | LED | | Display Area (H x V) | 16 x 9.0" (41 x 23 cm) | | Input | 2 x BNC, HD/SD-SDI, 3G / 1.485G / 270M
3 x BNC, Analog (YPbPr / CVBS / S-Video / RGB)
1 x HDMI, (with HDCP v.1.1), 19pin Female
1 x DVI, 24-pin, Female
1 x BNC, External Sync, Black Burst & Tri-sync, 1.0 Vp-p | | Outputs | 2 x BNC, SDI-1/2 Active Loop Output
3 x BNC, Analog (YPbPr / CVBS / S-Video / RGB)
1 x BNC, HDMI-to-SDI Conversion Out
1 x BNC, for external synchronization | | Maximum Analog Input Level | Composite: 1.0 Vp-p (with sync), NTSC/PAL
YC (S-Video): Y: 1.0 Vp-p, C: 0.286 Vp-p
Component (Y/Pb/Pr): Y: 1.0 Vp-p, Pb: 0.7 Vp-p, Pr: 0.7 Vp-p
Component (R/G/B): G: 1.0 Vp-p (with Sync), B: 0.7 Vp-p, R: 0.7 Vp-p
PC-RGB, Sync Level: R, G, B: 0.7 Vp-p, H/V Sync: 4 V ± 1 Vp-p | | Signal Format | SMPTE 425M AB: Level A MS1, MS2, MS3, MS4
Level B MS1, MS2, MS3, MS4
SMPTE 372M: Dual HD-SDI YCbCr (4:2:2), 1080p
Dual HD-SDI YCbCr/RGB (4:4:4), 1080i, 1080p, 720p
SMPTE 274M/292M: 1080i (60/59.94/50)
1080p (30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE 296M: 720p (60/59.94/50)
SMPTE 260M: 1035i (60/59.94)
SMPTE 125M/259M: 480i (60/59.94), 576i (50)
2K, SMPTE 428M: 2048 x 1080p (24/24sF/23.98/23.98sF)
ITU R-BT.656: 576i (50)
HDMI: 1080p (60)
DVI: 1080p (60) | | Audio Input/Output | 1 x Line in stereo
2 x Phone jack out (1 x Line out stereo, 1 x H/P out front stereo)
2 x Speaker out (2 W + 2 W, stereo) | | Recording and Playback | Recordable Input: SDI, HDMI, CVBS
Codec: H.264 (video), AAC (audio)
Video Bit Rate: 4 Mbps
Internal Memory: 4 GB
External Memory: 32 GB maximum (class 4 or higher SDHC Card)
Max Record Size: 2 GB per file (about one hour)
Recording Format: 1280 x 720p (30, 25)
File Format: Mov
Play Mode: Play, Reverse Play, 2x/4x/8x FF/REW, 1/2x/1/4x/1/8x Slow, 1x/2x/4x/8x Frame_FF/REW | | Ports | 1 x Ethernet (Control/Update, GPI-7 port, RJ-45P jack)
1 x GPIO (GPI-7 port, RJ-45P jack)
2 x Serial (RS-422, RJ-11P jack)
1 x USB (for firmware update) | | Power Requirements | 12/24 VDC / 100 to 230 VAC, 50/60 Hz | | Power Consumption (max) | 40 W | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | 20 to 80% RH | | Dimensions(wxhxd) | Main Body: 17 x 12 x 2.6" (43 x 30 x 6.6 cm)
With Stand: 19 x 13 x 5.5" (48 x 33 x 13 cm) | | Weight | 14 lb (6.5 kg) |
