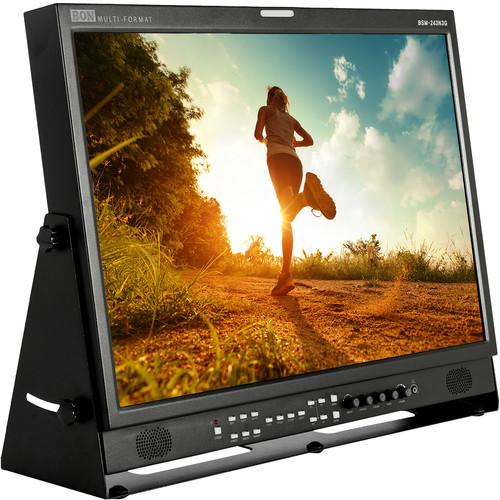

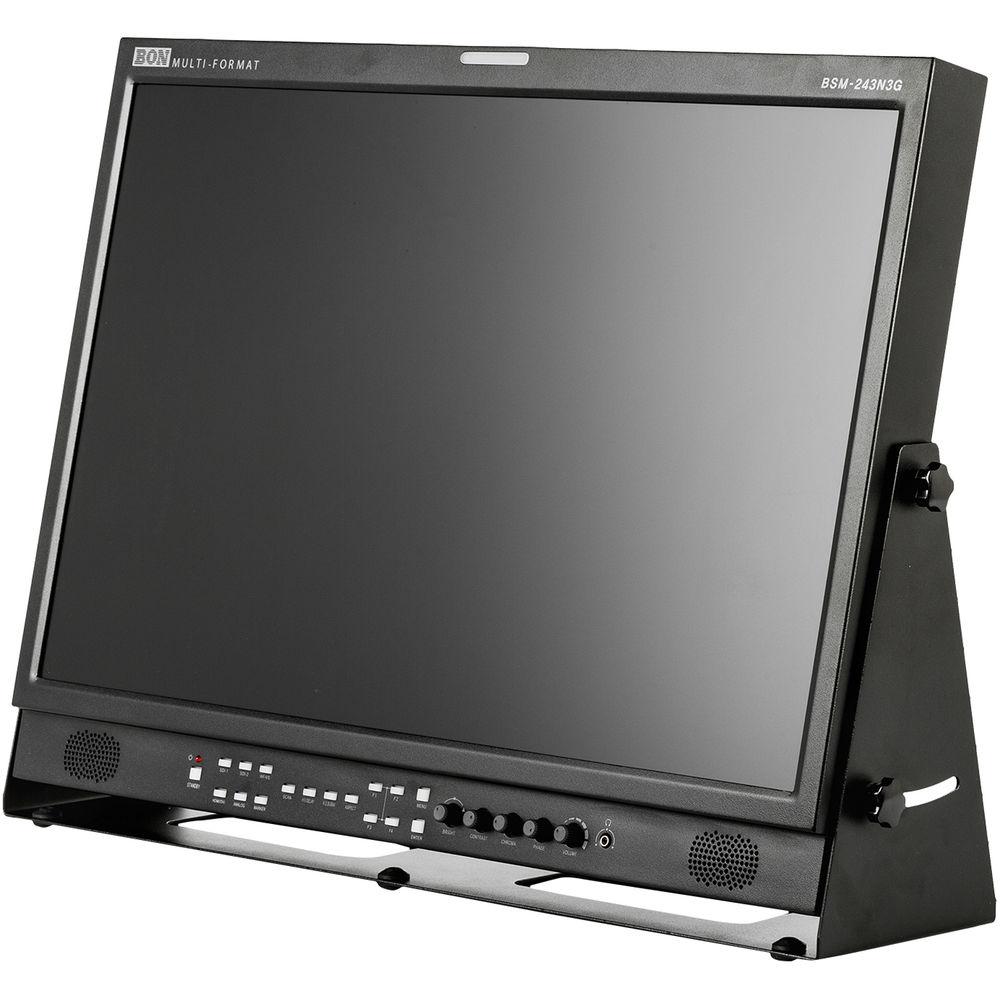

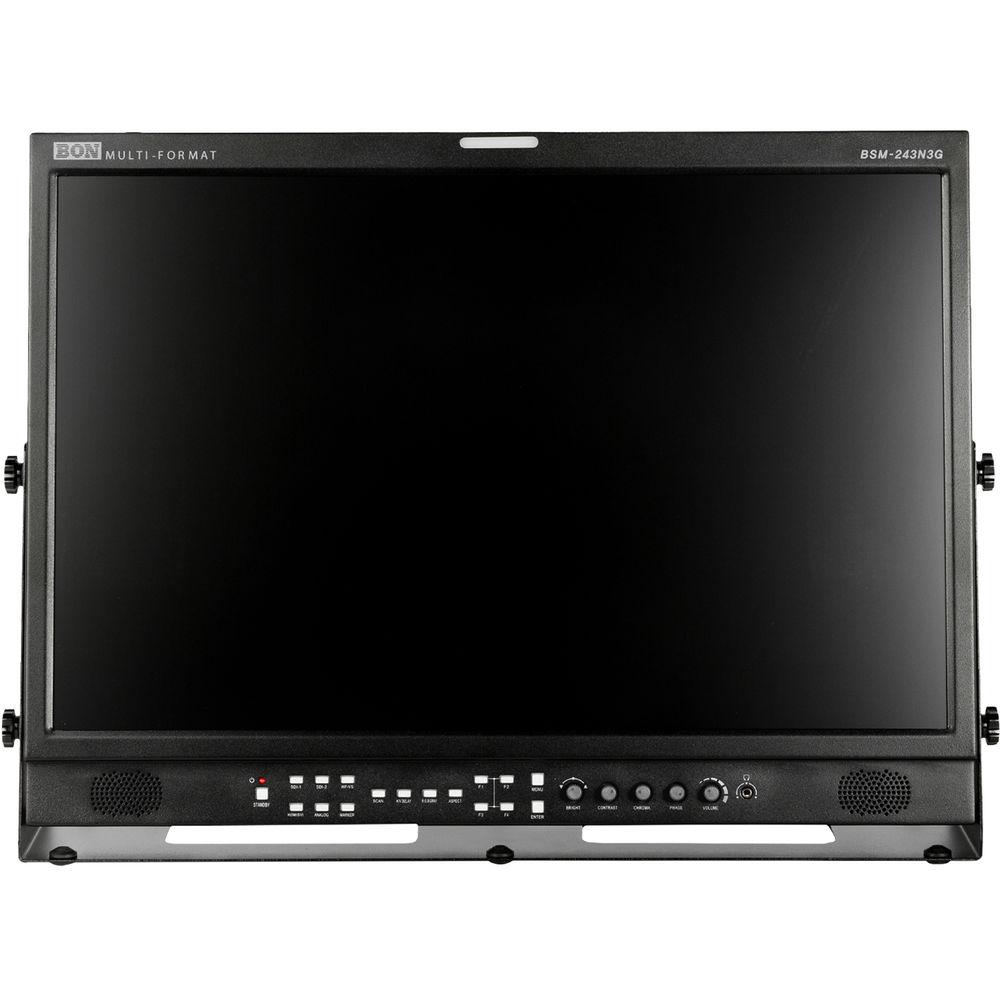

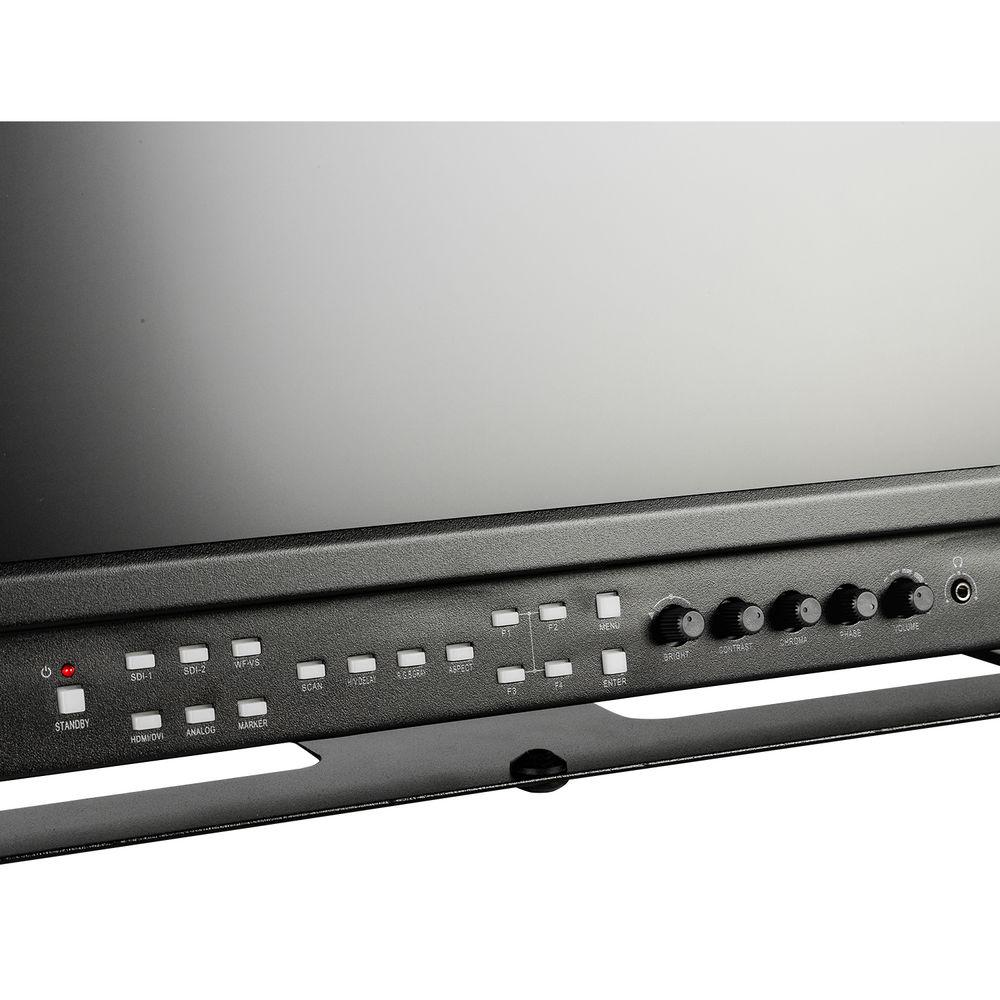

Product description The 24" 3G/HD/SD-SDI & HDMI LCD Studio Broadcast Monitor from Bon features two SDI inputs with 3G-SDI support. It features a built-in Waveform/Vectorscope that allows you to monitor luminance range and color range and exact levels of Y/Cb/Cr/R/G/B. The monitor offers a maximum resolution of 1920 x 1080 and brightness rating of 250 cd/m2. You can update firmware or control the monitor via RS-422 or Ethernet port. You can also copy Menu settings to other monitors with an USB stick. - Integrated Waveform and Vectorscope
- 8 to 16-channel Audio Level Meter
- UMD/IMD mode (supports TSL 4.0)
- Menu settings transfer via USB
- Supports rack and VESA mounting
- Temperatures are selectable and gamma corrections are applied to reproduce precise colors and gradients
- AFD and V-CHIP (SDI only)
- R,G,B, or Gray only display
- Closed Caption (CEA-608/708)
- R/G/B/W internal patterns
- Monitor controllable via Ethernet
- SDI and CVBS PIP (Picture-in-Picture)
UPC: 889716000463 In the Box Bon 24" 3G/HD/SD-SDI & HDMI LCD Studio Broadcast Monitor Power Cable Screen Cleaning Cloth Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bon 24" 3G HD SD-SDI & HDMI LCD Studio Broadcast Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

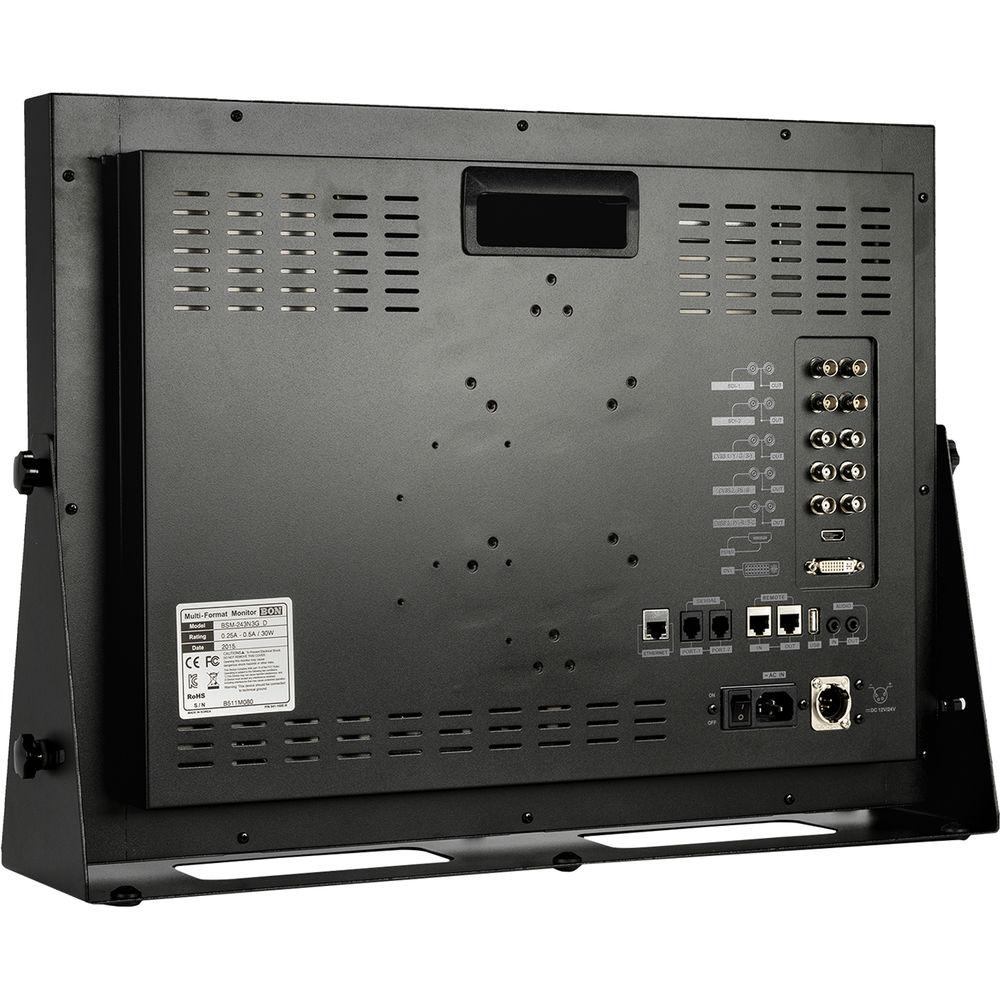

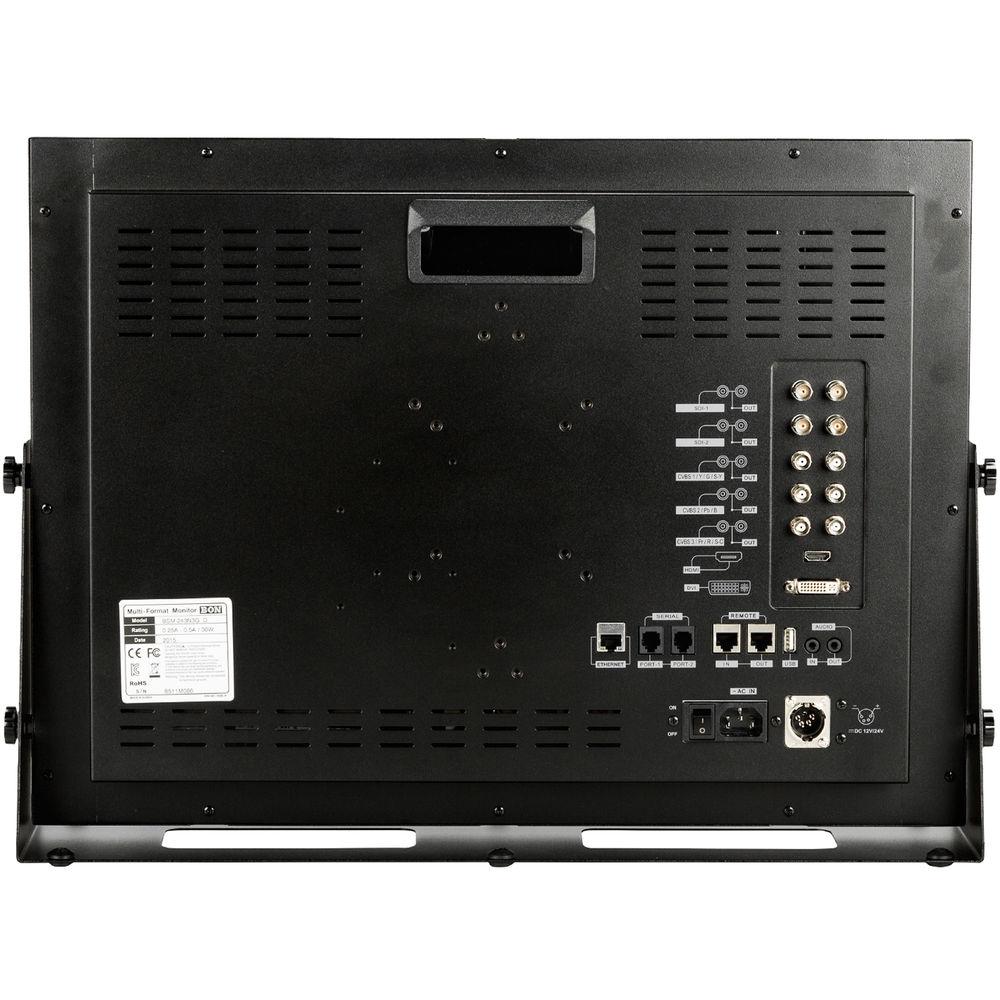

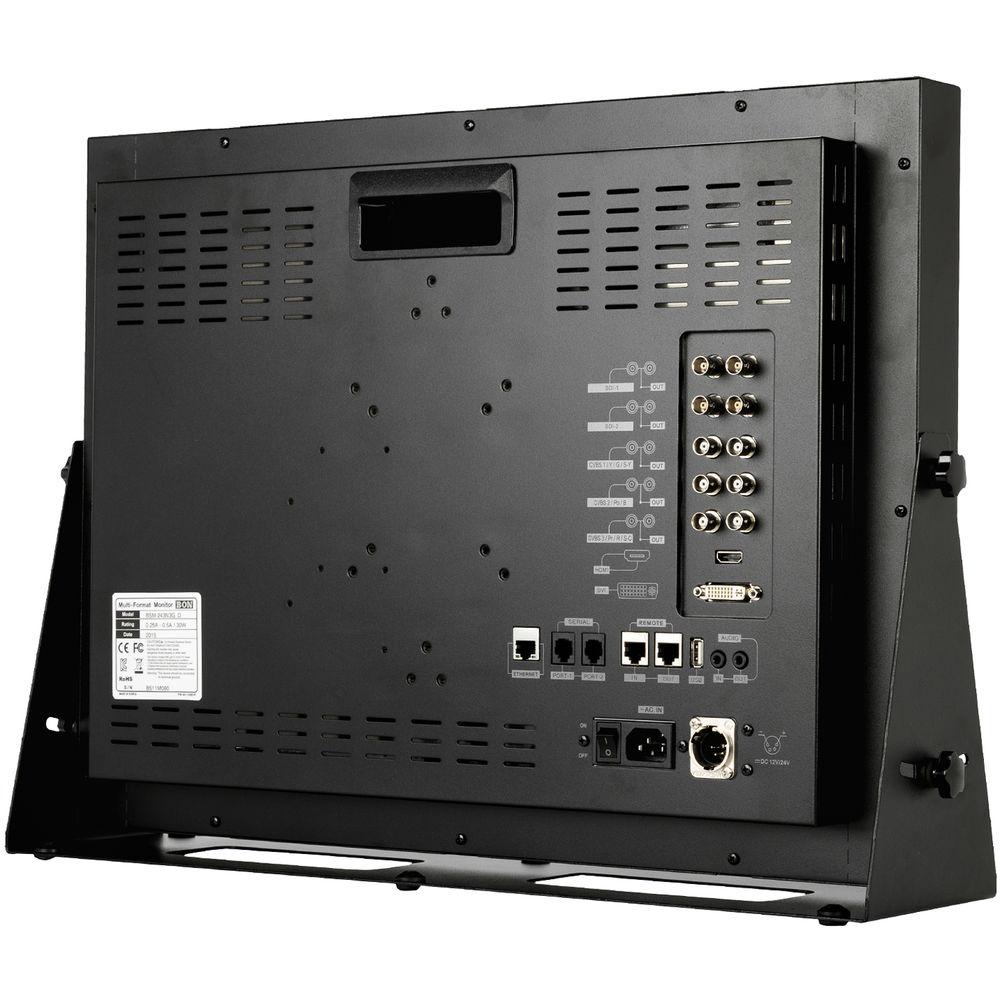

Technical parametersBon BSM-243N3G_E Specs | Signal System | NTSC/PAL | | Monitor Type | Studio broadcast | | Screen Size | 24" (60.96 cm) | | Pixel Pitch | 0.27 mm | | Resolution | 1920 x 1080 | | Display Colors | 8-bit | | Viewing Angle | 178° (horizontal), 178° (vertical) (IPS) | | Brightness | 250 cd/m² | | Contrast Ratio | 3000:1 | | Response Time | 8 ms | | Back Light | LED | | Display Area (H x V) | 20.4 x 12.7" (518.4 x 324 mm) | | Inputs/Outputs | Inputs

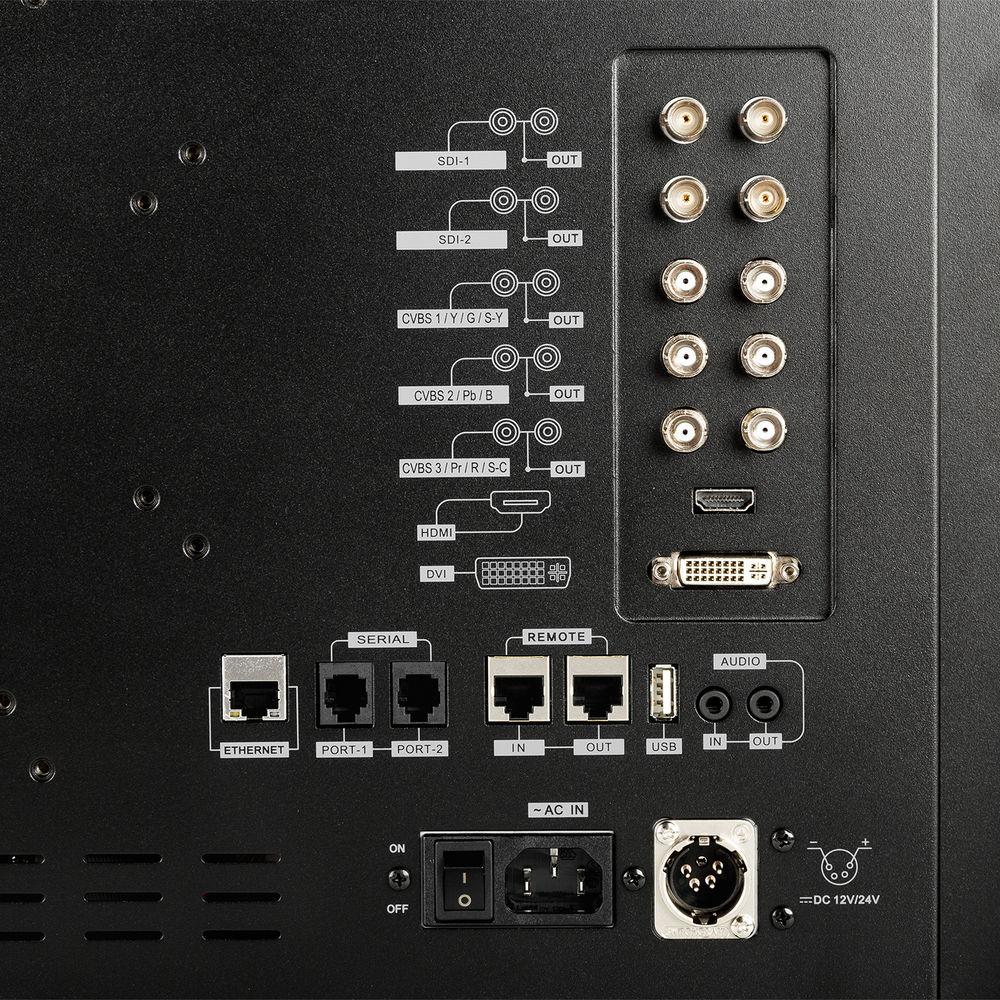

2 x BNC: HD/SD-SDI, 3G/1.485G/270M
3 x BNC: Analog (YPbPr/CVBS/S-Video/RGB)
1 x HDMI: HDMI (with HDCP v.1.1), 19-pin female
1 x DVI: DVI-I, 24-pin, female
1 x VGA: DVI-I to VGA jack (with gender)
Output
2 x BNC: SDI-1/2 active loop output
3 x BNC: Analog (YPbPr/CVBS/s-video/RGB) | | Maximum Analog Input Level | Composite: 1.0 Vp-p (with sync), NTSC/PAL
YC (S-Video): Y: 1.0 Vp-p, C: 0.286 Vp-p
Component (Y/Pb/Pr): Y: 1.0 Vp-p, Pb: 0.7Vp-p, Pr: 0.7 Vp-p
Component (R/G/B): G: 1.0 Vp-p (with Sync), B: 0.7 Vp-p, R: 0.7 Vp-p
PC-RGB, Sync Level: R, G, B: 0.7 Vp-p, H/V Sync: 4 V ± 1 Vp-p | | SDI Input Signal Formats | SMPTE 425M AB: 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) 1080i (60/59.94/50) 2K, SMPTE 428M: 2048 x 1080, 24p/psf, 23.98p/psf
SMPTE 274M/292M: 1920 x 1080i (60, 59.94, 50)
1920 x 1080p (30, 29.97, 25, 24, 24sF, 23.98, 23.98sF)
SMPTE 296M: 1280 x 720p/60, 59.94, 50
SMPTE 260M: 1920 x 1035i/60, 59.94
SMPTE 125M/259M: 720 x 480i/60, 59.94, 720 x 576i/50
ITU R-BT.656: 576i (50)
Composite: 720 x 480i (NTSC)/576i (PAL)
Component, VGA: 480i/p to 1920 x 1080i/p
DVI Signal: 480i/p to 1920 x 1080i/p
HDMI Digital: 1920 x 1200i/p (de-embedded audio 2-channel) | | Audio Input/Output | 1 x Phone Jack In: Line in (stereo)
2 x Phone Jack Out: Line out (rear,stereo), headphone out (front, stereo)
2 x Speaker Out: 2 W+2 W, stereo | | Ethernet | 1 x Ethernet: Control/update, GPI-7 port, RJ45P jack | | GPIO | 2 x GPIO: GPI-7 port, RJ45P jack | | Serial | 2 x Serial: RS-422, RJ11P jack | | USB | 1 x USB: For firmware update | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Power Requirements | 12/24 VDC, 100 to 230 VAC (50/60 Hz) | | Power Consumption | 55 W | | Dimensions (WxHxD) | Main Body: 21.7 x 15.8 x 2.4" (553.4 x 403.5 x 62.5 mm)
With Stand: 23.2 x 16.5 x 6.3" (590.4 x 419.0 x 160 mm) | | Weight | 19.8 lb (9 kg) |
