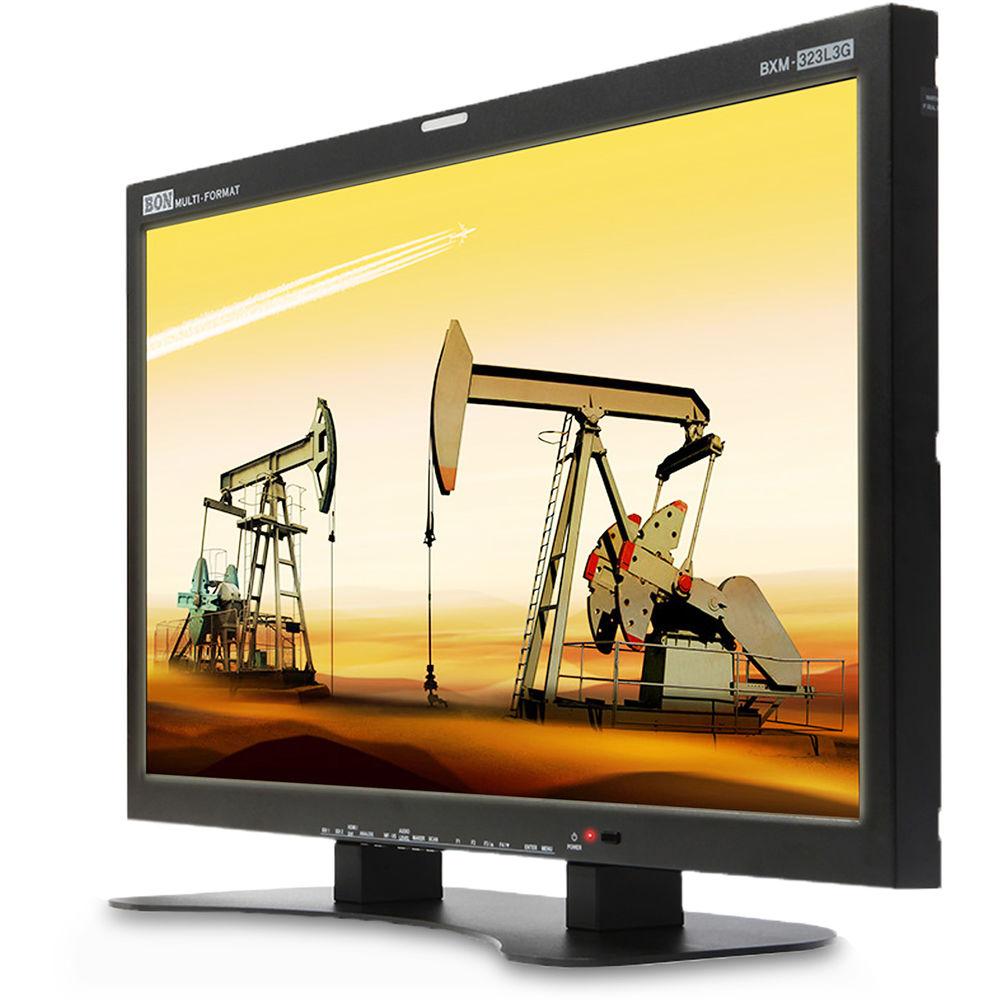

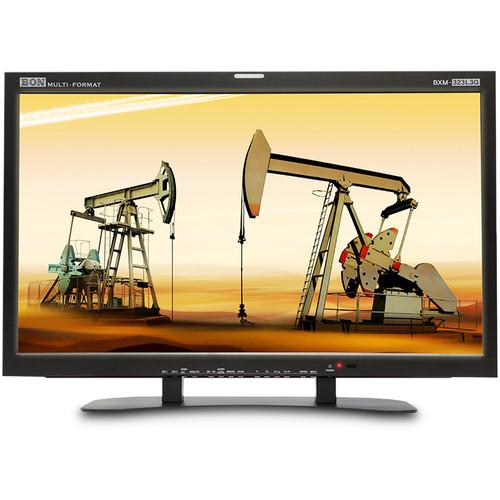

Product description The 32" HD/SD-SDI, 3G LCD Studio Broadcast Production Monitor from BON is a high-end broadcast monitor designed for most demanding broadcast applications. It displays smooth gradient with high-performance and has a 12-bit video processor. It allows you to update firmware or the control monitor via RS-422 or Ethernet port for convenience. It also enables users to check the luminance level and the chrominance values of the image. -
- Features false color, focus assist, waveform, vectorscope
- Closed caption (CEA-608/708) Gen-lock(video synchronization)
- Features timecode
- 8 to 16-channel audio level meter
- Exposure Range Check
- UMD/IMD Mode (supports TSL 4.0)
- AFD & V-CHIP(SDI Only)
- Various Markers, H/V Delay
- Pixel-to-pixel view
- Zero/under/over scan
- Fast motion mode, freeze frame, blending
- Picture by picture, picture in picture
- R/G/B/W internal patterns
- SDI 1/2 fast switching mode available
- Features tally display
- Color calibration software (optional, training required)
UPC: 889716000388 In the Box Bon 32" HD/SD-SDI, 3G LCD Studio Broadcast Production Monitor Cleaner Power Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bon 32" HD SD-SDI, 3G LCD Studio Broadcast Production Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

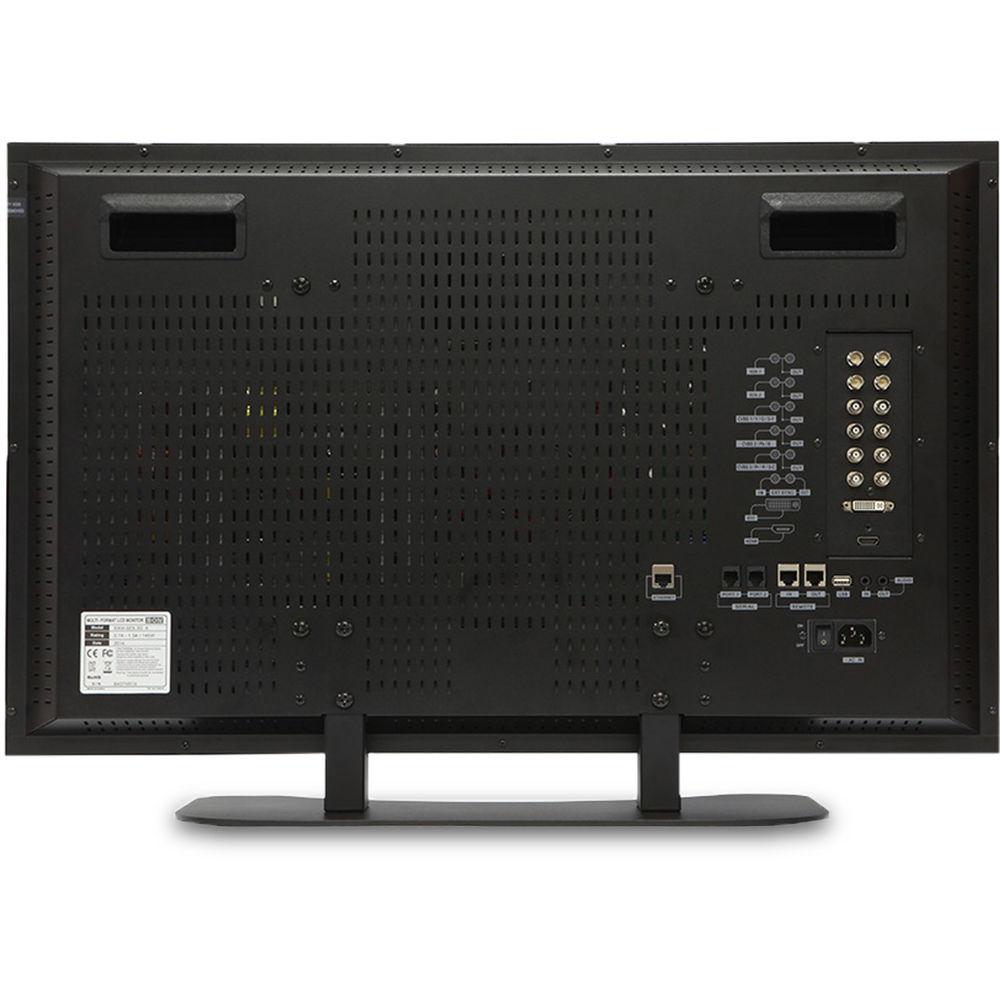

Technical parametersBon BXM-323L3G Specs | | | Size | 32" (1.2 mm) | | Resolution | 1920 x 1080 | | Pixel Pitch | 0.36375 mm | | Color | 8-bit | | Viewing Angle | 178° x 178° (IPS) | | Luminance | White: 350 cd/m² | | Contrast | 3000:1 | | Back Light | CCFL | | Display Area | 27.4 x 15.4" (698.40 x 392.85 mm) | | | | BNC | 1 x BNC:
External synchronization, black burst & tri-sync, 1.0 V p-p
2 x BNC:
HD/SD-SDI,3G/ 1.485G/270M
3 x BNC:
Analog(YPbPr/CVBS/S-video/RGB) | | HDMI | 1 x HDMI, (with HDCP v.1.1), 19-pin female | | DVI | 1 x DVI-I, 24-pin, female | | | | BNC | 1 x BNC: For external synchronization
2 x BNC: SDI-1/2 Active loop output
3 x BNC: Analog (YPbPr/CVBS/S-video/RGB) | | | | Composite | 1.0 V p-p (with synchronization), NTSC/PAL | | YC(S-Video) | Y: 1.0 V p-p
C: 0.286 V p-p | | Component (Y/Pb/Pr) | Y: 1.0 V p-p
Pb: 0.7 V p-p
Pr: 0.7 V p-p | | Component (R/G/B) | G: 1.0 V p-p (with synchronization)
B: 0.7 V p-p
R: 0.7 V p-p | | DVI-RGB,Sync Level | R,G,B: 0.7 V p-p
H/V Synchronization: 4 V ± 1 V p-p | | | | SMPTE | SMPTE 425M AB:
1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
1080i (60/59.94/50)
SMPTE 372M: Dual HD-SDI YCbCr (4:2:2), 1080p
Dual HD-SDI YCbCr/RGB (4:4:4), 1080i, 1080p, 720p
SMPTE 274M/292M: 1080i (60/59.94/50)
1080p(30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE 296M: 720p (60/59.94/50)
SMPTE 260M: 1035i (60/59.94)
SMPTE 125M/259M: 480i (60/59.94), 576i(50)
2K, SMPTE 428M: 2048 x 1080p (24/24sF/23.98/23.98sF)
ITU R-BT.656: 576i (50) | | HDMI | Up to 1080p (60) | | DVI | Up to 1080p (60) | | | | Line In | 1 x Phone jack input (stereo) | | Line Out | 2 x Phone jack output (stereo), H/P out (front, stereo) | | Speaker Out | Stereo (2 W x 2 W) | | | | Ethernet | Control/Update, GPI-7 Port, RJ45P Jack | | GPIO | 2 x GPI-7 Port, RJ45P Jack | | Serial | RS-422, RJ11P Jack | | USB | For firmware update | | Power Requirements | AC (100 to 230 V, 50/60 Hz) | | Power Consumption | 52 W | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | 20 to 80% RH | | Dimensions | 30.8 x 19.5 x 3.6" (783.4 x 494.2 x 91.2 mm) | | Weight | 66.1 lb (30 kg) |
