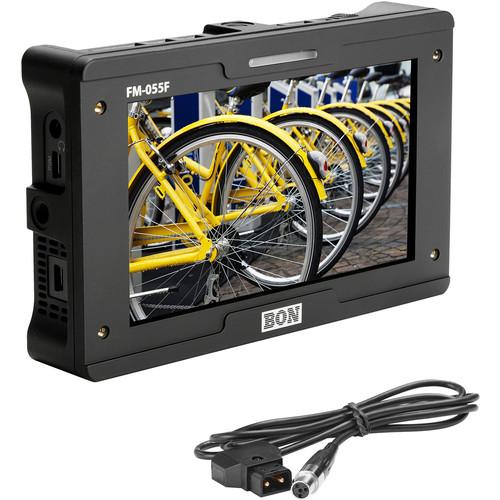

Product description This B&H Kit consists of the 5.5" On-Camera Full HD Monitor and a 42" D-Tap to Mini XLR Power Cable. This kit is assembled to simplify powering the included monitor from a D-Tap power socket, saving you the effort of sourcing a compatible cable. The BON on-camera monitor features Full HD 1920 x 1080 resolution and supports 3G-SDI and HDMI inputs. It incorporates a host of useful features including waveform, vectorscope, and focus assist.
The monitor integrates a Mini XLR power connector, which is not commonly found with on-camera monitors. The included Ikan Mini XLR to D-Tap cable enables you to power the monitor from a D-Tap power source commonly found on professional batteries and battery plates. The monitor also features under and over-scan settings as well as a 16-channel audio level meter display. - Bon FM-055F 5.5" On-Camera Monitor Plug the Bon FM-055F 5.5" On-Camera Monitor into your camera and view a Full HD picture without any scaling. The 1920 x 1080 resolution LCD panel is great for HD workflows and beyond. Despite the monitor's compact design, it has powerful functionality. SDI and HDMI I/O offers cross conversion from input to output, ensuring that the FM-055F can be used in professional and prosumer workflows without a hitch. With 1/4"-20 mounts on all sides, the FM-055F can be positioned for optimal viewing on complex rigs. For even easier placement, an auto-image flip feature instantly reorients the image on the screen for right-side-up viewing. The included power supply or L-series battery plate can power the monitor in the studio or in the field, respectively. Other battery plates are available separately to accept popular DV batteries.
- Monitoring Tools
- Check your focus, exposure, and other aspects of your video image with this monitor's built-in monitoring tools. Preferred monitoring tools can be set to custom function buttons for quick accessibility.
- False color
- Waveform
- Vectorscope
- DSLR full-screen
- Focus assist (whole/center-only)
- Tally LED
- Exposure range check
- Zoom settings
- Timecode display
- H/V delay
- Pixel-to-pixel mapping
- Zero/under/over scan
- Various markers (4:3, 1.85:1, and more)
- R/G/B/luma-only
- Internal pattern generator
- H/V level meter
- 16Ch audio level meters
- Automatic Image Flip
- Regardless of orientation, the FM-055F will automatically flip the on-screen image for proper viewing. Image flip can be manually set as well.
- HDMI-SDI Cross Conversion
- Whether you're working with professional broadcast equipment or consumer/prosumer gear for your production, you can easily integrate the FM-055F. The HDMI input can be converted to an SDI output for using prosumer gear in broadcast workflows, or alternatively, the SDI input can be converted to an HDMI output for monitoring on computer monitors or televisions.
- Color-Calibrated Screen
- The monitor's LCD screen is calibrated at the factory, offering accurate color temperature selections out-of-the-box including 3200K, 5600K, 6500K, and 9300K.
UPC: 889716000012 - ikan D-Tap Cable with Mini-XLR The Ikan D-Tap Cable with Mini-XLR is designed specifically to power an Ikan on-camera monitor using a four-pin mini-XLR connection. UPC: 847983014972
In the Box - FM-055F 5.5" On-Camera Monitor xssvdaryzxbttvvfewzcffb
- Power Supply
- AC Power Cord
- Single Sony L-Series Battery Mount for Bon FM-055F/RM-072S Monitor
- Acrylic Screen Protector
- Screen Cleaning Cloth
- Limited 1-Year Warranty
- ikan - D-Tap Cable with Mini-XLR
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bon 5.5" 3G-SDI Full HD On-Camera Monitor Kit with D-Tap to Mini XLR Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Bon FM-055F 5.5" On-Camera Monitor
| | | Display Size | 5.5" / 13.9 cm | | Active Area | 4.8 x 2.7" / 121 x 68 mm | | Screen Resolution | 1920 x 1080 | | Viewing Angle | Horizontal: 160°
Vertical: 160° | | Maximum Brightness | 450 cd/m2 | | Contrast Ratio | 1000:1 | | Dot Pitch | 0.063 x 0.06 mm | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Image Controls | False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, Screen Markers, Underscan, Waveform | | | | Video | 1 x BNC (3G-SDI) Output
1 x HDMI Type A Output
1 x BNC (3G-SDI) Input
1 x HDMI Type A Input | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | 1 x 0.5 W | | Other I/O | 1 x Mini-USB | | Card Slot | None | | | | Video Format | SDI
DCI 2K: 23.98/24
1080p: 23.98/24/25/29.97/30
1080PsF: 23.98/24
1080i: 50/59.94/60
720p: 50/59.94/60
NTSC
PAL | | | | Battery Type | None | | Power Consumption | 10 W | | | | Operating Humidity | 20 to 80% | | Operating Temperature | 14 to 104°F / -10 to 40°C | | | | Dimensions (W x H x D) | 6.1 x 3.9 x 1.2" / 156 x 98 x 30 mm | | Weight | 0.8 lb / 365 g | | | | Box Dimensions (LxWxH) | 8.2 x 5.9 x 4.8" | - ikan D-Tap Cable with Mini-XLR
| Connector 1 | Four-pin mini-XLR | | Connector 2 | D-Tap | | Compatibility | VX9i, VX9w, and D12 monitors | | Length | 42" (107 cm) | | | | Box Dimensions (LxWxH) | 4.5 x 2.6 x 0.6" |
