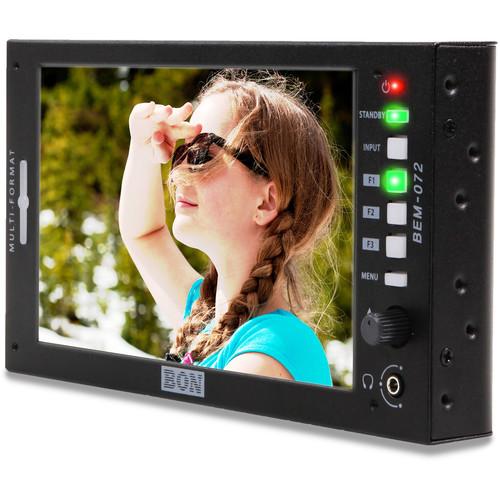

Product description Compact in size, but not features, the BON BEM-072 7" On-Camera Monitor is equipped for professional on-camera use. SDI and HDMI video inputs let this monitor work with DSLR cameras, compact camcorders, and cinema cameras. The LED-backlit LCD display has a 1024 x 600 resolution, and will scale sources up to 2K resolution to fit.With high-resolution video signals, critical focus can be achieved using the built-in pixel-to-pixel mapping and focus assist monitoring tools. Other monitoring tools are available for more in-depth image analysis. For more advanced setups, serial and remote control ports can be used to incorporate the BEM-072 into ENG and EFP setups that can take full advantage of software control.Encased in a full-metal enclosure, the BEM-072 will stand up to road use and hectic life on professional sets. Accenting the front of the enclosure are navigation buttons, custom function keys, and a tally lamp. Depending on the use case, the BEM-072 monitor can be further tailored to your specific use. Compatible sun hoods, V-Mount and DV battery plates, rackmount kits, and alternative power cables can be purchased separately. - Monitoring Tools
- Check your focus, exposure, and other aspects of your video image with this monitor's built-in monitoring tools. Preferred monitoring tools can be set to custom function buttons for quick accessibility.
- Zero/Under/Over-scan
- Pixel-to-Pixel mapping
- Picture-in-Picture
- Tally
- Markers: EBU, 4:3, 16:9, 1.85:1, 2.35:1, and more
- Audio level meters, up to 16 channels
- R,G,B,W, and test pattern generator
SDI Only
- CEA-608/708 closed caption
- Timecode ATC, DVITC display
- Waveform/Vectorscope
- False color
- V-chip display
- R/G/B-only
- H/V delay
- Focus assist (peaking)
- Exposure range check
- UMD display
- Gray-only
- Color-Calibrated Screen
- The monitor's LCD screen is calibrated at the factory, offering accurate color temperature selections out-of-the-box including 3200K, 5600K, 6500K, and 9300K.
UPC: 889716000425 In the Box Bon BEM-072 7" On-Camera Monitor AC Adapter Power Cable Screen Cleaning Wipe Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bon BEM-072 7" On-Camera Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBon BEM-072 Specs | | | Size | 7" / 17.8 cm | | Resolution | 1024 x 600 | | Pixel Pitch | 0.15 mm² | | Color Depth | 16.7 million (8-bit) | | Viewing Angle | 160° H/V | | Luminance | 400 cd/m² | | Contrast Ratio | 900:1 | | Backlight | LED | | Display Area | 6 x 3.5" / 154 x 90 mm | | | | Video Inputs | 1 x BNC, 3G/HD/SD-SDI
1 x HDMI Type A, v1.3 | | Video Outputs | 1 x BNC, SDI loop-through | | Format Support | SMPTE 425M AB:
Level A MS1, MS2, MS3, MS4
Level B MS1, MS2, MS3, MS4
2K SMPTE 428M:
2048 x 1080p 23.98/24
2048 x 1080PsF 23.98/24
SMPTE 274M/292M:
1920 x 1080p 23.98/24/2529.97/30
1920 x 1080PsF 23.98/24
1920 x 1080i 50/59.94/60
SMPTE 296M:
1280 x 720p 50/59.94/60
SMPTE 260M:
1920 x 1035i 59.94/60
SMPTE 125M/295M:
NTSC
PAL
ITU R-BT.656:
PAL | | Audio | 1 x 3.5 mm, stereo headphone output | | Other | 1 x RJ45, GPI-7 control
2 x RJ11, RS-422 control
1 x USB, firmware update | | | | Power Requirements | 7 to 24 VDC | | Power Consumption | 11 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20 to 80% RH | | Dimensions | 5.2 x 2.8 x 0.8" / 205 x 112 x 32 mm | | Weight | 1.8 lb / 0.8 kg | | | | Package Weight | 3.4 lb | | Box Dimensions (LxWxH) | 12.3 x 10.1 x 3.0" |
