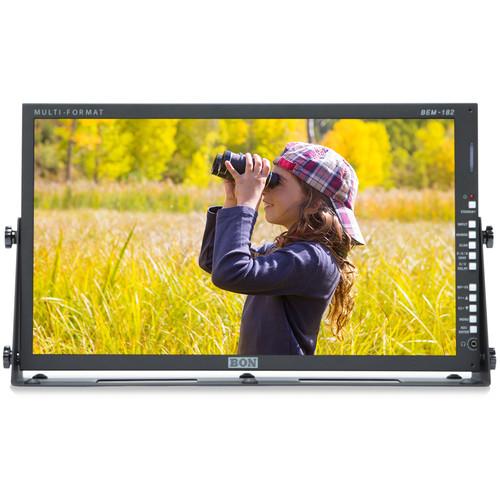

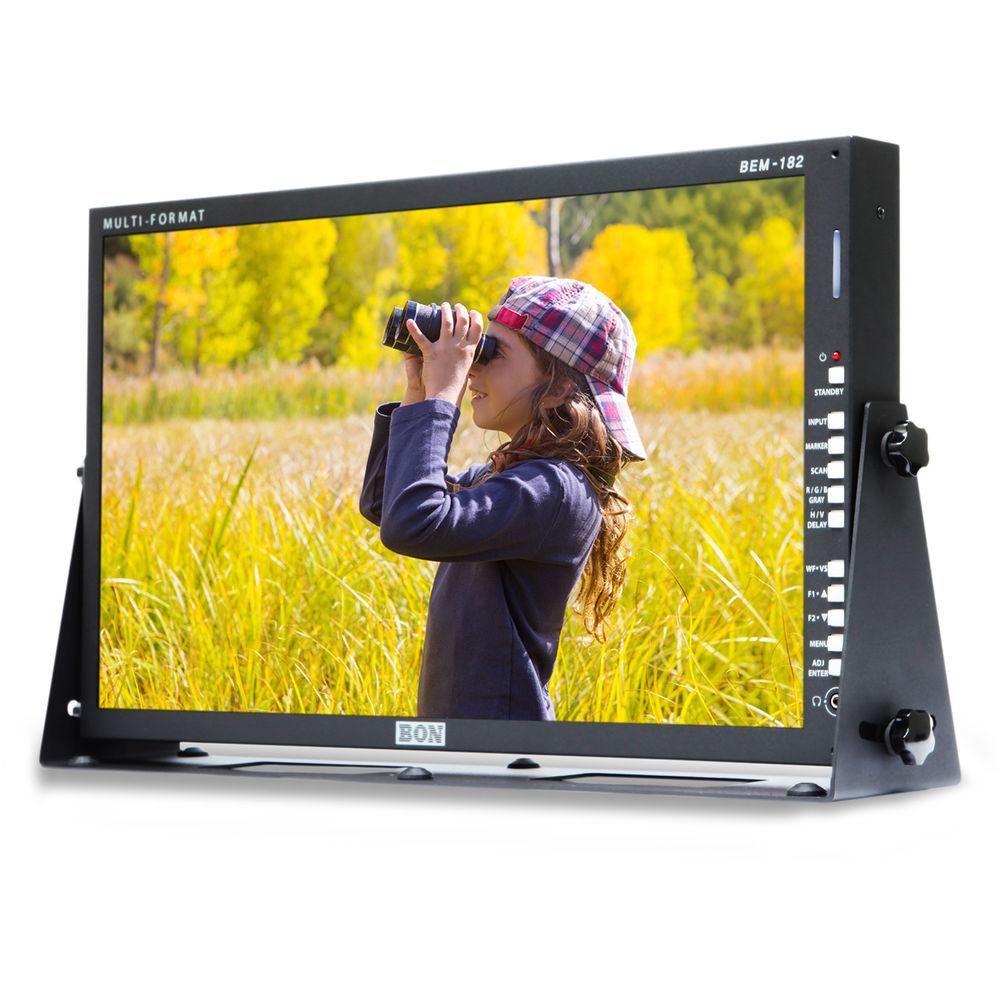

Product description Featuring a color calibrated display, the BON BEM-182 18.5" 3G-SDI/HDMI Broadcast and Production Monitor is ready for high-resolution content creation. Accepting video from either SDI or HDMI sources, the BEM-182 will display it faithfully on its 1366 x 768 resolution LED-backlit LCD screen. The front panel of the monitor contains customizable buttons that can be preset to control frequently used monitoring tools. Onboard monitoring tools include waveform, vectorscope, focus assist, pixel-to-pixel mapping, exposure range check, and more. If used in an installation, the monitor can be controlled via GPI over Ethernet. Stands, screen protectors, battery mounts, and other accessories can be purchased separately to kit out the monitor for your specific application. A power supply and screen cleaning cloth are included. - Monitoring Tools
-
- UMD mode display
- Zero/Under/Over-scan
- Pixel-to-pixel mapping
- Two-channel audio level meter (HDMI only)
- Three-color tally lamp
- Aspect ratio markers
- R/G/B only (HDMI only)
- Picture-in-picture (SDI <-> HDMI)
SDI Only- Vectorscope
- Exposure range check
- R/G/B/Gray only
- Timecode display
- R,G,B, and White test patterns
- Waveform
- Focus assist
- False color
- V-chip display
- H/V delay
- Closed caption
- De-embedded 8 to 16-channel audio level meter
UPC: 889716000241 In the Box Bon BEM-182 18.5" 3G-SDI/HDMI Broadcast and Production Monitor Power Cable AC Adapter Screen Cleaning Cloth Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bon BEM-182 18.5" 3G-SDI HDMI Broadcast and Production Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

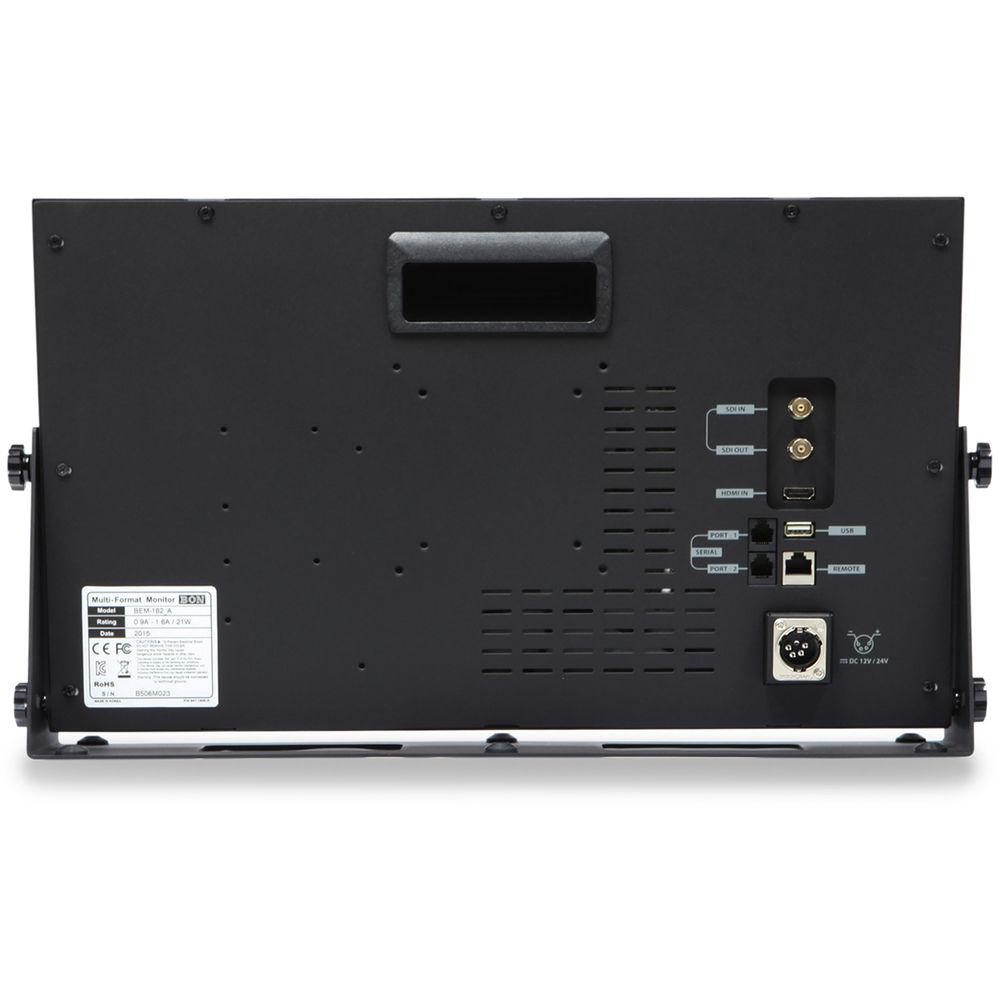

Technical parametersBon BEM-182 Specs | Signal System | NTSC/PAL | | Monitor Type | LED | | Screen Size | 18.5" (47 cm) | | Resolution | 1366 x 768 | | Pixel Pitch | 0.3 x 0.3 mm | | Color Depth | 16.7 M (8-bit) | | Viewing Angle | 170°/160° H/V | | Brightness | 250 cd/m² | | Contrast Ratio | 1000:1 | | Display Area | 16.1 x 9.0" / 409.8 x 230.4 mm | | Inputs/Outputs | Input:
1 x BNC, 3G/HD/SD-SDI
1 x HDMI, with HDCP v.1.3, 19-pin female
Output:
1 x BNC, SDI loop-through | | Formats | SMPTE 425M AB
Level A MS1, MS2, MS3, MS4
Level B MS1, MS2, MS3, MS4
2K, SMPTE 428M
2048 x 1080p 23.98/24
2048 x 1080PsF 23.98/24
SMPTE 274M/292M
1080p 23.98/24/25/29.97/30
1080PsF 23.98/24
1080i 50/59.94/60
SMPTE 260M
1920 x 1035i 59.94/60
SMPTE 296M
720p 50/59.94/60
SMPTE 125M/259M
NTSC
PAL
ITU R-BT.656
PAL | | Audio Output | 1 x 3.5 mm Mini stereo headphone out | | LAN | 1 x RJ-45, GPI-7 port for control | | Number of RJ-11 Ports | 2 x RJ-11P jacks, RS-422 | | USB | 1 x USB, for firmware update | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20-80% RH | | Power Requirements | 12/24 VDC | | Power Consumption | 21 W | | Dimensions (W x H x D) | 18 x 10.3 x 1.5" / 459 x 264 x 38 mm | | Weight | 9.9 lb / 4.5 kg | | | | Package Weight | 15.45 lb | | Box Dimensions (LxWxH) | 21.9 x 16.0 x 8.6" |
