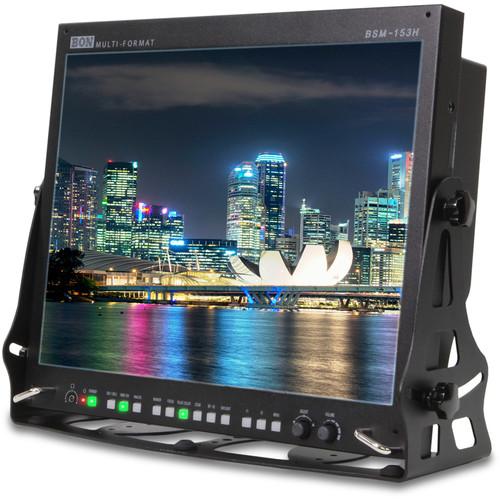

User Manual for Bon BSM-153H 15" High Brightness 3G HD SD-SDI & HDMI Field Monitor Click to enlarge the picture
Contents of the user manual for the Bon BSM-153H 15" High Brightness 3G
- Product category: Production Monitors Bon
- Brand: Bon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bon Production Monitors
|
User manual for the Bon BSM-153H 15" High Brightness 3G contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bon product will considerably shorten its lifespan!
|
Product description Properly view your image in daylight with the BON BSM-153H 15" High Brightness 3G/HD/SD-SDI & HDMI Field Monitor. The 15" LCD panel has an LED backlight capable of 1500cd/m² output, enabling daylight viewing without requiring a clumsy sun hood. The BSM-153H monitor's usefulness doesn't stop there. SDI, HDMI, DVI, and analog input options are all available for accepting nearly any video source. Image analysis can be performed using the onboard monitoring tools including waveform, vectorscope, false color, and exposure range check. Favorite functions can be quickly recalled using the customizable front-panel controls. Since this display is housed in a slim chassis, mounting on grip equipment or VESA stands using separately available hardware is straightforward. Imaging Tools - Closed caption (CEA-608/708)
- Audio level meter with 8 to 16 channels
- UMD/IMD mode (supports TSL 4.0)
- AFD and V-chip (SDI only)
- Various markers (preset, custom)
- R/G/B/W internal patterns
UPC: 889716000203 In the Box Bon BSM-153H 15" High Brightness 3G/HD/SD-SDI & HDMI Field Monitor Power Cable DVI to VGA Adapter Screen Cleaning Wipe Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bon BSM-153H 15" High Brightness 3G HD SD-SDI & HDMI Field Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBon BSM-153H Specs | Size | 15" (38 cm) | | Display Area (H x V) | 12 x 9" (304 x 228 mm) | | Resolution | 1024 x 768 | | Pixel Pitch | 0.297 mm | | Color | 8-bit | | Viewing Angle (H/V) | 160°/160° | | Brightness | 1500 cd/m² | | Contrast | 700:1 | | Backlight | LED | | Input | 2 x HD/SD-SDI, 3G/1.485G/270M, BNC
3 x Analog (YPbPr / CVBS / S-Video / RGB), BNC
1 x HDMI with HDCP v.1.1, 19-pin female
1 x DVI-I, 24-pin, female
1 x DVI-I to VGA jack | | Output | 2 x SDI (1/2 active loop-through output), BNC
3 x Analog (YPbPr / CVBS / S-Video / RGB), BNC | | Input Level | Composite:
1.0 Vpp (with sync) / NTSC/PAL
YC (S-Video):
Y: 1.0 Vpp / C: 0.286 Vpp
Component (YPbPr):
Y: 1.0 Vpp / Pb: 0.7 Vpp / Pr: 0.7 Vpp
Component (RGB):
G: 1.0 Vpp (with sync) / B: 0.7 Vpp / R: 0.7 Vpp
PC-RGB, Sync Level:
RGB: 0.7 Vpp / H/V Sync: 4 V ± 1 Vpp | | Signal Formats | SMPTE 425M AB:
1080p60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 / 30sF / 29.97sF / 25sF/ 24sF / 23.98sF
1080i60 / 59.94 / 50
2K, SMPTE 428M:
2048 x 1080p24 / 23.98 / 24sF / 23.98sF
SMPTE 274M/292M:
1920 x 1080p30 / 29.97 / 25, 24 / 24sF / 23.98 / 23.98sF
1920 x 1080i60 / 59.94 / 50
SMPTE 296M:
1280 x 720p60 / 59.94 / 50
SMPTE 260M:
1920 x 1035i60 / 59.94
SMPTE 125M/259M:
720 x 480i60 / 59.94
720 x 576i50
ITU R-BT.656:
576i50
Composite:
720 x 480i (NTSC)
576i (PAL)
Component, VGA:
Approximately 1920 x 1080i/p
480i/p
DVI Signal:
Approximately 1920 x 1080i/p
480i/p
HDMI Digital:
Approximately 1920 x 1200i/p (de-embedded two-channel audio) | | Audio Input/Output | 1 x Line in (stereo)
1 x Line out (stereo)
1 x Headphone out (stereo)
2 x 2 W Speaker out (stereo) | | Additional Ports | 1 x Ethernet (GPI-7 port, RJ-45P jack / for control & firmware update)
2 x GPIO (GPI-7 port, RJ-45P jack)
2 x Serial (RS-422, RJ-11P jack)
1 x USB (for firmware update) | | Power Requirements | 100 to 230 VAC, 50/60 Hz | | Power Consumption | 44 W | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | 20 to 80% RH | | Dimensions (W x H x D) | 13.1 x 11.2 x 2.3" (333 x 285 x 55 mm) | | Weight | 11 lb (5 kg) | | | | Package Weight | 14.35 lb | | Box Dimensions (LxWxH) | 17.2 x 16.1 x 7.9" |
