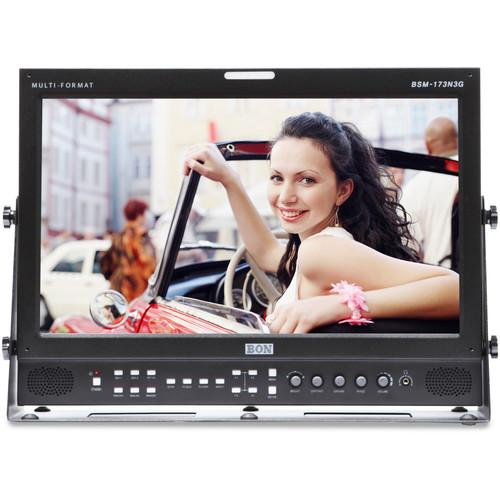

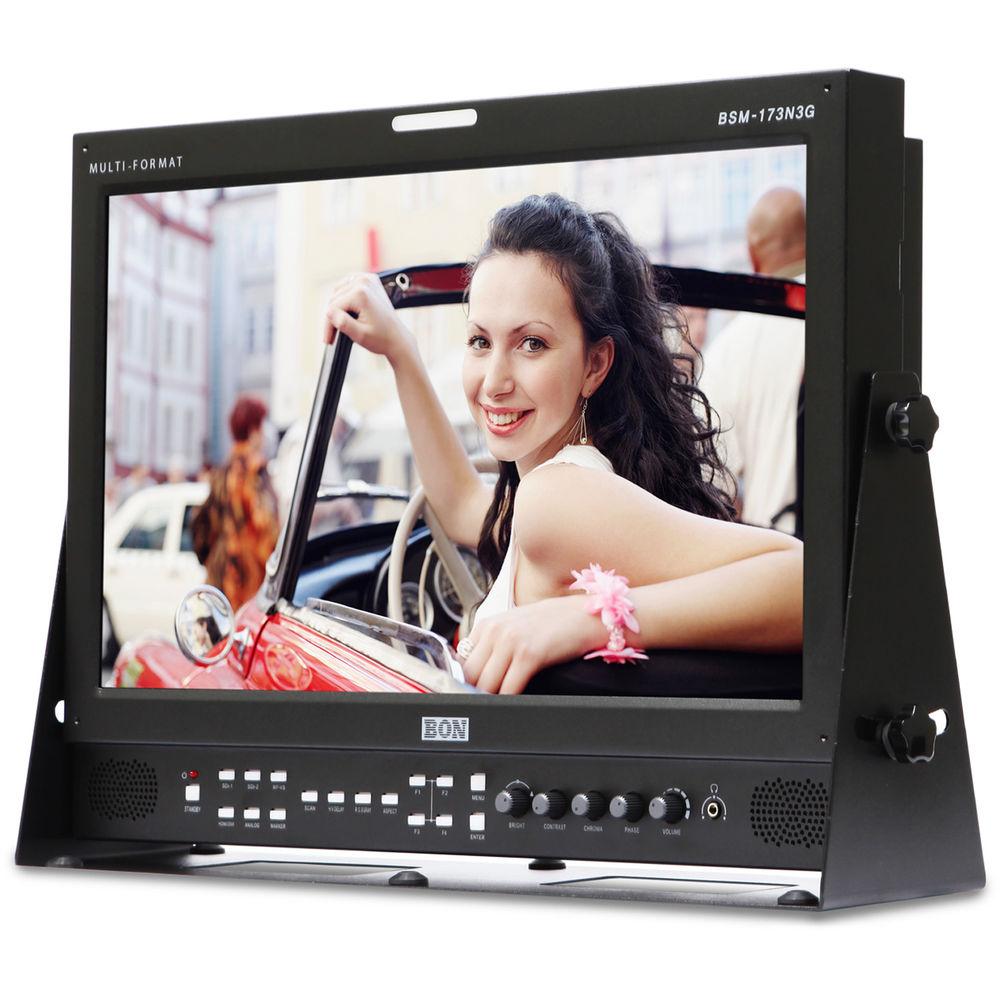

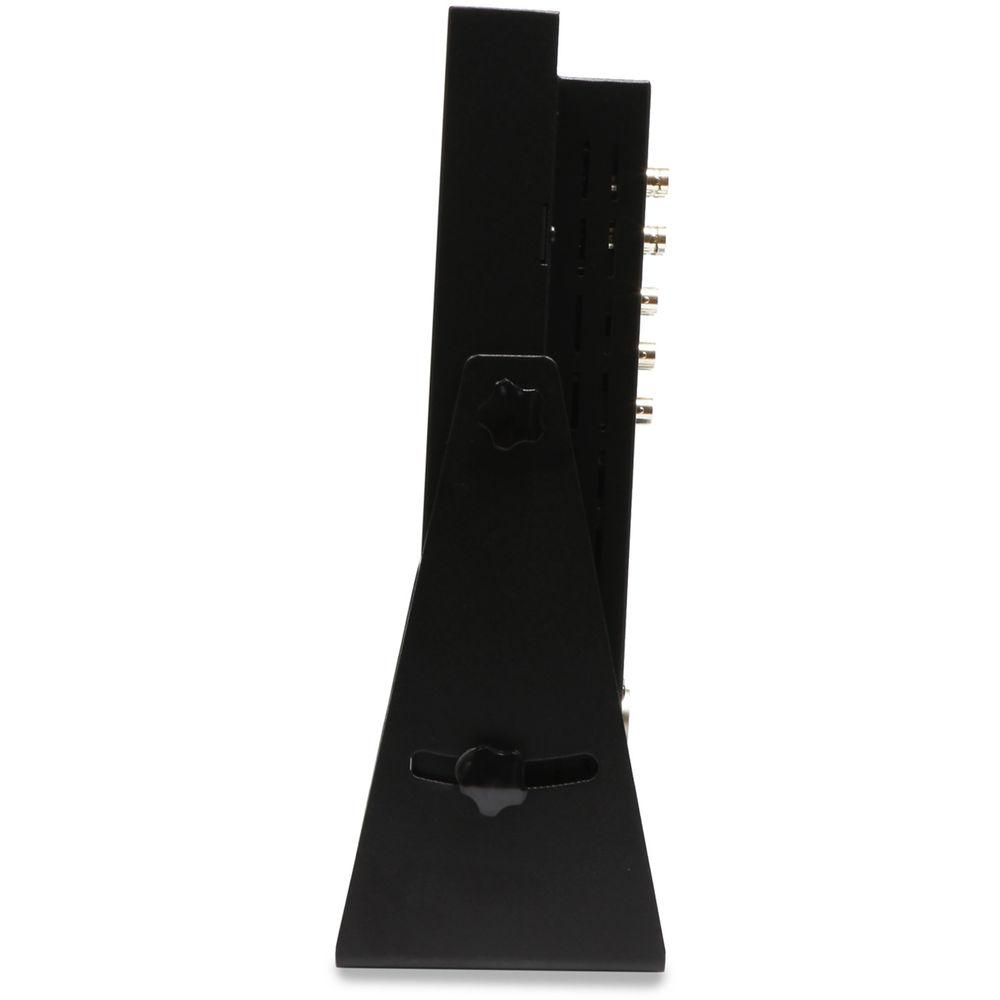

Product description Monitor Full HD 1080p signals in their native resolution with the BON BSM-173N3G 17" 3G-SDI/HDMI Broadcast and Production Monitor. SD and HD signals are accepted through the SDI, HDMI, DVI, and analog video inputs and are displayed accurately on the color-calibrated 1920 x 1080 LED-backlit LCD panel. Built-in monitoring tools such as waveform, vectorscope, and false color can be used to analyze your video and make adjustments accordingly. Other broadcast-ready features include tally display, aspect ratio markers, audio level display, and closed caption support. Standard mains power via IEC and DC power via four-pin XLR are accepted for use in the studio or in the field. Monitoring Tools - AFD and V-chip (SDI Only)
- R/G/B or gray-only display
- Menu settings transfer with USB
- Closed caption (CEA-608/708)
- Audio level meter, 8 to 16-channel
- UMD/IMD mode (supports TSL 4.0)
- R/G/B/W internal patterns
- Monitor controllable via Ethernet
- Rack and VESA mountable (with separately available kits)
UPC: 889716000210 In the Box Bon BSM-173N3G 17" 3G-SDI/HDMI Broadcast and Production Monitor Power Cable Screen Cleaning Cloth Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bon BSM-173N3G 17" 3G-SDI HDMI Broadcast and Production Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBon BSM-173N3G Specs | Signal System | NTSC/PAL | | Monitor Type | LED | | Screen Size | 17.3" / 43.9 cm | | Resolution | 1920 x 1080 | | Pixel Pitch | 0.1989 x 0.1989 mm | | Display Colors | 16.7 million (6-bit + HiFRC) | | Viewing Angle | Horizontal: 160°

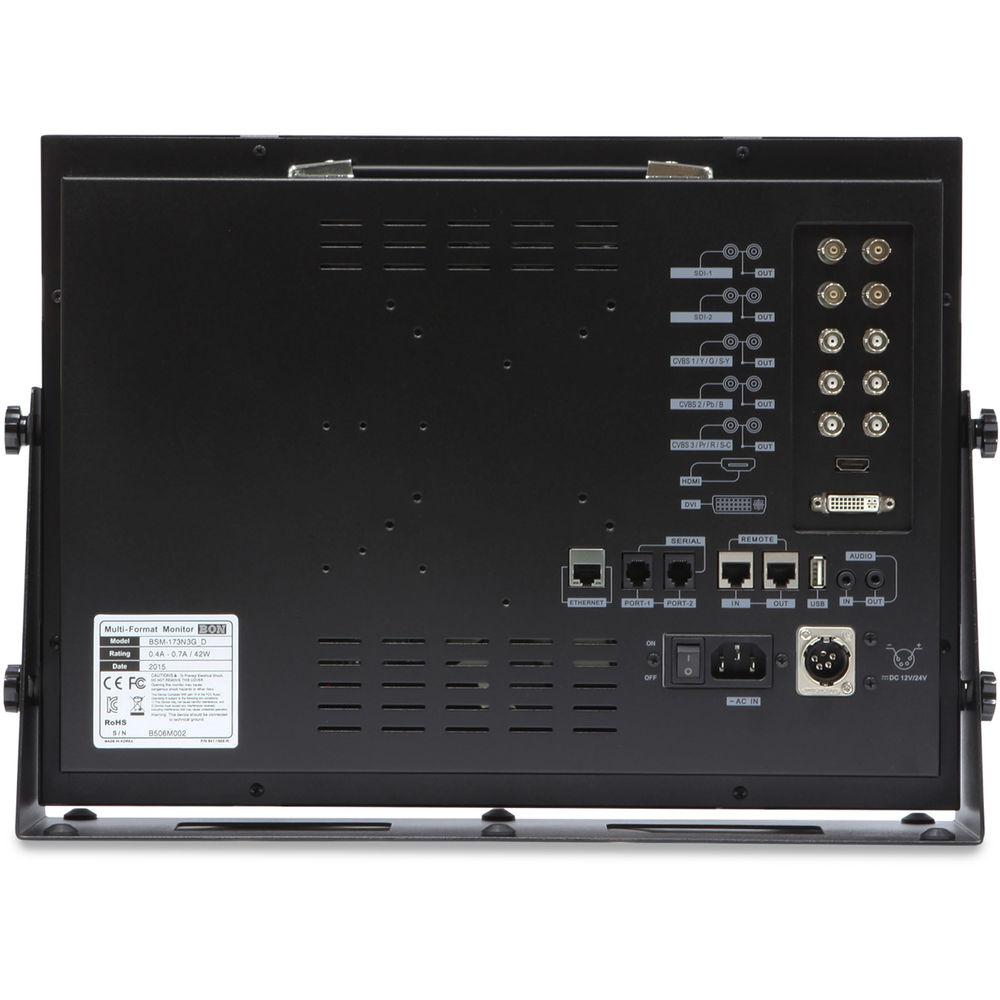

Vertical: 140° | | Brightness | 400 cd/m² | | Contrast Ratio | 600:1 | | Display Area (H x V) | 15.0 x 8.5" / 381.9 x 214.8 mm | | Inputs/Outputs | Input:
2 x BNC, HD/SD-SDI, 3G/1.485G/270M
3 x BNC, analog (YPbPr / CVBS / S-Video / RGB)
1 x HDMI, with HDCP v.1.1, 19-pin female
1 x DVI-I, 24-pin, female
1 x VGA, DVI-I to VGA jack with gender
Output:
2 x BNC, SDI-1/2 active loop output
3 x BNC, analog (YPbPr / CVBS / S-Video / RGB) | | Input Level | Composite:
1 Vpp with sync, NTSC/PAL
YC (S-Video):
Y: 1 Vpp / C: 0.286 Vpp
Component (Y/Pb/Pr):
Y: 1 Vpp / Pb: 0.7 Vpp / Pr: 0.7 Vpp
Component (R/G/B):
G: 1 Vpp with sync / B: 0.7 Vpp / R: 0.7 Vpp
PC-RGB, Sync Level:
R, G, B: 0.7 Vpp
H/V Sync: 4 V ± 1 Vpp | | Formats | 2K, SMPTE 428M:
2048 x 1080p 23.98/24
2048 x 1080PsF 23.98/24
SMPTE 425M AB:
1080p 23.98/24/25/29.97/30/50/59.94/60
1080PsF 23.98/24/25/29.97/30Level B MS1, MS2, MS3, MS4
SMPTE 274M / 292M:
1080p 23.98/24/25/29.97/30
1080PsF 23.98/24
1080i 50/59.94/60
SMPTE 260M:
1920 x 1035i 59.94/60
SMPTE 296M:
720p 50/59.94/60
SMPTE 125M / 259M:
NTSC
PAL
ITU R-BT.656:
PAL
Composite:
NTSC
PAL
Component, VGA:
1080p, NTSC
DVI Signal:
1080p, NTSC
HDMI Digital:
Up to 1920 x 1200p (de-embedded audio 2-ch) | | Audio Input/Output | Input:
1 x 3.5 mm Mini jack, stereo line
Output:
1 x 3.5 mm Mini jack, stereo line
1 x 3.5 mm Mini jack, stereo headphone
2 x Speaker 2 W + 2 W, stereo | | LAN | 1 x Ethernet (control/update, GPI-7 port, RJ-45P jack) | | GPIO | 2 x GPIO (GPI-7 port, RJ-45P jack) | | Serial | 2 x Serial (RS-422, RJ-11P jack) | | USB | 1 x USB (for firmware update) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20 to 80% RH | | Power Requirements | 12/24 VDC, 100-230 VAC, 50/60 Hz | | Power Consumption | 39 W | | Dimensions (W x H x D) | Main Body: 16.1 x 11.7 x 2.4" / 411 x 299 x 62 mm | | Weight | 11 lb / 5 kg | | | | Package Weight | 20.0 lb | | Box Dimensions (LxWxH) | 21.0 x 16.0 x 8.0" |
