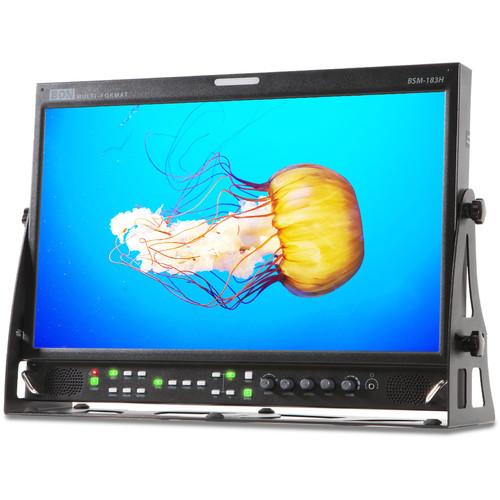

User Manual for Bon BSM-183H 18.5" 3G SD-SDI & HDMI High Brightness Field Monitor Click to enlarge the picture
Contents of the user manual for the Bon BSM-183H 18.5" 3G SD-SDI &
- Product category: Production Monitors Bon
- Brand: Bon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bon Production Monitors
|
User manual for the Bon BSM-183H 18.5" 3G SD-SDI & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bon product will considerably shorten its lifespan!
|
Product description Designed for shooting outdoors and in other brightly lit conditions, the BON BSM-183H 18.5" 3G/SD-SDI & HDMI High Brightness Field Monitor features a 1200 cd/m² daylight-viewable LCD screen. The high brightness preserves contrast and prevents the on-screen image from getting washed out. The 1366 x 768 LED-backlit LCD panel can display SD and HD signals from any of the HDMI, DVI, or analog video inputs. The two 3G-SDI inputs can handle up to 2K resolutions. SDI and analog looped outputs can be used to further route the incoming video. Onboard monitoring tools include waveform, vectorscope, and exposure range check for analyzing incoming video signals and adjusting exposure. Controls for picture adjustments, input selection, and custom function recall are on the front panel in addition to stereo speakers and a headphone output. A power cord, DVI to VGA adapter, and screen cleaning cloth are included in the box. Monitoring Tools - Closed caption (CEA-608/708)
- Audio level meter with 8 to 16 channels
- UMD/IMD mode (supports TSL 4.0)
- AFD and V-chip (SDI only)
- R/G/B/W pattern generator
UPC: 889716000265 In the Box Bon BSM-183H 18.5" 3G/SD-SDI & HDMI High Brightness Field Monitor Power Cable DVI to VGA Adapter Screen Cleaning Cloth Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bon BSM-183H 18.5" 3G SD-SDI & HDMI High Brightness Field Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBon BSM-183H Specs | Size | 18.5" / 45 cm | | Display Area | 16.1 x 9.1" / 409.4 x 230.4 mm | | Resolution | 1366 x 768 | | Pixel Pitch | 0.297 mm | | Color | 16.7 M (8-bit) | | Viewing Angle | 170° / 160° H/V | | Brightness | 1200 cd/m² | | Contrast | 1000:1 | | Backlight | LED | | Input | 2 x BNC, 3G/HD/SD-SDI
1 x BNC, analog (YPbPr / CVBS / S-Video / RGB)
1 x HDMI, with HDCP v.1.1, 19-pin female
1 x DVI-I, 24-pin female | | Output | 2 x BNC, SDI-1/2 active loop-through output
1 x BNC, analog (YPbPr / CVBS / S-Video / RGB) | | Input Level | Composite:
1.0 Vpp (with sync) / NTSC/PAL
YC (S-Video):
Y: 1.0 Vpp / C: 0.286 Vpp
Component (Y/Pb/Pr):
Y: 1.0 Vpp / Pb: 0.7 Vpp / Pr: 0.7 Vpp
Component (R/G/B):
G: 1.0 Vpp (with sync) / B: 0.7 Vpp / R: 0.7 Vpp
PC-RGB, Sync Level:
R, G, B: 0.7 Vpp / H/V Sync: 4 V ± 1 Vpp | | Signal Formats | 2K SMPTE 428M:
2048 x 1080p 23.98/24
2048 x 1080PsF 23.98/24
SMPTE 274M/292M:
1080p 23.98/24/2529.97/30
1080PsF 23.98/24
1080i 50/59.94/60
SMPTE 296M:
720p 50/59.94/60
SMPTE 260M:
1035i 59.94/60
SMPTE 125M/295M:
NTSC
PAL
ITU R-BT.656:
PAL
HDMI:
1080p 60, max
DVI:
1080p 60, max | | Audio Input/Output | 1 x 3.5 mm mini, stereo line in
1 x 3.5 mm mini, stereo line out
1 x 3.5 mm mini, stereo headphone out
2 x Integrated 2 W stereo speakers | | Additional Ports | 1 x Ethernet (GPI-7 port, RJ-45P jack—for control & firmware update)
2 x GPIO (GPI-7 port, RJ-45P jack)
2 x Serial RS-422 (RJ-11P jack)
1 x USB (for firmware update) | | Power Requirements | 12/24 VDC, 100 to 230 VAC, 50/60 Hz | | Power Consumption | 56 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20-80% RH | | Dimensions | 17.2 x 12.2 x 2.5" / 438 x 311 x 66 mm | | Weight | 12.2 lb / 5.5 kg | | | | Package Weight | 21.0 lb | | Box Dimensions (LxWxH) | 21.5 x 18.0 x 10.0" |
