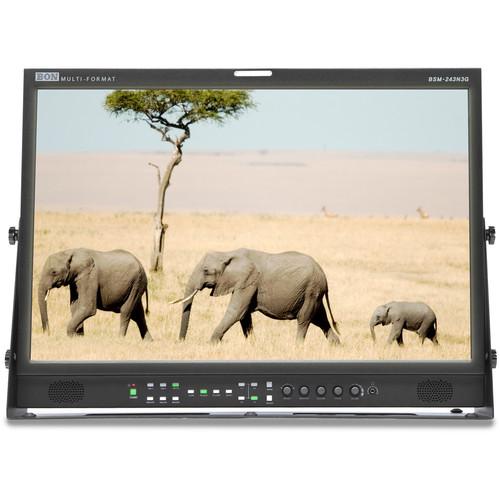

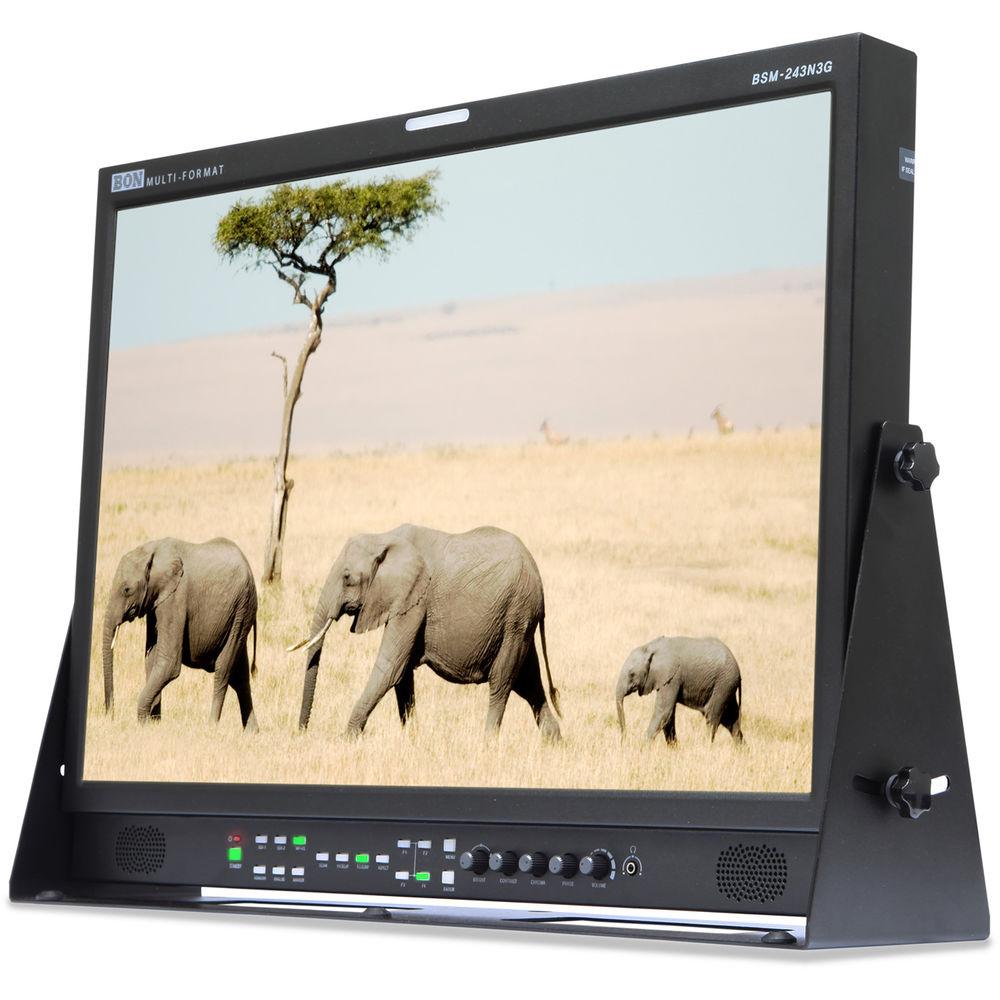

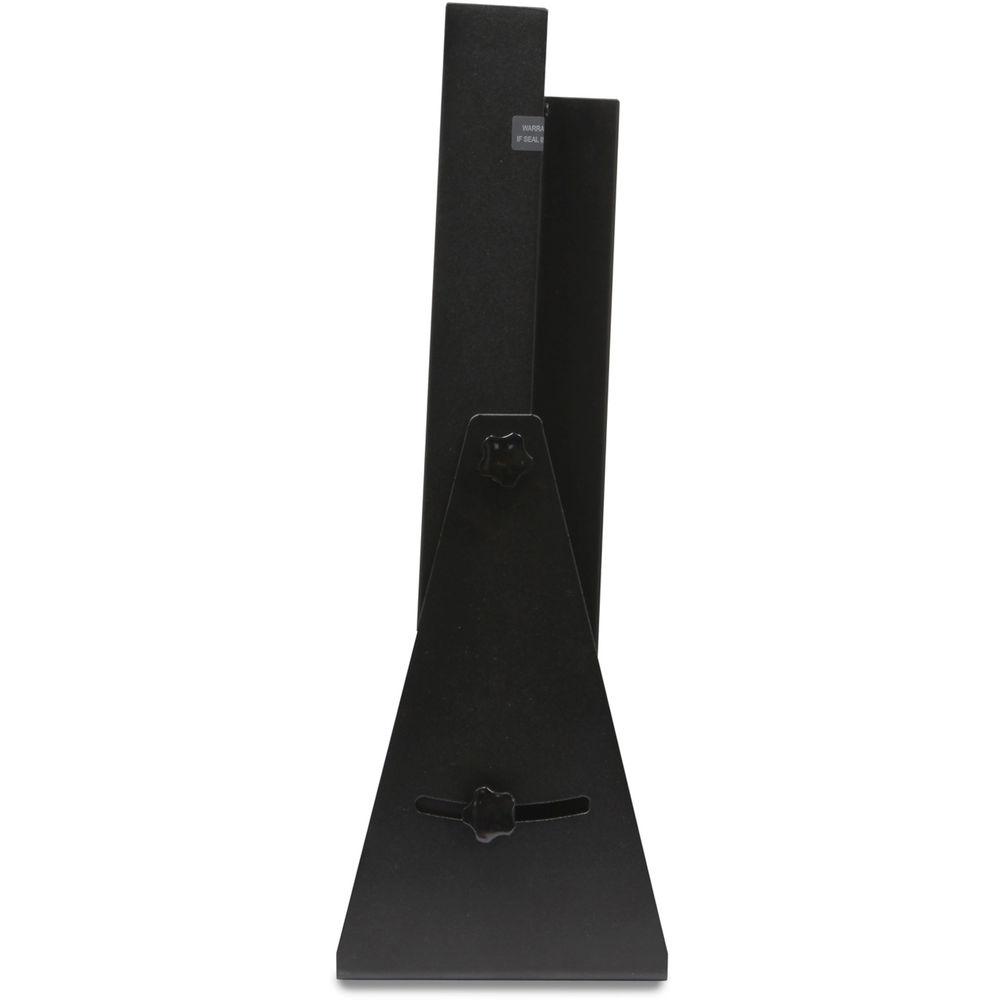

Product description The BON BSM-243N3G 24" 3G-SDI/HDMI Broadcast Monitor accepts 3G-SDI signals and offers a maximum resolution of 1920 x 1200. It features 2 SDI input ports with 3G SDI support. The color temperatures are selectable and gamma correction is applied to reproduce precise colors and gradients.Users can update firmware or control the monitor via the RS-422 or Ethernet port. Menu settings can be copied to other monitors with an USB stick. With the built-in waveform/vectorscope, you can monitor the luminance range, color range, and Y/Cb/Cr/R/G/B levels. - AFD and V-CHIP (SDI Only)
- R,G,B or Gray only display
- Menu settings transfer with USB
- Color calibration software (optional, training required)
- Closed caption (CEA-608/708)
- 8 to 16-channel audio level meter
- UMD/IMD mode (supports TSL 4.0)
- R/G/B/W internal patterns
- Monitor controllable via Ethernet
- Rack and VESA mount (optional)
UPC: 889716000340 In the Box Bon BSM-243N3G 24" 3G-SDI/HDMI Broadcast Monitor Power Cable Cleaner Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bon BSM-243N3G 24" 3G-SDI HDMI Broadcast Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

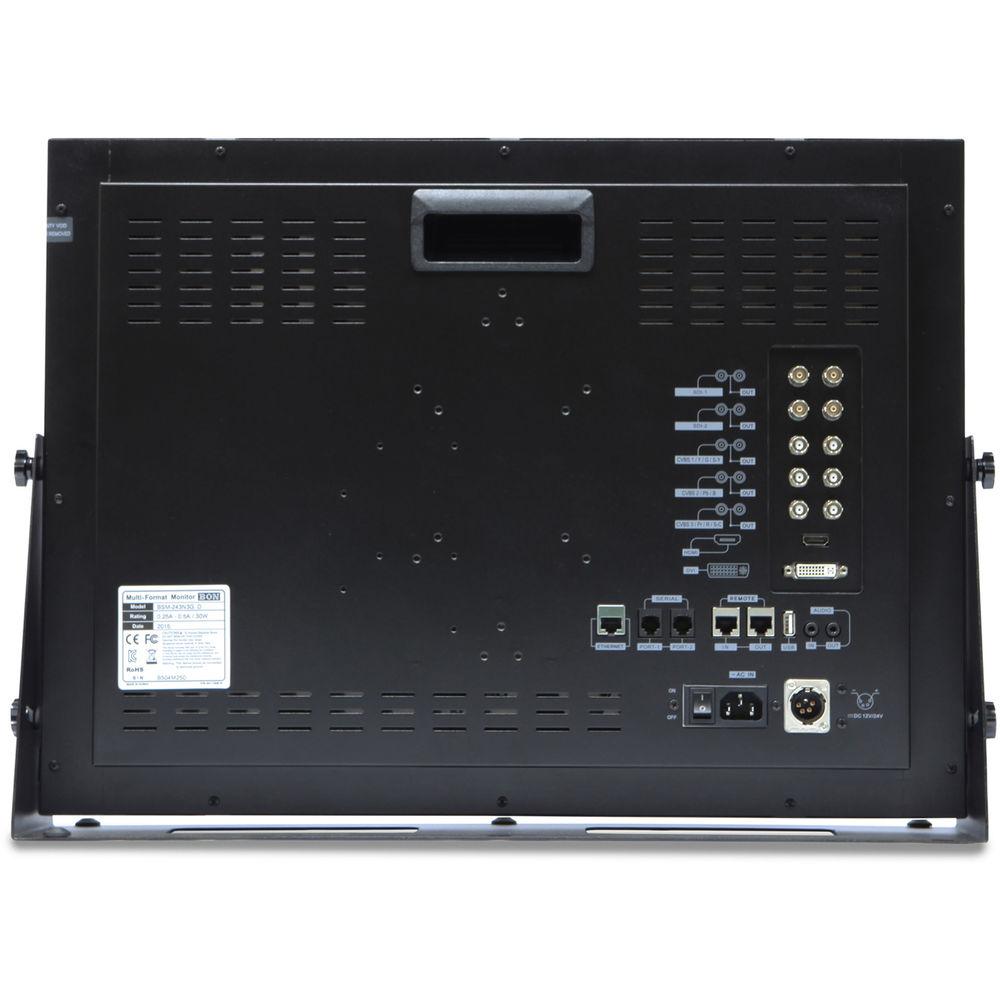

Technical parametersBon BSM-243N3G Specs | Signal System | NTSC/PAL | | Monitor Type | LED | | Screen Size | 24" (60.96 cm) | | Resolution | 1920 x 1200 | | Pixel Pitch | 0.270 mm | | Display Colors | 8-bit | | Viewing Angle | 178° (H), 178° (V) | | Brightness | 350 cd/m² | | Contrast Ratio | 1000:1 | | Display Area (H x V) | 20.4 x 12.75" (518.4 x 324 mm) | | Inputs/Outputs | Input
2 x BNC
HD/SD-SDI, 3G/1.485G/270M
3 x BNC
Analog (YPbPr/CVBS/S-Video/RGB)
1 x HDMI
HDMI with HDCP v.1.1, 19-pin female
1 x DVI
DVI-I, 24-pin, female
1 x VGA
DVI-I to VGA Jack with gender
Output
2 x BNC
SDI-1/2 active loop output)
3 x BNC
Analog (YPbPr/CVBS/S-Video/RGB) | | Input Level | Composite
1 Vp-p with sync, NTSC/PAL
YC (S-Video)
Y: 1 Vp-p, C: 0.286 Vp-p
Component (Y/Pb/Pr)
Y: 1 Vp-p, Pb: 0.7 Vp-p, Pr: 0.7 Vp-p
Component (R/G/B)
G: 1 Vp-p with Sync, B: 0.7 Vp-p, R: 0.7 Vp-p
PC-RGB, Sync Level
R, G, B: 0.7 Vp-p, H/V Sync: 4 V ± 1 Vp-p | | Formats | SMPTE 425M AB
1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF), 1080i (60/59.94/50)
2K, SMPTE 428M
2048 x 1080, 24p/psf, 23.98p/psf
SMPTE 274M/292M
1920x 1080i (60, 59.94, 50)
1920 x 1080p (30, 29.97, 25, 24, 24sF, 23.98, 23.98sF)
SMPTE 296M
1280 x 720p/60, 59.94, 50
SMPTE 260M
1920 x 1035i/60, 59.94
SMPTE 125M/259M
720 x 480i/60, 59.94, 720 x 576i/50
ITU R-BT.656
576i (50)
Composite
720 x 480i (NTSC)/576i (PAL)
Component, VGA
480i/p ~ 1920 x 1080i/p
DVI Signal
480i/p ~ 1920 x 1080i/p
HDMI Digital
~ 1920 x 1200i/p (de-embedded Audio 2-ch) | | Audio Input/Output | 1 x Phone jack In
Line In (Stereo)
2 x Phone jack Out
Line Out (Rear, Stereo), Headphone Out (Front, Stereo)
2 x Speaker Out
2 W + 2 W, Stereo | | LAN | 1 x Ethernet
Control/Update, GPI-7 port, RJ-45P jack | | GPIO | 2 x GPIO
GPI-7 port, RJ-45P jack | | Serial | 2 x Serial
RS-422, RJ-11P jack | | USB | 1 x USB
For firmware update | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | 20 to 80% RH | | Power Requirements | 12/24 VDC, 100 to 230 VAC (50/60 Hz) | | Power Consumption | 55 W | | Dimensions (W x H x D) | Main Body: 21.7 x 15.8 x 2.4" (553.4 x 403.5 x 62.5 mm)
With Stand: 23.2 x 16.5 x 6.3" (590.4 x 419.0 x 160 mm) | | Weight | 19.8 lb (9 kg) | | | | Package Weight | 32.75 lb | | Box Dimensions (LxWxH) | 27.0 x 23.2 x 10.9" |
