User Manual for Bon BSM-463N3G 46" 3G-SDI Broadcast and Production Monitor Click to enlarge the picture
Contents of the user manual for the Bon BSM-463N3G 46" 3G-SDI Broadcast and
- Product category: Production Monitors Bon
- Brand: Bon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bon Production Monitors
|
User manual for the Bon BSM-463N3G 46" 3G-SDI Broadcast and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bon product will considerably shorten its lifespan!
|

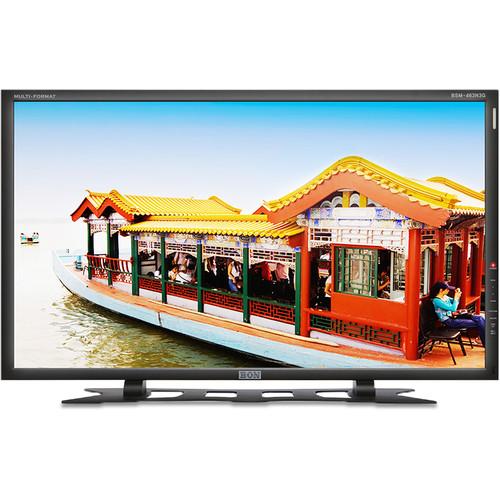

Product description View your professional work on the BSM-463N3G 46" 3G-SDI Broadcast Monitor from BON. Featuring an LED-backlit 46" full-HD LCD screen with 10-bit color processing and a 178° viewing angle, the BSM-463N3G is designed for studio and cinema production and post production of high-definition content. 1080p and 2K are natively supported, as are other HD and SD resolutions. The rear panel of the monitor houses the SDI, HDMI, DVI, and analog video I/O, as well as the control ports. Monitoring tools such as waveform, vectorscope, and false color can be used to check the incoming signal and accurately judge exposure and color. When used in studio situations, the BSM-463N3G will pick up timecode, closed captioning, and tally signals. A power cable and cleaner are included, and a mounting stand for holding the monitor upright is available separately. Monitoring Tools - Waveform (SDI/HDMI/DVI/YPbPr, supporting parade mode)
- Vectorscope (SDI/HDMI/DVI/YPbPr)
- PiP, PaP (between analog and digital input)
- AFD and V-chip display (SDI only)
- Various markers including EBU, 4:3, 16:9, 1.85:1, 2.35:1, etc.
- H/V delay, blue/mono, pixel-to-pixel
- Closed caption display (CEA-608/708, SDI only)
- Timecode display (ATC HD-SDI, D-VITC SD-SDI)
- De-embedded audio level meter with 8 to 16 channels
- R/G/B/W internal pattern displays for color test
UPC: 889716000395 In the Box Bon BSM-463N3G 46" 3G-SDI Broadcast and Production Monitor Power Cable Screen Cleaning Cloth Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bon BSM-463N3G 46" 3G-SDI Broadcast and Production Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBon BSM-463N3G Specs | | | Size | 46" / 116.8 cm | | Display Area (H x V) | 40.1 x 22.5" / 101.8 x 57.3 cm | | Resolution | 1920 x 1080 | | Pixel Pitch | 0.53 mm | | Color | 10-bit (8-bit + FRC) | | Viewing Angle (H/V) | 178° / 178° | | Brightness | 500 cd/m² | | Contrast | 1000:1 | | Backlight | LED | | | | Video Inputs | 2 x BNC, HD/SD-SDI, 3G/1.485G/270M
3 x BNC, analog (YPbPr / CVBS / S-Video / RGB)
1 x HDMI, with HDCP v.1.1, 19-pin, female
1 x DVI-I, 24-pin, female
1 x DVI-I to VGA jack | | Video Outputs | 2 x BNC, SDI-1/2 active loop-through output
3 x BNC, analog (YPbPr / CVBS / S-Video / RGB) | | Input Level | Composite:
1.0 Vpp (with sync) / NTSC/PAL
YC (S-Video):
Y: 1.0 Vpp / C: 0.286 Vpp
Component (Y/Pb/Pr):
Y: 1.0 Vpp / Pb: 0.7 Vpp / Pr: 0.7 Vpp
Component (R/G/B):
G: 1.0 Vpp (with sync) / B: 0.7 Vpp / R: 0.7 Vpp
PC-RGB, Sync Level:
R, G, B: 0.7 Vpp / H/V Sync: 4 V ± 1 Vpp | | Signal Formats | SMPTE 425M AB:
Level A MS1, MS2, MS3, MS4
Level B MS1, MS2, MS3, MS4
2K, SMPTE 428M:
2048 x 1080p 24/23.98/24sF/23.98sF
SMPTE 274M/292M:
1920 x 1080p 30/29.97/25, 24/24sF/23.98/23.98sF
1920 x 1080i 60/59.94/50
SMPTE 296M:
1280 x 720p 60/59.94/50
SMPTE 260M:
1920 x 1035i 60/59.94
SMPTE 125M/259M:
720 x 576i 50
720 x 480i 60/59.94
ITU R-BT.656:
576i 50
Composite:
720 x 480i (NTSC)
720 x 576i (PAL)
Component, VGA:
Approximately 1920 x 1080i/p
480i/p
DVI Signal:
Approximately 1920 x 1080i/p
480i/p
HDMI Digital:
Approximately 1920 x 1200i/p (de-embedded two-channel audio) | | Audio | 1 x 3.5 mm Mini, stereo line in
1 x 3.5 mm Mini, stereo line out
1 x 3.5 mm Mini, stereo headphone out
2 x Integrated 2 W stereo speakers | | Additional Ports | 1 x Ethernet (GPI-7 port, RJ-45P jack, for control & firmware update)
2 x GPIO (GPI-7 port, RJ-45P jack)
2 x Serial RS-422 (RJ-11P jack)
1 x USB (for firmware update) | | | | Power Requirements | 100 to 230 VAC, 50/60 Hz | | Power Consumption | 100 W | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | 20 to 80% RH | | Dimensions (W x H x D) | 27.3 x 15.9 x 1.8" / 107.8 x 62.8 x 7.1 cm | | Weight | 59.5 lb / 27 kg | | | | Package Weight | 80.0 lb | | Box Dimensions (LxWxH) | 52.5 x 34.0 x 14.0" |
