Product description - Ikan Corp: Tech Corner - Bon Video switcher

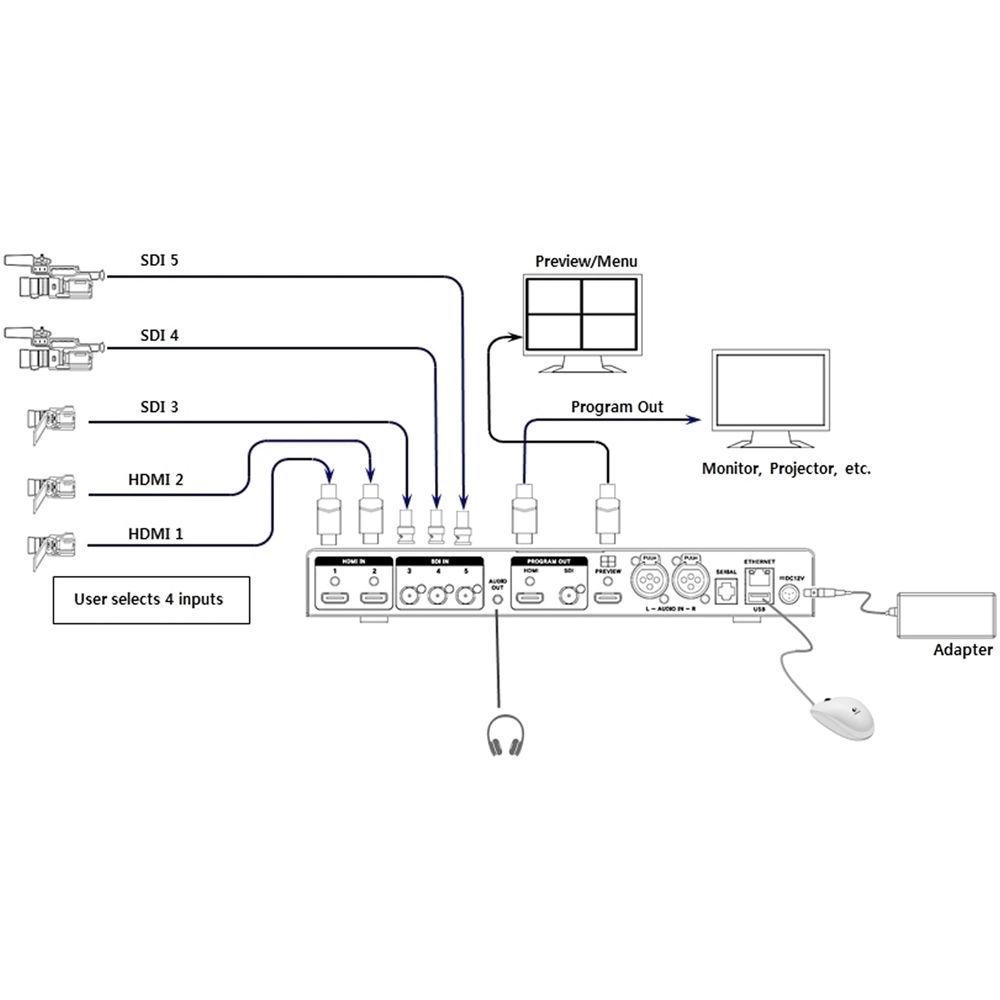

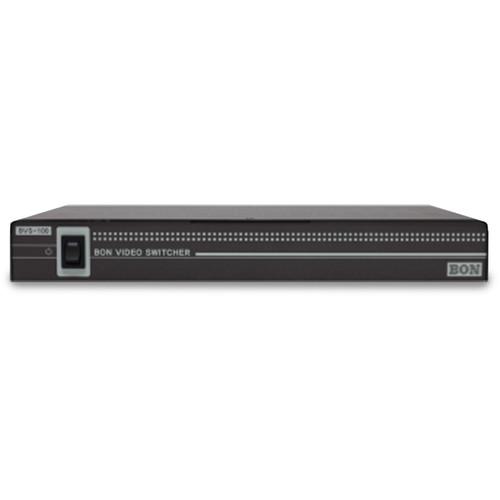

The BVS-100 HD-SDI/HDMI Video Switcher from BON is a compact switcher offering a four-channel output that is user-selectable from its five video inputs. There are three SDI and two HDMI inputs, each with embedded audio in addition to two analog, L/R balanced XLR audio inputs. The BVS-100 can output the four active channels via HDMI to a quad-split preview display. Program out is available via HDMI and SDI. For background replacement, chroma keying is available in blue and green. In the absence of a signal, the video out will display color bars rather than noise.The BVS-100 HD-SDI/HDMI Video Switcher has audio leveling available for each channel, and a headphone jack is provided at the rear of the unit. The included USB keypad controls all functions, or you can use a mouse if you prefer (mouse not included). - Processes multiple formats over five inputs with quad-split output
- Three HD/SDI and two HDMI video inputs
- HDMI and SDI program outputs
- Individual channel audio monitoring
- Blue and green chroma key functions
- Automatic color bars display if signal to monitor is lost
- Compact, stay-cool form factor
UPC: 889716000418 In the Box Bon BVS-100 HD-SDI/HDMI Video Switcher Keypad AC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bon BVS-100 HD-SDI HDMI Video Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBon BVS-100 Specs | | | Video | 3 x HD-SDI
2 x HDMI
Maximum four channels active simultaneously | | Audio | 5 x Embedded SDI & HDMI
2 x Analog audio L/R/balanced XLR jack | | Formats | 1920 x 1080p: 60/30/24 fps
1920 x 1080PsF: 23.98 fps
1920 x 1080i: 60/59/50 fps
1280 x 720p: 60/50 fps
NTSC, PAL | | | | Video | Program Out:
1 x SDI
1 x HDMI
Multi-View Out:
1 x HDMI | | Audio | Embedded Audio:
HDMI
SDI
Headphones:
1 x 3.5 mm mini jack | | Formats | 1920 x 1080p: 24 fps
1920 x 1080i: 60/59 fps
1280 x 720p: 60/50 fps
NTSC, PAL | | | | I/O Connections | 1 x USB
1 x RS-422 (RJ-11 jack)
1 x LAN | | | | Requirements | 12 VDC (7–18 VDC) | | Consumption | 14 W | | | | Operating Temperature | 32–104°F (0–40°C) | | Operating Relative Humidity | 20–80% | | | | Dimensions | 11.8 x 1.8 x 7.1" (30.0 x 4.6 x 18.0 cm) | | Weight | 2.6 lb (1.2 kg) | | | | Package Weight | 6.55 lb | | Box Dimensions (LxWxH) | 19.3 x 12.6 x 5.2" |
