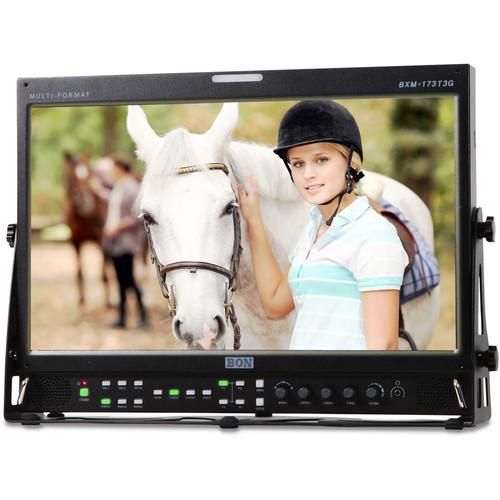

User Manual for Bon BXM-173T3G Full HD 3G-SDI HDMI 12-Bit Broadcast Monitor Click to enlarge the picture
Contents of the user manual for the Bon BXM-173T3G Full HD 3G-SDI HDMI
- Product category: Production Monitors Bon
- Brand: Bon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bon Production Monitors
|
User manual for the Bon BXM-173T3G Full HD 3G-SDI HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bon product will considerably shorten its lifespan!
|
Product description The BON BXM-173T3G Full HD 3G-SDI/HDMI 12-Bit Broadcast Monitor is a 12-bit video processing monitor that can display multiple color space with its 3D LUT. Most of its commands such as input selection and power on/off can be transmitted remotely via a network. With the 12-bit signal processor, the monitor displays smooth gradient. You can choose color spaces such as NTSC, EBU, SMPTE, and BT.709 to suit your requirements. In addition, the monitor offers selectable gamma levels from 1 to 3. - AFD and V-CHIP (SDI Only)
- Color calibration software (optional, training required)
- Closed Caption (CEA-608/708)
- 8 to 16-channel Audio Level Meter
- UMD/IMD mode (supports TSL 4.0)
- R/G/B/W Internal Patterns
- Monitor controllable via Ethernet
- Rack and VESA mount (optional)
- SDI 1/2 fast switching mode
- Firmware update via Ethernet
- Gen-lock (video synchronization)
UPC: 889716000227 In the Box Bon BXM-173T3G Full HD 3G-SDI/HDMI 12-Bit Broadcast Monitor Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bon BXM-173T3G Full HD 3G-SDI HDMI 12-Bit Broadcast Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBon BXM-173T3G Specs | Signal System | NTSC/PAL | | Monitor Type | LED | | Screen Size | 17.3" (43.9 cm) | | Resolution | 1920 x 1080 | | Pixel Pitch | 0.199 mm | | Display Colors | 10-bit | | Viewing Angle | 178° (H), 178° (V), IPS | | Brightness | 300 cd/m² | | Contrast Ratio | 800:1 | | Display Area (H x V) | 15 x 8.45" (381.9 x 214.8 mm) | | Inputs/Outputs | Input
2 x SDI
HD/SD-SDI, 3G / 1.485G / 270M
3 x SDI
Analog (YPbPr / CVBS / S-Video / RGB)
1 x HDMI
HDMI with HDCP v.1.1, 19-pin female
1 x DVI
DVI-I, 24-pin, female
1 x SDI
External Sync, Black Burst & Tri-sync, 1 Vp-p
Output
2 x SDI
SDI-1/2 (active loop output)
3 x SDI
Analog (YPbPr / CVBS / S-Video / RGB)
1 x SDI
For External Synchronization
Composite
1 Vp-p (with sync), NTSC/PAL
S-Video(YC)
Y: 1 Vp-p, C: 0.286 Vp-p
Component (Y/Pb/Pr)
Y: 1 Vp-p, Pb: 0.7 Vp-p, Pr: 0.7 Vp-p
Component (R/G/B)
G: 1 Vp-p (with sync), B: 0.7 Vp-p, R: 0.7 Vp-p
PC-RGB, Sync Level
R, G, B: 0.7 Vp-p, H/V Sync : 4 V ± 1 Vp-p | | Formats | SMPTE 425M AB
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 / 30sF / 29.97sF / 25sF / 24sF / 23.98sF) 1080i (60 / 59.94 / 50)
SMPTE 372M
Dual HD-SDI YCbCr (4:2:2), 1080p
Dual HD-SDI YCbCr/RGB (4:4:4), 1080i, 1080p, 720p
SMPTE 274M/292M
1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 24sF / 23.98 / 23.98sF)
SMPTE 296M
720p (60 / 59.94 / 50)
SMPTE 260M
1035i (60 / 59.94)
SMPTE 125M/259M
480i (60 / 59.94), 576i (50)
2K, SMPTE 428M
2048 x 1080 (24 / 24sF / 23.98 / 23.98sF)
ITU R-BT.656
576i (50)
DVI Signal
~ 1080p (60)
HDMI Digital
~ 1080p (60) | | Audio Input/Output | 1 x Phone Jack In
Line In (Stereo)
2 x Phone Jack Out
Line Out (Rear, Stereo), Headphone Out (Front, Stereo)
2 x Speaker Out
2 W + 2 W, Stereo | | LAN | 1 x Ethernet
Control/Update, GPI-7 port, RJ-45P jack | | GPIO | 2 x GPIO
GPI-7 port, RJ-45P jack | | Serial | 2 x Serial
RS-422, RJ-11P jack | | USB | 1 x USB
For firmware update | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | 20 to 80% RH | | Power Requirements | 100 to 230 VAC (50/60 Hz) | | Power Consumption | 42 W | | Dimensions (W x H x D) | 15.9 x 11.2 x 2.1" (403 x 285 x 52 mm) | | | | Package Weight | 18.0 lb | | Box Dimensions (LxWxH) | 22.0 x 16.0 x 9.5" |
