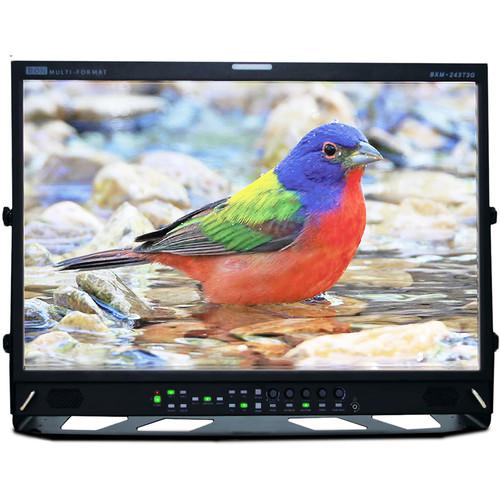

Product description The BON BXM-243T3G 3G-SDI/HDMI 12-Bit Broadcast Monitor is a 12-bit video processing monitor that can display multiple color space with its 3D LUT. Most of its commands such as input selection and power on/off can be transmitted remotely via a network. With the 12-bit signal processor, the monitor displays smooth gradient. You can choose color spaces such as NTSC, EBU, SMPTE, and BT.709 to suit your requirements. In addition, the monitor offers selectable gamma levels from 1 to 3. - AFD and V-CHIP (SDI Only)
- Color calibration software (optional, training required)
- Closed Caption (CEA-608/708)
- 8 to 16-channel Audio Level Meter
- UMD/IMD mode (supports TSL 4.0)
- R/G/B/W Internal Patterns
- Monitor controllable via Ethernet
- Rack and VESA mount (optional)
- SDI 1/2 fast switching mode
- Firmware update via Ethernet
- Gen-lock (video synchronization)
UPC: 889716000401 In the Box Bon BXM-243T3G 3G-SDI/HDMI 12-Bit Broadcast Monitor Power Cable Cleaner Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bon BXM-243T3G 3G-SDI HDMI 12-Bit Broadcast Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBon BXM-243T3G Specs | Signal System | NTSC/PAL | | Monitor Type | LED | | Screen Size | 24" (60.96 cm) | | Resolution | 1920 x 1200 | | Pixel Pitch | 0.27 mm | | Display Colors | 10-bit | | Viewing Angle | 178° (H), 178° (V), IPS | | Brightness | 250 cd/m² | | Contrast Ratio | 1000:1 | | Color Gamut | 102% | | Display Area (H x V) | 20.4 x 12.75" (518.4 x 324 mm) | | Inputs/Outputs | Input
2 x BNC: HD/SD-SDI, 3G / 1.485G /270M
3 x BNC: Analog (YPbPr / CVBS / S-Video / RGB)
1 x HDMI: HDMI with HDCP v.1.1, 19-pin female
1 x DVI: DVI-I, 24-pin, female
1 x BNC: External Sync, Black Burst & Tri-sync, 1 V p-p
Output
2 x BNC: SDI-1/2 active loop output)
3 x BNC: Analog (YPbPr / CVBS / S-Video / RGB)
1 x BNC: For External Synchronization | | Input Level | Composite: 1 V p-p with sync, NTSC/PAL
YC (S-Video): Y: 1 Vp-p, C: 0.286 V p-p
Component (Y/Pb/Pr): Y: 1 V p-p, Pb: 0.7 V p-p, Pr :0.7 V p-p
Component (R/G/B): G: 1 V p-p with Sync, B: 0.7 V p-p, R: 0.7 V p-p
PC-RGB, Sync Level: R, G, B: 0.7 V p-p, H/V Sync : 4 V ± 1 V p-p | | Formats | SMPTE 425M AB
1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) 1080i (60/59.94/50)
SMPTE 372M
Dual HD-SDI YCbCr (4:2:2), 1080p
Dual HD-SDI YCbCr/RGB (4:4:4), 1080i, 1080p, 720p
SMPTE 274M/292M
1080i (60/59.94/50)
1080p (30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE 296M
720p (60/59.94/50)
SMPTE 260M
1035i (60/59.94)
SMPTE 125M/259M
480i (60/59.94), 576i (50)
2K, SMPTE 428M
2048 x 1080 (24/24sF/23.98/23.98sF)
ITU R-BT.656
576i (50)
DVI Signal
480i/p ~ 1080p (60)
HDMI Digital
~ 1080p | | Audio Input/Output | 1 x Phone Jack In
Line In (Stereo)
2 x Phone Jack Out
Line Out (Rear, Stereo), Headphone Out (Front, Stereo)
2 x Speaker Out
2 W + 2 W, Stereo | | LAN | 1 x Ethernet
Control/Update, GPI-7 port, RJ-45P jack | | GPIO | 2 x GPIO
GPI-7 port, RJ-45P jack | | Serial | 2 x Serial
RS-422, RJ-11P jack | | USB | 1 x USB
For firmware update | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | 20 to 80% RH | | Power Requirements | 100 to 230 VAC (50/60 Hz) | | Power Consumption | 108 W | | Dimensions (W x H x D) | Main Body: 21.7 x 16.0 x 3.5" (552 x 408 x 90.6 mm)
With Stand: 23.2 x 16.8 x 6.3" (590.4 x 423.5 x 160 mm) | | Weight | 21.8 lb (9.8 kg) | | | | Package Weight | 33.4 lb | | Box Dimensions (LxWxH) | 27.0 x 21.0 x 11.0" |
