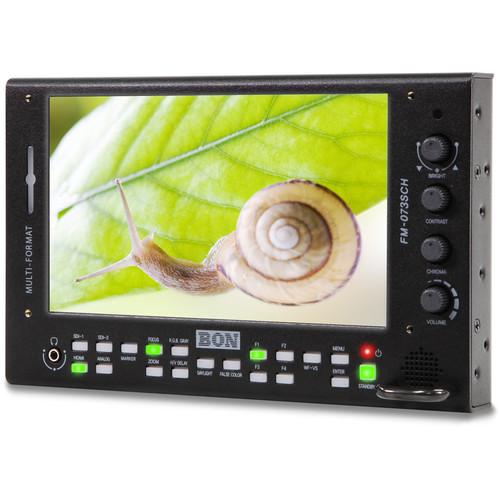

Product description Housed in an all-metal chassis, the BON FM-073SCH 7" High Brightness On-Camera Monitor is ready for professional-level productions. The 7" 1024 x 600 LCD panel is backlit by LEDs and is color calibrated from the factory for accurate color reproduction. This high brightness model has a powerful 1100 cd/m² back light for daylight viewing without a sun hood. SDI, HDMI, and analog inputs will accept a video signal from nearly any source up to DCI 2K resolution. When working with higher resolutions, the pixel-to-pixel mapping function and focus assist monitoring tools help achieve sharp in-focus images. Onboard SDI to HDMI conversion and vice-versa ensures that your camera setup will be compatible with most modern outboard video equipment.Adorning the front face of the metal chassis is a wealth of programmable and preprogrammed interface buttons, input selection buttons, a speaker, a headphone output, a tally lamp, plus brightness, contrast, and chroma adjustment knobs. Use the programmable function buttons to assign your most frequently used monitoring tools for easy access. The rear of the monitor has all the video I/O ports, can accept separately available battery plates for power, and has input and thru connections for software and remote control. A standard power supply and power cord are included. - SDI-HDMI Cross Conversion
- While preserving the original signal resolution, the FM-073SCH will cross convert incoming HDMI or SDI signals to outgoing SDI or HDMI signals, respectively. Having this functionality is especially useful in professional applications that require SDI connectivity. HDMI-only cameras can now be integrated into SDI-only production environments.
- Horizontal/Vertical Level Meters and Auto-Flip
- Ensure that your shots are accurately composed by checking the monitor's positioning against the internal level meters, which gauge horizontal and vertical tilt. This functionality also extends to enable Auto-Flip, a feature which will automatically right the image on the monitor's screen if the monitor should be flipped completely.
- Frame Guide Markers
- Frame for your final output aspect ratio either with popular preset frame guides or with your own custom aspect ratio.
- Monitoring Tools
-
- False color
- Vectorscope
- Closed caption
- Audio level meter (up to 16 channels)
- IMD mode
- Guide markers
- Pixel-to-pixel mapping
- Tally LED
- R/G/B/W and test pattern generator
- Focus assist (whole screen or center only)
- Waveform
- DSLR scale
- Timecode display
- Exposure range check
- H/V delay
- Zero/under/over-Scan
SDI Only:
- Still image overlay
- AFD and V-chip
- Picture-in-Picture (SDI/analog combo only)
UPC: 889716000104 In the Box Bon FM-073SCH 7" High Brightness On-Camera Monitor AC Adapter Power Cable Screen Cleaning Wipe Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bon FM-073SCH 7" High Brightness On-Camera Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBon FM-073SCH Specs | | | Size | 7" / 17.8 cm | | Resolution | 1024 x 600 | | Pixel Pitch | 0.15 mm² | | Color Depth | 16.7 Million (8-bit) | | Viewing Angle | 160° H/V | | Luminance | 1100 cd/m² | | Contrast Ratio | 900:1 | | Backlight | LED | | Display Area | 6.0 x 3.5" / 154 x 90 mm | | | | Video Inputs | 2 x BNC, 3G/HD/SD-SDI
1 x HDMI Type A
1 x 3-RCA, analog RGB / YPbPr / S-Video / Composite | | Video Outputs | 1 x BNC, SDI loop-through or HDMI conversion
1 x HDMI Type A | | Format Support | SMPTE 425 AB:
1080p 23.98/24/25/29.97/30/50/59.94/60
1080PsF 23.98/24/25/30
SMPTE 274M/292M:
1920 x 1080p 23.98/24/2529.97/30
1920 x 1080PsF 23.98/24
1920 x 1080i 50/59.94/60
SMPTE 296M:
1280 x 720p 50/59.94/60
SMPTE 260M:
1920 x 1035i 59.94/60
SMPTE 125M/295M:
720 x 480i 59.94/60 (NTSC)
720 x 576i 50 (PAL)
2K SMPTE 428M:
2048 x 1080p 23.98/24
2048 x 1080PsF 23.98/24
ITU R-BT.656:
720 x 576i 50 (PAL) | | Audio | 1 x 3.5 mm, analog stereo audio in
1 x 3.5 mm, stereo headphone out
1 x Speaker, mono, 0.5 W | | Other | 1 x RJ45, GPI-7 control input
1 x RJ45, GPI-7 control output
2 x RJ11, RS-422 control
1 x USB, firmware update | | | | Power Requirements | 7 - 24 VDC | | Power Consumption | 18 W | | Operating Temperature | 14 to 104°F / -10 to 40°C | | Operating Humidity | 20 to 80% RH | | Dimensions | 8.3 x 5.1 x 1.3" / 210 x 130 x 33 mm | | Weight | 2.9 lb / 1.3 kg | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 11.9 x 11.8 x 4.5" |
