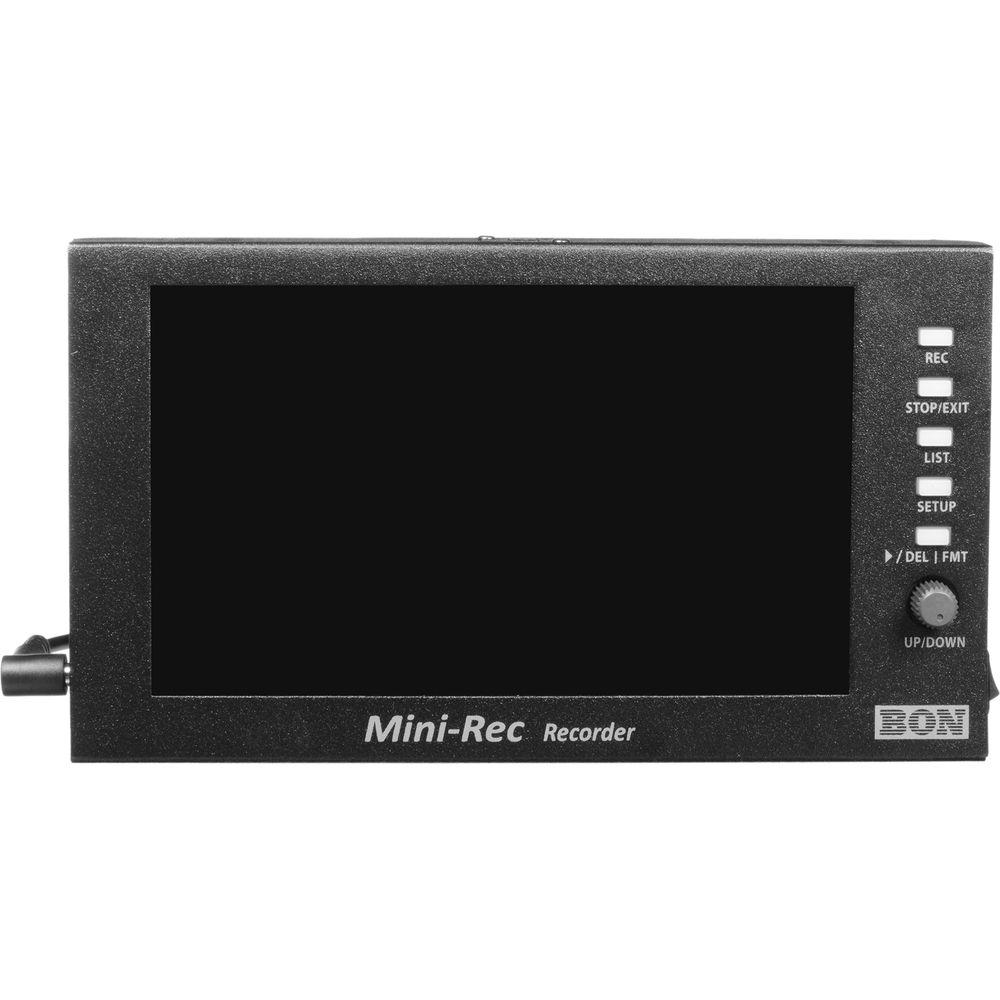

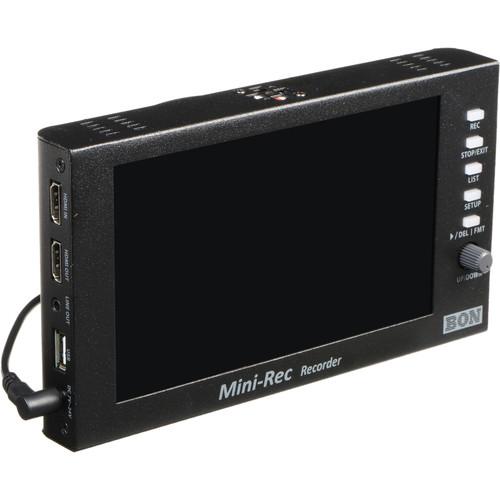

Product description The Bon Mini-Rec is a 7" on-camera recorder/monitor that allows you to record to USB storage for extended periods. It also offers built-in up/downscaling and has an on-board editing feature.
The Mini-Rec supports the gamut of input formats up to 1080p60 and automatically scales an input to 1080p60/59.94/50/30/25 or 720p60/50 — per your selection — for recording. It records in the space-saving MP4 format to optional USB 2.0/3.0 flash drives in up to 6-hour file sizes.
The editing feature enables you to either completely delete a recording or to cut portions of it by setting start and end points during playback, and this is done right from the monitor's screen, without connecting to a computer. Additionally, a Windows-compatible software is provided (as a free download) for loading and partially managing recorded files.

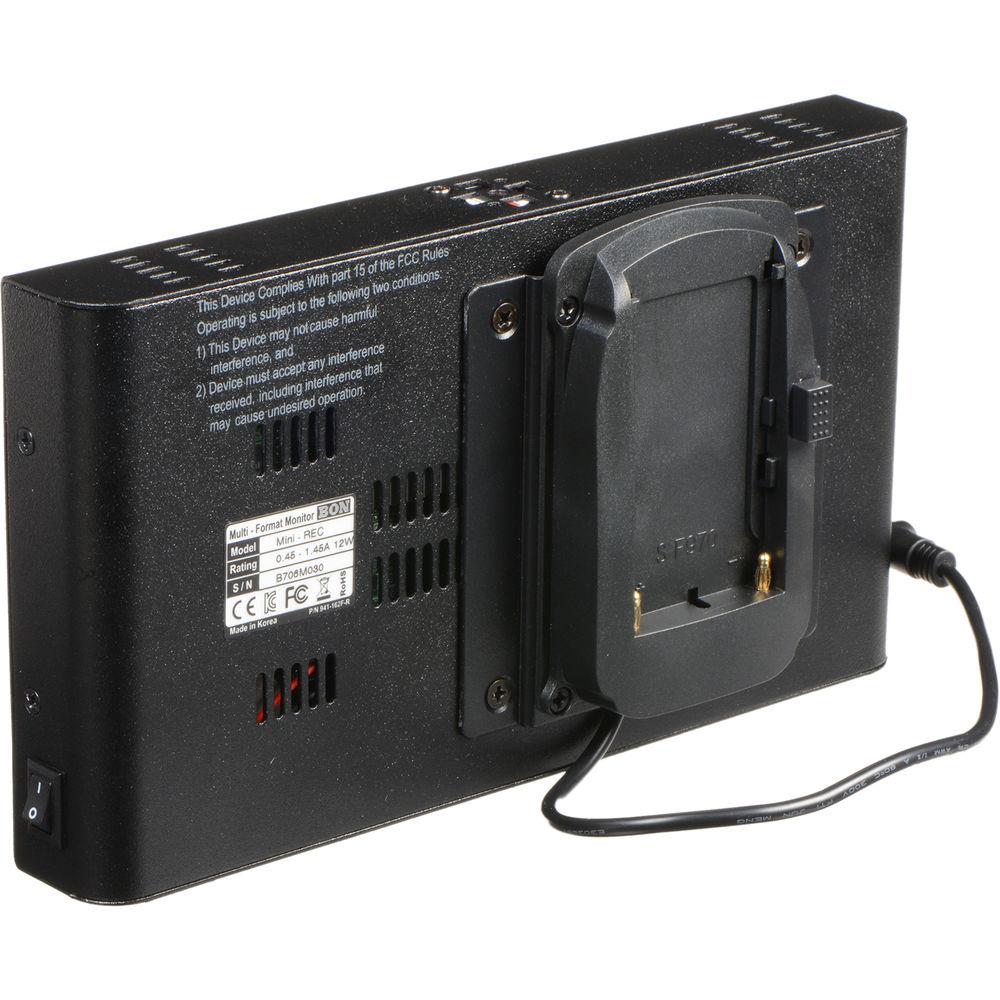

The Mini-Rec features a robust design and offers an HDMI input and output as well as a headphone/speaker jack. It includes a DC power adapter for continuous power and also supports a Sony FP battery mount from Bon, sold separately, on the rear. - Key Features
-
- 7" on-camera recorder/monitor
- Records to USB 2.0/3.0 flash drives in up to 6-hour file sizes
- Input/recording up to 1080p60
- Built-in up/downscaling
- On-board editing feature (delete/modify)
- MP4 recording format
- HDMI input and output
- Headphone/speaker jack
- Includes a DC power adapter
- Supports optional Bon FP battery mount
- 1/4"-20 threaded mounting hole on the bottom

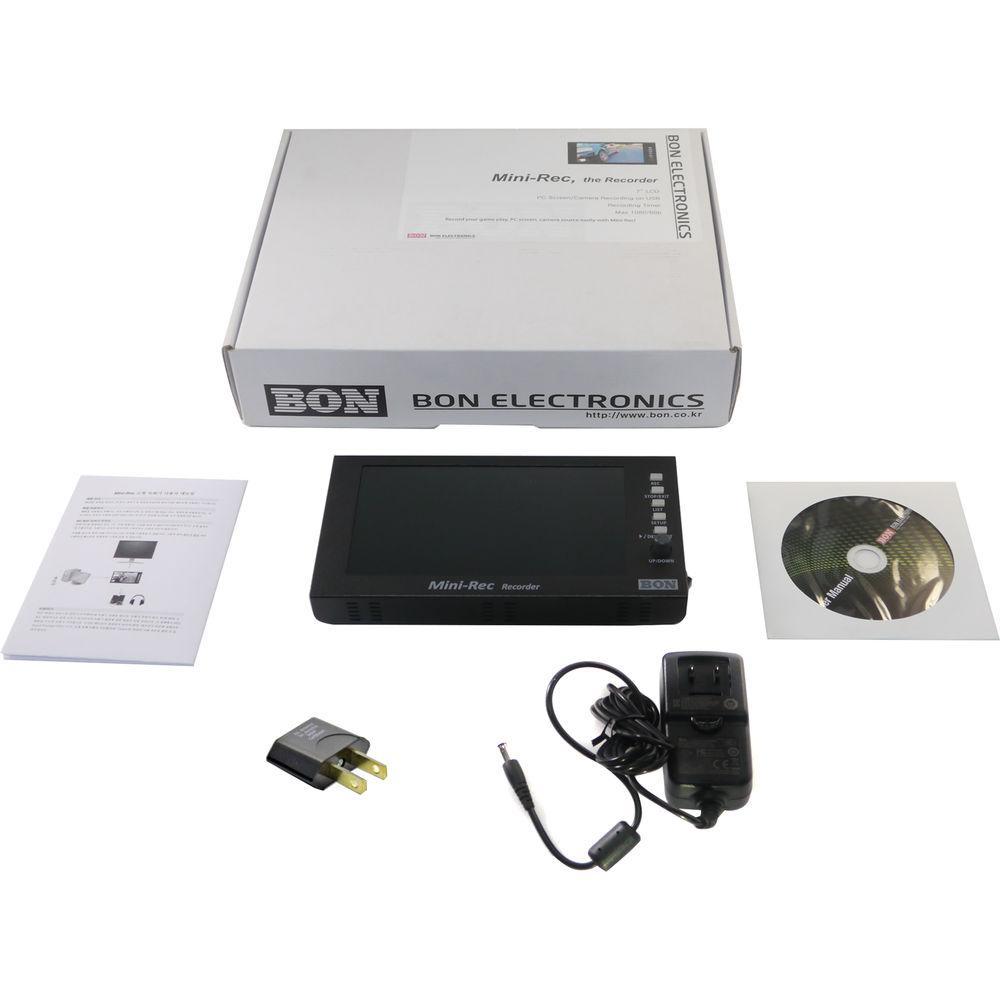

UPC: 889716000524 In the Box Bon Mini-Rec 7" Recorder & Monitor with USB Storage DC Adapter Limited 1-Year Warranty User Manual PDF 241.2kbvquzwsrtwwzwyredudvr Table of Contents
|
Upload User Manual
Have you got an user manual for the Bon Mini-Rec 7" Recorder & Monitor with USB Storage in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBon MINI-REC Specs | Display | 7" (17.8 cm) | | Resolution | 1024 x 600 | | Pixel Pitch | 0.15 x 0.15 mm | | Brightness | 350 cd/m² | | Backlight | LED | | Display Area | H x V: 153.6 x 90 mm | | Input | 1 x HDMI | | Output | 1 x HDMI
1 x 3.5 mm headphone/speaker jack | | Input Formats | 1920 x 1080 at 60/59.94/50/29.97/25/24/23.98p
1920 x 1080 at 60/59.94/50i
1280 x 720 at 60/59.94/50p
NTSC, PAL | | Recording Formats | 1920 x 1080 at 60/59.94/50/30/25p
1280 x 720 at 60/50p
*The monitor records only in one of these recording formats. You must select the recording format, and if your input signal is different, it will be automatically upscaled/downscaled. The default recording format is 1080p60 unless you change it. | | File Format | MP4 | | Video Bit Rate | 1-15 Mbps | | Storage | USB 2.0/3.0 flash drive supported (32-128 GB) | | Recording Capacity | 21 hours of high-quality recording on an optional 32 GB USB flash drive, 64 hours in normal-quality (recorded file sizes can be up to 6 hours max) | | Mount Type | 1/4"-20 threaded mounting hole on the bottom | | Power Requirements | 7-24 VDC | | Power Consumption | 19.5 W | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | 20 to 80% RH | | Dimensions | 8 x 4.5 x 1" (20.4 x 1.2 x 2.8 cm) | | Weight | 1.7 lb (750 g) | | | | Package Weight | 3.15 lb | | Box Dimensions (LxWxH) | 12.2 x 10.0 x 2.9" |
