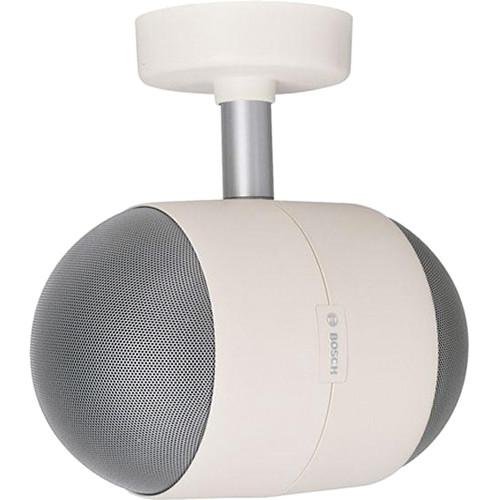

User Manual for Bosch 10 Watt Bidirectional Sound Projector Click to enlarge the picture
Contents of the user manual for the Bosch 10 Watt Bidirectional Sound Projector
- Product category: Installed Speakers Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Installed Speakers
|
User manual for the Bosch 10 Watt Bidirectional Sound Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|
Product description This 10 Watt Bidirectional Sound Projector from Bosch is a 10W bidirectional sound projector designed for applications requiring high-quality speech and music reproduction in indoor and outdoor situations. The two loudspeakers facing in opposite directions are ideal for use in tunnels, long corridors and shopping arcades. This sound projector is suitable for use in voice alarm systems. State-of-the-art design is matched to modern as well as traditional environments. The optimal acoustic shape and top-of-the-line components allow them to produce a remarkable range of low and high tones equally well. This means great-sounding music and perfectly intelligible speech, projected clearly at high volumes and over long distances. The elegant visual design blends easily into a wide range of interior designs. This sound projector is built to handle heavy, continuous use. This sound projector is especially designed for fast, easy installation. Loop-through cabling ability ensures fast installation. Once attached, they can be aimed with precision to localize sound exactly where it's needed. - The use of high‑quality drivers in combination with advanced filtering has resulted in a very natural sound reproduction.
- Voice alarm loudspeakers are specifically designed for use in buildings where performance of systems for verbal communication announcements is governed by regulations. The LP1‑BC10E‑1 is designed for use in voice alarm systems. The sound projector is pre‑wired for use with an optional line/loudspeaker supervision board externally mounted. The loudspeaker has built‑in protection to secure that, in the event of a fire; damage to the loudspeaker does not result in failure of the circuit to which it is connected. In this way, system integrity is maintained.
- All Bosch loudspeakers are designed to withstand operating at their rated power for 100 continuous hours in accordance with IEC 268‑5 Power Handling Capacity (PHC) standards. Bosch has also developed the Simulated Acoustical Feedback Exposure (SAFE) test to demonstrate that they can withstand two times their rated power for short durations. This ensures improved reliability under extreme conditions, leading to higher customer satisfaction, longer operating life, and lessons the chance of failure or performance deterioration.
- In common with all Bosch products, care is taken to meet high safety standards. This sound projector complies with the relevant safety and installation regulations of EN 60065, BS 5839‑8 and EN 60849. All ABS parts are self-extinguishing (according to UL 94 V 0).
- Superb speech and music reproduction
- Integrated connection cable
- Water and dust protected to IP 65
- BS 5839‑8 and EN 60849 compliant
UPC: 800549164818 In the Box Bosch 10 Watt Bidirectional Sound Projector Mounting Hardware 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch 10 Watt Bidirectional Sound Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch LP1-BC10E-1 Specs | Frequency Response | 75 Hz to 20 kHz | | Sensitivity | 90 dB / 80 dB (SPL) | | Dispersion | 165° / 60° | | Impedance | 1000 ohm | | Power Input | 15 W @ 100V | | Power Settings | 10 / 5 / 2.5 / 1.25 W | | Construction | ABS | | Connectors | 3‑pole screw terminal | | Operating Temperature | -13 ºF to +131 ºF (-25 ºC to +55 ºC) | | Storage Temperature | -40 ºF to +158 ºF (-40 ºC to +70 ºC) | | Relative Humidity | <95% | | Weight | 6.6 lb (3 kg) | | Dimensions | 7.3 x 11.7" (18.5 x 29.7 cm) | | | | Package Weight | 12.1 lb | | Box Dimensions (LxWxH) | 17.8 x 14.3 x 10.6" |
