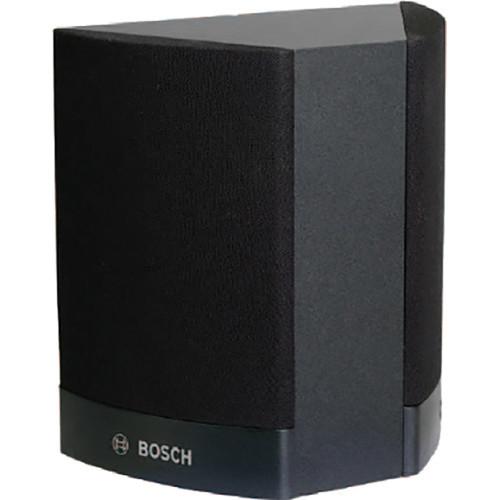

User Manual for Bosch 12W Bidirectional Cabinet Loudspeaker Click to enlarge the picture
Contents of the user manual for the Bosch 12W Bidirectional Cabinet Loudspeaker
- Product category: Installed Speakers Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Installed Speakers
|
User manual for the Bosch 12W Bidirectional Cabinet Loudspeaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|
Product description The black Cabinet Loudspeaker from Bosch is a 12W bidirectional loudspeaker for indoor use. It features two dual cone drivers placed in such a way that they create a wide opening angle. This makes the speaker suitable for use in long corridors. The robust, solid MDF (Medium Density Fiber board) enclosure is covered with a durable, easy-to-clean vinyl and the ABS fronts are covered with fine woven cloth in matching color.Three keyholes at the rear provide quick and easy wall mounting. The rear panel also houses a double five???pole push???in terminal block for on???site wiring. This terminal block has provision for power tapping on the 70/100V, matching transformer in the cabinet. It allows selection of nominal full???power, half???power, quarter-power or eight-power radiation (in 3 dB steps). - Complies with international installation and safety regulations
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch 12W Bidirectional Cabinet Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch F.01U.283.974 Specs | Sensitivity | Octave SPL 1W/1m:
74.4 dB @ 125 Hz
89.4 dB @ 250 Hz
89.9 dB @ 500 Hz
86.3 dB @ 1000 Hz
88.1 dB @ 2000 Hz
88.6 dB @ 4000 Hz
85.2 dB @ 8000 Hz
Total Octave SPL 1W/1m:
A-Weighted: 84.8 dB
Lin-Weighted: 86.1 dB
Total Octave SPL Pmax/1m:
A-Weighted: 94.6 dB
Lin-Weighted: 96 dB | | Angle | Horizontal Octave Band Opening Angles:
360° @ 125 / 250 / 500 / 1000 Hz
253° @ 2000 Hz
71° @ 4000 Hz
41° @ 8000 Hz
Opening Angle at 1 kHz / 4 kHz (-6 dB):
360° / 71° | | Maximum Power | 18 W | | Sound Pressure Level | @12 W / 1 W (1 kHz, 1 m): 97 / 86 dB | | Frequency Range | Effective (-10 dB): 160 Hz to 17 kHz | | Rated Input | Power: 12 / 6 / 3 / 1.5 W
Voltage: 70 / 100 V
Impedance: 417 / 833 Ohms | | Connector | 2 x 5‑pole push‑in terminal block | | Operating Temperature | -13 to 131°F (-25 to 55°C) | | Storage Temperature | -40 to 158°F (-40 to 70°C) | | Relative Humidity | < 95% | | Dimensions | 9.4 x 9.3 x 5.2" (24.0 x 23.8 x 13.3 cm) | | Weight | 4.34 lb (1.97 kg) |
