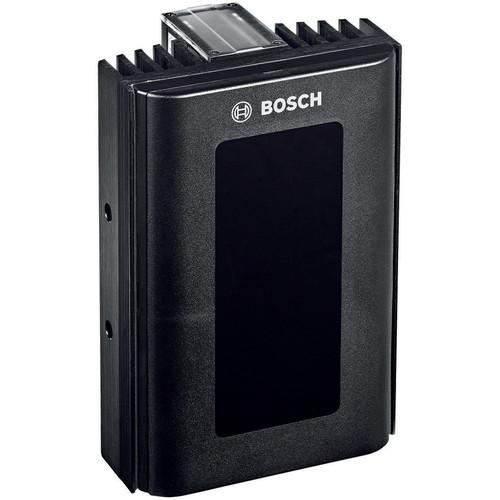

User Manual for Bosch 5000 Series Long IR Illuminator Click to enlarge the picture
Contents of the user manual for the Bosch 5000 Series Long IR Illuminator
- Product category: Illuminators Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Illuminators
|
User manual for the Bosch 5000 Series Long IR Illuminator contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|
Product description The 5000 Series Long IR Illuminator from Bosch provides covert lighting for indoor and outdoor surveillance applications. It improves illumination for IR-sensitive cameras. Interchangeable diffuser lenses allow you to select beam patterns that match your application to provide accurately illuminated scenes. The self-cleaning window reduces maintenance requirements. It is specifically designed for energy efficient operation and can be powered directly from any 12 to 32 VDC or 24 VAC supply.
The surface-mount high-power LEDs deliver maximum illumination with reduced power consumption. Advanced electronic control circuitry delivers improved thermal management and long life. A pressure equalization valve prevents thermal expansion and pressure cycling. - Integrated adjustable photocell
- Interchangeable beam pattern diffusers to match beam to camera
- Telemetry input and photocell output for external switching
- Self-cleaning lens coating technology
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch 5000 Series Long IR Illuminator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch 5000 Series Specs | Wavelength | 940 nm | | IR Control | Adjustable IR intensity (10% to 100%) | | Day/Night Switching | Photocell, sensitivity adjustable (20 lux to 70 lux) | | Beam Angle | 10°
Distance: 540' (165 m)
HFOV: 95' (29 m)
20°
Distance: 320' (98 m)
HFOV: 113' (34 m)
30°
Distance: 260' (79 m)
HFOV: 139' (42 m)
60°
Distance: 160' (49 m)
HFOV: 185' (56 m)
80°
Distance: 120' (37 m)
HFOV: 202' (61 m)
95°
Distance: 80' (24 m)
HFOV: 175' (53 m) | | Housing | Anodized aluminum extrusion, black | | Front Window | Polycarbonate high transmittance (vandal-resistant) with self-cleaning technology | | Mount | Black powder coated stainless steel U-bracket (adjustable with M6 socket-head wrench) | | Power Supply | 12 to 32 VDC or 24 VAC ±10% | | Power Consumption | 26 W | | Certifications & Approvals | CE-EMC: EN 61547 (Lighting-Immunity), EN 55015 (Lighting-Emission) EN 62493 (Lighting EMF), EN 50130-4 (Alarm EMC)
USA cULus: UL 2108 Low Voltage Lighting Systems | | Safety | CE-LVD: EN-60598-1 (Luminaires-General), EN-60598-2-1 (Luminaires)
LED: EN 62471 Risk group 2 (LED safety) | | Environmental | IEC / EN 60529 IP66, IEC / EN 62262 IK09, EN50130-5 Class IV (Alarm-environmental), EN 50581 RoHS, | | Operating Temperature Range | -58 to 122°F (-50 to 50°C) | | Protection | IP66 | | Cable | 9' (3 m) | | Dimensions | Unit: 4.33 x 6.34 x 2.9" (110 x 161 x 76 mm)
Bracket: 4.33 x 4.92 x 1.38" (110 x 125 x 35 mm) | | Weight | Unit: 3.1 lb (1.4 kg)
Bracket: 0.44 lb (0.2 kg) |
