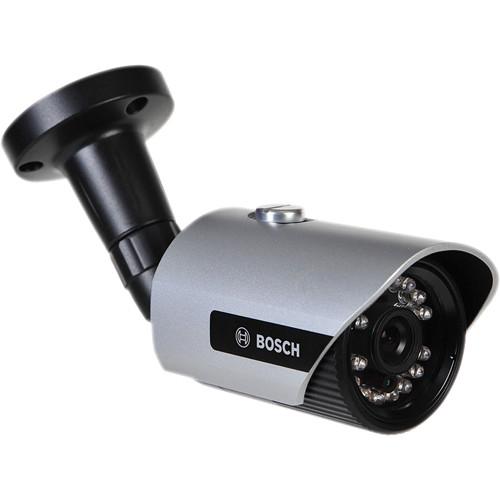

User Manual for Bosch AN 2000 Series VTI-2075-F321 720 TVL Outdoor Bullet Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Bosch AN 2000 Series VTI-2075-F321 720
- Product category: Wired Analog & HD Cameras Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Wired Analog & HD Cameras
|
User manual for the Bosch AN 2000 Series VTI-2075-F321 720 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|
Product description The AN 2000 Series VTI-2075-F321 720 TVL Outdoor Bullet Camera from Bosch features a 960H 1/3" CCD image sensor for 720p high-quality video resolution. The camera's 3.6mm fixed lens is surrounded by IR LEDs for up to 50' of night vision, enabling you to capture clear video in complete darkness. Additionally, digitally extended dynamic range and digital noise reduction image enhancements provide clear and detailed images with reduced blur. The camera is housed in an IP66- and IK08-rated metal enclosure, providing protection against water, dust, and impacts for use outdoors and in high-risk areas. - 960H 1/3" CCD sensor provides high-quality 720 TVL resolution video
- 3.6mm fixed lens and f/2.0 aperture with mechanical IR cut filter
- IR LEDs provide up to 50' of night vision for use in complete darkness
- Digitally extended dynamic range and digital noise reduction image enhancements
- IP66- and IK08-rated water-, dust-, and impact-resistant housing
- Includes cable-managed mounting bracket for easy installation
UPC: 800549704816 In the Box Bosch AN 2000 Series VTI-2075-F321 720 TVL Outdoor Bullet Camera with Night Vision Cable-Managed Mounting Bracket Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch AN 2000 Series VTI-2075-F321 720 TVL Outdoor Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch VTI-2075-F321 Specs | Image Sensor | 960H, 1/3" CCD, sensor resolution 720 TVL | | System | PAL or NTSC | | Total Pixels | PAL: 1020 x 596
NTSC: 1020 x 508 | | Effective Pixels | PAL: 976 x 582
NTSC: 976 x 494 | | Lens | 3.6mm fixed @ f/2.0 | | Day/Night Switching | True Day/Night mechanical filter | | Video Output | Composite: 1 V p-p, 75 Ohms | | Supply Voltage | 12 VDC | | Power Consumption | Maximum: 370 mA (12 VDC) | | Sync System | Internal sync | | S/N Ratio | AGC Off: 50 dB (minimum) | | Sensitivity | B&W (with IR): 0.0 lux | | Electronic Shutter | PAL: 1/50 to 1/10,000
NTSC: 1/60 to 1/10,000 | | IR Illumination | IR LEDs, 850 nm
Range: Up to 50' (15 m)
Angle: 44° / 44° (H/V) | | Mounting | Cable-managed mounting bracket (included) | | Housing | Casted / machined aluminum | | Water/Dust Protection | Yes, IP66 | | Impact Resistance | Yes, IK08 | | Operating Temperature | -22 to 122°F (-30 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Storage Humidity | 20 to 90% RH | | Certifications & Approvals | Europe: CE FCC: ANSI C 63.4:2003, FCC Part 15 Subpart B, Class A
UL: UL 60065, 7th Edition, 2007-12-11 CAN/CSA-C22.2 No. 60065-03, 1st Edition, 2006-04 + A1:2006
EU: EN 55022:2006/A1:2007, EN 50130-4:1995/A2:2003, EN 61000-3-3:2008
LVD: LVD 2006/95/EC, EN 60065:2002+A1+A2+A11+A12 | | Dimensions (Ø x L) | 2.32 x 3.34" (5.9 x 8.5 cm) | | Weight | 1.19 lb (0.53 kg) including bracket | | | | Package Weight | 1.53 lb | | Box Dimensions (LxWxH) | 10.75 x 5.0 x 3.65" |
