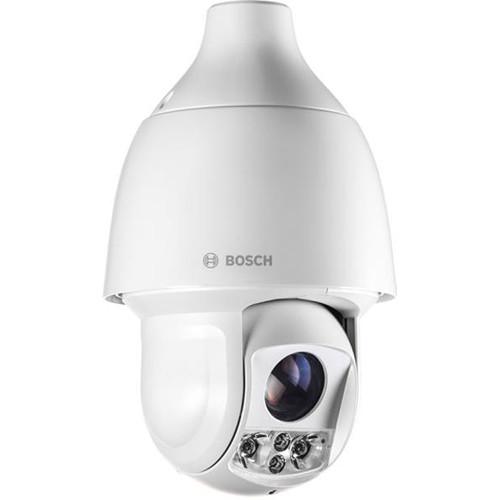

Bosch AUTODOME 5000i 2MP Outdoor PTZ

User Manual for Bosch AUTODOME 5000i 2MP Outdoor PTZ Network Dome Camera with Night Vision

• Product category: Wired IP Cameras Bosch
• Brand: Bosch
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Bosch Wired IP Cameras

Product description

Camera Highlights
• • Configuration of IR on a per-zone basis ensures that illumination intensity is provisioned in a specific scene, avoiding focus instability because of mixed lighting conditions
  • Automatic iris and focus with manual override lens
  • 60.9-2.4° field of view
  • Day/night functionality with mechanical switchable IR filter (auto/on/off)
  • White balance control feature includes standard auto, sodium lamp auto, basic auto, manual, hold, and dominant color auto
  • 94 dB dynamic range
  • Backlight compensation function (on/off)
  • Signal-to-noise ratio less than 55 dB (AGC off)
  • Intelligent dynamic noise reduction
  • Defog function automatically adjusts parameters for clear pictures in foggy or misty scenes (auto/off)
  • 16 independent sectors with 20 characters per title

Pre-Programmed User Modes
• • Three pre-tuned scene modes to match various lighting conditions
  • Standard mode for indoor fluorescent lighting
  • Sodium-lighting mode for scenarios where the video is captured under sunlight or sodium vapor lamps
  • Vibrant mode for enhanced contrast, sharpness, and saturation

Video Encoding and Streaming
• • Camera is designed on H.264 and H.265/HEVC encoding platform
  • Smart encoding capabilities and Intelligent Dynamic Noise Reduction technology and analytics reduce bandwidth
  • Supports H.265, H.264, and MJPEG video compression formats
  • 60 fps frame rate at all resolutions
  • Quad streaming allows the camera to deliver independent, configurable streams for live viewing, recording, or remote monitoring via constrained bandwidths

Audio Support
• • 1/1 channel audio in/out
  • Audio compressions include G.711 (8 kHz sampling rate), L16 (16 kHz sampling rate), and AAC (16 kHz sampling rate)

Recording and Storage Management
• • Recording management can be controlled by the Bosch Video Recording Manager application, or the camera can use local storage and iSCSI targets directly without any recording software
  • Supports memory cards (microSD/SDHC/SDXC) up to 2TB for recording or for Automatic Network Replenishment (ANR) technology to improve the overall recording reliability
  • Pre-alarm recording in RAM reduces bandwidth consumption on the network and extends the effective life of the memory card

Essential Video Analytics
• • Silent VCA / Profile1-16 configurations
  • Automatic self-calibration mode reduces installation time
  • Once calibrated, the analytics engine can automatically classify objects as upright person, car, bike, or truck
  • Advanced tasks like multiple line crossing, loitering, idle/removed object detection, crowd density estimation, occupancy and people counting are available for live alarming and forensic search
  • Object filters can be defined based on duration, size, aspect ratio (vertical/horizontal), speed, direction, color, and object classes (upright persons, bikes, cars, trucks)

Data Security
• • On initial setup, the camera is only accessible over secure channels and enforces a password
  • Web browser and viewing client access can be protected using HTTPS or other secure protocols that support TLS 1.2 protocol with updated cipher suites including AES encryption with 256-bit keys
  • No software can be installed in the camera, and only authenticated firmware can be uploaded
  • Three-level password protection with security recommendations allows users to customize device access
  • Network and device access can be protected using 802.1x network authentication with EAP/TLS protocol
  • Embedded Login Firewall, onboard Trusted Platform Module (TPM) and Public Key Infrastructure (PKI) support provide protection against malicious attacks

Advanced Certificate Handling
• • Self-signed certificates automatically created when required
  • Client and server certificates for authentication
  • Client certificates for proof of authenticity
  • Certificates with encrypted private keys

System Integration and ONVIF Conformance
• • Conforms to the Open Network Video Interface Forum (ONVIF) Profile S and Profile G specifications
  • Supports Media Service 2 for H.265 configuration

Privacy Masking
• • 24 individually configurable privacy masks with up to eight displayed in the same scene
  • Programmed with four corners each
  • Each mask changes size and shape smoothly and quickly, ensuring that the covered object cannot be seen
  • Privacy patterns include black, white, gray, and auto

PTZ Drive and Mechanism
• • Supports 256 pre-positions and two types of guard tours (pre-position and record/playback)
  • Provides support for two recorded tours, which have a total duration of 15 minutes of movements
  • Offers one pre-position tour consisting of up to 256 scenes consecutively and one customized up to 64 scenes
  • Pan and tilt preset repeatability are accurate to within ±0.1° to ensure that the correct scene is captured every time
  • Provides 360° continuous panning and -90 to 3° tilt angle
  • Delivers 0.1 to 120°/sec of manual pan/tilt speed in normal mode
  • Delivers 0.1 to 240°/sec manual pan speed and 0.1 to 120°/sec manual tilt speed in turbo mode
  • Offers pre-position pan speed of 240°/sec and tilt speed of 160°/sec

Alarm Responses
• • Supports advanced alarm control that uses rules-based logic to determine how to manage alarms
  • A rule can define which input(s) should activate which output(s) or inputs and outputs can be combined with pre-defined or user-specified commands to perform advanced camera functions

Ease of Installation
• • IP66-rated for ingress protection
  • Offers an operating temperature range down to -40°F
  • Comes fully assembled with a sunshield and ready for wall or pipe installation with the proper mounting hardware (sold separately)

Software Control
• • IP helper for unit discovery
  • Camera setup/control via web browser (such as Internet Explorer version 11.0 or later), Configuration Manager, Bosch VMS, or Video Client
  • Software update through firmware

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Bosch 5000i Specs

Recording Media	microSD (Up to 2000 GB)
Pan/Tilt	Programmed Pan: 360° at 240°/s Programmed Tilt: 3° (-90 to 3°) at 160°/s
Alarm I/O	2 / 1
I/O Connections	1 x RJ45
IR Illuminators	4 x 850 nm
IR Range	590' / 179.83 m
Supported Languages	Dutch English French German Italian Japanese Polish Portuguese Russian Simplified Chinese Spanish
Certifications	CSA, EAC, as per Manufacturer
Internal Storage	None
External Storage Options	None
Power Source	AC, PoE 802.3at (30 W)
Power Consumption	20 W 25 W with IR on
Material of Construction	Aluminum
Operating Temperature	-40 to 140°F / -40 to 60°C
Storage Temperature	-40 to 140°F / -40 to 60°C
Operating Humidity	0 to 90%
IP Rating	IP66
