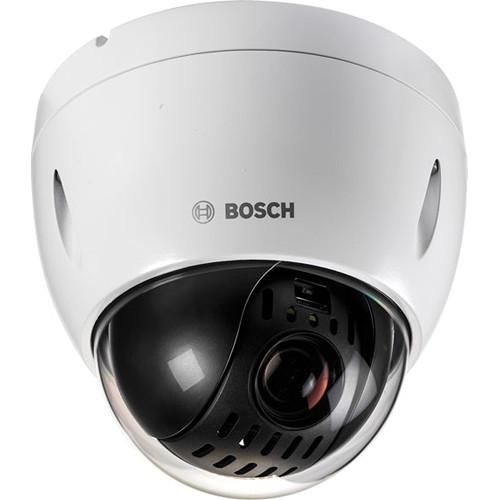

User Manual for Bosch AUTODOME IP 4000i 2MP Network PTZ Pendant Dome Camera with 5.3-64mm Lens

• Product category: Wired IP Cameras Bosch
• Brand: Bosch
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Bosch Wired IP Cameras

Product description

H.265 Video Coding
• The camera is designed on H.264 and H.265/HEVC encoding platform.

Intelligent Streaming
• Only relevant information in a scene, like motion, or objects found with analytics, need to be encoded. The camera is capable of quad streaming which allows the camera to deliver independent, configurable streams for live viewing, recording, or remote monitoring.

Recording and Storage Management
• Recording management can be controlled by the Bosch Video Recording Manager application, or the camera can use local storage and iSCSI targets directly without any recording software. A memory card (SD, SDHC, or SDXC) up to 2TB can be used for recording or for Automatic Network Replenishment (ANR) to improve overall recording reliability. Pre-alarm recording in RAM reduces bandwidth consumption on the network and extends the effective life of your memory card.

Video Analytics
• The Video Analytics application provides reliable video analytics for small and medium business, large retail stores, commercial buildings, and warehouses. Advanced tasks like multiple line crossing, loitering, idle/removed object detection, crowd density estimation, occupancy, and people counting are available for live alarms and forensic search. Object filters based on size, speed, direction, aspect ratio, and color can be defined. A simplified calibration mode reduces installation time significantly, because you only need to enter the installation height once for each camera, independent of pre-positions. After the camera is calibrated, the analytics engine can automatically classify objects as upright person, car, bike, or truck.

Data Security
• On initial setup, the camera is only accessible over secure channels and requires a password. Web browser and viewing client access can be protected using HTTPS or other secure protocols that support TLS 1.2 with updated cipher suites including AES encryption with 256-bit keys. No software can be installed in the camera, and only authenticated firmware can be uploaded. Three-level password protection with security recommendations allows users to customize device access. Network and device access can be protected using 802.1x network authentication with EAP/TLS protocol. It provides protection from malicious attacks by the Embedded Login Firewall, onboard Trusted Platform Module (TPM) and Public Key Infrastructure (PKI) support.

Privacy Masking
• The camera allows for a total of 24 individual privacy masks, with up to eight displayed in the same scene. These can be programmed with four corners each.

PTZ Drive and Mechanism
• The camera supports 256 pre-positions and two styles of guard tours: Pre-position and Record/Playback.

Alarm Responses
• The camera supports advanced alarm control that uses rules-based logic to determine how to manage alarms.

System Integration and ONVIF Conformance
• The camera conforms to the Open Network Video Interface Forum (ONVIF) Profile S and Profile G specifications. For H.265 configuration the camera also supports Media Service 2 which is part of the future ONVIF Profile T.

Additional Functions
• Sector/Titling: 16 independent sectors with 20 characters per title
  Privacy Masks: 24 individually configurable privacy masks
  Privacy Masks Pattern: Black, white, gray, auto
  Supported Languages: English, German, Spanish, French, Italian, Dutch, Polish, Portuguese, Russian, Japanese, Chinese (simplified)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Bosch 4000i Specs

Imager	1/2.8" progressive scan CMOS
Effective Picture Elements	1945 x 1097 (2.13 MP)
Lens Focal Length	5.3-64mm (f/1.6 to 2.8)
Optical Zoom	12x
Field of View	58.5 to 4.9°
Focus	Automatic with manual override
Iris	Automatic
Digital Zoom	16x
Sensitivity	3100K, reflectivity 89%, 1/30, f/1.6, 30 IRE Color: 0.05 lux Mono: 0.01 lux
WDR Mode	94 dB
Electronic Shutter Speed	1/15000 to 1/30 sec (12 steps)
Signal-to-Noise Ratio (SNR)	>55 dB (AGC off)
Noise Reduction	Intelligent Dynamic Noise Reduction
Backlight Compensation	On/Off
Defog	Automatically adjusts parameters for best picture in foggy or misty scenes (Auto/Off)
White Balance	Standard auto, sodium lamp auto, basic auto, manual, hold, dominant color auto
Day/Night	Mechanical switchable IR filter (auto/on/off) monochrome
Pan/Tilt Modes	Normal: 0.1-120°/s Turbo Pan: 0.1-160°/s Tilt: 0.1-120°/s
Pre-Position Speed	Pan: 160°/s Tilt: 120°/s
Pan Range	360° continuous
Tilt Angle	-90 to 0°
