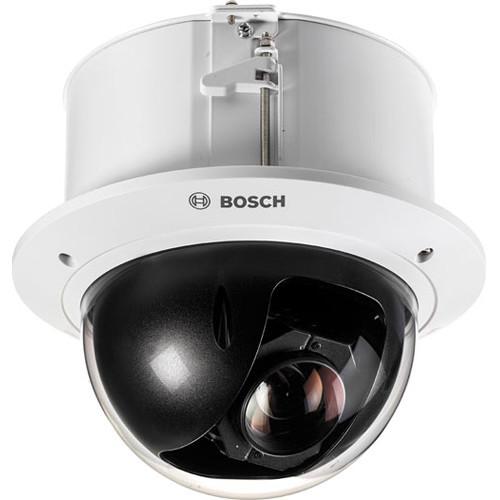

Bosch AUTODOME IP 5000i 2MP In-Ceiling

User Manual for Bosch AUTODOME IP 5000i 2MP In-Ceiling Dome Camera with 4.5-135mm Lens

• Product category: Wired IP Cameras Bosch
• Brand: Bosch
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Bosch Wired IP Cameras

Product description

H.265 Video Coding
• The camera is designed on H.264 and H.265/HEVC encoding platforms.

Intelligent Streaming
• Only relevant information in a scene, like motion, or objects found with the analytics, need to be encoded. The camera is capable of quad streaming which allows the camera to deliver independent, configurable streams for live viewing, recording, or remote monitoring over networks with constrained bandwidth.

Recording and Storage Management
• Recording management can be controlled by the Bosch Video Recording Manager application, or the camera can use local storage and iSCSI targets directly without any recording software. A memory card (SD, SDHC, or SDXC) up to 2TB can be used for recording or for Automatic Network Replenishment (ANR) to improve overall recording reliability. Pre-alarm recording in RAM reduces bandwidth consumption on the network and extends the effective life of the memory card.

Video Analytics
• Advanced tasks like multiple line crossing, loitering, idle/removed object detection, crowd density estimation, occupancy and people counting are available for live alarming and forensic search. Object filters based on size, speed, direction, aspect ratio, and color can be defined. A simplified calibration mode reduces installation time significantly, because you only need to enter the installation height once for each camera, independent of pre-positions. After the camera is calibrated, the analytics engine can automatically classify objects as upright person, car, bike, or truck.

Privacy Masking
• The camera allows for a total of 24 individual privacy masks, with up to eight displayed in the same scene. These can be programmed with four corners each.

PTZ Drive and Mechanism
• The camera supports 256 pre-positions and two styles of Guard Tours: Pre-position and Record/Playback. The pre-position tour has up to 256 pre-positions with a configurable dwell time between pre-positions and can be customized as to the order and the frequency that each is visited. The camera also provides support for two recorded tours, which have a total duration of 15 minutes of movement. These are recorded macros of your movements, including pan, tilt, and zoom activities, and can be played back in a continuous manner. Pan and tilt preset repeatability are accurate to within

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Bosch 5000i Specs

Imager	1/2.8" progressive scan CMOS
Effective Picture Elements	1945 x 1097 (2.13 MP)
Lens Focal Length	4.5-135mm (f/1.6 to 4.4)
Optical Zoom	30x
Field of View	2.4 to 60.9°
Focus	Automatic with manual override
Iris	Automatic
Digital Zoom	16x
Sensitivity	3100K, reflectivity 89%, 1/30, f/1.6, 30 IRE Color: 0.05 lux Mono: 0.01 lux
Wide Dynamic Range	94 dB
Electronic Shutter Speed	1/15,000 to 1/3 seconds (12 steps)
Signal-to-Noise Ratio (SNR)	>55 dB (AGC off)
Noise Reduction	Intelligent Dynamic Noise Reduction
Backlight Compensation	On/Off
Defog	Automatically adjusts parameters for best picture in foggy or misty scenes (Auto/Off)
White Balance	Standard auto, sodium lamp auto, basic auto, manual, hold, dominant color auto
Day/Night	Mechanical switchable IR filter (auto/on/off) monochrome
Pan/Tilt Modes	Normal: 0.1 to 120°/s Turbo Pan: 0.1 to 160°/s Tilt: 0.1 to 120°/s
Pre-Position Speed	Pan: 300°/s Tilt: 200°/s
Pan Range	360° continuous
Tilt Angle	-90 to 0°
Accuracy	Pre-Position: Rating 50% users recommend this product to others. And what about you? This product has already been rated by 50 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
