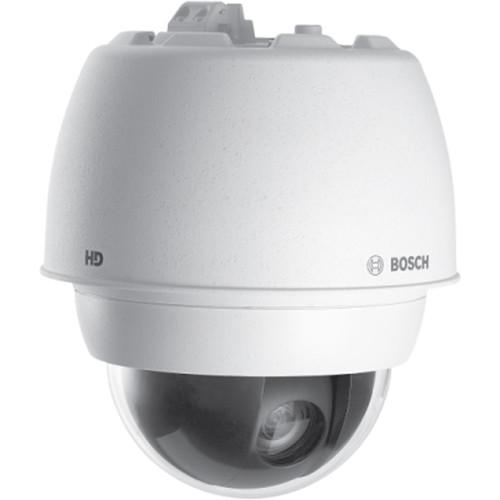

Product description The white AUTODOME Starlight 7000 HD 1080p Outdoor Network PTZ Dome Camera from Bosch is a high-speed PTZ camera that delivers 1920 x 1080 resolution video with up to 30x optical zoom. It comes equipped with an indoor/outdoor pendant housing. It features complete network-based control of all dome functionality, including pan/tilt/zoom operation, presets, tours, and alarms, as well as web-based configuration of all dome settings. It also provides direct network video streaming using H.264 compression and bandwidth throttling to efficiently manage bandwidth and storage requirements. UPC: 800549819077 In the Box Bosch AUTODOME Starlight 7000 HD 1080p Outdoor Network PTZ Dome Camera with Pendant Mount CLR HI-RES BUBBLE f/ A PENDANT HOUSING Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch AUTODOME Starlight 7000 HD 1080p Outdoor Network PTZ Dome Camera with Pendant Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch 7000 HD Specs | Imager | 1/2.8" type Exmor R CMOS sensor | | Effective Pixels | 1945 x 1097 (2.13 MP) | | Resolution (H x V) | 1080p HD: 1920 x 1080 (16:9)
720p HD: 1280 x 720
432p SD: 768 x 432
288p SD: 512 x 288
144p SD: 256 x 144 | | Lens | 30x zoom
4.3 to 129mm
f/1.6 to f/4.7 | | Field of View | 63.7 to 2.3° | | Focus | Automatic with manual override | | Iris | Automatic with manual override | | Digital Zoom | 12x | | Sensitivity | Color: 0.0077 lux
Mono: 0.0008 lux | | Gain Control | AGC, Fixed | | Aperture Correction | Horizontal and vertical | | Electronic Shutter Speed | 1/1 sec to 1/10000 sec (22 steps) | | Signal-to-Noise Ratio | >55 dB | | Backlight Compensation | On, Off | | White Balance | 2000 to 10,000K
ATW, AWB Hold, Extended ATW, Manual, Sodium Lamp Auto, Sodium Lamp | | Day/Night | Monochrome, Color, Auto | | High Dynamic Range | 120 dB WDR | | Pan Range | 360° continuous | | Tilt Angle | 18° above horizon | | Pre-Position Speed | Pan: 400°/s
Tilt: 300°/s | | Pan/Tilt Modes | Turbo Mode (Manual Control):
Pan: 0.1 - 400°/s
Tilt: 0.1 - 300°/s
Normal Mode: 0.1 - 120°/s
Preset Accuracy: ± 0.1° typical | | Memory Card Slot | SD/SDHC/SDXC memory card (maximum 2 TB - SDXC, sold separately) | | Recording | Continuous recording of video and audio, alarm/events/schedule recording | | Video Compression | H.264 (ISO/IEC 14496‑10), MJPEG, JPEG | | Streaming | Four (4) streams with individually configurable frame rate and resolution:
2 independently configurable H.264 recording streams
2 non-recording streams (profiles) | | Non-Recording Profiles | Two (2) streams, I-frame only options are:
HD Image Optimized
HD Balanced
HD Bit Rate Optimized
SD Image Optimized
SD Balanced
SD Bit Rate Optimized
DSL Optimized
3G Optimized | | Camera Power | RJ45 10/100Base-TX Ethernet (High Power-over-Ethernet) or PoE+ (IEEE 802.3at, class 4 standard) 21-30 VAC, 50/60 Hz | | Heater | Power: RJ45 10/100Base-TX Ethernet (High Power-over-Ethernet) 21-30 VAC, 50/60 Hz | | Video and Control | RJ45 10/100Base-TX Ethernet | | Alarm Inputs | 2 supervised, 5 non-supervised
Programmable for normally open or normally closed | | Alarm Outputs | 1 dry contact relay, 3 open collector / transistor outputs 32 VDC at 150 mA maximum | | Audio | 1 x mono line in, 1 x mono line out | | Signal | Line In: 12 kOhms typical, 1 Vrms maximum
Line Out: 1 Vrms at 1.5 kOhms, typical | | Sectors/Titling | 16 independent sectors with 20 characters per title | | Privacy Masking | 24 individually configurable privacy masks | | Virtual | 24 individually configurable masks to hide parts of the scene (background motion such as moving trees, pulsating lights, busy roads, etc.) which should not be considered for flow analysis to trigger Intelligent Tracking. | | Prepositions | 256, each with 20 characters per title | | Guard Tours | Two types of tours:
Recorded tours - two (2), maximum total duration 30 minutes (depending on amount of commands sent during recording)
Preset tour - one (1), consisting of up to 256 scenes consecutively, and (1) customized up to 64 scenes | | Supported Languages | English, Czech, Dutch, French, German, Italian, Polish, Portuguese, Spanish, Japanese, Chinese | | Input Voltage | 21 to 30 VAC, 50/60 Hz; (class II) High PoE (with Bosch Midspan (NPD-6001A); required to power the heater) PoE+ (IEEE 802.3at, class 4 standard when used indoors, not powering the heater) | | Power Consumption | 60 W / 69 VA (heaters on) or 24 W / 44 VA (heaters off / without heater connected in power supply box for indoor applications) | | Protection | On Alarm Inputs: Peak current 17 A, peak power 300 W (8/20 μs)
On Alarm Outputs: Peak current 2 A, peak power 300 W (8/20 μs)
On Relay Output: Peak current 7.3 A, peak power 600 W (10/1000 μs)
On Power Input (Dome): Peak current 7.3 A, peak power 600 W (10/1000 μs)
On Power Output (Arm Power Supply): Peak current 21.4 A, peak power 1500 W (10/1000 μs)
10/100 Ethernet Data Lines: Peak current 14 A, peak power 200 W (8/20 μs) | | Software Control | Camera Setup/Control: Via web browser (such as Internet Explorer version 7.0 or later), Bosch Configuration Manager, Bosch Video Management System (BVMS), Bosch Recording Station (BRS), or Bosch Video Client (BVC)
Software Update: Network firmware upload | | Communication Protocols | Standard Bosch IP protocol, including ONVIF and SNMP v1 | | Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, MIBII), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP, digest authentication | | Ethernet | 10Base-T/100base-TX, auto-sensing, half/full duplex | | Encryption | TLS 1.0, SSL, DES, 3DES, AES | | Ethernet Connector | RJ45 | | Connectivity | ONVIF Profile S, Auto-MDIX | | GOP Structure | IP, IBP, IBBP | | Data Rate | 9.6 kbps to 6 Mbps | | Overall IP Delay | 240 ms (typical) | | Audio Compression | G.711, 8 kHz sampling rate
L16, 16 kHz sampling rate
AAC, 16 kHz sampling rate | | Signal-to-Noise Ratio | >50 dB | | Audio Streaming | Bi-directional (full-duplex) | | Ingress Protection Rating | IP66, NEMA 4X | | Operating Temperature | With Heater Wired:
-30 to 165°F (-34 to 74°C) (in accordance with NEMA TS 2-2003 (R2008), section 2.1.5.1) -40 to 131°F (-40 to 55°C continuous operation)
Without Heater Wired:
14 to 131°F (-10 to 55°C) (continuous operation) | | Storage Temperature | -40 to 140°F (-40 to 60°C) | | Operating Humidity | 0% to 100% RH, condensing | | Electromagnetic Compatibility | Complies with FCC Part 15, ICES-003, and CE regulations, including latest versions of EN 50130-4, EN 55022:2006 inc. AL:2007, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, and EN 50121-4 (Railway applications) | | Product Safety | Complies with UL, CE, CSA, EN, and IEC Standards 60950-1 & 22 | | ONVIF Conformance | EN 50132-5-2 | | HD | SMPTE 274M-2008 | | Certification | UL | | Housing Material | Cast aluminum | | Bubble | High-resolution acrylic | | Bubble Size | 6.03" (15.3 cm) diameter | | Dimensions | 21.6 x 14.4 x 5.3" (54.8 x 36.5 x 13.5 cm) | | Weight | 6.7 lb (3 kg) | | | | Package Weight | 10.3 lb | | Box Dimensions (LxWxH) | 15.8 x 12.9 x 11.9" |
