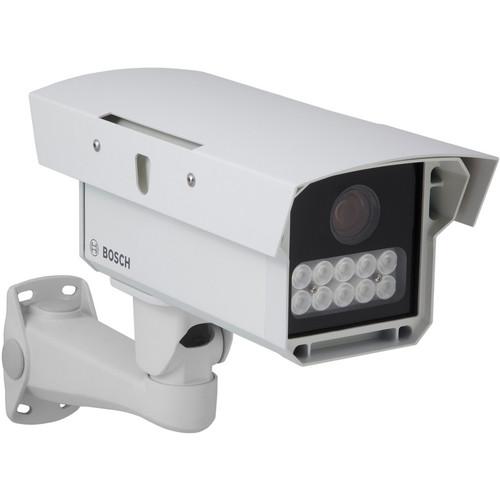

Product description The DINION capture 5000 Analog License Plate Camera (NTSC) from Bosch captures detailed and reliable images of vehicle license plates, and is ideal for use in parking lots, public places, and freeways. The camera's DINION 2X technology, along with the 20-bit digital signal processing, helps this IP camera achieve great clarity levels by capturing the tiniest details in the recorded images. With its ability to record images of vehicles moving as fast as 140 mph (225 kmph), this camera proves highly efficient for monitoring and enforcing speed limits on freeways.With a 1/3” wide dynamic range CCD sensor at its heart, this license plate camera records footage at a horizontal resolution of 540 TVL. The 5 to 50mm varifocal lens of this IP camera is pre-calibrated to provide a surveillance range of 26 to 45' (7.9 to 13.7 m) and delivers optimum images at 33.5'.In bright lighting situations, this IP camera makes use of Advanced Ambient Compensation, which automatically adjusts the exposure and prevents photos from being washed out. This feature is especially useful in situations when the source of light is behind the camera or when the headlight glare of an oncoming car is affecting the image quality. At night, the Night Capture Imaging system illuminates the license plate with a burst of infrared light from the pulsed LED array (850 nm). As the visible light is filtered, a clear IR-illuminated image of the license plate is obtained. Automatic Mode Switching in this Bosch camera features 6 programmable modes that help the camera easily adapt to the changing ambient light in the surveillance area, thus guaranteeing reliable 24-7 monitoring.The weather-sealed IP67-rated aluminum housing of this Bosch surveillance camera keeps dust and water at bay, allowing you to mount the camera outdoors. - Specialized for capturing license plate images of automobiles at speeds of up to 140 mph (225 kmph), making it ideal for monitoring and enforcing speed limits on freeways
- 5 to 50mm varifocal lens has been calibrated to deliver optimal image quality at 33.5' (10.2 m), and provides a range of 26 to 45' (7.9 to 13.7 m)
- 1/3" wide dynamic range CCD sensor with progressive scan technology helps deliver sharp and lucid images
- DINION 2X technology and 20-bit digital signal processing for exposing the tiniest details of images captured in varying lighting conditions
- Adjustable imaging modes allow for configuration of the camera according to the regional specifications for license plates
- Advanced Ambient Compensation prevents washed out images by automatically correcting overexposure
- Automatic Mode Switching, with 6 preset programmable modes, allows for a quick change in the recording mode as per the ambient light
- Night Capture Imaging system coupled with the pulsed LED array (850 nm) helps record clear pictures of license plates even at night
- Privacy masking allows you to mask up to 4 zones in the recording frame for shielding sensitive areas in the camera's surveillance range
- Video motion detection is programmable to be active in any single part of the recording frame - perfect for high-risk areas
- Weather-sealed IP-67 rated aluminum housing shields the camera from dust, rain, and corrosion, allowing for outdoor installation
UPC: 800549636179 In the Box Bosch DINION capture 5000 Analog License Plate Camera (NTSC) 0.11" (3 mm) Hex Key 0.19" (5 mm) Hex Key Mounting Template CD, Containing Product Documentation and Support Files 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch DINION capture 5000 Analog License Plate Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch VER-L2R3-2 Specs | | | Image Sensor | 1/3" CCD, monochrome | | Lens | 5 to 50 mm varifocal, calibrated to optimal capture distance | | Active Pixels | 768 x 494 (NTSC) | | Operational Range | 26 to 45' (7.9 to 13.7 m) | | IR Illumination | Pulsed LED array, 850 nm | | Nominal Plate Width | North America: 110 pixels
Europe: 130 pixels With 4CIF encoding at optimal capture distance | | Usable Plate Width | North America: 80 to 140 pixels
Europe: 100 to 170 pixels With 4CIF encoding over capture range | | Maximum Capture Speed | 140 mph (225 kmph) The camera mounting angle should be 30° | | Mode Switch | Automatic; Adjustable switch point depending on ambient light levels, mode selectable | | Horizontal Resolution | 540 TVL | | Video Output | Composite video 1 Vpp, 75 ohm | | Synchronization | Internal only | | Auto Black | Automatic continuous, Off | | Dynamic Range | 120 dB (20-bit image processing) | | Noise Reduction | Auto, On/off selectable | | Sharpness | Sharpness enhancement level selectable | | Automatic Gain Control | On / Off (0 to 30 dB) selectable | | Cable Compensation | Up to 3000' (1000 m) coaxial without external amplifiers (automatic set-up in combination with Bilinx coaxial communication) | | Camera ID | 17 character editable string, position selectable | | Test Pattern Generator | Color bars 100%, Grayscale 11-step, Sawtooth 2H, Checker board, Cross hatch, UV plane | | Modes | 6 preset programmable modes | | Remote Control | Bilinx coaxial bi-directional communication | | Video Motion Detection | 1 fully programmable area | | Privacy Masking | 4 fully programmable independent areas | | Controls | OSD operation (multilingual) | | | | Input Voltage | 11 to 30 VDC or 24 VAC ± 10% | | Power Consumption | All models 22 W (maximum)12 VDC: 20 W, typical at -40°C (-40°F)
13 W, typical at 20°C (68°F)24 VAC: 18 W, typical at –40°C (–40°F)
11 W, typical at 20°C (68°F) | | | | Power | Two-wire flying leads | | Video and Control | BNC | | | | Electromagnetic Compatibility | Emission: EN 55022 Class A
FCC Part 15, Class AImmunity: EN 50130-4 | | Safety | EN 60065
UL 60065
CAN/CSA E60065 | | Vibration | EN 60068-2-6, EN 60068-2-64 | | Shock | EN 60068-2-27 | | | | Rating | IP67 weatherproof, Type 4X (NEMA 4X) | | Cold Start | –40°F (–40°C), typically requires a 15 minute warm up prior to operation | | Humidity | 0 to 100% relative, condensing | | Wind Velocity Resistance | 90 mph (144 kmph) | | Operating Temperature | 11 to 30 VDC or 24 VAC: –40 to 122°F (–40 to 50°C) | | Storage Temperature | –40 to 158°F (–40 to 70°C) | | | | Construction | Housing - Weather-sealed aluminum casting and extrusion
Window - Borosilicate | | Dimensions (HxWxL) | 13.3 x 6.1 x 5.5" (340 x 154 x 139 mm), housing with sunshield | | Weight | 9.7 lb (4.4 kg) | | | | Package Weight | 15.4 lb | | Box Dimensions (LxWxH) | 19.4 x 17.7 x 15.9" |
