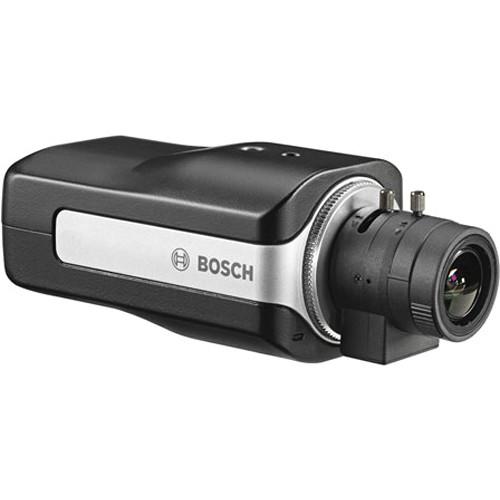

User Manual for Bosch Dinion IP 4000 HD 720p Box Camera Click to enlarge the picture
Contents of the user manual for the Bosch Dinion IP 4000 HD 720p
- Product category: Wired IP Cameras Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Wired IP Cameras
|
User manual for the Bosch Dinion IP 4000 HD 720p contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|
Product description The Dinion IP 4000 HD 720p Box Camera from Bosch has a 1/2.7" progressive scan CMOS sensor to capture 1280 x 720 resolution video at up to 30 fps. A mechanical IR cut filter allows this camera to produce clearer images at night. This camera features two-way audio with a built-in microphone to listen to its surroundings. H.264 and MJPEG compression codecs ensure high-quality recording and playback, while using minimal network bandwidth. PoE technology eliminates the need for additional cable runs by incorporating the power and connection to the NVR into one Ethernet cable. - 1/2.7" progressive scan CMOS sensor captures 1280 x 720 resolution video at up to 30 fps
- Mechanical IR cut filter for enhanced night vision
- RJ45 Ethernet with PoE for easy setup and installation
UPC: 800549736824 In the Box Bosch Dinion IP 4000 HD 720p Box Camera (No Lens) Limited 3-Year Warranty Brochure PDF 609.2kbdfccxyfwvqrvcwue Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch Dinion IP 4000 HD 720p Box Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch NBN-40012-C Specs | | | Image Sensor | 1/2.7" progressive scan CMOS | | Total Pixels | 1952 x 1092 | | Resolution | 1280 x 720, 1280 x 960, 400 x 720, 704 x 480, 854 x 480, 768 x 432, 512 x 288, 432 x 240, 256 x 144 at up to 30 fps | | Sensitivity | At 3200K, Reflectivity 89%, f/1.4, 30IRE
Color: 0.25 lux
Mono: 0.05 lux | | Dynamic Range | 76 dB Wide Dynamic Range (WDR) | | Day/Night | Mechanical IR cut filter, Auto, Color, Monochrome | | Shutter Speed | Automatic Electronic Shutter (AES)
Fixed shutter (1/25 [1/30] to 1/15,000) selectable
Default shutter | | Video Compression | H.264 and MJPEG | | Encoding | 1 to 30 fps | | Streaming | Multiple configurable streams in H.264 and MJPEG, configurable frame rate and bandwidth
Regions of Interest (ROI) | | Overall IP Delay | Minimum: 120 ms
Maximum: 340 ms | | GOP Structure | IP, IBP, IBBP | | Adjustable Parameters | Contrast, Saturation, Brightness | | White Balance | 3 automatic modes, manual mode, and measure | | Backlight Compensation | On/off | | Noise Reduction | Intelligent Dynamic Noise Reduction (iDNR) with separate temporal and spatial adjustments | | Contrast Enhancement | On/off | | Sharpness | Sharpness enhancement level selectable | | Privacy Masking | 4 fully programmable independent areas | | Video Analytics | MOTION+ | | Other Functions | Image mirror, image flip, pixel counter, video watermarking, display stamping, user modes | | Audio Streaming | Full duplex / half duplex | | Signal-to-Noise Ratio | > 50 dB | | Audio Compression Format | AAC-LC, G.711, L16 (live and recording) | | | | Lens | N/A | | Field of View | N/A | | Lens Mount | CS-mount (C-mount with adapter ring) | | Lens Connector | Standard 4-pin DC-iris connector | | Focus Control | Manual adjustment | | Iris Control | Automatic iris control | | | | Analog Video Output | CVBS, 1 V p-p, 2.5 mm jack, 75 Ohms; Selectable standard | | Audio | Built-in microphone, 1 x mono line in, 1 x mono line out | | Connectors | 3.5 mm mono jack | | Audio Signal | Signal line in: 0.707 Vrms, 20 kOhms typical
Signal line out: 0.707 Vrms, 10 kOhms typical | | Alarm Input | 1 input | | Activation | Voltage: Low active | | Alarm Output | 1 output | | Voltage | 24 VAC or 30 VDC maximum
Load current 1 A maximum | | | | Local Storage | 10 sec pre-alarm recording | | Memory Card Slot | Supports up to 32 GB SDHC or up to 2 TB SDXC card (SD card of Class 6 or higher is recommended for HD recording) (available separately) | | Recording | Continuous recording, ring recording, alarm/events/schedule recording | | | | Unit Configuration | Via web browser or Configuration Manager | | Firmware Updates | Remotely programmable | | Viewer | Bosch Video Client | | | | Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, MIBII), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP, digest authentication | | Encryption | TLS 1.0, SSL, DES, 3DES | | Ethernet | 10/100Base-T, auto-sensing, half/full duplex | | Ethernet Connector | RJ45 | | Connectivity | ONVIF Profile S, Auto-MDIX | | | | Operating Temperature | -22 to 122°F (-30 to 50°C) | | Storage Temperature | -40 to 158°F (-40 to 70°C) | | Relative Humidity, Non-Condensing | 0 to 90% | | | | Power Supply | 12 VDC
PoE 48 VDC nominal | | Power Consumption | 3.2 W | | Current Consumption | 12 VDC: 267 mA
PoE 48 VDC: 67 mA | | PoE | IEEE 802.3af (802.3at Type 1), Power Level: Class 1 | | | | ONVIF Conformance | EN 50132-5-2; IEC 62676-2-3 | | | | Tripod Mount | Bottom and top 1/4"-20 UNC | | Dimensions | 3.1 x 2.6 x 5.9" (55 x 64 x 149 mm) with lens
2.2 x 2.5 x 4.5" (55 x 64 x 113 mm) without lens | | Weight | 1.3 lb (0.59 kg) with lens
1.2 lb (0.55 kg) without lens | | | | Box Dimensions (LxWxH) | 7.87 x 3.9 x 3.9" |
