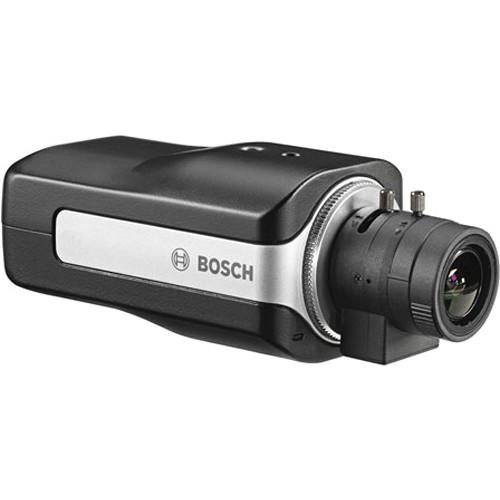

Product description The DINION IP 5000 HD 2MP Box Camera from Bosch features a 2MP 1/2.7" progressive-scan CMOS sensor for capturing high-quality 1080p video and images. PoE technology eliminates the need for separate Ethernet and power lines, offering a clean installation with minimum wiring.
Its intelligent Dynamic Noise Reduction feature reduces bandwidth and storage requirements. The camera's multi-streaming feature delivers various H.264 streams together with an M-JPEG stream. These streams facilitate bandwidth-efficient viewing and recording as well as integration with third-party video management systems. The camera has a built-in microphone to allow operators to listen in on the monitored area.
The camera has a mechanical IR cut filter for vivid daytime color and excellent nighttime imaging while maintaining sharp focus under all lighting conditions. Its SD card slot supports up to 2TB of storage capacity (available separately). - 2MP 1/2.7" CMOS sensor for clear images up to 1080p even under challenging lighting conditions
- Content-Based Imaging Technology (C-BIT) improves image quality in virtually all lighting conditions and to identify areas for enhanced processing
- Automatic Exposure (iAE) technology allows you to view moving objects in bright and dark areas of a scene
- Mechanical IR cut filter allows for vivid images in light as well as complete darkness
- Multi-streaming delivers various H.264 streams together with an M-JPEG stream
- A surge-protected analog video output ensures that high resolution IP video streaming and an analog video output are available simultaneously
- Regions of Interest (ROI) can be user defined
- Audio detection can be used to generate an alarm
- Motion and tamper detection
- Internal microSD card slot supports up to 2TB of storage capacity
- SD card slot for local storage (available separately)
- Supports time-based or alarm-based JPEG posting to four different accounts
- Bosch Video Security app for remote monitoring
- Six configurable user modes
UPC: 800549736831 In the Box Bosch DINION IP 5000 HD 2MP Box Camera Limited 3-Year Warranty Brochure PDF 609.8kbdfccxyfwvqrvcwue Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch DINION IP 5000 HD 2MP Box Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch NBN-50022-V3 Specs | | | Type | 2 MP 1/2.7" progressive-scan CMOS | | Total Pixels | 1952 x 1092 | | | | Video Performance | Sensitivity: 3200 K, reflectivity 89%, f/1.4, 30 IRE
Color: 0.25 lux
Mono: 0.05 lux
Dynamic Range: 76 dB WDR | | Shutter | Automatic Electronic Shutter (1/25(30) to 1/150,000)
Fixed shutter (1/25(30) to 1/15,000)
Selectable
Default shutter | | White Balance | 3 automatic modes, manual mode and measure | | Backlight Compensation | On / Off | | Noise Reduction | Intelligent Dynamic Noise Reduction (iDNR) with separate temporal and spatial adjustments | | Contrast Enhancement | On / Off | | Sharpness | Sharpness enhancement level selectable | | Privacy Masking | Four independent areas, fully programmable | | Video Motion Analysis | Motion+ | | Day/Night | Color, monochrome, auto | | Adjustable | Picture Settings: Contrast, saturation, brightness | | | | Video Compression | H.264, M-JPEG | | Streaming | Multiple configurable streams in H.264 and M-JPEG, configurable frame rate and bandwidth
Regions of Interest (ROI) | | Overall IP Delay | Minimum 120 ms, maximum 340 ms | | GOP Structure | IP, IBP, IBBP | | Encoding | Interval: 1 to 30 (25) ips | | Resolutions | 1080p HD 1920 X 1080
720p HD 1280 x 720
Upright 9:16 (cropped) 400 x 720
D1 4:3 (cropped) 704 x 480
480p SD Encoding: 704 x 480; Displayed: 854 x 480
432p SD 768 x 432
288p SD 512 x 288
240p SD Encoding: 352 x 240; Displayed: 432 x 240
144p SD 256 x 144 | | | | Streaming | Full duplex, half duplex | | Signal-to-Noise Ratio | > 50 dB | | Compression | AAC, G.711, L16 (live and recording) | | | | Analog Video Output | CVBS, 1 Vpp, 2.5 mm jack, 75 Ohms; selectable standard | | Audio | Built-in microphone, 1 x mono line input, 1 x mono line out | | Signal | Connector: 1/8" (3.5 mm) mono jack
Signal Line Input: 20 kOhms typical, 0.707 Vrms maximum
Signal Line Output: 0.707 VRMS at 10 kOhms typical | | Alarm | 1 x input
Activation Voltage: 0 to 3.3 VDC, low active
1 x output Activation Voltage: 24 VAC or 30 VDC maximum
Load Current: 1 A maximum | | | | Power Supply | 12 VDC
Power-over-Ethernet 48 VDC nominal | | Current Consumption | 300 mA (12 VDC)
75 mA (PoE 48 VDC) | | Power Consumption | 3.6 W | | PoE | IEEE 802.3af (802.3at Type 1) Power level: Class 1 | | | | Lens Mount | CS mount (C-mount with adapter ring) | | Lens Connector | Standard 4-pin DC-iris connector | | Focus Control | Manual adjustment | | Iris Control | Automatic iris control | | Lens Type | Varifocal 3.3 to 12 mm, DC Iris F1.4 to 360, IR corrected | | Field of View | Wide 3.3mm: 110 x 58° (H x V)
Tele 12mm: 34 x 18° (H x V) | | | | Memory Card Slot | Supports up to 32 GB SDHC or up to 2 TB SDXC card (available separately) | | RAM | Internal: 10 seconds pre-alarm recording | | Recording | Continuous recording, ring recording, alarm/events/schedule recording | | | | Unit Configuration | Via web browser or configuration manager | | Firmware Updates | Remotely programmable | | Software | Viewer: Web browser, Bosch Video Client, or third-party software | | | | Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, NTP (SNTP), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP, digest authentication | | Encryption | TLS 1.0, SSL, DES, 3DES, AES (optional) | | Ethernet | 10/100Base-T, auto-sensing, half/full duplex | | Ethernet Connector | RJ45 | | Connectivity | ONVIF Profile S, Auto-MDIX | | | | Temperature | Operating: -22 to 122°F (-30 to 50°C)
Storage: -40 to 158°F (-40 to 70°C) | | Humidity (Relative) | 0 to 90% | | | | Tripod Mount | Bottom and top 1/4"-20 UNC | | Dimensions (H x W x L) | Without Lens: 2.17 x 2.52 x 4.45" (55 x 64 x 113 mm)
With Lens: 2.17 x 2.52 x 5.87" (55 x 64 x 149 mm) | | Weight | Without Lens: 1.2 lb (550 g)
With Lens: 1.3 lb (590 g) | | | | Package Weight | 1.515 lb | | Box Dimensions (LxWxH) | 6.9 x 4.05 x 3.55" |
