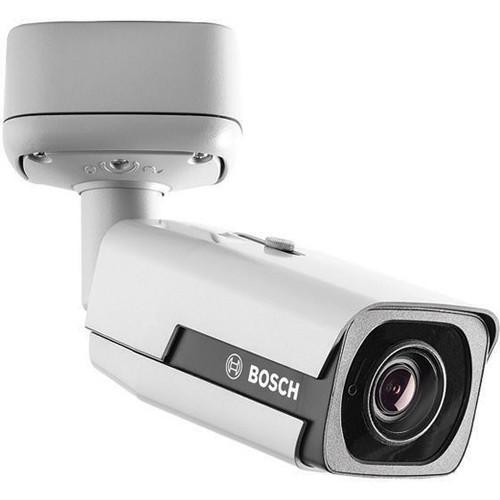

User Manual for Bosch DINION IP bullet 5000 1080p IR Outdoor Camera with Surface Mount Box Click to enlarge the picture
Contents of the user manual for the Bosch DINION IP bullet 5000 1080p
- Product category: Wired IP Cameras Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Wired IP Cameras
|
User manual for the Bosch DINION IP bullet 5000 1080p contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|
Product description The DINION IP bullet 5000 1080p IR Outdoor Camera from Bosch is a professional surveillance camera that provides HD images for demanding security and surveillance requirements. This robust bullet camera is a true day/night camera, featuring a mechanical IR filter for bright color images during the day and clear black and white images in night-time conditions for 24/7 surveillance. The built-in infrared LEDs provide night vision with up to 98ft viewing distance in complete darkness. The robust aluminum housing provides high installation flexibility and the camera can be installed outdoors thanks to an IP66 rating for resistance to ingress of dust and water. - Outdoor Bullet Camera with Automatic Varifocal Lens
- The camera resists both water and dust ingress in tough environments and is rated to IP66 standards. The 2.7 to 12mm automatic varifocal lens allows you to choose the coverage area remotely. AVF (Automatic Varifocal) feature means that the zoom can be changed without opening the camera. The automatic zoom/focus lens wizard allows an installer to zoom and focus the camera for both day and night operation. The wizard is activated from a PC or from the on-board camera push button. The automatic motorized zoom/focus adjustment with 1:1 pixel mapping ensures the camera is accurately focused.
- Intelligent Dynamic Noise Reduction
- The camera uses Intelligent Dynamic Noise Reduction, which actively analyzes the contents of a scene and reduces noise artifacts accordingly. The low-noise image and H.264 compression technology provide clear images, while reducing bandwidth and storage requirements. This results in reduced-bandwidth streams. The camera provides the most usable image possible by optimizing the detail-to-bandwidth ratio.
- Area-Based Encoding
- Compression parameters for up to eight user-definable regions can be set. This allows uninteresting regions to be highly compressed, leaving more bandwidth for important parts of the scene.
- Multiple Streams
- The multi-streaming feature delivers various H.264 streams together with an MJPEG stream. These streams facilitate bandwidth-efficient viewing and recording as well as integration with third-party video management systems. Depending on the resolution and frame rate selected for the first stream, the second stream provides a copy of the first stream or a lower resolution stream. The third stream uses the I-Frames of the first stream for recording; the fourth stream shows a JPEG image at a maximum of 10 Mbps.
- Regions of interest and E-PTZ
- Regions of Interest (ROI) can be user-defined. The remote E-PTZ (Electronic Pan, Tilt, and Zoom) controls allow you to select specific areas of the parent image. These regions produce separate streams for remote viewing and recording. These streams, together with the main stream, allow the operator to separately monitor the most interesting part of a scene, while still retaining situational awareness.
- Two-Way Audio and Audio Alarm Support
- External line audio input and output support allows the operator to communicate with visitors or intruders via a separately sold speaker and mic. Audio detection can be used to generate an alarm if needed.
- Tamper and Motion Detection
- A wide range of configuration options is available for alarms signaling camera tampering. A built-in algorithm for detecting movement in the video can also be used for alarm signaling.
- Storage Management
- Recording management can be controlled using the Bosch Video Recording Manager (VRM) or the camera can use iSCSI targets directly without using any recording software.
- Edge Recording
- The microSD card slot supports up to 2TB microSDXC cards (32GB for miscroSDHC). A microSD card can be used for local alarm recording. Pre-alarm recording in RAM reduces recording bandwidth on the network, or - if microSD card recording is used - extends the effective life of the storage medium.
- Cloud-Based Services
- The camera supports time-based or alarm-based JPEG posting to four different accounts. These accounts can address FTP servers or cloud-based storage facilities (for example, Dropbox). Video clips or JPEG images can also be exported to these accounts. Alarms can be set up to trigger an email or SMS notification, so you are always aware of unusual events.
- Easy Installation
- Power for the camera can be supplied via a Power-over-Ethernet-compliant network cable connection. With this configuration, only a single cable connection is required to view, power, and control the camera. Using PoE makes installation easier and more cost-effective, as cameras do not require a local power source. The camera can also be supplied with power from 24 VAC or +12 VDC SELV class 2 power supplies. For trouble-free network cabling, the camera supports Auto-MDIX, which allows the use of straight or crossover cables.
- True Day/Night Switching
- The camera incorporates a mechanical filter for daytime recording in color and detailed night-time imaging in black and white, while maintaining sharp focus under variable lighting conditions.
- Hybrid Mode
- An analog video output enables the camera to operate in hybrid mode. This mode provides simultaneous high-resolution HD video streaming and an analog video output via an SMB connector. Hybrid functionality offers easy migration from legacy CCTV infrastructure to a modern IP-based system.
- Access Security
- Password protection with three levels and 802.1x authentication is supported. To secure web browser access, use HTTPS with an SSL certificate stored in the camera.
- Complete Viewing Software
- There are many ways to access the camera's features: Using a web browser, with the Bosch Video Management System, with the free Bosch Video Client or Video Security Client (available on the Bosch website), with the video security mobile app, or via third-party software.
- Video Security App
- The Bosch video security mobile app has been developed to enable access to HD surveillance images from your camera, allowing you to view live images from virtually any location you have Internet access. The app is designed to give you complete control of all your cameras, from panning and tilting to zoom and focus functions. This app, together with the separately available Bosch transcoder, will allow you to fully utilize Bosch's dynamic transcoding features so you can play back images even over low-bandwidth connections.
- System Integration
- The camera conforms to ONVIF Profile S specifications. Compliance with this standard guarantees interoperability between network video products regardless of manufacturer. Third-party integrators can easily access the internal feature set of the camera for integration into large projects.
UPC: 800549810593 In the Box Bosch DINION IP bullet 5000 1080p IR Outdoor Camera with Surface Mount Box NTI-BLC-SMB Surface-Mount Box for DINION IP 4000/5000 Bullet Camera Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch DINION IP bullet 5000 1080p IR Outdoor Camera with Surface Mount Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch NTI-50022-A3S Specs | | | Sensor Type | 1/2.9" CMOS | | Pixel Resolution | 1920 x 1080 | | | | Sensitivity | At 3200K, reflectivity 89%, 30 IRE, f/1.3
Color: 0.07 lux
Mono: 0.05 lux
IR On: 0 lux | | Dynamic Range | 76 dB | | Compression | H.264 MP (Main Profile); MJPEG | | Streaming | Multiple configurable streams in H.264 and MJPEG, configurable frame rate and bandwidth
Regions of Interest (ROI) | | Overall IP Delay | Minimum 120 ms, maximum 340 ms | | GOP Structure | IP | | Interval | Encoding Interval: 1 to 25 [30] fps | | Resolution (H x V) | 1080p HD: 1920 x 1080
720p HD: 1280 x 720
Upright 9:16 (Cropped): 400 x 720
D1 4:3 (Downscaled/Cropped): 704 x 480
480p SD: Encoding: 704 x 480; Displayed: 854 x 480
432p SD: 768 x 432
288p SD: 512 x 288
240p SD: Encoding: 352 x 240; Displayed: 432 x 240
144p SD: 256 x 144 | | Standards | Complies with the SMPTE 274M-2008 Standard in:
Resolution: 1920 x 1080
Scan: Progressive
Color Representation: Complies with ITU-R BT.709
Aspect Ratio: 16:9
Frame Rate: 25 and 30 fps
Complies with the SMPTE 296M-2001 Standard in:
Resolution: 1280 x 720
Scan: Progressive
Color Representation: Complies with ITU-R BT.709
Aspect Ratio: 16:9
Frame Rate: 25 and 30 fps | | | | Frame Rate | 25/30 fps (PAL/NTSC for analog output) | | LED | Enable/disable | | Analog Output | Off, 4:3 letterbox, 4:3 crop, 16:9 | | Positioning | Coordinates | | Configuration Wizards | Lens Wizard: Zoom, autofocus | | | | Color Modes | Adjustable Picture Settings: Contrast, Saturation, Brightness
White Balance: 2500 to 10000K, four automatic modes, manual mode and measure | | Automatic Light Compensation (ALC) | Day/Night: Auto (adjustable), Color, Monochrome
Shutter: Automatic Electronic Shutter (AES); Fixed shutter (1/25[30] to 1/15000) selectable; Default shutter
IR Intensity: Adjustable | | Enhancements | Sharpness: Sharpness enhancement level selectable
Backlight Compensation: On/off
Contrast Enhancement: On/off
Noise Reduction: Intelligent Dynamic Noise Reduction with separate temporal and spatial adjustments
Intelligent Defog: Intelligent Defog automatically adjusts parameters for best picture in foggy or misty scenes (switchable) | | | | Configuration | Silent VCA / Profile1/2 / Scheduled / Event triggered | | Type | MOTION+ | | Tamper Detection | Maskable | | | | Scene Modes | Nine default modes, scheduler | | Privacy Masking | Eight independent areas, fully programmable | | Authentication | Video: Off / Watermark / MD5 / SHA-1 / SHA-256 | | Stamp | Display Stamp: Name; Logo; Time; Alarm message | | Pixel Count | Pixel Counter: Selectable area | | | | Internal | 10 sec pre-alarm recording | | Memory Card Slot | Supports up to 32 GB microSDHC / 2 TB microSDXC card
An SD card of Class 6 or higher is recommended for HD recording | | Recording | Continuous, ring, alarm/events/schedule | | | | Distance | 98 ft (30 m) | | LED | 4 x 850 nm LEDs, high efficiency array | | | | Type | Automatic varifocal 2.7 to 12mm, DC iris f/1.4-360, IR corrected | | Mount | Board mounted | | Field of View | Horizontal: 32 to 100°
Vertical: 18 to 53° | | | | Analog Video Output | CVBS, 1 V p-p, BNC connector, 75 Ohms
Selectable standard | | Alarm Input | Short or 5 VDC activation | | Alarm Out | Input rating maximum 0.5 A, 30 VAC / 40 VDC | | Audio Input | Flying leads; 10 kOhms typical, 0.707 Vrms | | Audio Output | Flying leads; 16 Ohms typical, 0.707 Vrms | | Network Connectors | 1x RJ45 | | | | Supported Standards | G.711, 8 kHz
L16, 16 kHz
AAC-LC, 48 kbps at 16 kHz
AAC-LC, 80 kbps at 16 kHz | | Signal-to-Noise Ratio | >50 dB | | Streaming | Full-duplex / half duplex | | | | Discovery | IP Helper for unit discovery | | Unit Configuration | Via web browser or configuration manager | | Firmware Updates | Remotely programmable | | Viewing | Web browser; Video Security Client; Video Security App; Bosch Video Management System; Bosch Video Client; or third party software | | | | Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/ RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, MIBII), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP, digest authentication | | Encryption | TLS 1.0, SSL, DES, 3DES | | Ethernet | 10/100 Base-T, auto-sensing, half/full duplex | | Connectivity | Auto-MDIX | | Interoperability | ONVIF Profile S; GB/T 28181 | | | | Input Voltage | Power-over-Ethernet (48 VDC nominal); or 24 VAC / +12 VDC | | PoE | IEEE 802.3af (802.3at Type 1)
Power Level: Class 3 | | Power Consumption | PoE (12 W); 24 VAC (12.13 W); +12 VDC (13.2 W) | | | | Standards | IEC 62471 (IR)
EN 60950-1
cUL 60950-1
EN 60950-22
cUL 60950-22
CAN/CSA-C22.2 NO. 60950-1-07
EN 50130-4
EN 50130-5, Class IV (outdoor in general)
FCC Part15 Subpart B, Class B
EMC directive 2004/108/EC
EN 55022 class B
EN 61000-3-2
EN 61000-3-3
EN 55024
AS/NZS CISPR 22 (equal to CISPR 22)
ICES-003 Class B
VCCI J55022 V2/V3
EN 50121-4 | | ONVIF | EN 50132-5-2; IEC 62676-2-3 | | Certifications | CE, FCC, UL, cUL, C-tick, CB, VCCI, EAC | | Ingress Protection Rating | IP66 | | Impact Protection | IK08 | | Region Certification | Europe: CE
USA: UL
Canada: CSA | | | | Operating Temperature | 22 to 148°F (-30 to 60°C) for continuous operation
-30 to 165°F (-34 to 74°C) according to NEMA TS 2-2003 (R2008), para 2.1.5.1 using fig. 2.1 test profile | | Storage Temperature | -22 to 158°F (30 to 70°C) | | Humidity | 20 to 90% relative humidity (non-condensing) | | | | Color | RAL 9006 | | 3-Axis Adjustment | 360 / 90 / 360° (pan/tilt/rotation) | | Dimensions | 10.7 x 3.5 x 3.5" (271 x 90 x 90 mm) | | Weight | 2.9 lb (1.3 kg) | | | | Package Weight | 6.505 lb | | Box Dimensions (LxWxH) | 17.45 x 8.2 x 5.85" |
