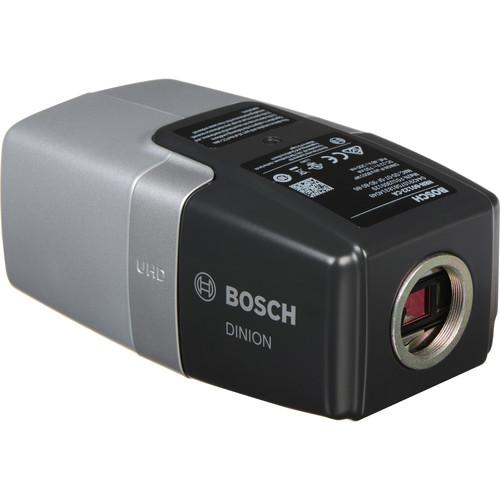

Product description The DINION IP Ultra NBN-80122-CA 12MP PoE Box Camera from Bosch features a 1/2.3" CMOS sensor. The camera captures videos at resolution of 12MP at 20 fps, and 4K UHD at 30 fps, thereby providing images of fast moving objects at high resolutions. The camera supports intelligent video analysis (IVA) that tracks and focuses on relevant situations and adds structure to stored video, allowing you to quickly retrieve the correct data. It also supports intelligent DNR that saves bitrate at the source and only uses bandwidth when needed. This results in up to 50% less bitrate and significantly reduces network strain without compromising on video quality. The power for the camera can be supplied via a Power over-Ethernet compliant network cable connection. With this configuration, only a single cable connection is required to view, power, and control the camera. To increase system reliability, the camera can be simultaneously connected to both PoE and 12 VDC supplies. Additionally, uninterruptible power supplies (UPS) can be used to ensure continuous operation, even during a power failure. - Selectable Resolution and Aspect Ratio
- The camera has three basic application variants that can be chosen at start-up; 12MP (4:3), 4K UHD (16:9), and 1080p (16:9).
- Lens Options
- This camera can be used with a 35mm lens, a 50mm lens, or a 75mm lens (available separately). The camera body includes an auto-focus lens wizard to ensure that lenses can be easily focused. The automatic motorized focus adjustment with 1:1 pixel mapping ensures that the camera with these telephoto lenses is always focused accurately.
- Multiple Streams
- The multi-streaming feature delivers various H.264 streams together with an M‑JPEG stream. These streams facilitate bandwidth-efficient viewing and recording, plus easy integration with third-party video management systems. Depending on the resolution and frame rate selected for the first stream, the second stream provides a copy of the first stream or a lower resolution stream. The third stream uses the I-frames of the first stream for recording; the fourth stream shows a JPEG image at a maximum of 10 Mbit/s.
- Regions of Interest and E-PTZ
- Regions of Interest (ROI) can be user defined. The remote E-PTZ (electronic pan, tilt, and zoom) controls allow you to select specific areas of the parent image. These regions produce separate streams for remote viewing and recording. These streams, together with the main stream, allow the operator to separately monitor the most interesting part of a scene while still retaining situational awareness.
- Measured Dynamic Range
- The camera features a wide dynamic range of 92 dB for 4K UHD mode (plus an extra 16 dB when combined with Intelligent Auto Exposure).
- Intelligent Video Analysis
- Intelligent Video Analysis (IVA) assists you by sounding an alert when predefined alarms are triggered. By smartly combining up to 8 IVA rules, complex tasks are made easy and false alarms are reduced to a minimum. IVA also adds sense and structure to your video by adding metadata. This enables you to quickly retrieve the relevant images from hours of stored video. Metadata can also be used to deliver irrefutable forensic evidence or to optimize business processes based on people counting or crowd density information.
- Intelligent Tracking
- Intelligent tracking continuously analyzes the scene for moving objects. If a moving object is detected, the camera automatically adjusts its settings, including field of view, to optimally capture details of the object of interest.
- Intelligent Auto Exposure
- Fluctuations in backlight and front light can ruin your images. To avoid this, Intelligent Auto Exposure automatically adjusts the exposure of the camera. It offers good front and backlight compensation by automatically adapting to changing light conditions.
- Intelligent Dynamic Noise Reduction
- Quiet scenes with little or no movement require a lower bitrate. By intelligently distinguishing between noise and relevant information, Intelligent Dynamic Noise Reduction reduces bitrate by up to 50%. Because noise is reduced at the source during image capture, the lower bitrate does not compromise on video quality. Intelligent Dynamic Noise Reduction adjusts spatial and temporal filtering (3DNR) based on intelligent analysis of the scene content. Motion compensated temporal filtering (MCTF) reduces motion blur normally associated with standard temporal filtering. This maintains image quality of fast moving objects while still optimizing bitrate.
- Area-Based Encoding
- Compression parameters for up to eight user-definable regions can be set. This allows uninteresting regions to be highly compressed, leaving more bandwidth for important parts of the scene.
- Scene Modes
- The camera comes with 9 configurable modes like indoor, outdoor, night-optimized, low bit rate, vibrant, sports and gaming, traffic, and retail. These modes provide the most suited settings for a variety of applications. Different scene modes can be selected for day or night situations.
- Storage Management
- Recording management can be controlled by the Bosch Video Recording Manager (VRM) or the camera can use iSCSI targets directly without any recording software.
- Edge Recording
- Insert a memory card into the card slot to store up to 2 TB of local alarm recording. Pre-alarm recording in RAM reduces recording bandwidth on the network, and extends the effective life of the memory card.
- Cloud-based Services
- The camera supports time-based or alarm-based JPEG posting to four different accounts. These accounts can address FTP servers or cloud-based storage facilities (for example, Dropbox). Video clips or JPEG images can also be exported to these accounts. Alarms can be set up to trigger an e-mail or SMS notification, so you are always aware of abnormal events.
- Access Security
- Password protection with three levels and 802.1x authentication is supported. To secure Web browser access, you should use HTTPS with a SSL certificate stored in the camera. The video and audio communication channels can be independently AES encrypted with 128-bit keys by installing the optional encryption site license.
- System Integration
- The camera conforms to the ONVIF Profile S specification. This guarantees interoperability between network video products regardless of manufacturer. Third-party integrators can easily access the internal feature set of the camera for integration into large projects.
- Easy Installation
- Using PoE makes installation easier as cameras do not require a local power source. The camera can also be supplied with power from a 12 VDC power supply.
UPC: 800549788946 In the Box Bosch DINION IP Ultra NBN-80122-CA 12MP PoE Box Camera (No Lens) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch DINION IP Ultra NBN-80122-CA 12MP PoE Box Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch NBN-80122-CA Specs | | | Sensor | 1/2.3" CMOS | | Pixels | 12 MP | | Lens Mount | C/CS lens mount | | Focus Adjustment | Motorized | | Dynamic Range | 12 MP (4:3) and 4K UHD (16:9):
92 dB WDR (92+16 dB with IAE)
1080p:
98 dB WDR (98+16 dB with IAE) | | Illumination | @ 3200K, 89% reflectivity, 30% IRE, 33 ms, f/1.2:
Color (12 MP / 4K UHD mode): 0.11 lux
Color (1080p mode): 0.09 lux
Mono (12 MP / 4K UHD mode): 0.037 lux
Mono (1080p mode): 0.030 lux | | Resolution (H x V) | 12 MP (4000 x 3000) @ 20 fps
4K UHD (3840 x 2160) @ 30 fps
7.3 MP (3584 x 2016) @ 30 fps
1080p HD (1920 x 1080) @ 30 fps
720p HD (1280 x 720) @ 30 fps
D1 (4:3) (downscaled/cropped): 704 x 480
480p SD: Encoding @ 704 x 480; Displayed @ 854 x 480
432p SD (768 x 432)
288p SD (512 x 288)
240p SD: Encoding @ 352 x 240; Displayed @ 432 x 240
144p SD (256 x 144) | | | | Compression | H.264 (MP); M-JPEG | | Streaming | Multiple configurable streams in H.264 and MJPEG, configurable frame rate and bandwidth
Regions of Interest (ROI) | | Overall IP Delay | Minimum 120 ms, maximum 340 ms | | GOP Structure | IP, IBP, IBBP | | Interval | Encoding: 1 to 30 [25] fps | | Regions Supported | Encoder Regions: Up to 8 areas with encoder quality settings per area | | Bandwidth | For 12 MP (4:3)
5285 kb/s @ 20 fps; 5424 kb/s @ 15 fps; 4612 kb/s @ 10 fps; 3223 kb/s @ 5 fps; 1388 kb/s @ 2 fps
For 4K UHD
6000 kb/s @ 30 fps; 5678 kb/s @ 25 fps; 5285 kb/s @ 20 fps; 4777 kb/s @ 15 fps; 4062 kb/s @ 10 fps; 2839 kb/s @ 5 fps; 1223 kb/s @ 2 fps
For 1080p
1600 kb/s @ 30 fps; 1514 kb/s @ 25 fps; 1409 kb/s @ 20 fps; 1274 kb/s @ 15 fps; 1083 kb/s @ 10 fps; 757 kb/s @ 5 fps; 326 kb/s @ 2 fps | | Network Streams | 12 MP (4:3) @ 20 fps:
Stream 1: 4000 x 3000
Stream 2: Copy of stream 1
12 MP (4:3) @ 15 fps:
Stream 1: 4000 x 3000
Stream 2: Copy of stream 1; SD (640 x 480); SD ROI (640 x 480); upright cropped (400 x 720); SD dual ROI (640 x 480); 800 x 600
4K UHD (16:9) @ 25/30 fps:
Stream 1: 3840 x 2160
Stream 2: Copy of stream 1; SD (768 x 432); SD ROI (768 x 432); upright cropped (400 x 720); D1 4:3 cropped (704 x 480); SD dual ROI (768 x 432)
4K UHD (16:9) @ 15 fps:
Stream 1: 3840 x 2160
Stream 2: Copy of stream 1; SD (768 x 432); 720p (1280 x 720); 1080p (1920 x 1080); SD ROI (768 x 432); upright cropped (400 x 720); D1 4:3 cropped (704 x 480); SD dual ROI (768 x 432)
7.3 MP (16:9) @ 25/30 fps:
Stream 1: 3584 x 2016
Stream 2: SD (768 x 432); SD ROI (768 x 432); upright cropped (400 x 720); D1 4:3 cropped (704 x 480); SD dual ROI (768 x 432)
1080 (16:9) @ 25/30 fps:
Stream 1: 1920 x 1080
Stream 2: SD (768 x 432); 720p (1280 x 720); 1080p (1920 x 1080); SD ROI (768 x 432); upright cropped (400 x 720); D1 4:3 cropped (704 x 480); SD dual ROI (768 x 432)
1080 (16:9) @ 15 fps:
Stream 1: 1920 x 1080
Stream 2: Copy of stream 1; SD (768 x 432); 720p (1280 x 720); 1080p (1920 x 1080); SD ROI (768 x 432); upright cropped (400 x 720); D1 4:3 cropped (704 x 480); SD dual ROI (768 x 432) | | | | Day/Night | Color, monochrome, auto | | Settings | Adjustable Picture Settings: Contrast, saturation, brightness | | White Balance | 2500 to 10000K, 4 automatic modes (standard, SON/SOX, basic, dominant color), manual mode and hold mode | | Shutter | Automatic electronic shutter (AES); fixed (selectable); default shutter | | Backlight Compensation | Off, auto, intelligent auto exposure | | Noise Reduction | Intelligent dynamic noise reduction with separate temporal and spatial adjustments | | Contrast Enhancement | On/off | | Sharpness | Sharpness enhancement level selectable | | Privacy Masking | Four independent areas, fully programmable | | Video Motion Analysis | Intelligent video analysis | | Scene Modes | 9 modes | | Other Functions | Image flip, pixel counter, video watermarking, display stamping | | | | Standard | G.711, 8 kHz sampling rate
L16, 16 kHz sampling rate
AAC-LC, 48 kbps at 16 kHz sampling rate
AAC-LC, 80 kbps at 16 kHz sampling rate | | Signal-to-Noise Ratio | >50 dB | | Audio Streaming | Full-duplex / half duplex | | | | Analog Video Out | SMB connector, CVBS (PAL/NTSC), 1 Vpp, 75 ohms (service only) | | Audio Line In | 1 Vrms maximum, 18 kOhms typical | | Audio Line Out | 0.85 Vrms at 1.5 kOhms typical | | Audio Connectors | 3.5 mm mono jack | | Alarm Input | 2 inputs | | Activation | Alarm Input: 5 VDC nominal; 40 VDC maximum (DC-coupled with 50 kOhm pull-up resistor to +3.3 VDC) (< 0.5 V is low; > 1.4 V is high) | | Alarm Output | 1 output | | Output Voltage | Alarm: 30 VAC or 40 VDC maximum; maximum 0.5 A continuous, 10 VA (resistive load only) | | Ethernet | RJ45 | | Data Port | RS‑232/422/485 | | | | RAM | Internal RAM: 10 sec pre-alarm recording | | Memory Card Slot | Supports up to 32 GB microSDHC/2 TB microSDXC card (SD card of class 6 or higher is recommended for HD recording) | | Recording | Continuous recording, ring recording, alarm/events/schedule recording | | | | Unit Configuration | Via web browser or configuration manager | | Firmware Updates | Remotely programmable | | Viewer | Web browser, Bosch video client, or third party software | | | | Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/ RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, NTP (SNTP), SNMP (V1, MIB-II), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, noip.com), SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP, digest authentication | | Encryption | TLS 1.0, SSL, DES, 3DES, AES (optional) | | Ethernet | 10/100 Base-T, auto-sensing, half/full duplex | | Connectivity | ONVIF profile S , auto-MDIX | | | | Power Supply | 12 VDC; Power-over-Ethernet 48 VDC nominal | | Current Consumption | 750 mA (12 VDC); 200 mA (PoE 48 VDC) | | Power Consumption | 9 W | | PoE | IEEE 802.3af (802.3at Type 1) Class 3 | | | | Certification | Emission EN 55022 Class B (2010), +AC (2011)
FCC: 47 CFR 15, class B (2012-10-1)
Immunity: EN 50130-4 (PoE, +12 VDC) (2011)
EN 50121-4 (2006), +AC: (2008)
Alarm: EN 50130-5 Class II (2011)
Safety: EN 60950-1
UL 60950-1 (2nd edition)
CAN/CSA-C 22.2 No. 60950-1
Vibration: Camera with 1.1 lb (0.5 kg) lens as per IEC
60068-2-6 (5 m/s2, operational)
UHD: SMPTE 2036-2012
Resolution: 3840 x 2160 (UHDTV1)
4K UHD (2160p)
HD: SMPTE 274M-2008
Resolution: 1920x1080
Color representation: ITU-R BT.2020
ONVIF conformance: EN 50132-5-2; IEC 62676-2-3 | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Storage Temperature | -22 to 158°F (-30 to 70°C) | | Operating Humidity | 20 to 93% RH | | Storage Humidity | Up to 98% RH | | | | Tripod Mount | Bottom and top 1/4"-20 UNC | | Finish | RAL 9007 Metallic Titanium | | Dimensions (W x H x L) | 3.1 x 2.6 x 5.5" (7.8 x 6.6 x14.0 cm) without lens | | Weight | 1.52 lb (0.69 kg) without lens | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 7.7 x 4.0 x 3.8" |
