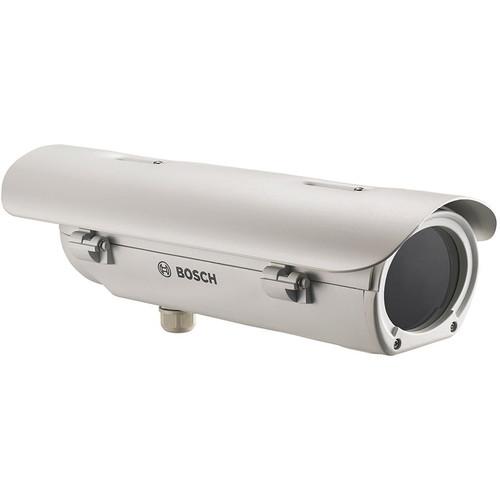

User Manual for Bosch DINION Thermal 8000 640 x 480 Network Bullet Camera with 35mm Lens Click to enlarge the picture
Contents of the user manual for the Bosch DINION Thermal 8000 640 x
- Product category: Security Cameras Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Security Cameras
|
User manual for the Bosch DINION Thermal 8000 640 x contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|
Product description The DINION Thermal 8000 640 x 480 Network Bullet Camera from Bosch provides high-sensitivity thermal images using an uncooled vanadium oxide micro-bolometer. The camera is designed to combine the benefits of thermal imaging with Intelligent Video Analytics from Bosch. It comes with a WFOV (Wide Field of View) lens and a frame rate of 9 fps. There is no need for natural or artificial lighting in an area of interest. The camera produces images day and night, even in challenging environments with smoke, dust, haze, or fog. The camera is enclosed in a robust outdoor housing, making it suitable for a wide range of applications in demanding environments. - Storage Management
- Recording management can be controlled by the Bosch VRM (Video Recording Manager) or the camera can use iSCSI targets directly without any recording software.
- Edge Recording
- Insert a memory card into the card slot to store up to 2TB of local alarm recording. Pre-alarm recording in RAM reduces bandwidth on the network and extends the effective life of the memory card.
- Hybrid Operation
- A surge-protected analog video output allows full hybrid operation. This means that high resolution IP video streaming and an analog video output are available simultaneously. The hybrid functionality offers an easy migration path from legacy CCTV to a modern IP-based system.
- Intelligent Video Analytics
- The Intelligence-at-the-Edge concept now features simple calibration, false alarm reduction, and extended range identification. Mission critical video analytics detect, track, and analyze objects, and alerts you when predefined alarms are triggered. A smart set of alarm rules, together with object filters and tracking modes, simplifies complex tasks. The system is also able to reduce false alarms, for example from foliage or shaking objects, even in harsh weather conditions. Metadata is attached to your video to add sense and structure. This enables you to quickly retrieve the relevant images from hours of stored video. Metadata can also be used to deliver forensic evidence or to optimize business processes based on people counting or crowd density information. Calibration requires only that you enter the height of the camera. The internal gyro/accelerometer sensor provides the rest of the information to precisely calibrate video analytics.
- Multiple Streams
- The multi-streaming feature delivers various H.264 streams together with an MJPEG stream. These streams facilitate bandwidth-efficient viewing and recording, as well as integration with third-party video management systems.
- Data Security
- Three-level password protection with security recommendations allows users to customize device access. Web browser access can be protected using HTTPS, and firmware updates can also be protected with authenticated secure uploads. The on-board Trusted Platform Module (TPM) and Public Key Infrastructure (PKI) support provide protection from malicious attacks. The 802.1x network authentication with EAP/TLS, supports TLS 1.2 with updated cipher suites, including AES 256 encryption. The advanced certificate handling offers self-signed unique certificates automatically created when required, client and server certificates for authentication, client certificates for proof of authenticity, and certificates with encrypted private keys.
- Complete Viewing Software
- There are many ways to access the camera's features: using a web browser, with the Bosch Video Management System, with the free-of-charge Bosch Video Client or Video Security Client, with the video security mobile app, or via third-party software.
- System Integration
- The camera conforms to ONVIF Profile specifications. Compliance with these standards guarantees interoperability between network video products, regardless of manufacturer.
In the Box Bosch DINION Thermal 8000 640 x 480 Network Bullet Camera with 35mm Lens 2-Pin Power Connector 12-Pin Data/Alarm Connector Allen Wrench Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch DINION Thermal 8000 640 x 480 Network Bullet Camera with 35mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch Thermal 8000 Specs | Image Sensor | Uncooled vanadium oxide microbolometer | | Picture Elements | 640 x 480 | | Pixel Pitch | 17 μm | | Thermal Sensitivity | <50 mK | | Video Resolution | 640 x 480 at 9 fps | | Functions | Adjustable Picture Settings: Contrast
Thermal Color Mapping: 10 selectable modes | | Field of View | 17.6° x 13.2°
Detection: Human 2264' (690 m), object 10499' (3200 m)
Recognition: Human 558' (170 m), object 2625' (800 m)
Identification: Human 79' (85 m), object 1312' (400 m) | | Video Compression | H.264 (MP); MJPEG | | Streaming | Multiple configurable streams in H.264 and MJPEG, configurable frame rate and bandwidth.
Regions of Interest (ROI) | | Latency | Camera Processing: <55 ms | | GOP Structure | IP, IBP, IBBP | | Frame Rate | 25/30/50/60 fps | | Mirror Image | On / Off | | Image Flip | On / Off | | Rotate | 0 / 90 / 180 / 270° | | Analog Output | Off, 4:3 letterbox, 4:3 crop, 16:9 | | Positioning | Coordinates / Mounting height | | Analytics | Intelligent Video Analytics | | Configuration | Silent VCA / Profile1/2 / Scheduled / Event triggered | | Alarm | Any object, Object in field, Line crossing, Enter / leave field, Loitering, Follow route, Counting, Occupancy, Condition change, Similarity search, Flow / counter flow | | Web Object Filters | Duration, Size, Aspect ratio, Speed, Direction, Object classes (4) | | Tracking Modes | Standard (2D) tracking, Ship tracking, Museum mode | | Calibration | Automatic based on gyro / accelerometer data and camera height | | RAM | 60 seconds pre-alarm recording | | Memory Card Slot | Supports up to 32 GB microSDHC / 2 TB microSDXC card (A memory card of Class 6 or higher is recommended for HD recording) | | Recording | Continuous recording, ring recording, alarm/events/schedule recording | | Analog Video Out | CVBS (NTSC), 1 V p-p, SMB, 75 Ohms (surge protected) | | Audio Connectors | 2 x 3.5 mm stereo jack | | Audio Line In | 12 kOhms typical, 1 Vrms max | | Audio Line Out | 1 Vrms at 1.5 kOhms typical | | Alarm Input | Connector: Clamp (2 x non-isolated closing contact)
Activation Voltage: 5 to 40 VDC (3.3 VDC with DC-coupled 22 kOhms pull-up resistor) | | Alarm Output | Connector: Clamp
Voltage: 30 VAC or 40 VDC
Maximum 0.5 A continuous, 10 VA | | Ethernet | RJ45 | | Data Port | RS‑232/422/485 | | Audio Compression | G.711, 8 kHz sampling rate
L16, 16 kHz sampling rate
AAC-LC, 48 kbps at 16 kHz sampling rate
AAC-LC, 80 kbps at 16 kHz sampling rate | | Signal-to-Noise Ratio | >50 dB | | Audio Streaming | Full-duplex / half duplex | | Software | Unit Discovery: IP Helper
Unit Configuration: Via web browser or Configuration Manager
Firmware Update: Remotely programmable
Software Viewing: Web browser; Video Security Client; Video Security App; Bosch Video Management System; Bosch Video Client; or third-party software | | Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, MIBII), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP, digest authentication | | Encryption | TLS 1.2, SSL, DES, 3DES | | Ethernet | 10/100Base-T, auto-sensing, half/full duplex | | Connectivity | Auto-MDIX | | Interoperability | ONVIF Profile S; GB/T 28181 | | Operating Temperature | ‑58 to 131°F (-50 to 55°C) for continuous operation | | Storage Temperature | -67 to 158°F (-55 to 70°C) | | Operating Humidity | 5% to 95% RH non-condensing | | Storage Humidity | up to 98% RH | | Ingress Protection | IP66, NEMA-4X | | Enclosure | Wind load 150 mph; NEMA TS2 vibration, shack | | Input Voltage | 24 VAC (SELV) ±10% 50/60 Hz | | Power Consumption | 34 W maximum | | Emission | EN 55032: 2012 /AC: 2013 class B
EN 55022: 2010 /AC: 2011
FCC: 47 CFR Part 15 B, class B
RCM: AS/NZS CISPR 22: 2009 /A1: 2010
VCCI: V2 & V3 /2015.04 | | Immunity | EN 50130-4: 2011 /A1: 2014
EN 50121-4: 2006 /AC: 2008
EN 55024: 2010 /A1: 2015 | | Environmental | EN 50130-5:2011 Class IV | | Safety | EN 60950-1: 2006 /A11: 2009 /A1: 2010 / A12: 2011 /A2: 2013
EN 60950-22: 2006 /A11: 2008
UL 60950-1, Ed. 2, October 14, 2014
CAN/CSA C22.2 No. 60950-1-07, Ed. 2, October 2014 | | Certifications | cUL, CE, WEEE, RCM, EAC, VCCI, FCC | | Construction | Aluminum casing, silicone gaskets | | Window | Germanium glass (Ø52 x 3 mm) | | Dimensions | 5.6 x 6.5 x 16.9" (14.1 x 16.4 x 43 cm) | | Weight | <7.7 lb (3.5 kg) |
