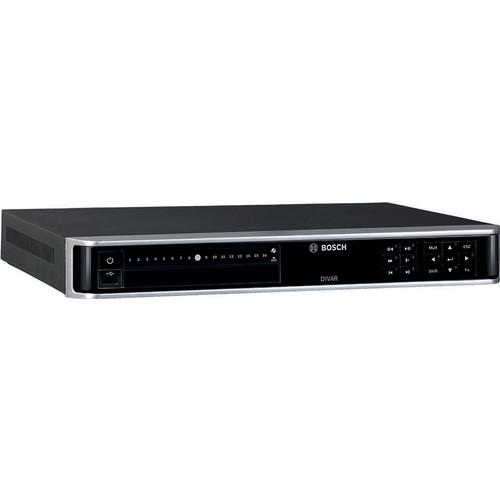

User Manual for Bosch DIVAR Hybrid 3000 Series 16-Channel Digital Video Recorder Click to enlarge the picture
Contents of the user manual for the Bosch DIVAR Hybrid 3000 Series 16-Channel
- Product category: Digital Video Recorders (DVRs) Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Digital Video Recorders (DVRs)
|
User manual for the Bosch DIVAR Hybrid 3000 Series 16-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|
Product description The DIVAR Hybrid 3000 Series 16-Channel Digital Video Recorder from Bosch can simultaneously record and display video from traditional analog cameras and IP cameras. The recorder can be connected to the following camera configurations - a maximum 32 IP cameras recording at resolutions up to 12MP, a maximum 16 analog cameras recording at resolutions up to 960H, or a combination of maximum 16 analog and 16 IP cameras. Simultaneous remote or local monitoring, recording, archive, and playback functions are guided by simple menu selections and operator commands. The recorder comes installed with a maximum of 2 internal HDDs for video storage. UPC: 800549834438 In the Box Bosch DIVAR Hybrid 3000 Series 16-Channel Digital Video Recorder (2TB HDD) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch DIVAR Hybrid 3000 Series 16-Channel Digital Video Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch DIVAR Hybrid 3000 Specs | | | IP Resolution | 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | | Resolution (NTSC/PAL) | NTSC: 960 x 480, 704 x 480, 352 x 480, 352 x 240, 176 x 120
PAL: 970 x 576, 704 x 576, 352 x 576, 352 x 288, 176 x 144 | | OSD | Camera title, time, video loss, motion detection, recording, PTZ | | | | Internal Storage | Maximum 2 x SATA HDD
Maximum Capacity per HDD: 6 TB
Maximum Supported Speed per HDD: 6 Gb/s | | | | Motion Detection | Set by Camera: Essential or Intelligent Video Analytics (IVA), Motion + | | Activation | Video loss, motion detection, input alarm, system alarm | | Trigger Connectivity | Recording, PTZ movement, alarm out, email, buzzer, screen message, Mon A and B activated | | Inputs | 16 x inputs configurable NO/NC, maximum input voltage 5 VDC | | Outputs | 6 x relay outputs | | Relay Contacts | Max. rated, 30 VDC, 2 A continuous or 125 VAC, 1 A (activated) | | | | USB | Flash memory or external HDD (FAT32) | | Network | Video Client or Web Client software | | | | Video Input | 16 x BNC for connecting max. 16 x analog cameras | | Monitor Output | 1 x D-Sub, 1 x HDMI, 1 x HDMI (output for spot monitor) | | Alarm Input / Output | 16 x screw terminal inputs, cable diameter AWG26‑16 (1.29-0.4 mm) | | Audio Input | 4 x RCA | | Audio Output | 1 x RCA | | Mic Input | 1 x RCA (Audio input) | | RS-485 | Screw terminal output (Dome control) | | RS-232 | DB9 male, 9-pin D-type (Dome control) | | USB | One front (2.0) and two rear (3.0) USB connectors for mouse or USB memory device | | Power Input | With On/Off Switch: 12 VDC (5 A)
AC Input Adapter: 100 to 240 VAC, 50 to 60 Hz, 1.5 A | | | | Multi-Channel Input | Simultaneous 1/4/9/16 channels | | Mode | Forward, reverse, slow play, fast play, frame-by-frame | | Search | Time, channel, type, smart | | Network | Video Client, Web client, App | | View Restriction | Restrict video by user rights for viewing | | Protection | Protect video against overwriting | | Data Retention | Automatically delete recordings after 1 to 365 days | | | | Decoding | H.265 / H.264 / MJPEG | | Speed | Maximum 30 IPS per channel, configurable | | Bit Rate | 16 kb/s to 24 Mb/s per channel | | Interval | 1 to 120 min (Default: 60 min)
Pre-Record: 1 to 30 sec
Post-Record: 10 to 300 sec | | Mode | Manual, scheduled (regular, motion detection, alarm), stop | | | | Maximum Camera Supported | 16 analog + 16 IP or 32 IP | | Bandwidth | Maximum Incoming: 320 Mb/s
Maximum Recording: 256 Mb/s
Maximum Transmission: 128 Mb/s | | Resolution | 12 MP, 8 MP, 6 MP, 5 MP, 3 MP, 1.3 MP, 1080p, 720p | | | | Input | 4-channel (via RCA) 200 to 3000 mV, 10 kOhms | | Mic Input | 1-channel (via RCA) 200 to 3000 mV, 10 kOhms | | Output | 1-channel (via RCA) 200 to 3000 mV, 5 kOhms | | Direction | Bi-directional (audio input and output connected via device) | | | | Ethernet | RJ45 port (10/100/1000 Mb/s) | | PC | Software: Video client, Web client | | Apps for Mobile Devices | iPhone, Android | | User Access | Maximum 128 users | | Protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS/DDNS, IP Filter, PPPoE, FTP | | | | External Power Adapter | AC Input: 100 to 240 VAC; 50 to 60 Hz; 1.5 A | | Power Adapter | DC Output: 12 VDC; 5 A | | Battery | Lithium CR2032, 3 VDC | | Power Consumption | Maximum 20 W | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to 158°F (-40 to 70°C) | | Operating Humidity | <93% non-condensing | | Storage Humidity | <95% non-condensing | | | | Alarm | EN 50130-5:2011, Alarm systems - Part 5: Environmental test methods, Class I, Fixed equipment | | Lightning Protection | To ALL long input / output and supply wiring. Alarm inputs and relay output, Video inputs and outputs, dome-control outputs, power cable, Audio In/Out. ±0.5, 1 kV line to line, ±0.5, 1 and 2 kV line to earth | | EMC | 47CFR part 15 (FCC), Class B | | Safety | UL 62368-1, Edition 2, Dec 1, 2014 (UL, cUL) | | | | Dimensions | 14.8 x 12.7 x 2.1" (375 x 323 x 53 mm) | | Weight | Approximately 9.1 lb (4.13 kg) excluding HDD and DVD | | | | Package Weight | 16.5 lb | | Box Dimensions (LxWxH) | 23.0 x 19.5 x 7.2" |
