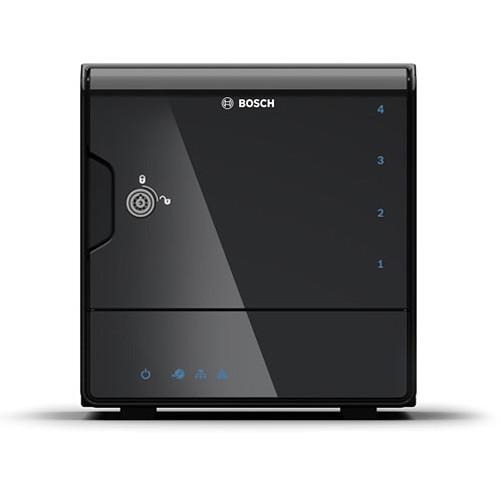

User Manual for Bosch DIVAR IP 5000 32-Channel NVR with 4TB HDD Click to enlarge the picture
Contents of the user manual for the Bosch DIVAR IP 5000 32-Channel NVR
- Product category: Network Video Recorders (NVRs) Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Network Video Recorders (NVRs)
|
User manual for the Bosch DIVAR IP 5000 32-Channel NVR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|
Product description Able to support up to 32 channels, the DIVAR IP 5000 32-Channel NVR from Bosch can hold up to four HDDs for local storage. Preinstalled with 4TB of storage, this NVR features an embedded, all-in-one design for ease of use and quick setup. Forensic Search provides the ability to quickly search through recordings for necessary footage. View and configure the NVR remotely using the web-based application or access it from a mobile device using the free app for iOS and Android. Dynamic Transcoding technology allows for high-quality playback despite low or limited bandwidth. - Remote Viewing
-
- Designed for remote operation and web-based configuration, no need to plug in any peripherals
- A computer or tablet can be used to set up the system in a few guided steps via the web-based configuration wizard
- Video Security App and Video Security Client offer advanced playback and live viewing capabilities for all video devices connected to the NVR
- Real-Time Access to Video
-
- View HD video despite low or limited bandwidth connection
- Dynamic Transcoding technology
- Provides up to four independent transcoded streams, enabling live viewing access to four cameras, or playback of recordings simultaneously
- Storage and Operation
-
- Critical health states can be received as an email notification and monitored via the web-based dashboard
- Disk failures can be handled with a few guided configuration steps
- Web-based configuration wizard provides an option for redundant storage of recorded video data
- Easy Upgrade
-
- Remotely upgrade the devices whenever new firmware becomes available
- Malware Resistance
-
- Designed to be resistant to viruses and other malware
- Nothing other than Microsoft and Bosch software is running on the device
- Firewall allows communication for only a minimum of needed services
- Forensic Search
-
- Provides forensic search in recordings of its assigned IVA-enabled cameras
- Simple line and field definitions, drawn over the video image, allow search through metadata of camera recordings
- Forensic Search is possible via the Bosch applications Video Security App as well as Video Security Client
UPC: 800549816861 In the Box Bosch DIVAR IP 5000 32-Channel NVR with 4TB HDD Power Cord 2 x Keys Network Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch DIVAR IP 5000 32-Channel NVR with 4TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch DIP-5042EZ-2HD Specs | | | Processor | Intel N3150 | | Storage Controller | Marvell 88SE9215 | | | | Memory Type | DDR3L SO-DIMM | | Front Side Bus | 1333 MHz maximum | | Memory | Installed: 4 GB, DDR3L-1333 SO-DIMM (1 x 4 GB) | | | | Storage Type | 4 x 3.5" SATA bays | | Storage Capacity | 2 TB (2 x 2 TB) preinstalled, supports up to 16 TB
Non-Raid: 3724 GB
Raid 1: 1862 GB | | Bandwidth | Read/Write: 220 Mbps | | | | Graphics | Graphics memory controller integrated in the Intel Atom N3150 processor (used for transcoding) | | Network | 2 x 1 GbE RJ45 port | | | | Power Supply | 100 to 240 VAC, 47-63 Hz | | Energy Efficiency | Energy Star compliant power supply | | Power Consumption | Without HDDs:
37 W maximum
32 W idle | | | | Alarm Input | 2 | | Relay Output | 2 | | Tamper Protection | Acceleration sensor | | | | Software Update | SSD-drive, remote programmable | | Configuration | Web browser | | Operation | Video Security App, Video Security Client | | | | Operating Temperature | 50 to 95°F (10 to 35°C) | | Storage Temperature | -40 to 158°F (-40 to 70°C) | | Operating Humidity | 8 to 90% RH, non-condensing | | Storage Humidity | 5 to 95% RH, non-condensing | | | | Form Factor | 4-bay mini tower | | Power Supply | 1 x internal power supply | | USB Ports | 4 x USB 3.0 port | | Network | 2 x Gigabit Ethernet LAN | | Approvals | Europe: CE EN55024 2010, EN55032 2012, AC 2013, EN60950-1 2006, A11 2009, A1 2010, A12 2011, AC 2011, A2 2013, EN610003-2 2014, EN610003-3 2013
Australia/New Zealand: AS/NZS CISPR 22 2009, A1 2010
USA: UL 60950-1 Ed 2 (Am 2) Oct 14, 2014 EN50581 2012, FCC Part 15, Class B | | Dimensions | 7.1 x 7.9 x 8.4" (18 x 20 x 21.2 cm) | | Weight | 9.4 lb (4.25 kg) without HDDs | | | | Package Weight | 18.1 lb | | Box Dimensions (LxWxH) | 11.9 x 11.8 x 11.8" |
