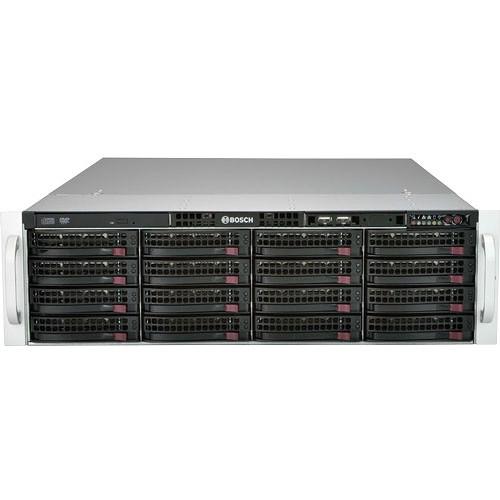

User Manual for Bosch DIVAR IP 6000 Series 128-Channel NVR Click to enlarge the picture
Contents of the user manual for the Bosch DIVAR IP 6000 Series 128-Channel
- Product category: Network Video Recorders (NVRs) Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Network Video Recorders (NVRs)
|
User manual for the Bosch DIVAR IP 6000 Series 128-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|
Product description With its wizard-based setup and centralized configuration, the DIVAR IP 6000 Series 128-Channel NVR from Bosch provides for installation of up to 128 cameras. The system uses Dynamic Transcoding technology to stream video in real time, despite low or limited bandwidth. There is an Intel Quad Core Processor with 8GB of installed memory, a RAID-5 configuration, and dual-port Gigabit Ethernet for a comprehensive system. Additionally, energy-efficient hot-swappable redundant power supplies and SATA 3 hard drives protect against losing information in case of a power outage or if the memory capacity is reached. There are 16 HDD bays (HDDs not included), providing you with enough space for up to 128TB of storage.
The NVR supports Video Client, a Windows PC application for remote configuration, live viewing, and playback. Microsoft Windows Storage Server 2008 R2 provides a simple, intuitive user interface, and a built-in Microsoft System Center Suite offers one central tool for all operations management. SNMP, remote desktop, and HTTP monitoring support for the Video Recording Manager software (download from Bosch product catalog) and the system's hardware allows you to monitor your surveillance system from any web browser. This recorder is compatible with Bosch cameras, and is ONVIF-compliant for use with a wide range of compatible surveillance devices. The unit is 3HU rack mountable for placing in a convenient and secure location. - 3HU rack mountable for convenient placement and storage options
- Combines VRM software (not preinstalled) and iSCSI storage in one plug-and-play recorder
- Enterprise-rated hard drives in a fault-tolerant RAID 5 configuration
- Dual-port Gigabit Ethernet network interfaces
- 8GB system memory with Quad Core E3-1275 V3 Processor
- Wizard-based setup and centralized configuration for easy installation
- Energy-efficient hot-swappable redundant power supplies and SATA 3 HDDs
- Dynamic Transcoding technology for viewing HD video despite low or limited bandwidth
- Supports Video Client for remote viewing, playback, and configuration on a Windows computer
- Microsoft Windows Storage Server 2012 R2 provides a simple, intuitive user interface
- SNMP, Remote Desktop, and HTTP monitoring support for the VRM and the system's hardware
- Add Bosch VMS (available separately) software for a scalable IP video management solution
In the Box Bosch DIVAR IP 6000 Series 128-Channel NVR (3 RU) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch DIVAR IP 6000 Series 128-Channel NVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch DIP-61F0-00N Specs | | | Processor | Intel Xeon Processor E3-1275 V3 (8 MB cache, 3.5 GHz) | | Socket | 1 | | Cache Memory | 8 MB Intel Smart Cache | | Memory Protection | ECC unbuffered | | Front Side Bus | 1600 MHz | | Memory | 8 GB, DDR3-1666 ECC UNB (1 x 8 GB) | | Storage | Type: 16 x 3.5" SATA
HDDs not included | | Data | SATA-3, 7200 RPM, 64 MB, 3.5", RAID 5 configuration | | OS | 2 x 120 GB SSD RAID 1 configuration | | Optical | DVD-RW | | SAS RAID Card | 8 ports LSI 3108 SAS3 controller | | | | Power Input | 100 to 240 VAC, 50 to 60 Hz | | Input Current | 140 VAC: 2.9 A
240 VAC: 1.7 A | | Power Output | 140 VAC: 362.7 W
240 VAC: 362.7 W | | Power Efficiency | 140 VAC: 92%
240 VAC: 94% | | Power Consumption | 140 VAC: 394.3 W
240 VAC: 385.9 W | | BTU/h | 140 VAC: 1345.6
240 VAC: 1317.0 | | Power Factor | 140 VAC: 0.98
240 VAC: 0.96 | | VA Requirement | 140 VAC: 402.3
240 VAC: 402.0 | | | | Form Factor | 3HU rack mount | | Power Supply | 1200 W Platinum-level, redundant | | USB Ports | Front: 2 x USB 2.0 ports
Rear: 2 x USB 2.0 ports, 2 x USB 3.0 ports | | Network | Dual Intel i210AT Gigabit LAN | | | | Operating Temperature | 50 to 95°F (10 to 35°C) | | Storage Temperature | -40 to 158°F (-40 to 70°C) | | Humidity | Operating: 8 to 90% RH (non-condensing)
Storage: 5 to 95% RH (non-condensing) | | Dimensions | 5.2 x 17.2 x 25.5" (13.2 x 43.7 x 64.8 cm) | | Weight | 72 lb (32.7 kg) |
