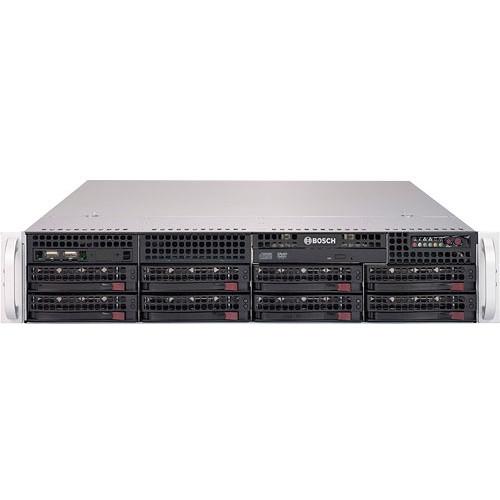

User Manual for Bosch DIVAR IP 7000 Series 128-Channel NVR with 32TB HDD Click to enlarge the picture
Contents of the user manual for the Bosch DIVAR IP 7000 Series 128-Channel
- Product category: Network Video Recorders (NVRs) Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Network Video Recorders (NVRs)
|
User manual for the Bosch DIVAR IP 7000 Series 128-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|
Product description The DIVAR IP 7000 Series 128-Channel NVR from Bosch is an all-in-one recording, viewing, and management solution for network surveillance systems of up to 128 channels (with 32 channels pre-licensed). Running the full Bosch VMS (Video Management System) solution and powered by Bosch's VRM (Video Recording Manager) software, this DIVAR IP 7000 Series system is an intelligent IP storage device that eliminates the need for separate NVR servers and storage hardware. It is a 2HU rackmount unit that combines advanced management and recording management solutions into a single plug-and-play IP recording appliance for IT-minded customers. The DIVAR IP 7000 unit utilizes an embedded design which reduces possible points of failure. It utilizes hard drives in a fault-tolerant RAID 5 configuration, dual-port Gigabit Ethernet network interface, 8GB system memory, and an Intel Xeon Quad Core Processor for high-end performance. This system features a wizard-based setup and centralized configuration. All its components are pre-installed and pre-licensed. Simply connect to the network and power the unit up, and the system is ready to begin recording straight out of the box. The Bosch VMS manages all IP and digital video and audio, plus all the security data being transmitted across your IP network. It combines IP cameras and encoders, and provides system-wide event and alarm management, system health monitoring, and user and priority management. The DIVAR IP 7000 system features hot-swap redundant power supplies, as well as front-swappable SATA 3 hard drive bays providing up to 64TB (8 x 4TB HDDs included) of storage capacity. The RAID configuration of third-party data hard drives must be set up manually via the pre-installed RAID management utility for full system functionality. All system software is pre-installed and pre-activated, creating an out-of-the-box, ready-to-use video management appliance. It utilizes Microsoft Windows Storage Server 2012 R2 (64 bit). The DIVAR IP 7000 system comes pre-configured in a RAID 5 standard configuration with iSCSI LUNs (Logical Unit Numbers). Instant Real-Time Access to Video - The built-in transcoder supports up to 4 x UHD resolution video streams in parallel.
Management - The system will offer immediate access to the Bosch VMS management application via a customized GUI. The ability to use one central GUI for configuration and operation management reduces installation and training requirements.
Remote Viewing - For remote viewing of a single DIVAR IP system, Bosch VMS Operator Client is included. For multiple systems, add them to Bosch VMS Enterprise Management Server or alternatively use Video Security Client for viewing video from a separate workstation or mobile device.
IT Management - Microsoft Windows Storage Server 2012 R2 provides a user interface for system configuration and unified appliance management. Administrators and IT professionals will appreciate the ability to manage DIVAR IP 7000 NVR using the built-in Microsoft System Center Suite. This unit also offers advanced monitoring and management options using IPMI (Intelligent Platform Management Interface).
Monitoring - The DIVAR IP 7000 NVR provides SNMP, remote desktop, and HTTP monitoring support for the system's hardware and video management applications.
Installation / Configuration - The DIVAR IP 7000 2U NVR comes fully loaded and fully functional with Microsoft Operating System and Bosch application pre-installed: Windows Storage Server 2012 R2, 64-bit; Bosch Video Management System; Bosch Video Recording Manager including Video Streaming Gateway; Dynamic Transcoding. The NVR may be upgraded with 8-channel licenses (available separately) up to 64 channels using the standard base license (pre-installed). It can be upgraded to 128 channels by purchasing an extension base license (MBV BXPAN DIP) and the respective 8-channel licenses (MBV-XCHAN-DIP).
UPC: 800549804509 In the Box Bosch DIVAR IP 7000 Series 128-Channel NVR with 32TB HDD (2 RU) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch DIVAR IP 7000 Series 128-Channel NVR with 32TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch DIP-7184-8HD Specs | | | Processor | Intel Xeon Processor E3-1275 V3 (8 MB cache, 3.5 GHz) | | Socket | 1 | | Cache Memory | 8 MB Intel Smart Cache | | Memory Protection | ECC unbuffered | | Front Side Bus | 1600 MHz (maximum) | | | | RAID | Pre-configured in a RAID 5 standard configuration with iSCSI LUNs | | Bandwidth | 475 Mb/s | | IP Cameras Supported | 32+ pre-licensed / 128+ maximum | | | | Pre-Installed Memory | 8 GB, DDR3-1666 ECC UNB (1 x 8 GB) | | | | Storage Type | 8 trays, 3.5" SATA | | Installed Hard Drives | Data: 32 TB (8 x 4 TB), SATA 3, 7200 rpm, 64 MB, 3.5", RAID 5 configuration (default)
OS: 2 x 120 GB SSD RAID 1 configuration | | Capacity |
Net Capacity: 26,060 GB The net capacity for a RAID 5 configuration without hot spare, 32+/128+ connected IP cameras indicate the number of concurrent recordable cameras plus 8 sessions for replay. | | SAS RAID Card | 8 x ports LSI 3108 SAS3 controller | | Graphics Card | AMD FirePro W4100
4 x mini display port | | Sound Card | 5.1 channel 24-bit | | DVD Writer | Internal | | System Status | Microsoft Operating System and Bosch application pre-installed
Windows Storage Server 2012 R2, 64‑bit
Bosch Video Management System
Bosch Video Recording Manager including Video Streaming Gateway
Dynamic Transcoding | | | | AC Input Rating | 100 to 240 V / 50 to 60 Hz | | Input Current | 140 VAC: 2.4 A
240 VAC: 1.4 A | | Power Supply Output | 140/240 VAC: 305.6 W | | Efficiency | Power Supply:
140 VAC: 92%
240 VAC: 94% | | Power Consumption | 140 VAC: 332.2 W
240 VAC: 325.1 W | | BTU/h | 140 VAC: 1133.9 BTU/h
240 VAC: 1109.7 BTU/h | | Power Factor | 140 VAC: 0.98
240 VAC: 0.96 | | VA Requirement | 140 VAC: 339.0 VA
240 VAC: 338.7 VA | | | | Form Factor | 2HU rackmount | | Power Supply | 740 W Platinum-level redundant | | USB Ports | Front:
2 x USB 2.0 ports
Rear:
2 x USB 2.0 ports
2 x USB 3.0 ports | | Network | Dual Intel i210AT Gigabit LAN (teamed)
1 x IPMI BMC port | | | | Operating Temperature | 50 to 95°F (10 to 35°C) | | Storage Temperature | -40 to 158°F (-40 to 70°C) | | Operating Relative Humidity | 8 to 90% (non-condensing) | | Storage Humidity | 5 to 95% (non-condensing) | | | | Dimensions | 3.5 x 17.2 x 25.5" (89 x 437 x 648 mm) | | Weight | 52 lb (23.6 kg) |
