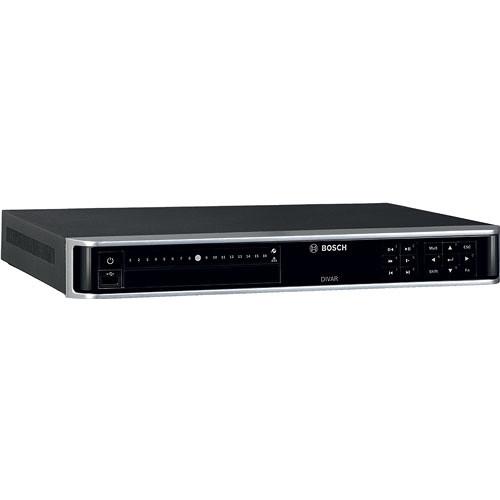

User Manual for Bosch DIVAR Network 2000 16-Channel 8 PoE NVR with DVD Writer Click to enlarge the picture
Contents of the user manual for the Bosch DIVAR Network 2000 16-Channel 8
- Product category: Network Video Recorders (NVRs) Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Network Video Recorders (NVRs)
|
User manual for the Bosch DIVAR Network 2000 16-Channel 8 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|
Product description Connect the 2TB DIVAR Network 2000 16-Channel 8 PoE NVR with DVD Writer from Bosch to a maximum of 16 IP cameras that use H.265/H.264 high-resolution video compression. Menu selections and operator commands include simultaneous remote and local monitoring, recording, archive, and playback functions. This compact and sturdy device provides 8MP (UHD) IP camera support for viewing and playback. It gives real-time live display for 8 channels at 1080p or 2 channels at 4k. This recorder features a DVD burner for video export. It features 8 ports to supply power to compatible cameras. - Video Compression Technology
- The DIVAR supports H.264 video compression technology and is H.265-ready
- Simultaneous Recording and Viewing
- The DIVAR records multiple video and audio signals while simultaneously providing live multi-screen viewing and playback
- PoE Switch
- This recorder with built-in PoE switch can supply power to a maximum of 8 cameras
- DDNS
- The free Dynamic Domain Name Services (DDNS) provides access to network-connected devices via a friendly hostname without the need for static IP addresses
- Alarms
- Alarm functions include local inputs and relay outputs, as well as motion detection in user-defined areas with alerts that include:
- Send an email notification and/or FTP push
- Sound a buzzer and/or display a warning
- Activate local alarm output
- Local Control
- The unit can be operated and programmed via an on-screen display menu system using:
- The included mouse
- The front panel control keys
- The included remote control
- Inputs and Outputs
- Two video connectors (VGA/HDMI) provide simultaneous output to a monitor for live display (with zoom) and playback (display can be frozen and zoomed)
- Dome Control
- The DIVAR can control pan/tilt/zoom (PTZ) equipment using commands sent via IP connection (using ONVIF protocol for supported devices)
- Network Control
- You can use the PC software or built-in web application via a network for live viewing, playback, and configuration
- Watermark
- The DIVAR includes an authenticity check for both local and remote archives, ensuring recording integrity with an Archive Player for playback of secure video files
- Smartphone App
- DIVAR Viewer App from Bosch for iOS and Android devices is available for:
- Live and playback viewing
- Recorder configuration
- PTZ control
UPC: 800549834667 In the Box Bosch DIVAR Network 2000 16-Channel 8 PoE NVR with DVD Writer (2TB HDD) Mouse Remote Control Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch DIVAR Network 2000 16-Channel 8 PoE NVR with DVD Writer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch DDN-2516-112D08 Specs | | | AC Input | External Power Adapter AC Input (without PoE): 100 to 240 VAC; 50 to 60 Hz; 1.5 A
AC Input (with PoE): 100 to 240 VAC; 50 to 60 Hz; 3.5 A; 190 W | | Battery | RTC Battery on Main PCB: Lithium CR2032, 3 VDC | | DC Output | Power Adapter DC Output (without PoE): 12 VDC; 5 A | | DVR Power Input | Without PoE: 12 VDC | | Maximum Power Consumption | Main (no HDD): 15.2 W
PoE Switch: 115 W
Per PoE Port: 25.5 W | | | | Temperature | Operating: 32 to 104°F (0 to 40°C)
Storage: -40 to 158°F (-40 to 70°C) | | Humidity | Operating: <93% non-condensing
Storage: <95% non-condensing | | | | Capacity | 2TB installed, can be expanded to 12 TB | | Maximum Speed | Maximum Supported Speed per HDD: 6 Gb/s | | | | Motion Detection | 396 detection zones | | Activation | Video loss, motion detection, input alarm, and system alarm | | Event Triggered | Recording, PTZ movement, alarm out, email, buzzer, screen message, Mon A and B activated | | Inputs | 4 inputs configurable NO/NC
Maximum Input Voltage: 5 VDC | | Outputs | 2 relay outputs | | Relay Contacts | Maximum rated, 30 VDC, 2 A continuous or 125 VAC, 1 A (activated) | | | | DVD | Built-in DVD+R/RW writer | | USB | Flash memory or external HDD (FAT32) | | Network | Video client or web client software | | | | Multi-Channel Input | Simultaneous 1/4/9/16 channels | | Mode | Forward, reverse, slow play, fast play, and frame-by-frame | | Search | Time, channel, type, and smart | | Network | Video client, web client, and app | | View Restriction | Restricts video by user rights for viewing | | Protection | Protects video against overwriting | | | | Decoding | Decoding Compression: H.265/H.264/MJPEG | | Speed | Maximum 30 fps per channel, configurable | | Bit Rate | 16 kb/s to 24 Mb/s per channel | | Recording Intervals | 1 to 120 minutes (default 60 minutes)
Pre-Record: 1 to 30 seconds
Post-Record: 10 to 300 seconds | | Mode | Manual, Scheduled (regular, motion detection, alarm), and Stop | | Resolution | 8MP, 6MP, 5MP, 3MP, 1.3MP, 1080p, 720p | | | | Ethernet | RJ45 port (10/100/1000 Mb/s) | | Software | Video Client, Web client | | Mobile OS Support | iPhone, Android | | User Access | Maximum 128 users | | Protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS/DDNS, IP Filter, PPPoE, and FTP | | | | Max IP Channels | 16 | | Bandwidth | Maximum Incoming Bandwidth: 256 Mb/s
Maximum Recording Bandwidth: 192 Mb/s
Maximum Transmission Bandwidth: 128 Mb/s | | | | Resolution | 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | | OSD | Camera title, time, video loss, motion detection, recording, and PTZ | | | | Mic Input | 1 channel (via RCA) 200 to 3000 mV, 10 kOhms | | Output | 1 channel (via RCA) 200 to 3000 mV, 5 kOhms | | Direction | Bidirectional (audio input and output connected via device) | | | | RJ45 Ethernet Port | Maximum 8 RJ45 PoE ports (115 W; 25.5 W maximum per port) connected with DHCP configuration (maximum 16 IP channels possible)
RJ45 Ethernet connection (10/100/1000Base-T according to IEEE 802.3) | | VGA | 1 x D-SUB (monitor output) | | HDMI | 1 x HDMI (monitor output) | | Alarm | Input: 4 x screw terminal inputs
Cable diameter AWG 26 to 16; 0.05 to 0.01" (1.3 to 0.4 mm)
Output: 2 x screw terminal outputs
Cable diameter AWG 26 to 16; 0.05 to 0.01" (1.3 to 0.4 mm) | | Audio Output | 1 x RCA (audio output) | | Mic Input | 1 x RCA (audio input) | | RS-485 | Screw terminal output | | RS-232 | DB9 male, 9-pin D-type (for service) | | USB | One USB (3.0) connector for mouse or USB memory device
One USB (2.0) also on front panel | | Power Input | Power Input with On/Off switch: 100 to 240 VAC, 50 to 60 Hz, 3.5 A, 190 W | | Connection | Ground connection | | | | Alarms | EN 50130-5:2011, Alarm Systems - Part 5: Environmental test methods, Class I, and fixed equipment | | Lighting Protection | To ALL long input / output - and supply-wiring
Alarm inputs and relay output, video inputs and outputs, dome-control outputs, power cable, audio In/Out
±0.5, 1 kV line to line, ± 0.5, 1 and 2 kV line to earth | | EMC/Safety | EMC USA 47CFR part 15 (FCC), Class B
Safety USA (UL, cUL): UL 62368-1, Edition 2, Dec 1, 2014 | | | | Dimensions | 14.8 x 12.7 x 2.1" (375 x 323 x 53 mm) | | Weight | Excluding HDD and DVD: Approximately 9.3 lb (4.2 kg) |
