User manual

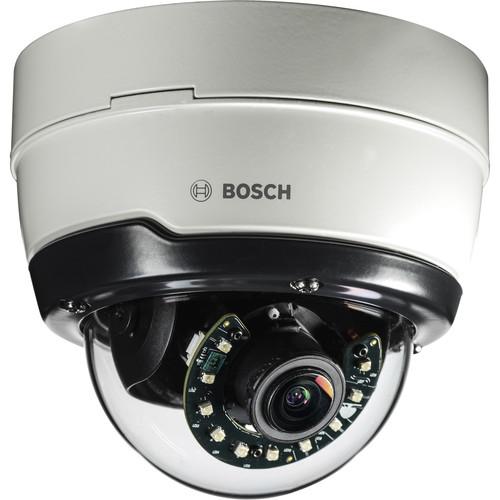

Bosch FLEXIDOME 5000i 5MP Vandal-Resistant Outdoor

User Manual for Bosch FLEXIDOME 5000i 5MP Vandal-Resistant Outdoor Network Dome Camera with Night Vision

• Product category: Wired IP Cameras Bosch
• Brand: Bosch
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Bosch Wired IP Cameras

Product description

• Captures videos in 3072 x 1728 resolution up to 30 fps

• Easy to install with 3-10mm AVF (Automatic Varifocal) lens, auto zoom/focus wizard, and pre-configured modes

• Automatic motorized zoom/focus adjustment with 1:1 pixel mapping ensures the camera is accurately focused

• Offers true day/night functionality with mechanical IR cut filter

• Built-in active infrared illuminator provides 98' night vision range

• Fully configurable H.265 multi-streaming

• Offers High Dynamic Range up to 120 dB

• Intelligent streaming reduces bandwidth and storage requirements

• Area-based encoding allows you to set compression parameters for up to eight user-definable regions

• Built-in Essential Video Analytics to trigger relevant alerts and quickly retrieve data

• Two-way audio for communication as well as generating an alarm via audio detection

• Hybrid mode provides simultaneous HD video streaming and an analog video output via an SMB connector

• Integrated gyro/accelerometer sensor offers automatic image rotation and precise calibration of the built-in video analytics

• Supports tamper and motion detection with alarm triggering

• microSD card slot supports up to 2TB of storage for edge recording or local alarm recording

• Time- or alarm-based video clips / JPEG images can be posted to four different accounts on FTP servers or cloud-based storage facilities

• Alarms can be set up to trigger an email or SMS notification

• Conforms with ONVIF Profile S and Profile G for third-party system integration

• Offers 3-level password protection and AES 256-bit data encryption

• Provides web browser access via HTTPS and firmware updates with authenticated secure uploads

• Onboard Trusted Platform Module (TPM) and Public Key Infrastructure (PKI) provide protection from malicious attacks

• Advanced certificate handling offers self-signed unique certificates automatically created when required, client and server certificates for authentication, client certificates for proof of authenticity, and certificates with encrypted private keys

• Supports Bosch's video security mobile app for remote viewing live/recorded footage and accessing camera controls

• Can be simultaneously connected to PoE and 12 VDC / 24 VAC power supplies

• Uninterruptible Power Supplies (UPS) can be used for continuous operation, even during a power failure

• Supports Auto-MDIX interface that allows the use of straight or crossover cables for trouble-free network cabling

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Bosch 5000i Specs

Input Voltage
